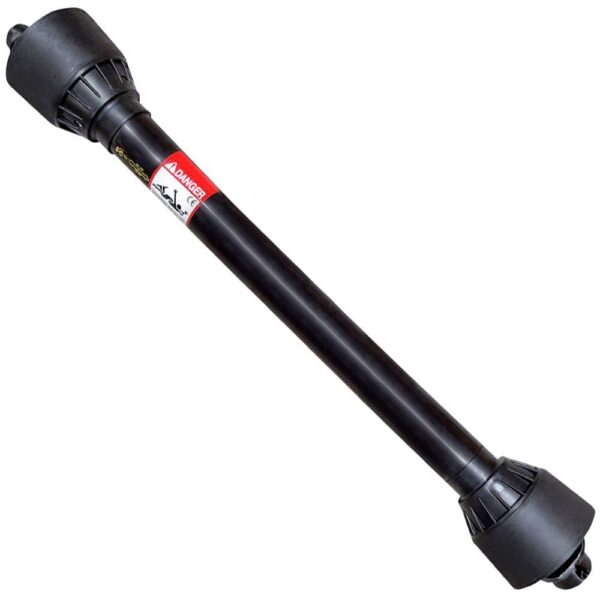

PTO Shaft T4 φ27×74.5 1 3/8″ Z6

Our PTO shaft T4 φ27×74.5 1 3/8″ Z6 is a robust and reliable power transmission tool designed with advanced and innovative technology. This PTO shaft has a power rating of 35HP at 540RPM and weighs 8Kg, ensuring efficient and stable performance on various agricultural tasks. Available in different colors like Green, Orange, Yellow, and Black, it suits the aesthetic preferences of different farmers. The yoke material is of high-quality forging, ensuring durability and longevity. Furthermore, the PTO shaft features diverse tube types, including Triangular, Star, Square, Hexangular, Spline, and Special, to suit various application needs. The spline types for this PTO Shaft are 1 3/8″ Z6 and 1 3/8″ Z21.

The Structure of PTO Shaft:

PTO Shaft Parts:

PTO Shaft Tube:

PTO Shaft Cross Joint:

Features of PTO Shaft T4 φ27×74.5 1 3/8″ Z6

The PTO shaft T4 ??27×74.5 1 3/8″ Z6 is not just a power transmission tool; it is a vital component that ensures the smooth and efficient operation of agricultural machinery. Here are some of its outstanding features:

• High Power Rating: With a power rating of 35HP at 540RPM, it delivers sufficient power to operate various agricultural implements.
• Lightweight: Weighing just 8Kg, it ensures easy installation and reduces the overall weight of your machinery.
• Diverse Colors: Available in Green, Orange, Yellow, and Black, it adds an aesthetic appeal to your farming equipment.
• Quality Material: Made with high-quality forging material, it offers superior durability and longevity.
• Versatile Tube Types: With a variety of tube types, including Triangular, Star, Square, Hexangular, Spline, and Special, it caters to diverse application needs.

Our PTO Shaft can be produced according to your specifications and makes a perfect replacement for damaged parts on Agricultural Alberi cardanici.

Applications of PTO Shaft T4 φ27×74.5 1 3/8″ Z6

The PTO Shaft T4 ??27×74.5 1 3/8″ Z6 can be used in a wide array of applications, including:

• Tractors
• Farm Implements
• Lawn Mowers
• Toppers
• Rotovators

How Does the Agricultural PTO Shaft Work?

The agricultural power take-off (PTO) shaft is a mechanical device used to transmit power from a tractor or other power source to agricultural implements or machinery. Here's how it works:

1. Power Source: The PTO shaft is typically connected to the rear of a tractor or other power source equipped with a PTO. The PTO is a rotating driveshaft that extends from the rear of the tractor's engine.
2. PTO Shaft: The PTO shaft is a telescopic, splined shaft that connects to the PTO output on the power source. It consists of two or more sections that can slide in and out to adjust the length. The shaft is usually made of steel and has a specific number of splines that match those on the PTO output.
3. Implement Connection: The other end of the PTO shaft is connected to the input of the agricultural implement. The implement typically has a PTO input shaft that matches the splines on the PTO shaft.
4. Splined Coupling: To connect the PTO shaft to the implement, a splined coupling mechanism is used. It consists of two halves with matching splines. One half is attached to the PTO shaft, and the other half is attached to the implement's input shaft.
5. Power Transmission: Once the PTO shaft is connected, power is transmitted from the power source to the implement through the rotating PTO shaft. As the power source rotates the PTO shaft, the implement's input shaft also rotates, driving the machinery or implements attached to it.
6. Operational Efficiency: The PTO shaft transfers the rotational energy, enabling the implement to perform its intended function, such as cutting grass, tilling soil, or harvesting crops.

Installation of PTO Shaft T4 ??27×74.5 1 3/8″ Z6

Installing the PTO Shaft is straightforward, provided you follow these steps:

1. 1. Safety Precautions: Before beginning the installation process, ensure that the power source is turned off, the engine is shut down, and the tractor is parked on a level surface. Use appropriate personal protective equipment, such as gloves and safety glasses, to protect yourself during the installation process.
   2. Select the Correct PTO Shaft: Ensure that you have the right PTO shaft for your equipment and tractor. Consider the required length, spline size, and RPM rating of the PTO shaft to match your specific needs.
   3. Adjust Shaft Length: If your PTO shaft is telescopic, adjust the length to match the distance between the power source's PTO output and the implement's PTO input. Avoid extending the shaft to its maximum length, as it may reduce stability and increase the risk of damage.
   4. Attach the PTO Shaft to the Power Source: Connect one end of the PTO shaft to the power source's PTO output. Align the splines on the PTO shaft with those on the PTO output and slide the shaft onto the output until it fits securely. Ensure that the locking mechanism, such as a collar or pin, engages to prevent the shaft from disconnecting during operation.
   5. Connect the PTO Shaft to the Implement: Align the splined coupling on the other end of the PTO shaft with the implement's PTO input shaft. Slide the two halves of the splined coupling together until they are fully engaged. Ensure that the coupling locks securely and that there is no excessive play or movement.
   6. Secure the PTO Shaft: Use any provided locking mechanisms, such as retaining pins or collars, to secure the PTO shaft connections on both ends. These mechanisms prevent accidental disconnection of the shaft during operation.
   7. Install Protective Shields: Ensure that the PTO shaft is adequately protected by installing the appropriate shields or guards. These shields should cover all rotating sections of the PTO shaft and prevent accidental contact. Secure the shields in place using the provided fasteners.
   8. Test the PTO Shaft: Once the installation is complete, start the power source and engage the PTO. Observe the PTO shaft and connections to ensure smooth and balanced operation. Listen for any unusual noises or vibrations that may indicate misalignment or other issues. If any problems are detected, immediately turn off the power source and address the concerns before proceeding.

Maintenance and Care of PTO Shaft T4 φ27×74.5 1 3/8″ Z6

Proper maintenance and regular care of agricultural power take-off (PTO) shafts are crucial for ensuring their safe and efficient operation. Here are some maintenance tips to keep your PTO shaft in good condition:

1. Regular Inspections: Perform visual inspections of the PTO shaft before each use. Check for signs of wear, damage, or loose connections. Look for any cracks, bends, or missing parts. Inspect the protective shields or guards for any signs of damage or wear as well.
2. Lubrication: Apply lubrication to the PTO shaft according to the manufacturer's recommendations. Lubricate the splines, sliding sections, and any moving parts. Proper lubrication reduces friction, prevents corrosion, and ensures smooth operation. Use a suitable lubricant recommended by the manufacturer.
3. Shield Maintenance: Check the condition of the protective shields or guards regularly. Ensure that they are securely fastened and not damaged. Replace any shields that are cracked, broken, or missing. These shields are essential for preventing accidental contact with the rotating shaft, reducing the risk of injury.
4. Tighten Loose Connections: Over time, connections on the PTO shaft may become loose due to vibrations and normal usage. Check all bolts, pins, and fasteners and tighten them as necessary. Be careful not to overtighten, as it can cause damage or deformation.
5. Balance and Alignment: Imbalanced or misaligned PTO shafts can cause excessive vibrations, leading to premature wear and potential failure. If you notice vibrations during operation, have the shaft inspected for balance and alignment issues.
6. Replace Worn or Damaged Parts: If you identify any worn or damaged components during inspections, replace them promptly. This includes worn-out splines, damaged couplings, or any other parts that affect the performance or safety of the PTO shaft.
7. Safe Storage: When not in use, store the PTO shaft in a clean, dry area away from moisture, chemicals, and direct sunlight. Protect it from any potential physical damage or contact with sharp objects. Proper storage helps prevent corrosion and extends the lifespan of the shaft.

Why Choose AGKNX's Agricultural PTO Shafts?

AGKNX HZPT Drive Shaft Co., Ltd., located in Hangzhou Zhejiang City, is a leading manufacturer of high-quality PTO Shafts, riduttori agricoli, Industrial Cardan Shafts, Car Driveshafts, U-Joint Coupling Shafts, Torque Limiters, PTO Shaft Tubes, and Universal Joints. We are committed to delivering high-quality products and services, all of which are grounded in our QDP principles: Quality first, Deliver quickly, and Price Competitive.

Our company is equipped with systematic manufacturing equipment and a dedicated QC team to guarantee our quality and delivery. We hold the CE, TS/16949, and ISO9001 certifications, ensuring our products meet international quality standards. We offer customized services and have a dedicated after-sales service team ready to assist with any concerns or queries. With a reputation for excellence, we are the top professional OEM supplier for many agricultural implement factories in the domestic market.

AGKNX is not just a company; we are a trusted partner committed to providing reliable and innovative power transmission solutions. We warmly welcome every friend to visit us and establish a mutually beneficial long-term relationship cooperation.

Watch Our Product Video
