小麦播種機用Cat 3トラクタートップリンク油圧シリンダー

The Cat 3 tractor top link hydraulic cylinder is a specialized hydraulic component designed to enhance the functionality and versatility of Category 3 tractors, particularly when operating with wheat planters and other heavy-duty agricultural equipment. This hydraulic top link cylinder replaces the standard top link in a three-point hitch system, enabling precise and adjustable control over the angle and position of attached implements.

The Cat 3 tractor top link hydraulic cylinder is a specialized hydraulic component designed to enhance the functionality and versatility of Category 3 tractors, particularly when operating with wheat planters and other heavy-duty agricultural equipment. This hydraulic top link cylinder replaces the standard top link in a three-point hitch system, enabling precise and adjustable control over the angle and position of attached implements.

It is particularly useful for wheat planters, as it allows operators to fine-tune the planter's depth, tilt, and alignment, ensuring optimal seed placement and soil penetration. The hydraulic cylinder top link is made from high-strength steel to withstand heavy loads and harsh agricultural environments. It features durable seals to prevent oil leakage and is compatible with the hydraulic systems of most Cat 3 tractors.

小麦播種機用Cat 3トラクタートップリンク油圧シリンダー

Hydraulic Top Link Cylinder Cat 3 Dimensions

Hydraulic Top Link Cylinder Dimensions

Product Name:
Top Link Cylinder Cat 3
Bore Size:
2-6 inch
Rod Size:
1.125-4 inch
Stroke Size:
4-100 inch
ピンサイズ:
0.5-2 inch
Ports:
G/SAE/NPT/M
Action:
Double Acting
Max Pull:
20 ton
Max Thrust:
3000
:
Black
Body Material:
Steel
Weight (kg):
30

Benefits of Cat 3 Top Link Hydraulic Cylinder for Wheat Planters

  1. Enhanced Precision and Control: The top link hydraulic cylinder allows operators to make precise adjustments to the angle and depth of wheat planters from the tractor cab. This ensures uniform seed placement and optimal soil-to-seed contact, resulting in improved germination and crop yields.
  2. Increased Efficiency: By eliminating the need for manual adjustments to the top link, the hydraulic cylinder top link saves time during planting operations. Farmers can make quick, on-the-go changes to the planter settings, significantly improving overall field productivity and reducing downtime.
  3. Improved Versatility: The hydraulic cylinder top link adapts to varying field conditions, such as uneven terrain or compacted soil. This flexibility allows the planter to maintain consistent performance, ensuring uniform planting depth across different environments and improving crop establishment.
  4. Reduced Operator Fatigue: With hydraulic adjustments controlled from the tractor cab, operators no longer need to manually adjust the top link. This minimizes physical strain and allows farmers to focus on monitoring planting operations, reducing fatigue during long working hours.
  5. Durability and Longevity: Manufactured with high-strength materials and equipped with durable seals, the hydraulic top link cylinder is designed to withstand heavy loads and harsh agricultural conditions. Its robust construction ensures long-lasting performance, reducing maintenance costs and equipment downtime.
  6. Optimized Planting Accuracy: The ability to fine-tune implement settings ensures that seed depth and spacing remain consistent. This accuracy leads to better crop uniformity, reduced seed waste, and higher efficiency, ultimately maximizing the return on investment for wheat planting operations.

Cat 3 Top Link Hydraulic Cylinder

How Does the Hydraulic Cylinder Top Link for Wheat Planter Work

The hydraulic cylinder top link for a wheat planter is an advanced component that replaces the standard mechanical top link in a tractor's three-point hitch system. It functions using hydraulic pressure generated by the tractor’s hydraulic system, allowing for precise and dynamic control over the attached wheat planter.

When connected, the top link hydraulic cylinder serves as the adjustable top link between the tractor and the implement. The operator can control the cylinder's length through hydraulic levers or controls located in the tractor cab. By extending or retracting the cylinder, the angle or tilt of the wheat planter can be adjusted in real-time, without the need for manual intervention. This adjustability is crucial for optimizing the planter’s performance, especially when planting across uneven or varying field conditions.

For example, when operating on sloped terrain, the hydraulic top link cylinder can be extended to tilt the planter forward or retracted to tilt it backward. These adjustments help maintain consistent seed depth, ensuring uniform planting and better germination. Additionally, the top link cylinder can adapt to changes in soil conditions, such as compacted or loose soil, by altering the planter's position to achieve optimal soil-to-seed contact.

The hydraulic cylinder also helps stabilize the implement during transport and operation, reducing vibrations and wear. Allowing on-the-go adjustments improves planting accuracy, reduces downtime, and enhances the overall productivity of wheat planting operations.

Top Link Hydraulic Cylinder for Wheat Planter

Top Link Cylinder Cat 3 Vs Top Link Cylinder Cat 1

FeatureTop Link Cylinder Cat 3Top Link Cylinder Cat 1
Category CompatibilityDesigned for Category 3 tractors, typically used in heavy-duty and large-scale operations.Designed for Category 1 tractors, ideal for small-scale and light-duty tasks.
Tractor Horsepower (HP)Compatible with tractors over 90 HP.Compatible with tractors up to 50 HP.
Load CapacityHigh load capacity, suitable for large and heavy implements like wheat planters.Lower load capacity, suited for smaller and lighter implements.
Hydraulic PressureOperates at higher hydraulic pressure for greater force and precision.Operates at lower hydraulic pressure due to lighter workloads.
Cylinder SizeLarger cylinder diameter and stroke length for handling heavy loads.Smaller cylinder diameter and stroke length for lighter equipment.
Implement SizeUsed with large implements like wide planters and heavy plows.Compatible with smaller implements such as compact seeders and harrows.
Adjustment RangeOffers a wider adjustment range for greater versatility in operations.Limited adjustment range compared to Cat 3 cylinders.
DurabilityBuilt with heavy-duty materials to withstand extreme stress and rugged conditions.Made with lighter materials, suitable for moderate conditions.
CostMore expensive due to increased size, strength, and performance.Less expensive due to smaller size and simpler design.
WeightHeavier due to its robust construction.Lightweight and easier to handle.
Field TypeIdeal for large fields and commercial-scale farming.Designed for small fields and hobby farming.
StabilityProvides better stability for heavy machinery and rough terrain.Suitable for stable, light-duty operations on even terrain.
Hydraulic Flow RequirementsRequires higher hydraulic flow for efficient operation.Compatible with lower hydraulic flow systems.

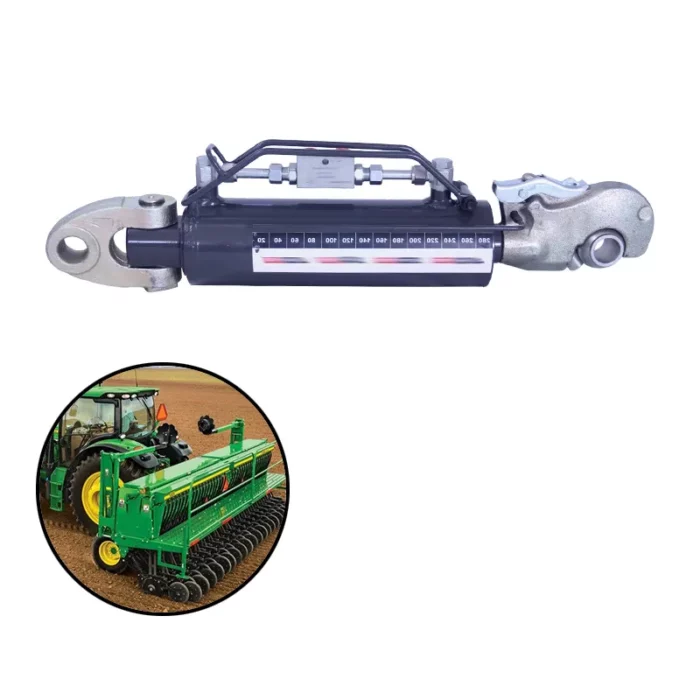

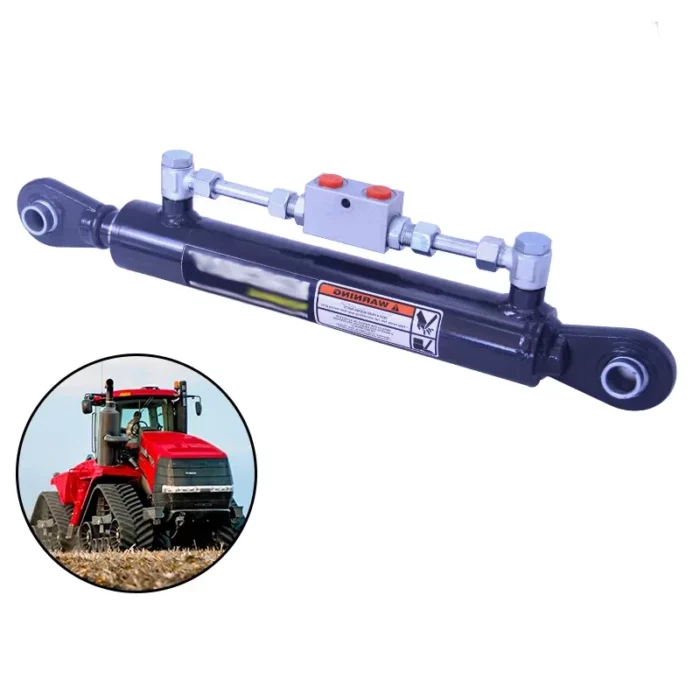

小麦播種機用Cat 3トラクタートップリンク油圧シリンダーTop Link Hydraulic Cylinder for Wheat Planters
Top Link Cylinder Cat 3Top Link Cylinder Cat 1
