Round Baler Gearbox EPT9.0-HL01 for Large Baling Machine

This Round Baler Gearbox EPT9.0-HL01 is a large round baler transmission gearbox, tractor power input. Through the input of the gearbox, the output on both sides drives the machine to operate and transmit power. It has a split-type welded pipe and a half-shaft structure. Easy replacement and maintenance and the design are not limited by disadvantages such as length. The flange ends on both sides use imported maintenance-free bearings for longer service life. The non-traction type gearbox realizes the advantages of small size and lightness and achieves the same transmission efficiency.

Product Specifications

使用RatioInputOutput
r.p.mHpKwN.mr.p.mN.m

大型丸型ベーラー

1.92:1 540110 8014152802728
Remark: If you have any special requirements feel free to let me know, we also accept custom.

Product Dimensions

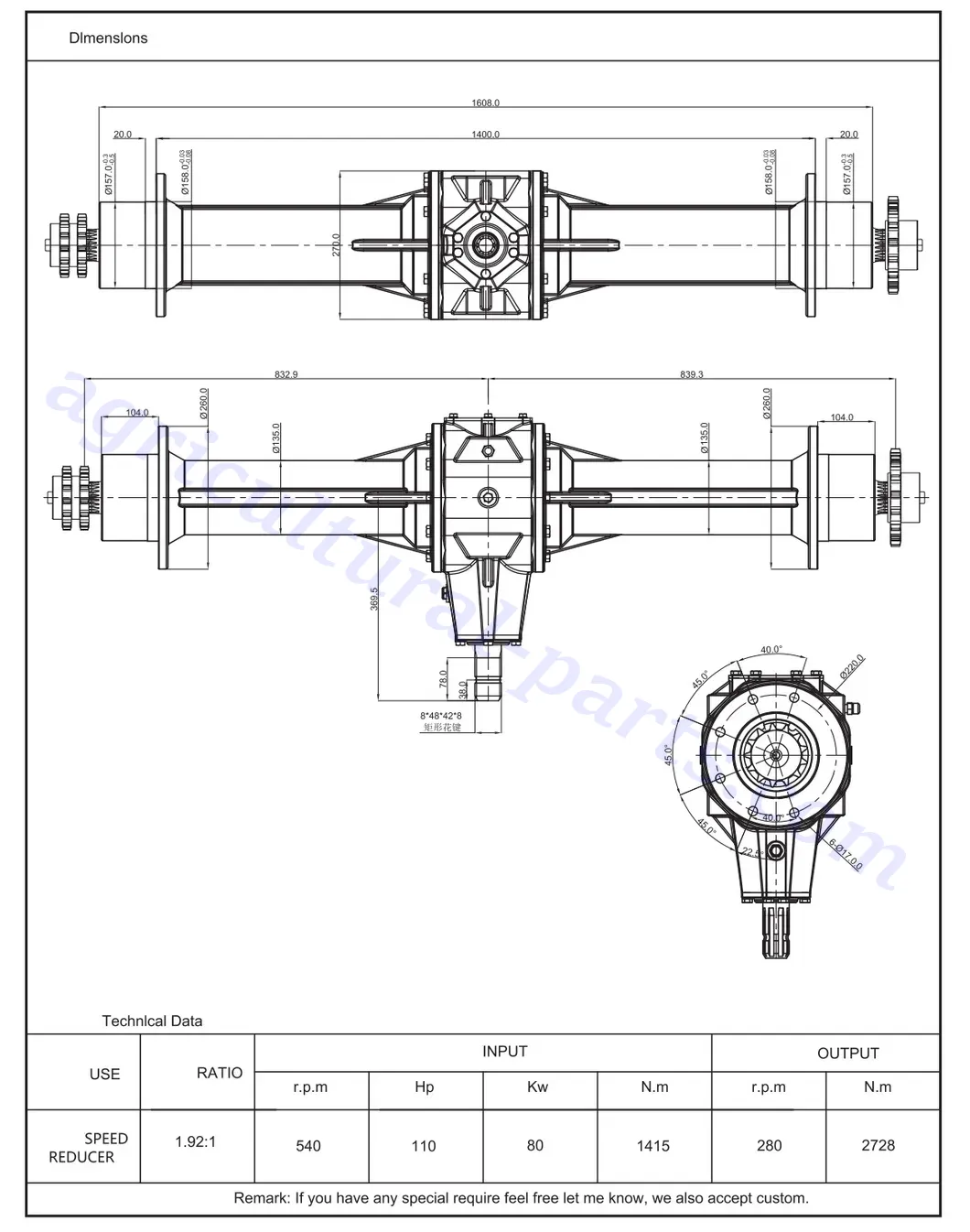

Round Baler Gearbox EPT9.0-HL01 Dimensions

Overview of Round Baler Gearbox EPT9.0-HL01 for Large Baling Machine

This Round Baler Gearbox EPT9.0-HL01 is a large round baler transmission gearbox, tractor power input. Through the input of the gearbox, the output on both sides drives the machine to operate and transmit power. It has a split-type welded pipe and a half-shaft structure. Easy replacement and maintenance and the design are not limited by disadvantages such as length. The flange ends on both sides use imported maintenance-free bearings for longer service life. The non-traction type gearbox realizes the advantages of small size and lightness and achieves the same transmission efficiency. The design of EPT9.0-HL01 is derived from the original design intention of imported models such as American VERMEER and AGCO and is based on domestic and foreign usage conditions. We have carried out a comprehensive upgrade using a cast iron bridge linking method and unibody design, that meets international standards.

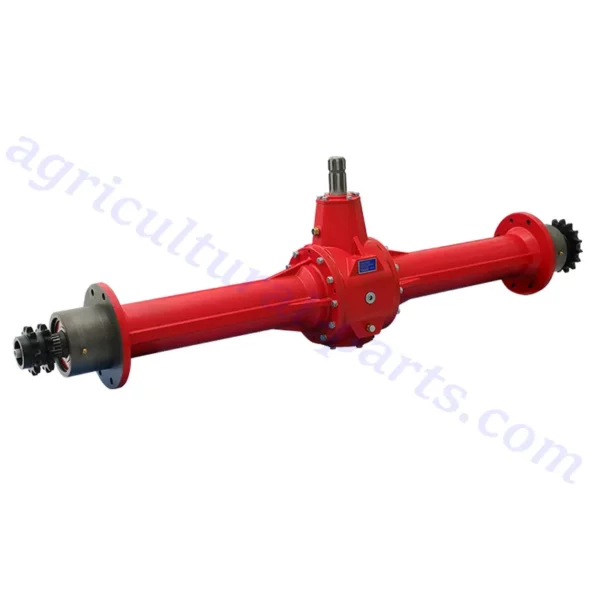

Round Baler Gearbox EPT9.0-HL01 for Large Baling Machine

Applications of Round Baler Gearbox EPT9.0-HL01 for Large Baling Machine

The Round Baler Gearbox EPT9.0-HL01 is a highly efficient and durable component used in large baling machines, primarily designed for agricultural applications. Its main function is to transfer power from the tractor’s power take-off (PTO) or an internal motor to the critical mechanisms of the baler, enabling efficient and automated baling of various materials. The gearbox plays a pivotal role in ensuring smooth and reliable operations, making it indispensable in various farming and industrial applications.

The EPT9.0-HL01 gearbox is widely used in baling machines for compressing and bundling agricultural residues such as hay, straw, corn stalks, or silage. After harvesting, this gearbox ensures the baling machine operates efficiently to produce uniform, compact bales that are easier to store, transport, and handle. Farmers rely on its high torque transmission capabilities to handle heavy loads and large volumes of crop material, especially in high-demand periods where reliability is crucial.

Compact, round bales created with the help of this gearbox are commonly used in livestock feed preparation. The gearbox ensures consistent baling, which is vital for preparing high-quality silage or hay bales that retain nutritional value. These bales can later be stored and fed to cattle, sheep, horses, and other livestock throughout the year.

Round Baler Gearbox Applications

Advantages of Round Baler Gearbox EPT9.0-HL01 for Large Baling Machine

The Round Baler Gearbox EPT9.0-HL01 offers several advantages for large baling machines, making it a preferred choice for agricultural operations. Here are some key advantages of this gearbox:

  1. High Torque Transmission Capability: The EPT9.0-HL01 gearbox is designed to handle high torque loads, making it suitable for the heavy-duty demands of large baling machines. This ensures efficient power transfer from the tractor or motor to the baling machine’s critical components, enabling the smooth operation of rollers, pickup systems, and tying mechanisms, even with dense or heavy materials.
  2. Durable and Long-Lasting Construction: Manufactured from premium-grade materials, this gearbox is built to endure the harsh conditions of agricultural and industrial environments. Its heavy-duty construction resists wear, corrosion, and mechanical stress, ensuring a long operational lifespan and reducing the frequency of repairs or replacements, which ultimately lowers maintenance costs for the user.
  3. Optimized for High-Performance Operations: The EPT9.0-HL01 is precision-engineered to deliver consistent and reliable performance, even during prolonged use in demanding applications. This guarantees uniform bale formation, minimizes downtime caused by mechanical failures, and ensures the baling machine meets productivity targets, especially during peak harvesting or processing seasons.
  4. Compact and Versatile Design: The compact design of the gearbox allows it to fit seamlessly into a variety of large baling machines, regardless of brand or model. Its versatility makes it a preferred choice for manufacturers and users, as it can be easily integrated into existing machinery without requiring extensive modifications or adjustments.
  5. Enhanced Efficiency and Productivity: By optimizing power distribution and ensuring smooth mechanical operations, the EPT9.0-HL01 gearbox contributes to the overall efficiency of the baling machine. This leads to faster baling cycles, reduced energy consumption, and increased productivity, which are critical factors for both agricultural and industrial applications.

Round Baler Gearbox EPT9.0-HL01 for Large Baling Machine

How to Replace a Damaged Round Baler Gearbox EPT9.0-HL01

Replacing a damaged Round Baler Gearbox EPT9.0-HL01 in a round baler is a task that requires care and attention to detail. Here is a general guide on how to replace the gearbox:

  1. Disconnect the Power Source: For safety, disconnect the baler from the tractor's Power Take-Off (PTO) shaft and ensure the machine is turned off. This eliminates accidental movement of components during the replacement process. It's also recommended to lock the machine in a stationary position to avoid unintended rolling or shifting.
  2. Drain Lubricants and Prepare the Gearbox: Drain any remaining oil or lubricants from the damaged gearbox to prevent spills during removal. Use a container to collect the fluid and dispose of it according to environmental guidelines. Clean the surrounding area to remove debris or dirt, ensuring a clean workspace for installation.
  3. Remove the Damaged Gearbox: Carefully disconnect the gearbox from the baler’s frame and associated components like the drive shaft, input/output shafts, and mounting brackets. Use wrenches or other tools to loosen bolts and fasteners. If the gearbox is heavy, use a hydraulic jack or lifting equipment to safely lower it from the machine.
  4. Inspect Other Components for Damage: Before installing the new gearbox, inspect surrounding components such as the drive shaft, PTO shaft, and mounting brackets for wear or damage. Replace or repair any defective parts to prevent future breakdowns. Clean all contact surfaces to ensure smooth installation and proper alignment.
  5. Install the New Gearbox: Position the EPT9.0-HL01 replacement gearbox in place, aligning it with the input/output shafts and mounting brackets. Secure it using the appropriate bolts and fasteners, tightening them to the manufacturer’s recommended torque specifications. Ensure all connections are properly aligned to avoid operational issues.
  6. Lubricate and Test the Gearbox: Refill the gearbox with the recommended type and amount of lubricant, as specified in the baler’s manual. Turn the gears manually to ensure smooth movement. Reconnect the baler to the tractor's PTO shaft and perform a slow-speed test to verify proper installation and operation of the gearbox.

Round Baler Gearbox Applications

Agricultural PTO Shaft for Round Baler Gearbox

The Agricultural PTO Shaft and the Round Baler Gearbox work in tandem to ensure the efficient operation of large baling machines used in agriculture. Their connection is critical for transmitting power from the tractor to the baler, enabling the baler to compress and bind materials like hay, straw, or silage into compact, cylindrical bales.

The PTO shaft acts as the intermediary power conduit between the tractor and the baler. When the tractor's engine runs, it drives the PTO shaft, which rotates to transfer mechanical power to the round baler's gearbox. The Round Baler Gearbox, in turn, takes this rotational motion and distributes it to various components of the baler, such as the pickup mechanism, rollers, and tying systems. The gearbox ensures that power is transmitted at the correct speed and torque to handle the demanding tasks of gathering, compressing, and binding agricultural materials effectively.

This relationship is essential for the baler's functionality. Without the PTO shaft, the round baler wouldn't receive the necessary power from the tractor. Similarly, without the gearbox, the power transferred would not be properly adjusted or distributed for the baler's operations. The gearbox converts the high-speed rotation of the PTO shaft into lower-speed, high-torque output required for heavy-duty baling.

Agricultural PTO Shaft for Round Baler Gearbox

Why Choose AGKNX's Round Baler Gearbox?

AGKNX is a prominent manufacturer of high-performance round baler gearboxes for a variety of applications. Our gearboxes are designed to meet the needs of different agricultural settings, providing reliable and efficient performance.

Our round baler gearboxes are a powerful replacement option for Bush Hog, Comer, Omni Gear, Land Pride, John Deere, Kodiak, Hico/Howse, and other brands of gearboxes. Our technical staff can reconfigure an existing design or assist you in designing a custom round baler gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, input speed, output speed, input torque, output torque, mounting position, and the application's environment are all considerations when choosing an agricultural gearbox. If you want to buy a round baler gearbox, please get in touch with us.

1. Quality Products: Our products are crafted with precision and high-quality materials to ensure durability and performance. We adhere to stringent quality standards, ensuring each part meets the demands of rigorous agricultural operations.

2. Wide Range of Products: We offer an extensive selection of aftermarket spare parts for leading agricultural machinery brands. Our diverse product range meets the varied needs of farmers and businesses worldwide.

3. Competitive Prices: We provide top-quality products at competitive prices, offering exceptional value without compromising on quality. Our efficient manufacturing and strategic partnerships help keep costs low.

4. Excellent Customer Service: Customer satisfaction is our priority. Our dedicated team is ready to assist with inquiries, orders, and technical support. We focus on building long-term relationships through personalized service and expert advice.

5. Fast Delivery: We understand the importance of timely delivery in agriculture. Our efficient logistics network ensures that orders are delivered promptly, minimizing downtime during critical operations.

6. Customization Products: We offer tailored solutions by welcoming customer specifications and designs. Provide drawings or samples, and our expert team will create customized parts to meet your unique needs, ensuring optimal performance.

Round Baler Gearbox Manufacturers
