Steel Straight Bevel Gears Straight Tooth System Ratio 3:1

Steel straight bevel gears with a straight tooth system and a 3:1 ratio are conical gears designed to transmit power between intersecting shafts, typically at a 90-degree angle. The 3:1 ratio indicates that the larger gear has three times as many teeth as the smaller gear pinion, resulting in the pinion rotating three times faster than the crown gear, providing speed reduction and torque increase. These gears feature straight teeth cut parallel to the cone's generators, resembling conical spur gears. Made from materials like carbon steel (e.g., C45), they offer durability but produce more noise and impact stress at high speeds compared to spiral or zerol bevel gears. They are used in applications like locomotives, marine systems, and industrial machinery, requiring rigid mountings for alignment.

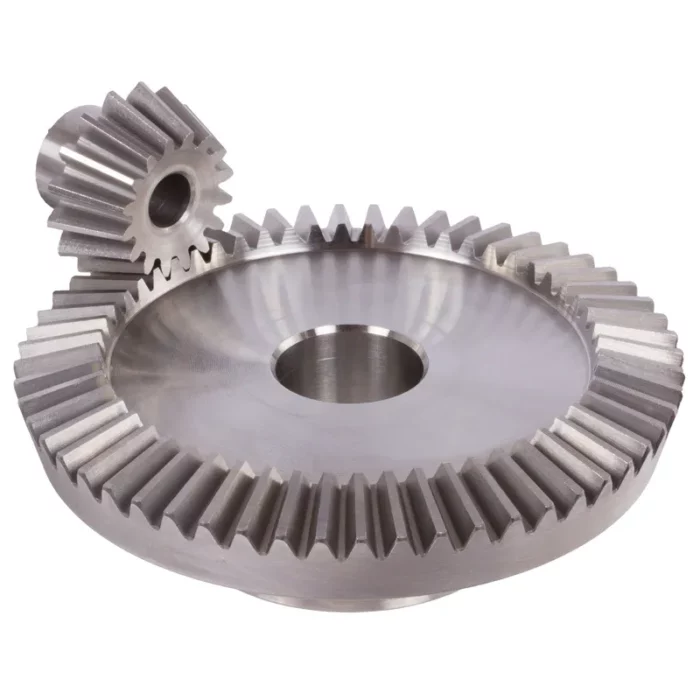

Steel Straight Bevel Gear Ratio 3:1

Steel Straight Bevel Gear Design Features

1. Material Strength and Durability: Steel straight bevel gears, typically made from high-quality carbon or alloy steels like C45 or S45C, offer exceptional strength and wear resistance. These materials ensure long service life under heavy loads, making them ideal for demanding applications such as industrial machinery and automotive systems, where durability is critical.
2. Straight Tooth Design: The gears feature straight teeth cut parallel to the cone's generators, resembling spur gears on a conical surface. This design simplifies manufacturing and maintenance but results in higher noise and impact stress, limiting their use to lower-speed applications, typically below 1000 feet/min or 1000 rpm for smaller gears.
3. 3:1 Gear Ratio: The 3:1 ratio means the larger crown gear has three times as many teeth as the pinion, enabling the pinion to rotate three times faster. This configuration provides significant torque multiplication, making it suitable for applications requiring speed reduction and increased power output.
4. 90-Degree Power Transmission: These bevel gear sets are designed to transmit power between shafts intersecting at a 90-degree angle. This makes them essential in systems like differential drives, marine propulsion, and power plants, where precise angular motion transfer is needed for efficient operation.
5. Rigid Mounting Requirement: Due to the straight tooth design, these steel bevel gears require precise alignment and rigid mountings to minimize backlash and ensure smooth operation. Proper installation is crucial to prevent excessive wear, vibration, or noise, especially in high-torque or continuous-use applications.
6. Versatile Industrial Applications: Steel straight bevel gears are widely used in locomotives, marine systems, and industrial machinery due to their ability to handle moderate speeds and high torque. Their robust construction and cost-effective design make them a reliable choice for various mechanical systems requiring dependable power transmission.

Applications of Steel Straight Bevel Gears

• Automotive Differentials: Steel straight bevel gears are used in vehicle differentials to transmit power from the drive shaft to the wheels at a 90-degree angle. Their 3:1 ratio allows torque distribution, enabling smooth cornering and traction, especially in heavy-duty vehicles like trucks.
• Marine Propulsion Systems: In marine applications, these bevel gear sets transfer power from the engine to the propeller shaft. Their robust steel construction handles high torque at low speeds, ensuring reliable performance in boats and ships under harsh environmental conditions.
• Industrial Machinery: Steel straight bevel gears are integral in machinery like conveyors and presses, where they facilitate precise power transmission between intersecting shafts. Their durability and 3:1 ratio support consistent operation in manufacturing and material handling processes.
• Locomotive Drive Systems: These gears are employed in locomotives to transmit power from the engine to the wheels. Their ability to handle high torque and maintain alignment under heavy loads makes them suitable for rugged railway environments.
• Power Generation Equipment: In power plants, steel straight bevel gears are used in turbine and generator systems to transfer rotational energy at right angles. Their strength and cost-effective design ensure efficient power transmission in demanding, high-load conditions.
• Agricultural Equipment: These gears are used in tractors and harvesters to drive components like cutters or conveyors. The 3:1 ratio provides the necessary torque for heavy-duty tasks, while their steel construction ensures longevity in abrasive outdoor environments.

農業機械	Automotive Industry
Robotics and Automation	Marine Industry

Bevel Gear Vs Miter Gear

Bevel gears and miter gears are both types of gears designed to transmit power between intersecting shafts, typically at a 90-degree angle. However, they differ in their specific features, applications, and design characteristics.

• Definition and Purpose: Bevel gears are conical-shaped gears that can operate at various angles, though 90 degrees is most common. They are used to change the axis of rotation and modify the speed and torque of the system. Miter gears, on the other hand, are a specialized subset of bevel gears. They are designed exclusively for systems where the gear ratio is 1:1, meaning both gears have the same number of teeth and rotational speed remains unchanged.
• Gear Ratios: Bevel gears allow for a variety of gear ratios, such as 2:1, 3:1, or higher, providing flexibility for adjusting speed and torque. Miter gears are limited to a 1:1 ratio, making them suitable only for applications where speed and torque remain constant.
• Applications: Bevel gears are widely used in applications like automotive differentials, industrial machinery, and marine systems, where torque and speed adjustments are necessary. Miter gears, due to their fixed ratio, are typically used in applications like conveyors, small machinery, and equipment requiring directional changes without altering speed.
• Design Differences: While both gears have a conical shape, miter gears are always matched pairs with identical tooth counts, whereas bevel gears can have different sizes to achieve various ratios. This makes bevel gears more versatile for complex systems.

ベベルギア	Miter Gear
