Key Structural Components of 3 Point Hitch PTO Wood Chippers: A Comprehensive Guide

What are 3 Point Hitch PTO Wood Chippers?

3 Point Hitch PTO Wood Chippers are powerful and versatile pieces of equipment designed for agricultural and landscaping applications. They are connected to a tractor via a three-point hitch system and are driven by the tractor's Power Take Off (PTO) system. They are primarily used to chip wood into smaller, manageable pieces.

Advantages of 3 Point Hitch PTO Wood Chippers

There are several distinct advantages of using 3 Point Hitch PTO Wood Chippers:

  1. High Efficiency: They can handle a large volume of wood, making them ideal for large properties or commercial use.
  2. Compatibility: They can be attached to any tractor with a three-point hitch and PTO system.
  3. Powerful: The PTO system allows these chippers to utilize the tractor's power, enabling them to chip thick and hard wood easily.
  4. Cost-Effective: They eliminate the need for a standalone engine, thus reducing maintenance costs and fuel expenses.
  5. Safety: The three-point hitch system provides stability during operation, enhancing safety.
  6. Versatility: They can be used for a variety of wood chipping tasks, including pruning, thinning, and clearing land.

As experienced manufacturers, we can produce these robust and efficient wood chippers, tailored to meet your specific requirements.

Applications of 3 Point Hitch PTO Wood Chippers

3 Point Hitch PTO Wood Chippers can be used in a variety of applications:

  1. Landscaping: Ideal for chipping tree limbs and branches for mulch or compost.
  2. Agriculture: Useful in clearing agricultural land of unwanted wood debris.
  3. Forestry: Used for reducing logging residue into wood chips.
  4. Construction: Used in site preparation and clearing land for construction.
  5. Waste Management: They aid in converting wood waste into usable materials.


Tractor PTO Wood Chipper Applications

Key Structural Components of 3 Point Hitch PTO Wood Chippers

A 3 Point Hitch comprises several key components:

  1. 3-Point Hitch Attachment: This is the part that connects the wood chipper to the tractor. It consists of two lower arms and one upper arm that attach to corresponding points on the tractor, allowing for easy hookup and stability during operation.
  2. : The PTO shaft transfers mechanical power from the tractor to the wood chipper, enabling the chipper's cutting mechanism to function without needing its own engine.
  3. Hopper: The hopper is the large funnel-like part where branches, limbs, and other wood debris are fed into the chipper. Its design is important for user safety and efficient feeding of materials.
  4. Chipping Mechanism: This includes the blades or knives that chip the wood into smaller pieces. It typically consists of a heavy-duty steel disc or drum that houses the cutting blades.
  5. Discharge Chute: After the wood has been chipped, the pieces are ejected from the machine through the discharge chute. The chute directs the chips into a designated area or container.

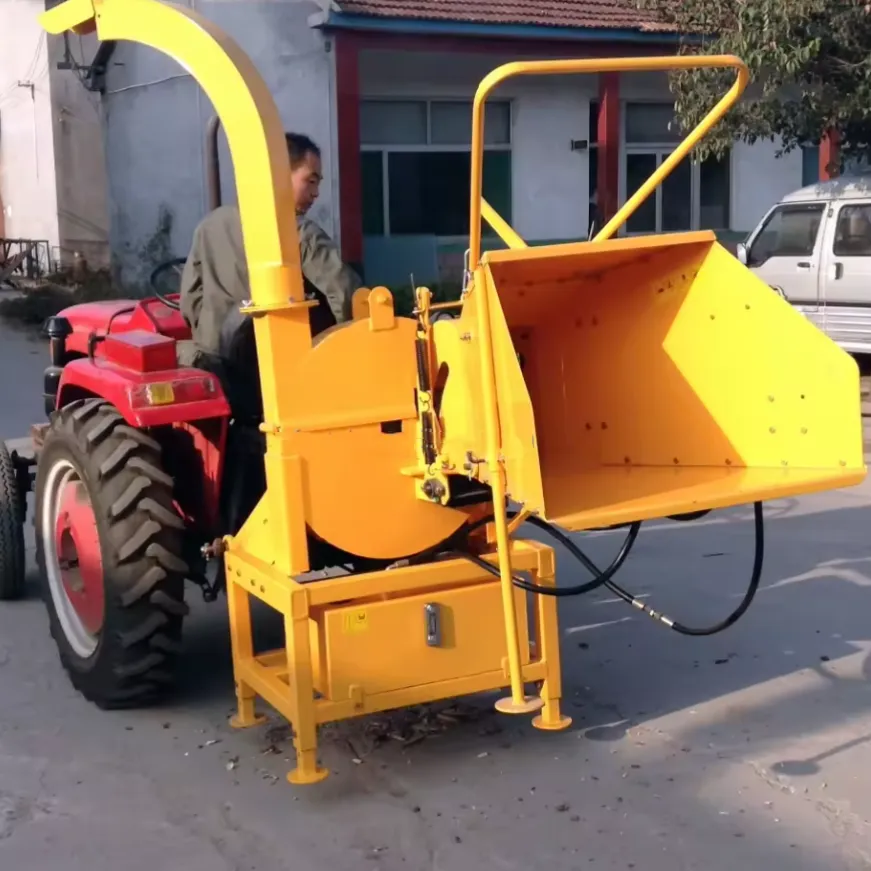

PTO Wood Chipper

Working Principle of 3 Point Hitch PTO Wood Chippers

The working principle of a 3 Point Hitch PTO Wood Chipper involves several key steps:

  1. Connection and Power Transfer: The wood chipper is attached to the tractor using the three-point hitch system. Once the PTO shaft is connected, the tractor's PTO is engaged, transferring rotary power to the wood chipper.
  2. Wood Feeding: Operators feed wood into the chipper through the hopper. The design of the hopper ensures safety while guiding the wood into the chipping mechanism.
  3. Chipping Process: The PTO's power activates the chipping mechanism. As the wood enters the chipping area, the rotating blades cut the wood into small chips.
  4. Discharge Chute: After the wood has been chipped, the pieces are expelled from the machine through the discharge chute.
  5. Control and Adjustments: Operators can make adjustments to the chipper, such as changing the chip size or modifying the feed rate, depending on the specific model of the wood chipper and its features.

3 Point Hitch Tractor PTO Wood Chipper Working Principle

Installation Tips for 3 Point Hitch PTO Wood Chippers

Installing a 3 Point Hitch PTO Wood Chipper to a tractor involves several steps:

  1. Inspect Equipment: Check both the tractor and the wood chipper for any damage or wear that could affect operation or safety.
  2. Aligning the 3-Point Hitch: Lower the 3-point hitch to its lowest position to align the attachment points of the wood chipper with the hitch arms and top link of the tractor.
  3. Connecting the Hitch: Attach the lower arms of the 3-point hitch to the mounting points on the wood chipper. Connect the top link between the chipper and the tractor's top link attachment point.
  4. Connecting the PTO Shaft: Align the PTO shaft of the wood chipper with the PTO stub on the tractor. Slide the PTO shaft onto the tractor's PTO stub, making sure the locking pins engage securely.
  5. Inspect the Installation: Double-check all connections to ensure they are secure. Verify that all safety shields and guards are in place on both the PTO shaft and the wood chipper.
  6. Test Run: Start the tractor and engage the PTO at a low RPM to ensure everything is working correctly.

Common Troubleshooting for 3 Point Hitch PTO Wood Chippers

Troubleshooting a 3 Point Hitch PTO Wood Chipper involves diagnosing and resolving common issues:

  1. Chipper Won't Start or Operate: Check the PTO connection and ensure that the PTO shaft is properly connected. Examine the power source and verify that the tractor is running correctly and that the PTO is engaged.
  2. Wood Chipper Produces Small or Uneven Chips: Inspect the blades for dullness or damage and sharpen or replace them as needed. Adjust the feeding rate to match the chipper's capacity.
  3. Chipper Vibrates Excessively: Check the blades for unevenness or damage. Inspect the chipper drum or disk for damage. Ensure the chipper is securely attached to the tractor's three-point hitch.
  4. Hydraulic Feed System Problems: Check the hydraulic fluid level and top up if necessary. Inspect the hydraulic lines and connections for leaks. Clean and inspect the rollers for smooth operation.
  5. Wood Chips Clogging the Discharge Chute: Turn off and disconnect the chipper before clearing any obstructions. Ensure the discharge chute is correctly aligned and secured.
  6. Excessive Noise: Inspect bearings and bushings for wear and lubricate or replace them as necessary. Tighten any loose bolts or fittings.

PTO Wood Chipper Troubleshooting

Why Choose AGKNX's PTO Wood Chipper?

AGKNX Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery for more than a decade. We specialize in the production of farming, planting, harvesting machinery, and their accessories, as well as matching machines. Our main product line includes PTO shafts, agricultural gearboxes, PTO wood chippers, and more. Our products are known for their excellent performance, reliability, and wide range of specifications.

We hold international certifications and offer customized services to meet your specific needs. Our state-of-the-art production facilities and dedicated after-sales services ensure customer satisfaction. Our products are not only popular domestically but are also exported to various regions including Europe, America, Africa, the Middle East, and Southeast Asia.
