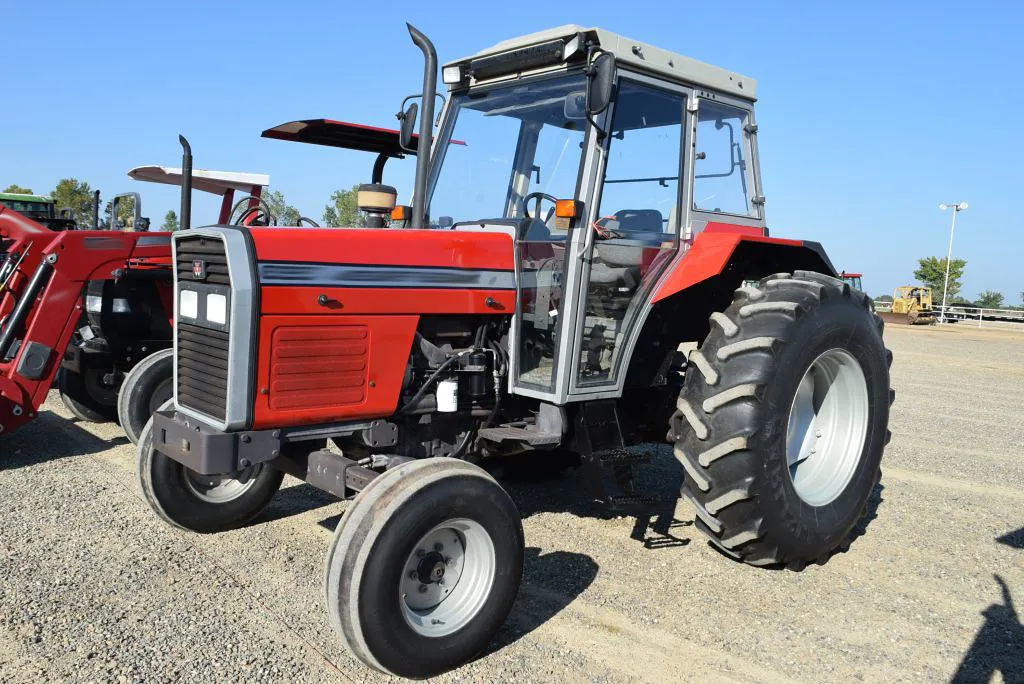

3538958M91 Hydraulic Gear Pump for Massey Ferguson Tractor 373, 373S, 374F, 374S, 377, 383, 383S, 384F, 384S, 387, 393, 393S

The 3538958M91 hydraulic gear pump is an aftermarket replacement part designed for Massey Ferguson tractor models, including the 373, 373S, 374F, 374S, 377, 383, 383S, 384F, 384S, 387, 393, and 393S. This tractor hydraulic pump is responsible for supplying pressurized hydraulic fluid to the tractor's hydraulic system, enabling the operation of essential functions like lifting, steering, and powering hydraulic implements.

3538958M91 Hydraulic Gear Pump Specifications

Compatible with Massey Ferguson Tractor(s):

300 Series: 367CF, 373, 373LX, 373S, 374AP, 374APX, 374AQ, 374F, 374FP, 374FPX, 374FQ, 374GE, 374GEX, 374H, 374S, 374SP, 374SP, 374SPX, 374SQ, 374V, 377, 383, 383LX, 383S, 384AP, 384APX, 384AQ, 384F, 384FP, 384FPX, 384FQ, 384GE, 384GEX, 384GE, 384S, 384SP, 384SPX, 384SQ, 384V, 387, 393, 393LX, 393S

F Series: F70, F80, F90

Replacement for Massey Ferguson OEM Number(s): 3533911M91, 3538958M91

Applied to: Massey Ferguson Tractor
OEM Ref.No.: 3533911M91, 3538958M91
Nominal Displacement: 14ml/r
Maximum Pressure· 250bar
Rotational Speed: 500-3000r/min
Fuel Feed Hole: Φ19
Fuel Discharge Hole:
Φ14
Direction of Rotation:
Left (Anti-clockwise)

Tractor Hydraulic Gear Pump Design Features

Working Principle of Hydraulic Pump in Tractor

 The working principle of a tractor hydraulic gear pump is based on the movement of hydraulic fluid through a mechanical gear assembly to generate pressurized flow. This pressurized fluid powers various hydraulic systems in the tractor, such as lifting implements, operating steering mechanisms, or driving auxiliary functions. The pump operates using two interlocking gears: the drive gear and the driven gear, which are housed inside a tightly sealed casing.

When the tractor's engine drives the tractor hydraulic pump, the rotation of the drive gear begins. This, in turn, causes the driven gear to rotate in the opposite direction. As the gears rotate, they create two primary chambers: the inlet chamber and the outlet chamber. In the inlet chamber, the rotation of the gears creates a vacuum that draws hydraulic fluid from the reservoir into the pump. The fluid enters the pump through the suction port and fills the spaces between the gear teeth.

As the gears continue to rotate, the hydraulic fluid is trapped between the gear teeth and the pump casing. This fluid is carried around the outer edges of the gears, avoiding the center where the gear teeth mesh. The fluid is then forced into the outlet chamber, where the meshing of the gear teeth creates high pressure. This pressurized fluid exits the tractor hydraulic gear pump through the outlet port and flows into the tractor's hydraulic system.

The hydraulic pump is designed to handle continuous operation with minimal leakage, thanks to its precision-engineered gears and sealing systems. Its simplicity and efficiency make the gear pump ideal for high-pressure, high-flow applications in agricultural tractors. The constant rotation of the gears ensures a steady flow of hydraulic fluid, enabling reliable and consistent performance under varying workloads.
