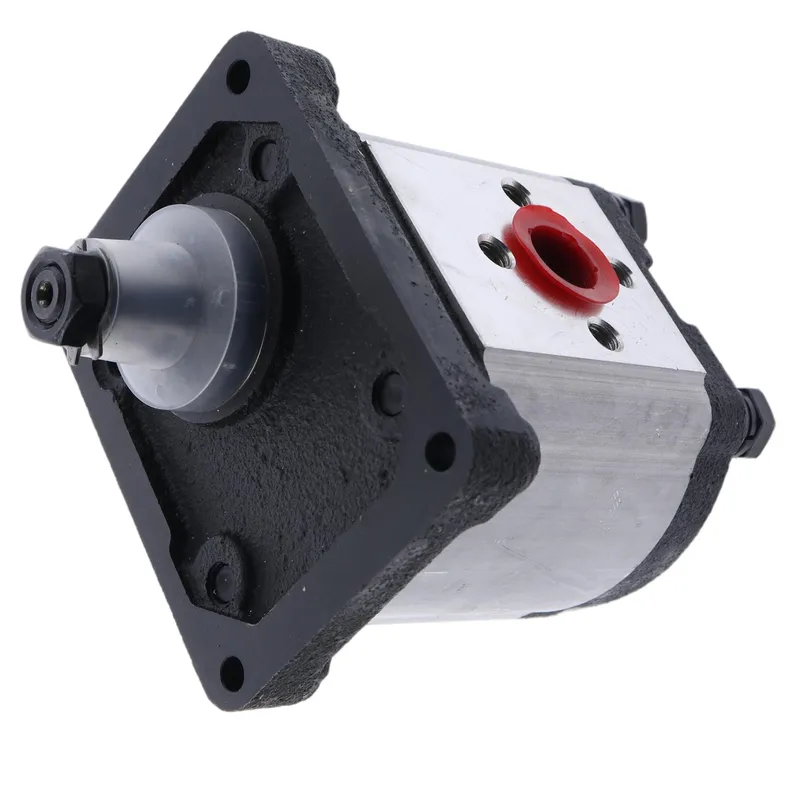

The 5179714 hydraulic gear pump is a high-quality and reliable replacement component, specially designed for various Fiat tractor models, including 110-90, 115-90, 1180, 140-90, 1580, 160-90, 180-90 and 1880. This tractor hydraulic pump plays a crucial role in the hydraulic system of the tractor. It drives important components such as the lifting arm, steering and auxiliary machinery by supplying pressurized hydraulic oil. This pump is made of precision engineering materials, ensuring durability and stable performance even in demanding agricultural or industrial applications. It adopts a gear transmission mechanism, which can provide efficient and stable hydraulic flow, minimize energy loss to the greatest extent and maximize operational output.
5179714 Hydraulic Gear Pump Specifications
Compatible with FIAT Tractor(s): 100-90, 1000, 110-90, 115-90, 1180, 1280, 130-90, 1380, 140-90, 1580, 160-90, 180-90, 1880, 90-90
Compatible with Ford New Holland Tractor(s): 3010S, 3830, 4030, 4230, 4330, 4430
| Applied to: | FIAT Tractor |
| OEM Ref.No.: | 5179714 |
| Nominal Displacement: | 11.0ml/r |
| Maximum Pressure· | 160bar |
| Rotational Speed: | 500-3000r/min |
| Controlled Flow Rate: | 6.0L/min |
| Fuel Feed Hole: | Φ13.6 |
| Fuel Discharge Hole: |
Φ13.6 |
| Direction of Rotation: |
Right (Clockwise) |
Structural Components of Tractor Hydraulic Pump
- Housing
The pump's housing is a robust, precision-machined casing, typically made from cast iron or aluminum, that encases all internal components. It provides structural integrity, protects against external debris, and ensures proper alignment of gears. The housing also includes mounting flanges for secure attachment to the tractor and ports for hydraulic fluid inlet and outlet, designed to withstand high-pressure conditions. - Drive Gear
The drive gear is a central rotating component, usually made of hardened steel, that meshes with the driven gear to create fluid flow. Connected to the tractor's power source, it rotates anti-clockwise in the 5179714 hydraulic pump, generating suction to draw hydraulic fluid into the pump chamber for circulation. - Driven Gear
The driven gear, also crafted from durable steel, interlocks with the drive gear to facilitate fluid movement. Its precise design ensures smooth operation, minimizing wear and maintaining consistent hydraulic pressure. It rotates in tandem with the drive gear to push fluid through the outlet port. - Shaft
The shaft is a critical component that transfers rotational energy from the tractor's engine or PTO to the drive gear. Made of high-strength steel, it is designed to handle torque and resist bending, ensuring reliable tractor hydraulic pump operation under heavy loads. - Seals and Gaskets
Seals and gaskets, typically made from rubber or composite materials, prevent hydraulic fluid leaks and maintain system pressure. These components are strategically placed around the shaft and housing joints, ensuring a tight seal during high-pressure operation and protecting against contamination. - Bearings or Bushings
Bearings or bushings support the rotating shaft and gears, reducing friction and wear. Made from materials like bronze or steel, they ensure smooth rotation, enhance durability, and maintain alignment, contributing to the tractor hydraulic gear pump's efficiency and long service life.
Applications of Tractor Hydraulic Gear Pumps

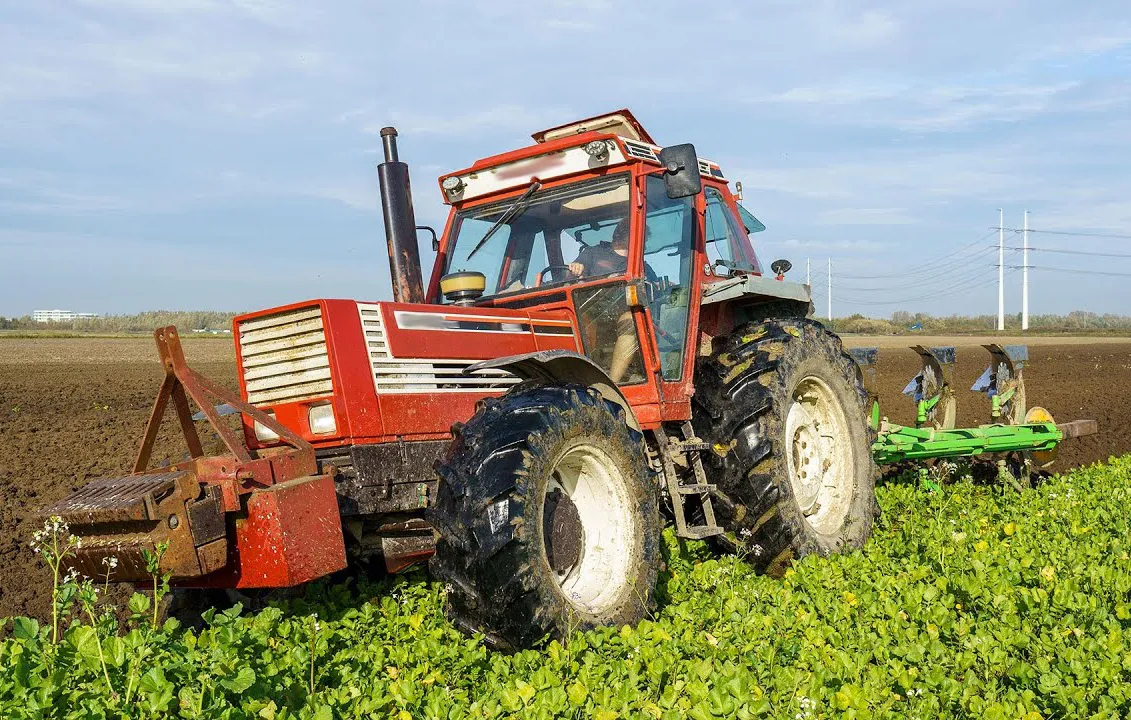

- Powering Hydraulic Lift Systems
The hydraulic gear pump drives the tractor's three-point hitch system, enabling the lifting and lowering of heavy implements like plows and cultivators. This ensures precise control, enhancing efficiency in tasks such as plowing, harrowing, and planting crops. - Operating Front-End Loaders
The tractor hydraulic pumps provide hydraulic power to front-end loaders, facilitating the lifting and movement of materials like soil, manure, or gravel. Its consistent pressure output ensures smooth operation, improving productivity in tasks like loading and transporting farm materials. - Steering Control
Hydraulic gear pumps supply fluid to power steering systems, enabling effortless and precise tractor maneuverability. This is crucial for navigating tight fields or performing repetitive tasks, reducing operator fatigue and improving accuracy during planting or harvesting. - Driving Hydraulic Motors
The tractor hydraulic gear pump powers hydraulic motors for attachments like mowers or seeders. By delivering steady fluid flow, it ensures these implements operate efficiently, supporting tasks such as cutting grass or distributing seeds evenly across fields. - Tipping Trailers
The hydraulic pump enables the operation of hydraulic tipping trailers used for transporting and unloading crops or materials. Its high-pressure output allows trailers to tilt and unload heavy loads quickly, streamlining harvesting and material transport processes. - Supporting Sprayer Systems
Hydraulic pumps power sprayer attachments for applying fertilizers, pesticides, or water. The pump's reliable flow ensures even distribution, enhancing crop health and yield while minimizing waste during large-scale spraying operations.
