The 5179722 hydraulic gear pump is a high-quality and robust component, specially designed for various Fiat tractor models, including 466, 466DT, 480, 480DT, 500, 500DT, 540, 540DT, 55-56, and 55-56DT, etc. This tractor hydraulic pump plays a crucial role in the hydraulic system of these tractors, facilitating the delivery of hydraulic oil and thereby driving various functions such as lifting, steering and operating accessories. It is made of durable materials and can ensure long-term durability even under harsh agricultural and industrial conditions. This pump ensures reliable performance by maintaining consistent hydraulic flow and pressure, thereby optimizing the operational efficiency of the tractor.
5179722 Hydraulic Gear Pump Specifications
- Compatible with Allis Chalmers Tractor(s): 5040, 5045, 5050
- Compatible with Case IH Tractor(s): JX55, JX65, JX75, JX85
- Compatible with FIAT Tractor(s): 466, 466DT, 480, 480DT, 500, 500DT, 540, 540DT, 55-56 (1/89-later), 55-56DT, 55-56DT (1/89-later), 55-66, 55-66DT, 55-76F, 55-76FDT, 55-76V, 55-76VDT, 60-56 (1/89-later), 60-56DT (1/89-later), 60-66, 60-66DT, 60-76F, 60-86F (3/92-later), 60-86FDT (3/92-later), 60-86SV (3/92-later), 60-86SVDT (3/92-later), 60-86V (3/92-later), 60-93, 60-93DT, 65-46, 65-56 (1/89-later), 65-56DT (1/89-later), 65-93, 65-93DT, 70-56 (1/89-later), 70-56DT (1/89-later), 70-66, 70-66DT, 70-66F, 70-66LP, 70-66LPDT, 70-66S (12/89-later), 70-66SDT (12/89-later), 70-66V, 70-76F, 70-76FDT, 70-76LP, 70-76LPDT, 72-93, 80-66, 80-66DT, 80-66F, 80-66FD, 80-76F, etc
- Compatible with Ford Tractor(s): 3830 (Orchard s/n C3601-earlier), 4030 (Orchard 1/92-12/96), 4230 (Orchard 1/92-12/96), 4330 (V, s/n 5129481-earlier, 3/96-later)
- Compatible with New Holland Tractor(s): TD95D, TT55, TT65, TT75, 3010S (4/96-later), 4010S (4/96-later), 4430 (1/92-12/98), 5010S (4/96-later), 5530 (Hi Clearance s/n 5129481-earlier, 3/92-12/97), 6530 (Hi Clearance s/n 5129481-earlier, 3/92-12/97)
| Applied to: | FIAT Tractor 466, 466DT, 480, 480DT, 500, 500DT, 540, 540DT, 55-56, 55-56DT |
| OEM Ref.No.: | 5179722 |
| Manufactory Ref. No.: | FIAT 480 |
| Nominal Displacement: | 11.0ml/r |
| Maximum Pressure· | 160bar |
| Rotational Speed: | 500-3200r/min |
| Controlled Flow Rate: | 16.0L/min |
| Fuel Feed Hole: | Φ20 |
| Fuel Discharge Hole: |
Φ13.6 |
| Direction of Rotation: |
Left (Anti-clockwise) |

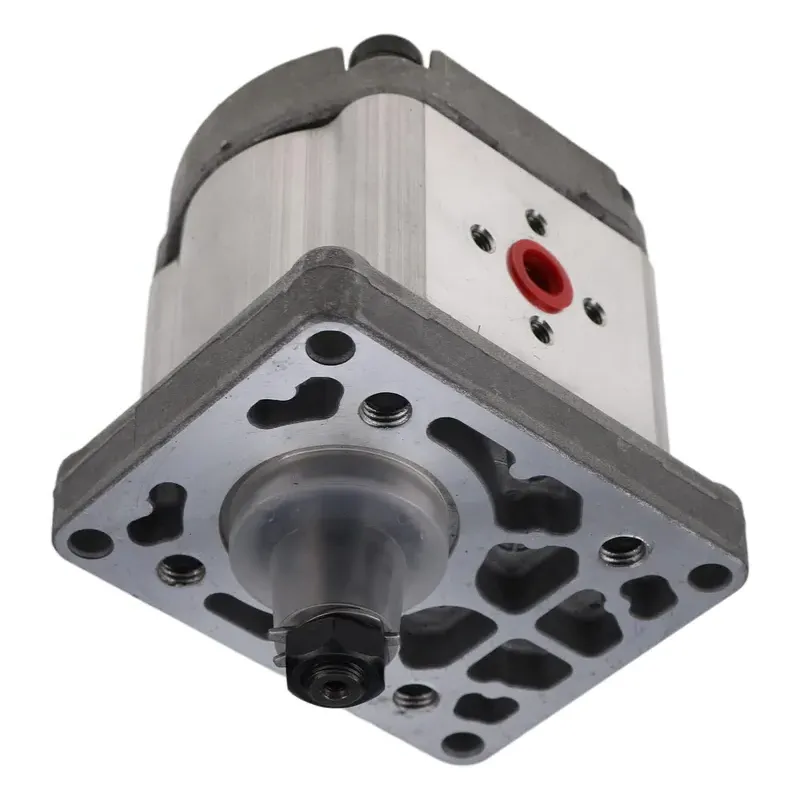

Tractor Hydraulic Gear Pump Features
- High-Quality Construction
The tractor hydraulic gear pump is built using premium-grade materials that ensure durability and resistance to wear. It is designed to withstand harsh operational conditions, offering consistent performance in demanding agricultural and industrial environments. - Reliable Hydraulic Flow
This gear pump delivers a steady and reliable hydraulic flow, ensuring efficient operation of tractor functions such as lifting, steering, and powering attachments. Its design minimizes pressure fluctuations, enabling smooth and uninterrupted performance. - OEM Compatibility
Specifically engineered to meet original equipment manufacturer (OEM) specifications, the tractor hydraulic pump guarantees a precise fit for tractors. It integrates seamlessly with various FIAT tractor models, enhancing compatibility and reducing installation difficulties. - Compact and Efficient Design
The hydraulic pumps for tractors feature a compact design that optimizes space utilization within the hydraulic system. Its efficient engineering reduces energy consumption, making it an economical and effective choice for maintaining tractor performance. - Low Maintenance Requirements
Designed for long-term use, the hydraulic pump requires minimal maintenance, reducing downtime and repair costs. Its robust build ensures that it can handle heavy-duty tasks without frequent replacements or servicing. - Versatility Across Models
This hydraulic gear pump is versatile, fitting a wide range of FIAT tractor models, including 466, 480, 500, 540, and 55-56 series. Its adaptability makes it a reliable choice for diverse operational needs.
Installation of the Hydraulic Pump for Tractors
- Prepare the Work Area and Tools
Before starting the installation, ensure the tractor is parked on a flat, stable surface with the engine turned off. Gather all necessary tools, such as wrenches and hydraulic fluid, to avoid interruptions during installation. - Drain the Hydraulic System
Carefully drain the hydraulic system by removing the reservoir cap and opening the drain plug. This step prevents fluid spillage during the tractor hydraulic pump replacement, maintaining cleanliness and reducing the risk of contamination. - Remove the Old Pump
Disconnect the hydraulic lines attached to the old pump, ensuring no residual pressure is present. Loosen and remove the mounting bolts, and carefully detach the old pump without damaging adjacent components or fittings. - Inspect and Prepare Connections
Thoroughly inspect the hydraulic lines, fittings, and mounting surfaces for any signs of wear, debris, or damage. Clean all connections and replace any faulty parts to ensure a secure and leak-free installation. - Install the New Pump
Position the new hydraulic gear pump onto the mounting bracket and align it correctly. Secure it tightly using the provided bolts, and reconnect the hydraulic lines, ensuring all connections are properly tightened to prevent leaks. - Refill and Test the System
Refill the hydraulic reservoir with clean, manufacturer-recommended fluid. Start the tractor and operate the hydraulic functions to test the tractor hydraulic gear pump. Check for leaks, unusual noises, or pressure issues, ensuring proper functionality before full operation.
