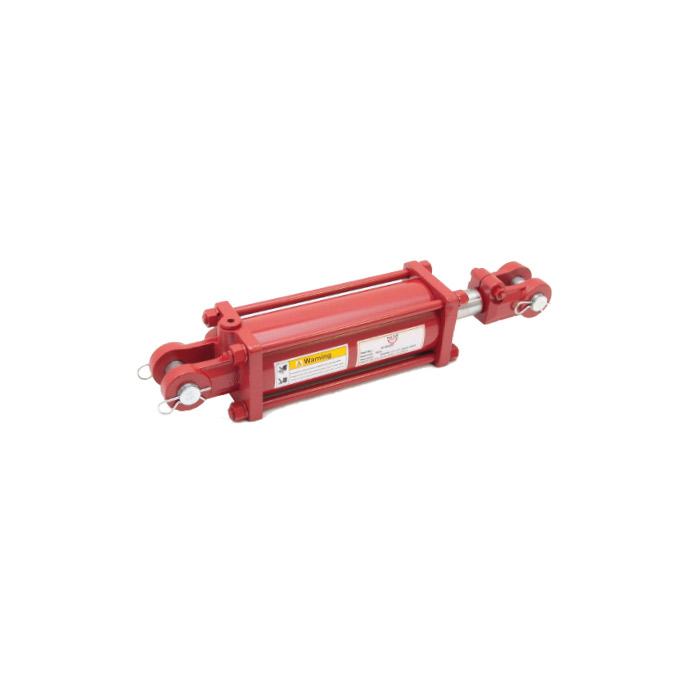

Hydraulic Tie Rod Cylinders

2500 psi double acting tie rod cylinder.
Both ends have a 1” pin. Rod ends are threaded.
All dimensions are in inches.

  • Use with 2-5/16” gooseneck ball that is recessed or not!
  • Or, mount without a gooseneck ball using our bracket.

2500 psi double acting tie rod cylinder.
Both ends have a 1” pin. Rod ends are threaded.
All dimensions are in inches.

Bore DiameterStroke LengthRod DiameterRetracted LengthExtended LengthPortsWeight (lbs)SKU
261-1/816.2522.253/8″ NPT15TRCL2006NPT
281-1/818.2526.253/8″ NPT17TRCL2008NPT
2101-1/820.2530.253/8″ NPT19TRCL2010NPT
2.581-1/818.2526.253/8″ NPT20TRCL2508NPT
2.5161-1/826.2542.253/8″ NPT29TRCL2516NPT
2.5241-1/834.2558.253/8″ NPT34TRCL2524NPT
381-1/418.2526.251/2″ NPT27TRCL3008NPT
38 ASAE1-1/420.2528.251/2″ NPT28TRCL3008A
3121-1/422.2534.251/2″ NPT32TRCL3012NPT
3141-1/424.2538.251/2″ NPT35TRCL3014NPT
3161-1/426.2542.251/2″ NPT37TRCL3016NPT
3.58 ASAE1-1/420.2528.251/2″ NPT32TRCL3508A
3.5161-1/426.2542.251/2″ NPT48TRCL3516NPT
3.5301-1/240.2570.251/2″ NPT62TRCL3530NPT
3.5361-1/246.2582.251/2″ NPT70TRCL3536NPT
481-1/218.2526.251/2″ NPT42TRCL4008NPT
4161-1/226.2542.251/2″ NPT62TRCL4016NPT
4241-1/234.2558.251/2″ NPT79TRCL4024NPT

Custom Options are available on volumes over 50 with a two month lead time.

Additional information

Control

Double Acting w/ Flow Control

Cylinder

5 Liter

Hydraulic Tank

3” Bore x 16” Stroke

Power

12 V, 20 Cables w/ Power Connector

Power Unit

12 V, 20 Cables w/ Power Connector

SKU

BLSP-HGSN-ASM

Spears

48” Length
