The RE73947 hydraulic gear pump is a high-performance replacement component specifically designed for John Deere tractors, including models 5410, 5420, 5510, 5520, 5603, 5615, 5715, 5076E, 5082E, 5090E, 5093E, and 5101E. This tractor hydraulic pump plays a crucial role in the tractor's hydraulic system, ensuring appropriate oil flow and pressure to operate important components such as steering, braking, and farm tool functions. This pump is made of durable materials, capable of withstanding heavy agricultural operations and maintaining stable performance under various working conditions.
RE73947 Hydraulic Gear Pump Specifications
Direct fit for the following equipment: John Deere Series 5000: 5076E, 5076EL, 5076EF, 5082E, 5083E, 5090E, 5090EL, 5090EH, 5093E
John Deere Series 5001: 5101E
John Deere Series 5003: 5403, 5603
John Deere Series 5005: 5605, 5705
John Deere Series 5010: 5410, 5510, 5510N
John Deere Series 5015: 5415, 5415H, 5515, 5515F, 5515V, 5615, 5615F, 5615V, 5715, 5715HC
John Deere Series 5020: 5420, 5420N, 5520, 5520N
John Deere Series 5025: 5425, 5425N, 5625, 5725, 5725N

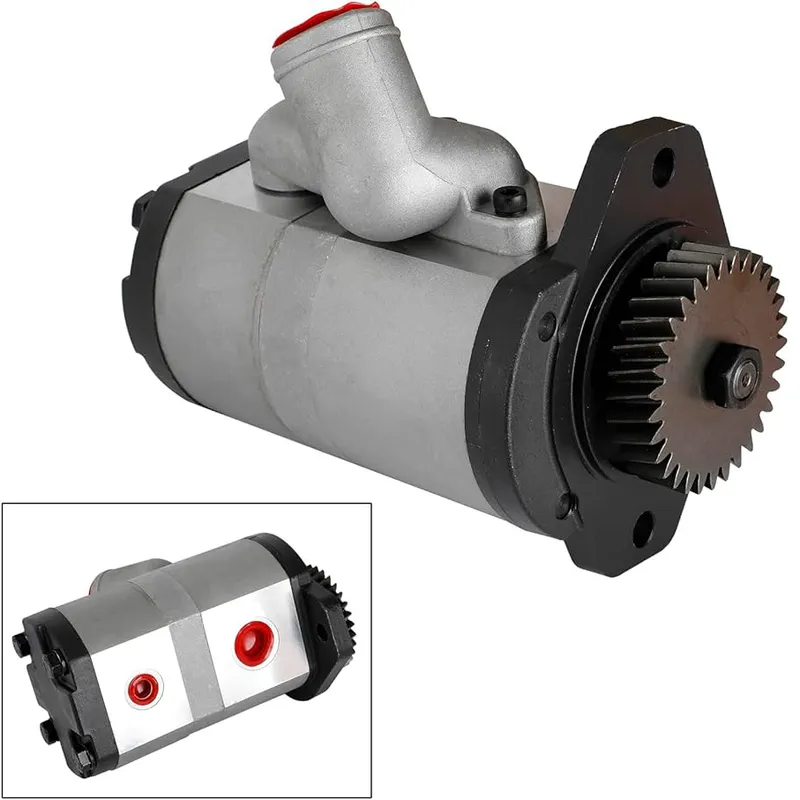

Hydraulic Gear Pump Replacement for John Deere RE73947
| Applied to: | John Deere Tractor |
| OEM Ref.No.: | RE73947, RE72058, RE69866 |
| Nominal Displacement: | 30/14ml/r |
| Maximum Pressure· | 250bar |
| Rotational Speed: | 700-2500r/min |
| Fuel Feed Hole: | Φ32 |
| Fuel Discharge Hole: |
M27*2 & M22*1.5 |
| Direction of Rotation: |
Left (Anti-clockwise) |
Benefits of Hydraulic Gear Pump for Tractor
- Efficient Hydraulic Power Delivery
The hydraulic gear pump ensures efficient power transmission by maintaining a consistent flow of hydraulic fluid, which is essential for operating critical tractor functions like steering, lifting, and braking. This efficiency enhances the overall performance and productivity of the tractor. - Durability and Longevity
Designed with high-quality materials, the tractor hydraulic pump is built to withstand the rigors of heavy-duty agricultural tasks. Its robust construction ensures a long service life, reducing the need for frequent replacements and lowering maintenance costs over time. - Precise System Control
By delivering a steady and reliable flow of hydraulic fluid, the hydraulic pump for tractor ensures precise control over tractor implements and attachments. This accuracy is crucial for tasks like plowing, lifting, and planting, where precision directly impacts productivity and quality. - Compatibility with John Deere Models
The tractor hydraulic gear pump is engineered specifically for John Deere tractors, ensuring seamless integration and compatibility with models like 5410, 5420, and others. This fit reduces installation complexity and ensures optimal performance without requiring additional modifications. - Enhanced Energy Efficiency
The hydraulic pump's precision-engineered gears minimize energy loss during fluid transfer, reducing the tractor's overall fuel consumption. This enhanced efficiency not only lowers operating costs but also contributes to more environmentally friendly farming operations.
How a Tractor Hydraulic Pump Works?
The tractor hydraulic pump is an important component of the hydraulic system, providing power for various mechanical functions, such as steering, lifting, braking, and operating accessories. Its working principle is to convert the mechanical energy of the tractor engine into hydraulic energy, and then use it to drive different systems. The operation of a gear pump is based on the movement and displacement of hydraulic oil through precisely designed gears.
This tractor hydraulic gear pump is usually composed of two meshing gears, which are installed inside a metal casing. One of the gears is connected to the tractor's engine or power output (PTO) system, which drives the gears to rotate. When the gears rotate, they create a vacuum at the pump's inlet, drawing hydraulic oil (usually oil) from the oil tank into the pump. Then, the oil is trapped between the gear teeth and the wall of the pump casing.
As the gears continue to rotate, the hydraulic oil is delivered from the inlet side of the hydraulic pump to the outlet side. The meshing of the gears at the outlet forces the oil to flow out of the pump under high pressure. Then, these pressurized fluids are conveyed through hydraulic pipelines to various systems, such as lifting equipment or operating steering mechanisms.
This hydraulic pump for tractor operates continuously when the tractor is running, ensuring a stable supply of hydraulic oil and thus maintaining the system's functionality. Its simple yet sturdy design makes it efficient, durable and reliable in agricultural applications.
