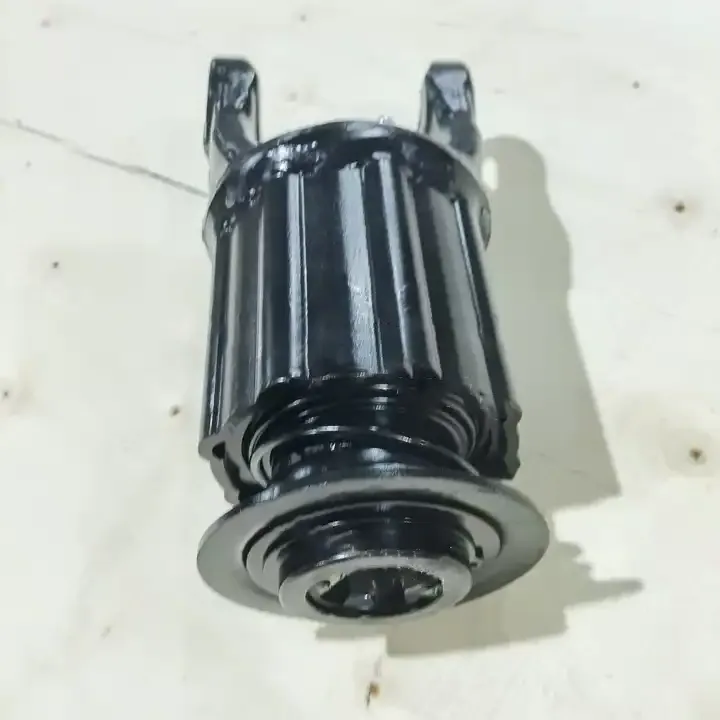

Torque Limiters Agricultural Machinery Parts Black SA 3 Rows for Tractor

Introducing the Torque Limiters Agricultural Machinery Parts Black SA 3 Rows for Tractor. This new product comes with a 1-year warranty and is applicable to a wide range of industries. It's meticulously crafted from 1045C material and forged for superior strength. With a weight of 3 KG, it's robust yet lightweight. The Double Joint Yoke type is designed for use with tractors and tractor implements. The product comes with a CE ISO TS certificate, affirming its quality and compliance with international standards.

PTO Shaft Parts Ratchet Torque Limiter Specifications

Features of Torque Limiters Agricultural Machinery Parts

Torque Limiters Agricultural Machinery Parts Black SA 3 Rows for Tractor are packed with features designed to enhance functionality and durability. These include:

• Material: Made from 1045C, known for its high strength and durability.
• Color: Black for a sleek and professional look.
• Process: Forged to ensure superior strength and durability.
• Certificate: Comes with CE ISO TS certification, affirming its quality and compliance with international standards.
• Teeth: Features 1 3/8'' Z6 teeth for efficient transmission of power.

Our company is capable of producing this product and it serves as the perfect replacement for the corresponding parts that are damaged on PTO Shaft Ratchet Torque Limiters.

Applications of PTO Shaft Ratchet Torque Limiters

PTO shaft ratchet torque limiters are utilized in a variety of agricultural applications, including:

• Tractor-driven implements
• Harvesting equipment
• Grain handling and processing
• Irrigation systems
• Livestock feeding and bedding equipment
• Orchard and vineyard equipment

Types of PTO Shaft Torque Limiters

PTO Shaft Torque Limiters come in various types, each designed to cater to different machinery needs and operational scenarios:

• Friction Clutch Torque Limiters
• Shear Bolt Torque Limiters
• Ratchet Type Torque Limiters
• Ball Detent Torque Limiters
• Hydraulic Torque Limiters

How Does PTO Shaft Ratchet Torque Limiter Work?

A PTO shaft ratchet torque limiter operates based on a ratchet mechanism. Here's a step-by-step explanation of how it works:

1. Assembly: The PTO shaft ratchet torque limiter is typically installed between the power source (such as a tractor or engine) and the driven equipment (implement or machinery). It is connected to the PTO shafts at both ends.

2. Ratchet Mechanism: The torque limiter consists of a ratchet wheel or gear with teeth and specially designed pawls or detents. The ratchet wheel is mounted on one end of the torque limiter, while the pawls are positioned to engage with the teeth of the ratchet wheel.

3. Torque Setting: The torque limiter is designed to have an adjustable torque setting. This can be achieved by adjusting the spring tension or positioning of the pawls. The torque setting determines the maximum torque level at which the torque limiter will disengage.

4. Power Transmission: During normal operation, when the torque applied to the PTO shaft is within the set limit, the pawls engage with the ratchet teeth, allowing rotational power transmission from the power source to the driven equipment.

5. Excessive Torque Load: If the torque load exceeds the preset limit, such as due to sudden overloads or blockages in the driven equipment, the torque limiter comes into action.

6. Pawl Disengagement: When the torque exceeds the set limit, the force applied to the pawls overcomes the spring tension, causing the pawls to disengage from the ratchet teeth. This interrupts the power transmission from the power source to the driven equipment.

7. Slip or Lock: Depending on the design of the torque limiter, it can either slip or lock when the pawls disengage. In a slipping torque limiter, the ratchet wheel continues to rotate freely without transmitting torque to the driven equipment. In a locking torque limiter, the ratchet wheel locks in place, preventing any further rotation.

8. Protection and Safety: By disengaging or interrupting the power transmission, the torque limiter provides protection to the driven equipment and the PTO driveline components. It helps prevent damage to machinery, such as gearboxes, drivelines, and implements, as well as reduces the risk of accidents and injuries to operators.

Maintenance of PTO Shaft Ratchet Torque Limiter

To maintain a PTO shaft ratchet torque limiter, follow these steps:

• Regular Inspection
• Lubrication
• Cleaning
• Torque Setting Verification
• Replacement of Worn Components
• Proper Installation

Why Choose AGKNX's PTO Shaft Ratchet Torque Limiters?

AGKNX Drive Shaft Co., Ltd., located in Hangzhou Zhejiang City, specializes in developing, manufacturing, and marketing PTO shafts, agricultural gearboxes, industrial cardan shafts, PTO shaft tubes, PTO shaft yokes, PTO shaft universal joints, PTO shaft torque limiters, car driveshafts, and u-joint coupling shafts, etc. Our company exports its products to more than 50 countries in 5 continents of the world.

We pride ourselves on our professionalism, international certifications, customized services, production facilities, and after-sales services. We have the CE, TS/16949, and ISO9001 certificates and we guarantee our quality and delivery with systematic manufacturing equipment and a QC team. We warmly welcome every friend to visit us and establish a mutually beneficial long-term relationship cooperation.

Watch SA Ratchet Torque Limiter for PTO Shaft
