Agricultural PTO Shaft for Woods BrushBull Rotary Mowers BB48X, BB60X, BB72X, HC48, HC54, HC60, HC72

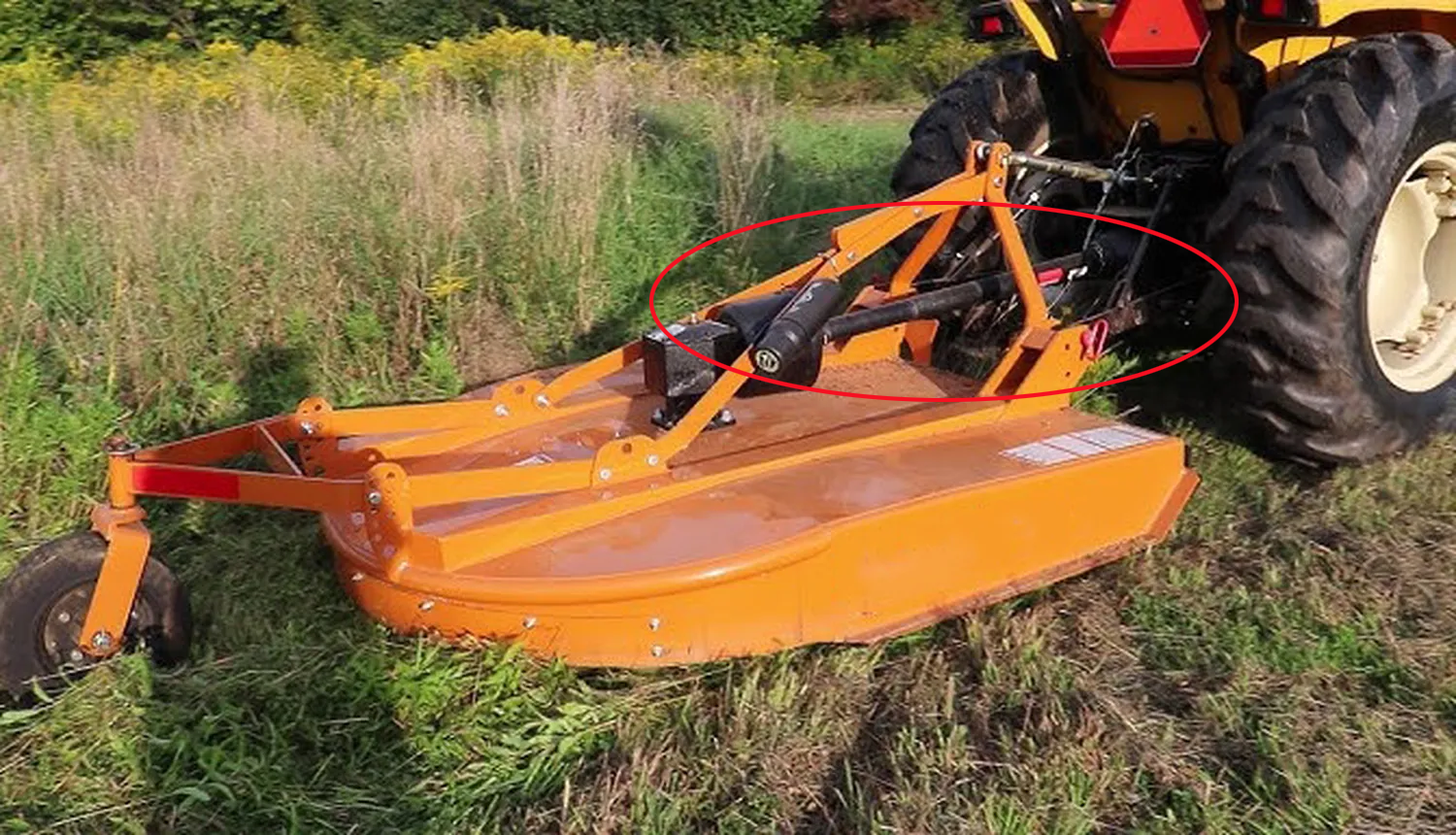

The agricultural PTO shaft for Woods BrushBull Rotary Mowers (models BB48X, BB60X, BB72X, HC48, HC54, HC60, HC72) is a crucial component designed to transfer power efficiently from a tractor to the mower’s gearbox, enabling the cutting blades to operate effectively. This PTO shaft is specifically engineered to match the power requirements and operational demands of these mower models, ensuring optimal performance in heavy-duty agricultural applications.

PTO Shaft for Woods BrushBull Rotary Mower Models: BB48X, BB60X, BB72X, HC48, HC54, HC60, HC72

PTO Shaft for Woods BrushBull Rotary Mowers

The original equipment is the Walterscheid 2300 PTO shaft. But we can make high-quality replacements for Walterscheid 2300 PTO shafts.

PTO Shaft for Woods Rotary Mowers Models:

MODELTYPEHPSpindlesPROTECTIONPTO Driveline
HC483-POINT
15-50
1
Shear Pin Yoke or Clutch
CAT3 * 2300 or BYP4
HC543-POINT
15-50
1
Shear Pin Yoke or Clutch
CAT3 * 2300 or BYP4
HC603-POINT
15-50
1
Shear Pin Yoke or Clutch
CAT3 * 2300 or BYP4
HC723-POINT
15-50
1
Shear Pin Yoke or Clutch
CAT3 * 2300 or BYP4
BB48X3-POINT
15-50
1
Shear Pin Yoke or Clutch
CAT3 * 2300 or BYP4
BB60X3-POINT
15-50
1
Shear Pin Yoke or Clutch
CAT3 * 2300 or BYP4
BB72X3-POINT
30-65
1
Shear Pin Yoke or Clutch
CAT3 * 2300 or BYP4

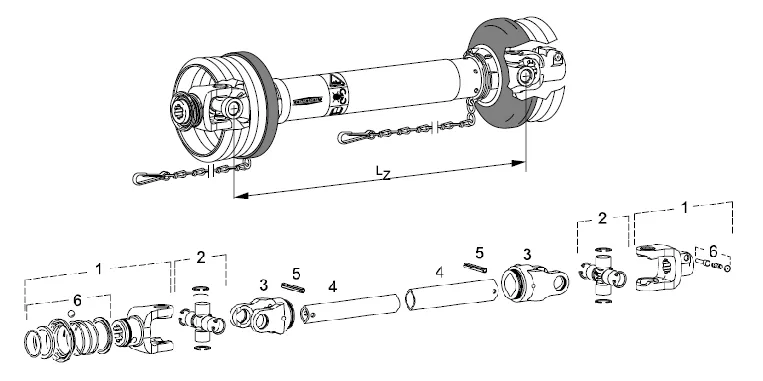

Main Shaft: Cat 3 Standard

Most tractors using 1.375-6 spline and input shaft is 1.375" or 1.50" round with shear pin or 2 disc clutch. Other combinations are available.

Cat 3 Standard (Walterscheid 2300 Series) or (Bondioli and Pavesi Size 4- Not Shown)

PTO Shaft for Woods BrushBull Rotary Mowers

Overview of PTO Shaft for Woods BrushBull Rotary Mowers BB48X, BB60X, BB72X, HC48, HC54, HC60, HC72

The agricultural PTO shaft for Woods BrushBull Rotary Mowers (models BB48X, BB60X, BB72X, HC48, HC54, HC60, HC72) is a crucial component designed to transfer power efficiently from a tractor to the mower's gearbox, enabling the cutting blades to operate effectively. This PTO shaft is specifically engineered to match the power requirements and operational demands of these mower models, ensuring optimal performance in heavy-duty agricultural applications.

Typically, the PTO shaft is constructed with high-strength steel to endure the torque and stress generated during mowing operations. It features telescoping sections that allow for length adjustment, accommodating the distance between the tractor and the mower. The shaft also includes universal joints at both ends to facilitate angular movement, ensuring smooth power transmission even on uneven terrain. Safety is a key consideration, so the shaft is often equipped with a protective shield to prevent accidental contact with rotating components.

PTO Shaft for Woods BrushBull Rotary Mowers

Typical Applications of PTO Shaft for Rotary Mowers

A PTO shaft for rotary mowers is a versatile and essential component widely used in agricultural and landscaping applications. It is designed to transfer mechanical power from the tractor’s PTO system to the mower's gearbox, enabling the cutting blades to rotate efficiently and perform a variety of mowing tasks. The PTO shaft plays a critical role in ensuring smooth and reliable operation in a range of environments.

One of the most common applications of a PTO shaft in rotary mowers is for pasture management. Farmers use rotary mowers connected via PTO shafts to cut grass, weeds, and brush in pastures, maintaining healthy grazing areas for livestock. The mower's ability to handle thick vegetation makes it suitable for clearing overgrown fields and maintaining open spaces.

Another significant application is land clearing and brush control. Rotary mowers powered by PTO shafts are ideal for tackling heavy-duty jobs such as clearing shrubs, small saplings, and dense undergrowth. This is particularly useful for preparing land for planting crops, improving property aesthetics, or maintaining trails and rights-of-way. The robust design of the PTO shaft ensures smooth power delivery, even when cutting through tough vegetation.

The PTO shaft is also critical for roadside and ditch maintenance, where rotary mowers are used to trim grass and vegetation along highways, rural roads, and drainage ditches. The flexibility of the PTO shaft, with its telescoping sections and universal joints, allows the mower to adapt to uneven terrain, ensuring consistent performance.

In addition, PTO shafts are used in orchard and vineyard maintenance, where rotary mowers help maintain grass and weed control between rows of crops. This minimizes competition for nutrients and improves airflow around plants, enhancing crop health and productivity.

PTO Shaft for Woods BrushBull Rotary Mowers

Advantages of Using the PTO Drive Shaft for Rotary Mowers

Using a PTO drive shaft for rotary mowers offers several advantages that make it a preferred choice for powering agricultural rotary mowers:

  • Efficient Power Transfer: The PTO drive shaft ensures seamless and efficient transfer of mechanical power from the tractor to the mower. By directly connecting the tractor's PTO system to the mower’s gearbox, it minimizes energy loss, enabling the blades to operate with maximum cutting efficiency in demanding conditions.
  • Versatility Across Applications: PTO shafts are compatible with various rotary mower models and can handle a wide range of tasks, including pasture maintenance, brush clearing, and roadside trimming. Their adaptability makes them a versatile tool for farmers, landscapers, and property managers working in different environments and terrains.
  • Durability and Reliability: Constructed from high-strength materials like hardened steel, PTO shafts are built to withstand heavy loads, torque, and vibrations during operation. Their robust design allows for extended use in harsh conditions, such as cutting through thick brush, uneven terrain, or dense vegetation, without frequent wear or failure.
  • Adjustability and Flexibility: Most PTO shafts feature telescoping sections and universal joints, allowing for easy length adjustment and angular movement. This flexibility ensures smooth operation, even when the tractor and mower are at different angles or on uneven ground, improving overall performance and reducing mechanical stress.
  • Increased Productivity: By providing consistent and reliable power to the mower, the PTO shaft allows operators to cover large areas quickly and efficiently. Its ability to handle heavy-duty tasks reduces downtime and increases productivity, making it an essential tool for maintaining large fields, pastures, or roadside areas.
  • Safety Features: PTO shafts are equipped with protective shields and guards to prevent accidental contact with rotating components. These safety features help reduce the risk of injury during operation, ensuring a safer working environment for operators and bystanders in agricultural or landscaping applications.

PTO Shaft for Woods BrushBull Rotary Mowers

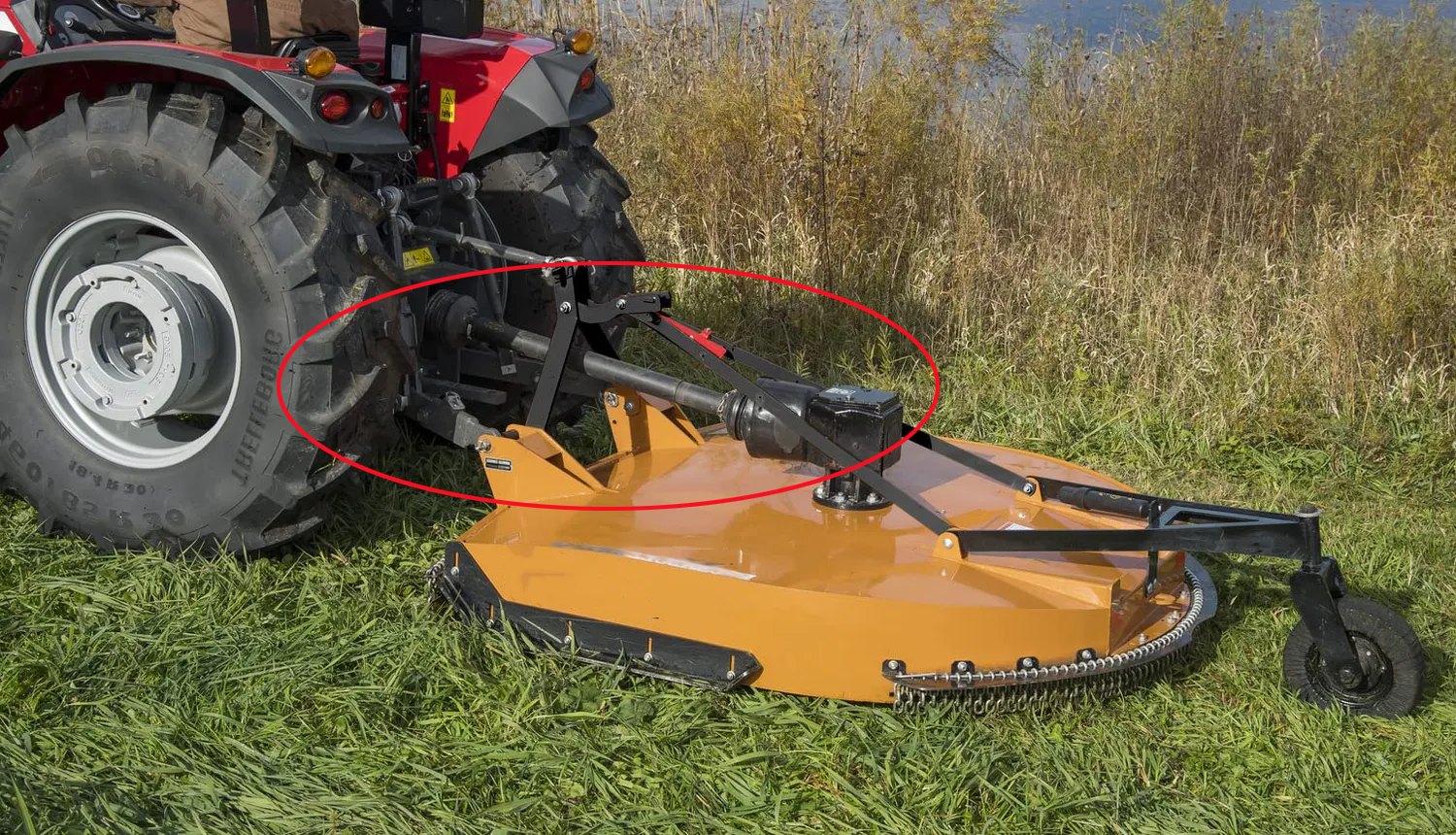

How Does the Tractor PTO Shaft Work in a Rotary Mower?

In a rotary mower, the tractor PTO shaft plays a crucial role in transferring power from the tractor's engine to the mower itself. Here's how the PTO shaft works in conjunction with a rotary mower:

  1. Power Transmission from the Tractor: The tractor’s PTO (Power Take-Off) system generates mechanical power by utilizing the engine’s rotational energy. When engaged, the PTO shaft connects to the tractor’s PTO stub, transferring this rotational power directly to the rotary mower’s input shaft for operation.
  2. Connection and Alignment: The PTO shaft is securely connected to both the tractor's PTO stub and the mower's gearbox using quick-attach couplings or yokes. Its telescoping sections and universal joints ensure proper alignment and adjust to varying distances or angles between the tractor and mower, allowing smooth operation.
  3. Rotational Energy Transfer: Once engaged, the PTO shaft rotates at a consistent speed that matches the tractor’s RPM settings. The rotational energy is transmitted through the shaft to the mower’s gearbox, which converts this energy into the necessary rotational force to drive the mower’s cutting blades.
  4. Adapting to Terrain Variations: The PTO shaft’s design features telescoping sections that adjust in length and universal joints that allow angular movement. These features enable the mower to adapt to uneven ground or changes in terrain while maintaining consistent power flow, preventing mechanical stress or damage.
  5. Gearbox Power Conversion: The rotary mower’s gearbox receives the rotational power from the PTO shaft and steps it down to an appropriate speed and torque level. This conversion ensures that the mower blades rotate at the optimal speed to cut through grass, weeds, or dense vegetation effectively.
  6. Safety and Operational Efficiency: The PTO shaft includes protective guards to shield operators from rotating parts and minimize the risk of accidents. As the shaft operates, its precise engineering ensures efficient power delivery without excessive vibration, heat buildup, or energy loss, maximizing the mower’s performance and reliability.

PTO Shaft for Woods BrushBull Rotary Mowers

Why Choose AGKNX's Agricultural PTO Shaft?

AGKNX specializes in developing manufacturing and marketing PTO shafts, industrial cardan shafts, car driveshafts, u-joint coupling shafts universal joints, etc. The annual turnover is 60 million RMB, 9 million dollars, and it's increasing year by year. Our products gained a great reputation from Europe, America, Asia, Australia, and North American customers. We are among the top 3 professional OEM suppliers for many agricultural implement factories in the domestic market. We already have the CE, TS/16949, and ISO9001 certificates and systematic manufacturing equipment and QC team to guarantee our quality and delivery. We warmly welcome every friend to visit us and establish the mutually beneficial long-term relationship cooperation.

Our Advantages:

  1. Safety Shield Types and Colors Based on Your Requirements: We offer a variety of safety shield types and colors to meet your specific needs. Whether you require shields for agricultural or industrial applications, we can customize designs to ensure durability and compliance with safety standards, providing optimal protection.
  2. Wide Range of Universal Joints: Our product range includes a comprehensive selection of universal joints for various applications. Designed to ensure reliability and performance, our universal joints are compatible with multiple machines and equipment, delivering smooth operation and reduced wear over time.
  3. Large Inventory for Fast Delivery: We maintain a substantial inventory of products, allowing us to provide quick and efficient delivery to meet your deadlines. Our streamlined logistics and stock management systems ensure that you receive the products you need without unnecessary delays.
  4. Variety of Abrasives, Tools, and Parts: In addition to shafts and joints, we supply a wide range of abrasives, tools, and components to support your agricultural and industrial operations. Our diverse selection guarantees that you have access to the parts necessary for efficient and seamless workflows.
  5. Customization and OEM Support: We specialize in providing highly customized solutions and OEM services tailored to your specific requirements. Whether you need unique designs, branding, or specialized manufacturing, our team works closely with you to deliver products that match your exact specifications.
