Constructed with high-quality 1045C steel, our customized OEM spline steel drive shaft u joint shaft universal cardan shaft is a new and reliable product designed to meet various industrial needs. With a 1-year warranty and a weight of just 2KG, this versatile product can be used in a wide variety of sectors from hotels, garment shops, building material shops, and manufacturing plants, to food and beverage factories, farms, and more.

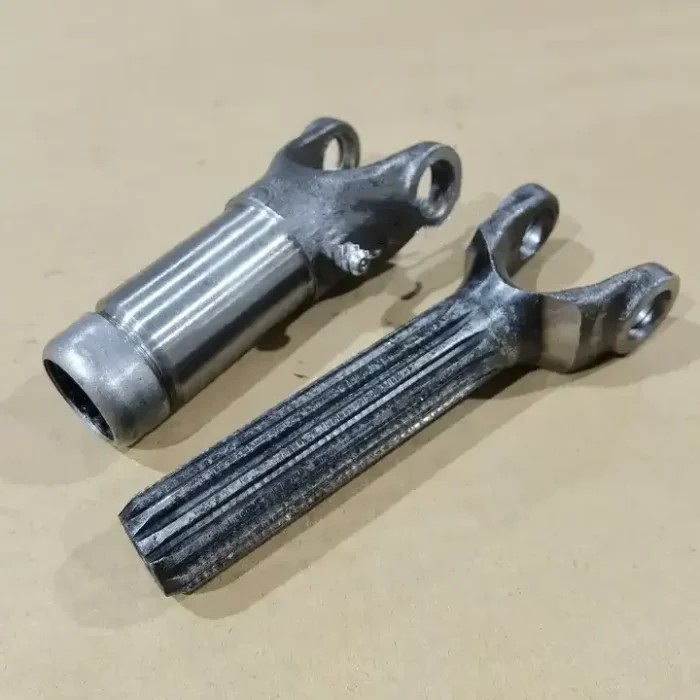

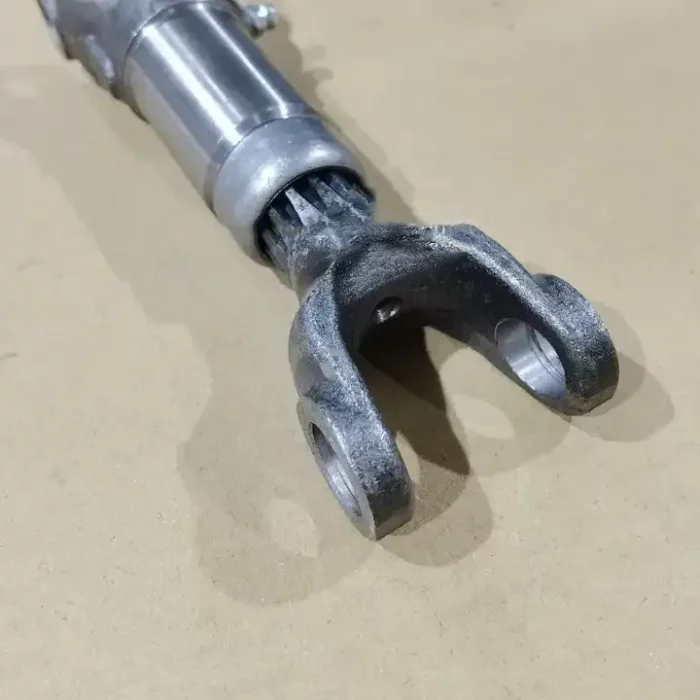

Industrial Drive Shaft Specifications:
Model Number | 16*38 Small Industrial Shaft |
Function | Drive Shaft Parts & Power Transmission |
Use | Kinds of Tractors & Farm Implements |
Brand Name | AGKNX |
Yoke Type | Double push pin,Bolt pins,Split pins,Push pin,Quick release,Ball attachment,Collar..... |
Processing Of Yoke | Forging |
Plastic Cover | YW;BW;YS;BS;Etc |
Color | Green;Orange;Yellow;Black Ect. |
Series | T1-T10; L1-L6;S6-S10;10HP-150HP with SA,RA,SB,SFF,WA,CV Etc |
Tube Type | Lemon,Trianglar,Star,Square,Hexangular,Spline,Special Ect |
Processing Of Tube | Cold drawn |
Spline Type | 1 1/8" Z6;1 3/8" Z6; 1 3/8" Z21 ;1 3/4" Z20; 1 3/4" Z6; 8-38*32*6 8-42*36*7; 8-48*42*8; |
Place of Origin | Haining, China (Mainland) |
Features of the OEM Industrial Drive Shaft
The OEM Spline Steel Drive Shaft U Joint Shaft Universal Cardan Shaft is characterized by several unique features that make it an excellent choice for industrial applications:
- It is made of high-quality 1045C steel, ensuring robustness and durability.
- The product comes with a 1-year warranty on core components, offering peace of mind to the user.
- It has a torque capacity of 3500, ensuring efficient transmission of power.
- The product is coated with PE for added protection and longevity.
- It can be custom made to the desired length, offering flexibility to the user.
Our company is capable of producing this high-quality product that can serve as a perfect replacement for damaged parts on Industrial Cardan Shafts.
Applications of the OEM Industrial Drive Shaft
The OEM Spline Steel Drive Shaft U Joint Shaft Universal Cardan Shaft has numerous applications in various industries:
- In the construction sector, it can be used in various types of machinery for efficient power transmission.
- It can be used in the manufacturing industry in various types of equipment.
- In the food and beverage industry, it can be used in various types of production and processing machinery.
- It can be used in printing shops for efficient power transmission in various types of printing equipment.
- In the energy and mining sector, it can be used in various types of heavy-duty machinery.
Types of Industrial Cardan Shafts
Industrial Cardan shafts come in various types and configurations, each designed to meet specific application requirements:
- Single Cardan Shaft: This is the simplest and most common type of Cardan shaft. It consists of two yokes connected by a single universal joint. It allows for angular misalignment between the input and output shafts.
- Double Cardan Shaft: Also known as a constant velocity (CV) joint, a double Cardan shaft consists of two universal joints connected by an intermediate shaft, forming an "S" shape. This configuration eliminates vibrations and fluctuations caused by angular misalignment.
- Telescopic Cardan Shaft: Telescopic Cardan shafts feature a sliding mechanism that allows the shaft to extend and retract.
- Torque Limiting Cardan Shaft: This type of Cardan shaft incorporates a torque-limiting device to protect the driveline from excessive torque or sudden overload.
- Flange-mounted Cardan Shaft: Flange-mounted Cardan shafts are designed to be mounted directly to flanged connections on the input and output shafts.
- Customized Cardan Shafts: In addition to the standard types mentioned above, Cardan shafts can be customized to meet specific application requirements.
How Does Industrial Cardan Shaft Work?
Industrial Cardan shafts work by transmitting torque and rotational motion from a driving shaft to a driven shaft, even when they are misaligned:
- Misalignment Compensation: When the driving shaft and driven shaft are not perfectly aligned, the Cardan shaft allows for angular misalignment between them.
- Yokes and Universal Joints: The Cardan shaft consists of two yokes or forks, each attached to the driving and driven shafts. The yokes are connected by a cross-shaped component called the universal joint.
- Universal Joint Components: The universal joint consists of four main components: two yoke ears, a cross, and needle bearings.
- Torque Transmission: When the driving shaft rotates, it transmits torque to one of the yoke ears, which transfers the torque to the cross through the needle bearings.
- Flexibility and Smooth Rotation: The needle bearings in the universal joint allow for smooth rotation and flexibility.
- Continuous Rotation: As the driving shaft continues to rotate, the Cardan shaft enables the driven shaft to rotate at the same speed and transmit torque without significant loss or vibration.
- Load Distribution: The design of the Cardan shaft helps distribute the load evenly across the universal joint and its components.
Maintenance and Care of the Industrial Drive Shaft
Proper maintenance of industrial Cardan shafts is essential to ensure their optimal performance, longevity, and reliability:
- Regelmäßige Inspektion: Perform visual inspections of the Cardan shaft for any signs of damage, wear, or misalignment.
- Schmierung: Lubrication is crucial for the smooth operation and longevity of Cardan shafts.
- Torque Check: Periodically check the torque of the bolts and fasteners that secure the Cardan shaft to the driving and driven shafts.
- Balancing: Imbalance in the Cardan shaft can cause vibration, premature wear, and damage to the shaft and connected components.
- Protective Covers: If the Cardan shaft is exposed to harsh environments, consider installing protective covers or guards to shield it from contaminants, moisture, and debris.
- Alignment: Periodically check the alignment of the driving and driven shafts to ensure they are within acceptable tolerances.
- Regular Maintenance Schedule: Establish a regular maintenance schedule for the Cardan shaft, taking into account the shaft's usage, operating conditions, and manufacturer's recommendations.
Why Choose AGKNX's Industrial Cardan Shafts?
AGKNX Drive Shaft Co., Ltd., located in Hangzhou Zhejiang City, is a leading manufacturer of high-quality Zapfwellen, landwirtschaftliche Getriebe, industrial cardan shafts, PTO shaft tubes, PTO shaft yokes, PTO shaft universal joints, PTO shaft torque limiters, car driveshafts, and u-joint coupling shafts, etc. Our company insists on quality first, fast delivery, and competitive pricing, with a commitment to excellence that is backed by CE, TS/16949, and ISO9001 certifications.
With over 100 dedicated staff members and a 12,000 m2 facility, we are well-equipped to meet all your industrial drive shaft needs with professionalism and expertise. Our products have gained a great reputation from customers all over the world, and we are proud to be a top OEM supplier for many factories of agricultural implements in the domestic market. We warmly welcome you to establish a mutually beneficial long-term relationship with us.
