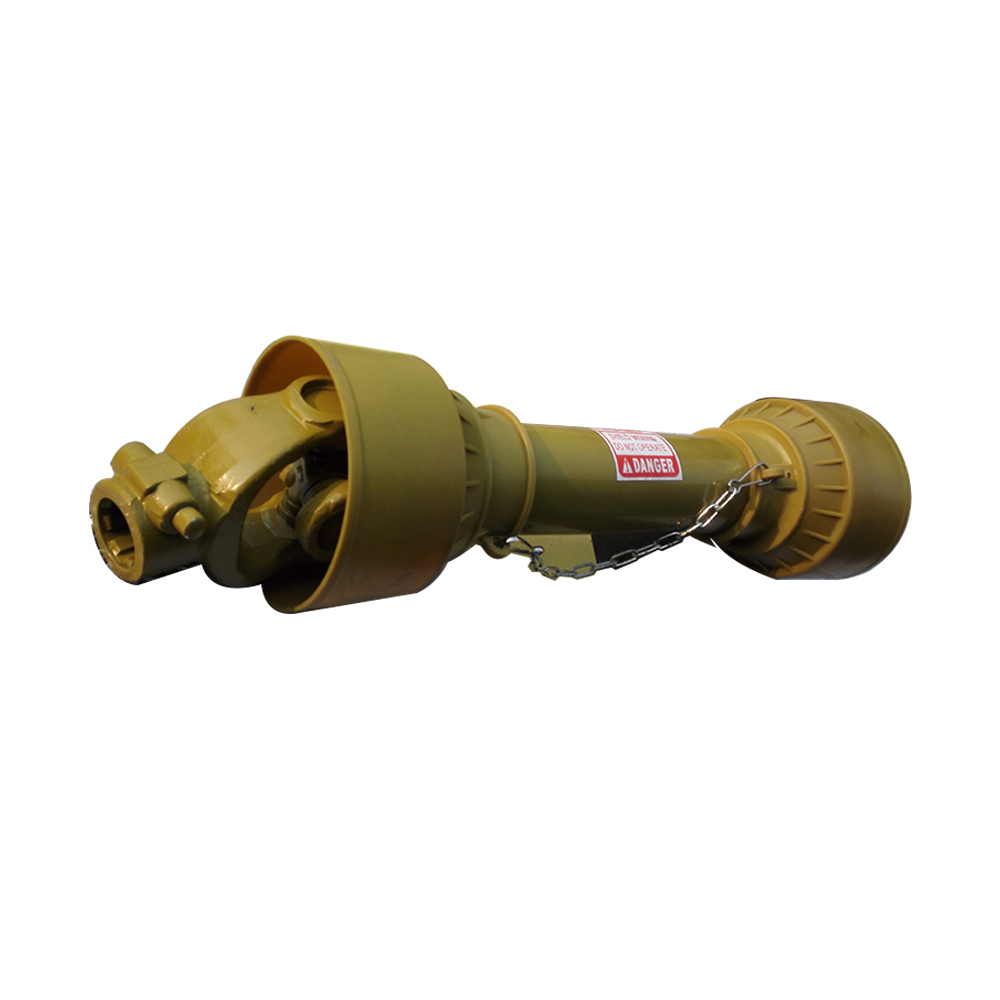

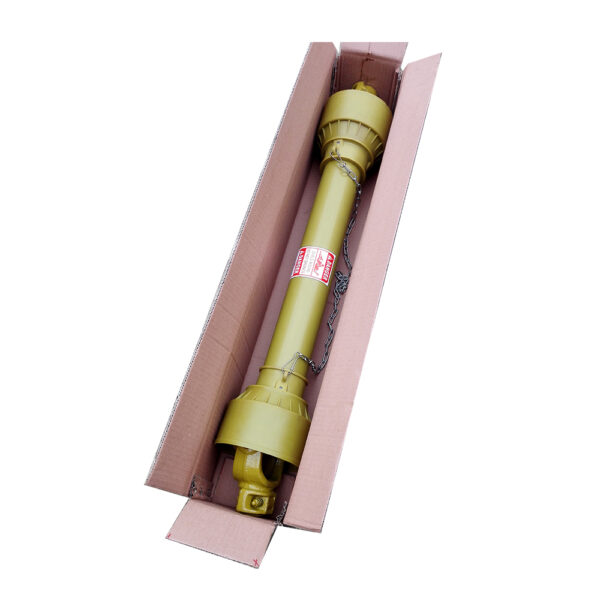

PTO Shaft T6 Crossφ30.2*92; 1-3/8″ 6 Spline Triangle Pipe 800mm Yellow for Tractor

Crafted by the China AGKNX Group, this PTO Shaft T6 is an essential component for any agricultural machinery. With a power rating of 64HP at 540RPM, the shaft boasts an overall closed length of 800mm. It also has a universal joint size of 30.2mm x 92mm with tractor and implement ends designed with 1-3/8″ x 6 Spline. The shaft is built from durable 20CrMnTi / Q345 steel and has a yoke material made from forging.

The Structure of PTO Shaft:

PTO Shaft Parts:

PTO Shaft Tube:

PTO Shaft Cross Joint:

Key Features of the PTO Shaft T6

The PTO shaft T6 has numerous features that enhance its performance and durability. These include:

• Power Rating: With a power rating of 64HP at 540RPM, the T6 can handle heavy-duty tasks with ease.
• Variable Length: The shaft has an overall closed length of 800mm, accommodating a range of tractor sizes and implements.
• Durable Material: Built from 20CrMnTi / Q345 steel, the shaft promises longevity and resistance to wear and tear.
• Universal Joint Size: The 30.2mm x 92mm universal joint size ensures compatibility with various agricultural implements.
• Color Variety: Available in Green, Orange, Yellow, and Black, the shaft can be selected to match your tractor's color scheme.

The PTO shaft T6 is a perfect replacement for damaged parts on Agricultural PTO Shafts. Its robust construction and versatile features make it an ideal choice for any farming operation.

Applications of the PTO Shaft T6

The PTO Shaft T6 is versatile and can be used in a variety of agricultural applications. These include:

• • Tractors: The PTO Shaft T6 is compatible with various tractor models, making it a versatile choice.
  • Farm Implements: The shaft can be used with a range of farm implements such as mowers, toppers, and rotovators.
  • Gardening Equipment: The shaft is also suitable for use with gardening equipment, enhancing its versatility.
  • Industrial Machinery: Beyond agriculture, the PTO Shaft T6 can also be incorporated into certain industrial machines.
  • General Farming: The shaft is perfect for general farming tasks, contributing to a more efficient farming operation.

How Does the Agricultural PTO Shaft Work?

The agricultural power take-off (PTO) shaft is a mechanical device used to transmit power from a tractor or other power source to agricultural implements or machinery. It is a critical component in connecting the tractor's power to various equipment such as mowers, balers, tillers, and more. Here is a step-by-step guide on how the PTO Shaft works:

1. Power Source: The PTO shaft is typically connected to the rear of a tractor or other power source equipped with a PTO. The PTO is a rotating driveshaft that extends from the rear of the tractor's engine.
2. PTO Shaft: The PTO shaft is a telescopic, splined shaft that connects to the PTO output on the power source. It consists of two or more sections that can slide in and out to adjust the length. The shaft is usually made of steel and has a specific number of splines that match those on the PTO output.
3. Implement Connection: The other end of the PTO shaft is connected to the input of the agricultural implement. The implement typically has a PTO input shaft that matches the splines on the PTO shaft.
4. Splined Coupling: To connect the PTO shaft to the implement, a splined coupling mechanism is used. It consists of two halves with matching splines. One half is attached to the PTO shaft, and the other half is attached to the implement's input shaft. When the two halves are aligned, they are engaged by sliding them together, creating a solid connection.
5. Power Transmission: Once the PTO shaft is connected, power is transmitted from the power source to the implement through the rotating PTO shaft. As the power source rotates the PTO shaft, the implement's input shaft also rotates, driving the machinery or implements attached to it. The PTO shaft transfers the rotational energy, enabling the implement to perform its intended function, such as cutting grass, tilling soil, or harvesting crops.
6. Shaft Protection: The PTO shaft is protected by a specially designed shield that prevents accidental contact with the rotating components, ensuring safety during operation.

Installation of the PTO Shaft T6

The installation process of the PTO Shaft T6 involves a series of steps:

1. Safety Precautions: Before beginning the installation process, ensure that the power source is turned off, the engine is shut down, and the tractor is parked on a level surface. Use appropriate personal protective equipment, such as gloves and safety glasses, to protect yourself during the installation process.
2. Select the Correct PTO Shaft: Ensure that you have the right PTO shaft for your equipment and tractor. Consider the required length, spline size, and RPM rating of the PTO shaft to match your specific needs.
3. Adjust Shaft Length: If your PTO shaft is telescopic, adjust the length to match the distance between the power source's PTO output and the implement's PTO input. Avoid extending the shaft to its maximum length, as it may reduce stability and increase the risk of damage.
4. Attach the PTO Shaft to the Power Source: Connect one end of the PTO shaft to the power source's PTO output. Align the splines on the PTO shaft with those on the PTO output and slide the shaft onto the output until it fits securely. Ensure that the locking mechanism, such as a collar or pin, engages to prevent the shaft from disconnecting during operation.
5. Connect the PTO Shaft to the Implement: Align the splined coupling on the other end of the PTO shaft with the implement's PTO input shaft. Slide the two halves of the splined coupling together until they are fully engaged. Ensure that the coupling locks securely and that there is no excessive play or movement.
6. Secure the PTO Shaft: Use any provided locking mechanisms, such as retaining pins or collars, to secure the PTO shaft connections on both ends. These mechanisms prevent accidental disconnection of the shaft during operation.
7. Install Protective Shields: Ensure that the PTO shaft is adequately protected by installing the appropriate shields or guards. These shields should cover all rotating sections of the PTO shaft and prevent accidental contact. Secure the shields in place using the provided fasteners.
8. Test the PTO Shaft: Once the installation is complete, start the power source and engage the PTO. Observe the PTO shaft and connections to ensure smooth and balanced operation. Listen for any unusual noises or vibrations that may indicate misalignment or other issues. If any problems are detected, immediately turn off the power source and address the concerns before proceeding.

Maintenance and Care of the PTO Shaft T6

Proper maintenance and regular care of agricultural power take-off (PTO) shafts are crucial for ensuring their safe and efficient operation. Here are some maintenance tips to keep your PTO shaft in good condition:

1. Regular Inspections: Perform visual inspections of the PTO shaft before each use. Check for signs of wear, damage, or loose connections. Look for any cracks, bends, or missing parts. Inspect the protective shields or guards for any signs of damage or wear as well.
2. Lubrication: Apply lubrication to the PTO shaft according to the manufacturer's recommendations. Lubricate the splines, sliding sections, and any moving parts. Proper lubrication reduces friction, prevents corrosion, and ensures smooth operation. Use a suitable lubricant recommended by the manufacturer.
3. Shield Maintenance: Check the condition of the protective shields or guards regularly. Ensure that they are securely fastened and not damaged. Replace any shields that are cracked, broken, or missing. These shields are essential for preventing accidental contact with the rotating shaft, reducing the risk of injury.
4. Tighten Loose Connections: Over time, connections on the PTO shaft may become loose due to vibrations and normal usage. Check all bolts, pins, and fasteners and tighten them as necessary. Be careful not to overtighten, as it can cause damage or deformation.
5. Balance and Alignment: Imbalanced or misaligned PTO shafts can cause excessive vibrations, leading to premature wear and potential failure. If you notice vibrations during operation, have the shaft inspected for balance and alignment issues.
6. Replace Worn or Damaged Parts: If you identify any worn or damaged components during inspections, replace them promptly. This includes worn-out splines, damaged couplings, or any other parts that affect the performance or safety of the PTO shaft.
7. Safe Storage: When not in use, store the PTO shaft in a clean, dry area away from moisture, chemicals, and direct sunlight. Protect it from any potential physical damage or contact with sharp objects. Proper storage helps prevent corrosion and extends the lifespan of the shaft.

Why Choose AGKNX's Agricultural PTO Shafts?

AGKNX HZPT Drive Shaft Co., Ltd., located in Hangzhou Zhejiang City, is a leading manufacturer of PTO Shafts, cajas de engranajes agrícolas, Industrial Cardan Shafts, Car Driveshafts, U-Joint Coupling Shafts, Torque Limiters, PTO Shaft Tubes, and Universal Joints. With a team of over 100 skilled staff, we cover an area of more than 12,000 m2 and generate an annual turnover of 60 million RMB and $9 Million. Our products have gained a great reputation from customers worldwide, and we are the top professional OEM supplier for many agricultural implement factories in the domestic market.

Our company adheres to our principles: Quality First, Delivery Quick, and Price Competitive. We have received the CE, TS/16949, and ISO9001 certificates, which is a testament to our commitment to maintaining high-quality standards.

Our systematic manufacturing equipment and dedicated QC team ensure the quality and timely delivery of our products. We welcome all friends to visit us and establish a mutually beneficial relationship.

Servicios personalizados

We understand that every farming operation is unique. Therefore, we offer customized services to meet your specific needs. Whether you require a specific length, spline size, or RPM rating, our team of experts can design and manufacture a PTO shaft that meets your requirements.

Instalaciones de producción

Our state-of-the-art production facilities enable us to manufacture high-quality PTO shafts efficiently. Equipped with advanced machinery and technology, we ensure that every PTO shaft we produce meets the highest standards of quality and performance.

Servicios posventa

We believe in building lasting relationships with our customers. Therefore, we offer comprehensive after-sales services to ensure your satisfaction. Whether you need assistance with installation, maintenance, or troubleshooting, our team of experts is ready to assist.
