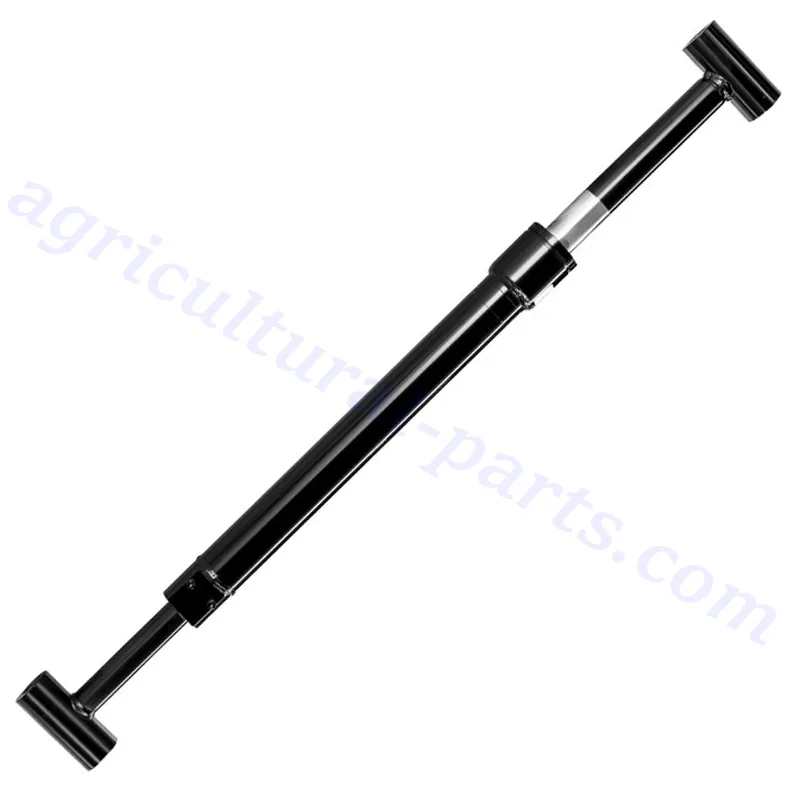

Swing Rod Hydraulic Cylinder for Mast Type Aerial Work Platforms
The swing rod hydraulic cylinder is a crucial component in mast-type aerial work platforms, designed to facilitate the controlled movement and stability of the platform during operation. These platforms are widely used in industries such as construction, maintenance, and warehousing, where workers need elevated access to perform tasks efficiently and safely. The swing rod hydraulic cylinder specifically helps manage the tilting or swinging motion of the work platform, ensuring it remains stable and balanced even when subjected to uneven weight distribution or external forces like wind.
The swing rod hydraulic cylinder is a crucial component in mast-type aerial work platforms, designed to facilitate the controlled movement and stability of the platform during operation. These platforms are widely used in industries such as construction, maintenance, and warehousing, where workers need elevated access to perform tasks efficiently and safely. The swing rod hydraulic cylinder specifically helps manage the tilting or swinging motion of the work platform, ensuring it remains stable and balanced even when subjected to uneven weight distribution or external forces like wind.
This hydraulic cylinder operates by converting hydraulic pressure into a linear or angular motion, which is transmitted to the swing rod mechanism. It is built with high-strength materials to endure heavy loads and repetitive usage. Additionally, it features precision seals to prevent fluid leakage and maintain consistent performance. By enabling smooth and controlled movements, the swing rod hydraulic cylinder enhances safety and efficiency, making it an indispensable part of mast-type aerial work platforms.
Swing Rod Hydraulic Cylinder Specifications
Product Name: | Swing Rod Hydraulic Cylinder |
Function: | To achieve boom lifting and lowering with variable amplitude. |
Cylinder diameter: | 55mm-65mm |
Rod diameter: | 40mm-60mm |
Travel: | 300mm-500mm |
Maximum pressure: | 21MPa |
Maximum thrust: | 70KN |

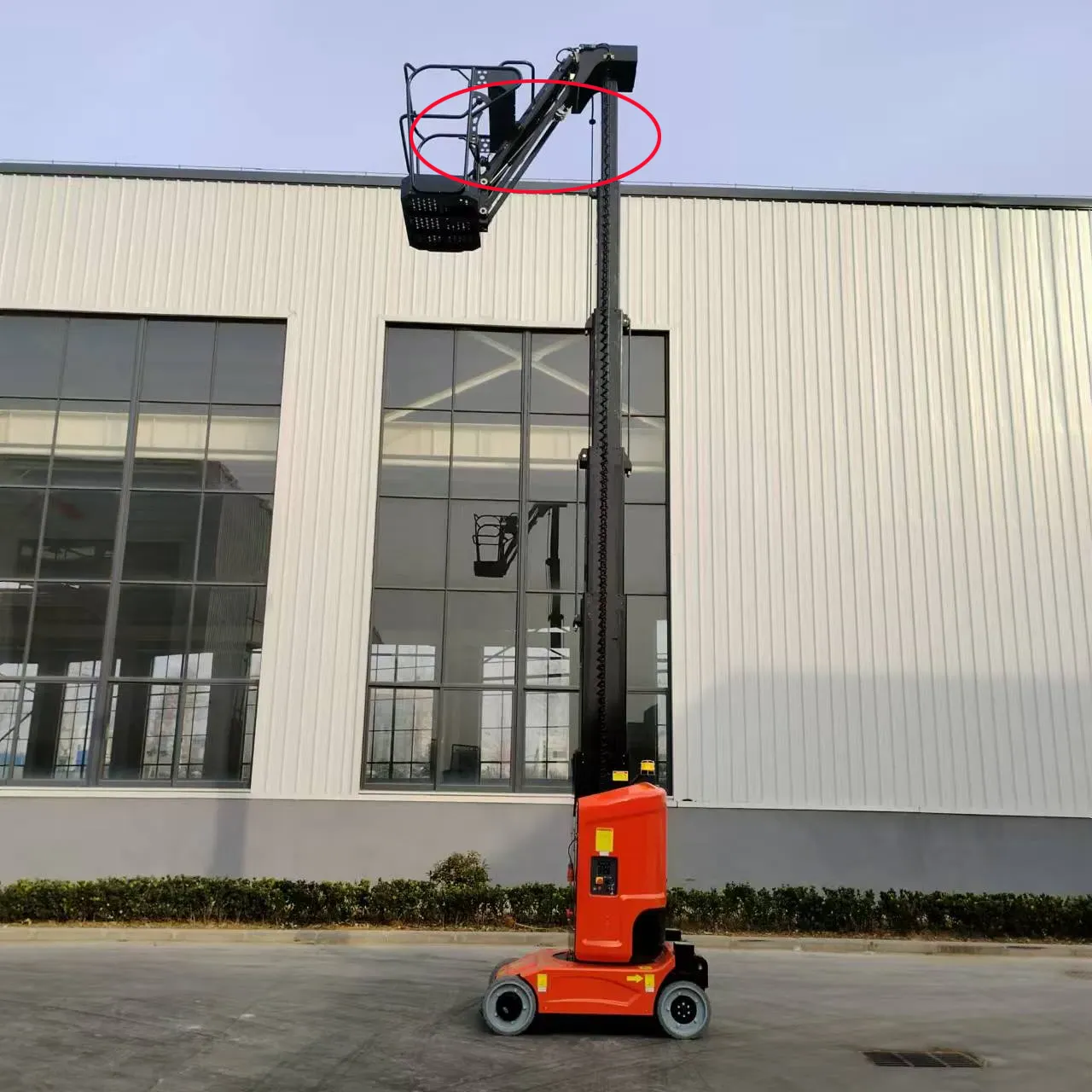

Function of Swing Rod Hydraulic Cylinder for Mast Type Aerial Work Platforms
The swing rod hydraulic cylinder plays an essential role in the operation and functionality of mast-type aerial work platforms, ensuring smooth and controlled movement while maintaining the safety and stability of the equipment. Mast-type aerial work platforms are widely used in industries such as construction, warehousing, and maintenance, where workers often need to perform tasks at elevated heights. These machines require precise control mechanisms for both stability and maneuverability, and the swing rod hydraulic cylinder is a critical component in achieving this.
The primary function of the swing rod hydraulic cylinder is to manage the swinging or tilting motion of the platform. It works by converting hydraulic pressure into linear or angular motion, which is then transferred to the swing rod mechanism. This allows the platform to move in a controlled manner, enabling fine adjustments to its position. This is particularly important when the aerial work platform needs to compensate for uneven ground, shifting loads, or external forces such as wind. The cylinder ensures that the platform remains balanced and aligned, reducing the risk of tipping or instability during operation.
Additionally, the swing rod hydraulic cylinder contributes to the platform’s ability to rotate or pivot, allowing workers to access hard-to-reach areas without requiring the repositioning of the entire base unit. This enhances efficiency and minimizes effort, especially in confined spaces or areas with limited mobility.
How to Choose the Right Swing Rod Hydraulic Cylinder
Choosing the right swing rod hydraulic cylinder for mast-type aerial work platforms is critical to ensure safety, stability, and performance. Here are some essential points to consider:
- Load Capacity and Strength: The hydraulic cylinder must be capable of handling the platform's maximum load capacity, including the weight of workers, tools, and equipment. Evaluate the cylinder’s material strength, load-bearing specifications, and pressure ratings to ensure it can reliably support the platform under both static and dynamic conditions.
- Stroke Length and Range of Motion: The stroke length of the cylinder determines the range of motion it can provide. Ensure the cylinder has a stroke length that aligns with the platform’s required motion, whether it’s for tilting, swinging, or pivoting. An inadequate stroke length can limit the platform's functionality.
- Hydraulic Pressure and Compatibility: Verify that the cylinder’s hydraulic pressure rating matches the hydraulic system of the aerial work platform. Incompatibility in pressure ratings can lead to inefficient performance, system failure, or even safety hazards. Proper compatibility ensures smooth and reliable operation.
- Build Quality and Durability: The cylinder should be constructed from high-quality, durable materials, such as hardened steel or corrosion-resistant alloys, to withstand harsh working conditions. Look for cylinders with high resistance to wear and tear, as they will face repetitive use and exposure to environmental factors.
- Sealing and Leak Prevention: A good hydraulic cylinder must have high-quality seals to prevent fluid leakage. Poor sealing can compromise the cylinder’s performance and lead to system malfunctions. Ensure the cylinder is equipped with precision-engineered seals that maintain hydraulic pressure and prevent contamination.
Other Mast Type Aerial Work Platform Hydraulic Cylinders
In addition to the swing rod hydraulic cylinder commonly used in mast type aerial work platforms, there are other types of hydraulic cylinders that serve specific functions to ensure the efficient operation of these machines. Some of the other types of hydraulic cylinders found in mast type aerial work platforms include:
- Lifting Hydraulic Cylinders: Lifting hydraulic cylinders are the primary components responsible for elevating and lowering the platform along the mast. Using pressurized hydraulic fluid, they provide stable, smooth, and precise vertical motion, enabling operators to perform tasks at varying heights safely and efficiently. These cylinders are designed to handle significant weight capacities and ensure reliable operation, even under heavy loads and demanding conditions.
- Steering Hydraulic Cylinders: Steering hydraulic cylinders are essential for controlling the movement and direction of mast-type aerial work platforms. They work by converting hydraulic pressure into mechanical force, allowing the wheels or tracks of the platform to turn smoothly. This ensures precise maneuverability in tight or confined spaces, improving the platform's operational efficiency. These cylinders are robust and designed to provide consistent performance while handling the weight and motion stresses associated with steering.
Why Choose AGKNX's Aerial Work Vehicle Hydraulic Cylinders?
AGKNX is a professional manufacturer specializing in the production of medium to high-end hydraulic cylinders. It stands as the largest domestic production center for forklift hydraulic cylinders, aerial work truck hydraulic cylinders, and industrial vehicle hydraulic cylinders. The company is equipped with advanced facilities, including a state-of-the-art hydraulic product testing laboratory and a cutting-edge research and development center. AGKNX has independently developed critical equipment and holds proprietary intellectual property rights, demonstrating its commitment to innovation and technical expertise. With a comprehensive quality assurance system, robust production and testing capabilities, and strong technical development expertise, AGKNX ensures the highest standards of quality in its manufacturing processes.
The company’s extensive product lineup includes forklift hydraulic cylinders, industrial vehicle hydraulic cylinders, construction machinery hydraulic cylinders, aerial work truck hydraulic cylinders, sanitation machinery hydraulic cylinders, wind power hydraulic cylinders, agricultural machinery hydraulic cylinders, and other specialized supporting equipment. In addition to producing high-quality hydraulic cylinders, AGKNX also manufactures hydraulic cylinder components and forklift part cylinders.
AGKNX’s hydraulic cylinder products are distributed globally across numerous countries and regions. For customers requiring specific products not available in the existing inventory, AGKNX offers custom manufacturing services. The company can design and produce hydraulic cylinders tailored to unique size and application requirements, providing highly customized solutions that cater to the diverse needs of various industries.
![]() | ![]() |
![]() | ![]() |
