Steel Spiral Bevel Gears Spiral Tooth System Ratio 3:1 – 4:1

Steel spiral bevel gears with a spiral tooth system and ratios between 3:1 and 4:1 are conical gears designed to transmit power between intersecting shafts, typically at 90-degree angles, with high efficiency and reduced noise compared to straight bevel gears. The spiral tooth design, characterized by curved, oblique teeth, ensures smoother engagement, minimizing vibration and allowing for higher torque and speed capabilities. These gears are commonly made from robust materials like 42CrMo4 or 16MnCr5, with induction- or case-hardened teeth for durability, while hubs and bores remain softer for machining. They are used in applications like automotive differentials, industrial machinery, and power tools.

Steel spiral bevel gears with a spiral tooth system and ratios between 3:1 and 4:1 are conical gears designed to transmit power between intersecting shafts, typically at 90-degree angles, with high efficiency and reduced noise compared to straight bevel gears. The spiral tooth design, characterized by curved, oblique teeth, ensures smoother engagement, minimizing vibration and allowing for higher torque and speed capabilities. These gears are commonly made from robust materials like 42CrMo4 or 16MnCr5, with induction- or case-hardened teeth for durability, while hubs and bores remain softer for machining. They are used in applications like automotive differentials, industrial machinery, and power tools.

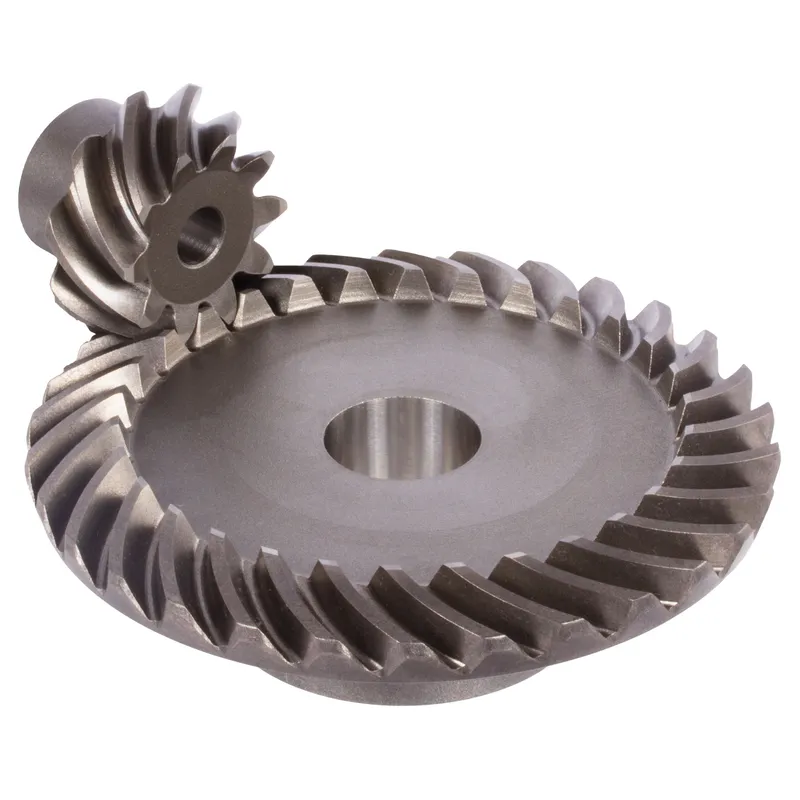

Steel Spiral Bevel Gears

Steel Spiral Bevel Gear Ratio 3:1

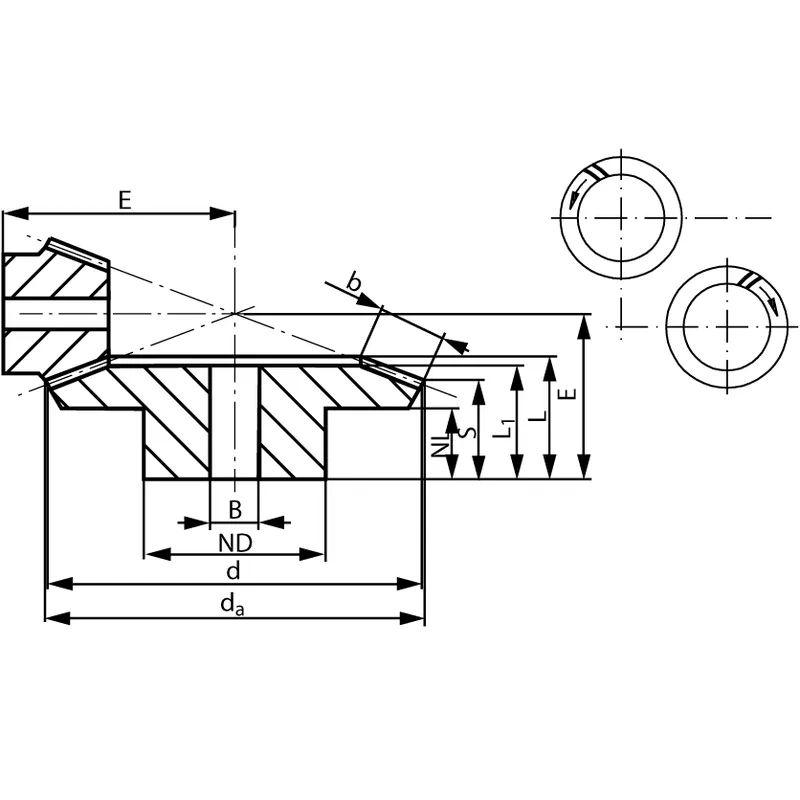

Steel Spiral Bevel GearsSteel Spiral Bevel Gear Dimensions
ModuleNombre
of teeth
dadNDNLL1LSbBH7ETorque*Poids
mmmmmmmmmmmmmmmmmmmmNcmg
0,62019,118157,517,717,78,2106352,1175
0,66054,3544581619,716,61010256,3175
11626,124208,32222,69,3148455,8380
14872,5725081821,316,814122817,4380
1,31125,1221961717,97,5118407,7320
1,33366,6604081720,416,911122723,1320
1,51026,0221781920,19,6118429,1380
1,53066,6664081721,317,811122827,3380
2,2291936,53222112425,815,413860,5228638
2,22912796,09648192529,525,513204084638
2,5736942,037,5271226,528,6415,1151269,84461100
2,573627113,0112,554243238,4133,91525501381100
3,5959,052,540123336,218,9221692,641322700
3,527158,5157,570294047,941,22230653962700

Steel Spiral Bevel Gear Ratio 4:1

Steel Spiral Bevel GearsSteel Spiral Bevel Gear Dimensions
ModuleNombre
of teeth
dadNDNLL1LSbBH7ETorque*Poids
mmmmmmmmmmmmmmmmmmmmNcmg
11625,924207,32121,88,2148567,8842
16496,5967081922,41914203031,2842
1,51127,824,22081920,7 91285711,3775
1,54497,396,87081721,91912203045,2775

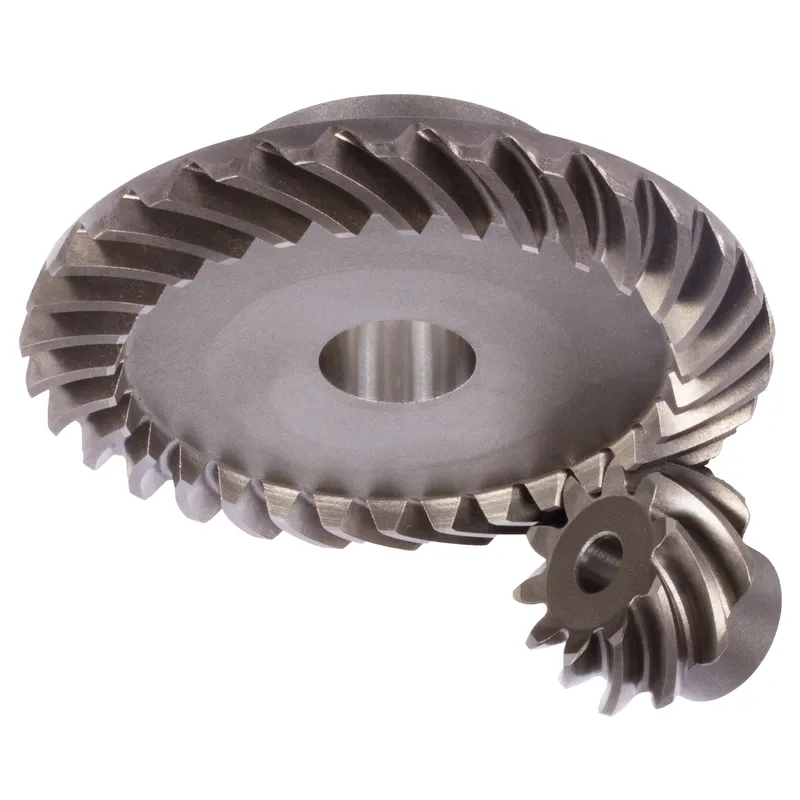

Steel Spiral Bevel Gear Advantages

  1. Smooth and Quiet Operation: The spiral tooth design ensures gradual tooth engagement, reducing impact and vibration compared to straight bevel gears. This results in quieter operation, making them ideal for applications like automotive differentials, where noise reduction enhances user comfort and system longevity.
  2. High Torque Capacity: Steel spiral bevel gears, often made from alloys like 42CrMo4, have hardened teeth that withstand high torque loads. This durability allows them to handle demanding applications in industrial machinery and heavy equipment, ensuring reliable power transmission under stress.
  3. Improved Load Distribution: The curved, oblique teeth distribute contact forces over a larger surface area, reducing localized stress. This enhances gear longevity and minimizes wear, making them suitable for continuous operation in high-load environments like power tools or conveyor systems.
  4. Efficient Power Transmission: The spiral tooth geometry optimizes contact ratios, enabling efficient power transfer between intersecting shafts, typically at 90 degrees. This efficiency reduces energy losses, making these steel bevel gears ideal for applications requiring high performance, such as robotics or precision machinery.
  5. Versatility in Ratios: With ratios like 3:1 to 4:1, these bevel gears offer flexible speed reduction or torque amplification. This adaptability suits diverse applications, from automotive systems to industrial drives, allowing precise control over rotational speed and power output.
  6. Enhanced Durability: Constructed from high-strength steel with hardened teeth (e.g., via induction or case hardening), these steel bevel gear sets resist wear and fatigue. Their robust design ensures long service life, even in harsh conditions, reducing maintenance costs in heavy-duty applications.

Steel Spiral Bevel Gear Advantages

Steel Spiral Bevel Gear Applications

  1. Automotive Differentials: Steel spiral bevel gears are critical in automotive differentials, transmitting power from the driveshaft to the wheels at a 90-degree angle. Their smooth engagement and high torque capacity ensure reliable performance, allowing vehicles to navigate turns efficiently while minimizing noise.
  2. Industrial Machinery: These gears are used in heavy machinery like lathes, mills, and presses, where precise power transmission between intersecting shafts is required. Their durability and ability to handle high loads make them ideal for continuous operation in manufacturing environments.
  3. Power Tools: In tools like angle grinders and drills, spiral bevel gears provide efficient torque transfer and smooth operation. Their compact design and ability to operate at high speeds ensure precision and reliability, enhancing tool performance and user safety.
  4. Robotics: Spiral bevel gears are employed in robotic arms and joints, enabling precise motion control. Their high efficiency and low backlash ensure accurate positioning, making them suitable for applications requiring intricate movements in automation and assembly lines.
  5. Marine Propulsion Systems: In marine applications, these gears transfer power from engines to propellers, handling high torque in harsh conditions. Their robust steel construction and smooth operation ensure reliable performance, reducing wear and maintenance in boat and ship drivetrains.
  6. Conveyor Systems: Spiral bevel gears are used in conveyor drives to transmit power at right angles, facilitating material handling in industries like mining and logistics. Their load distribution and durability ensure consistent operation under heavy loads and continuous use.
Bevel Gear for Automotive IndustryBevel Gear for Marine Industry
Automotive Industry Marine Industry
Bevel Gear for Aerospace IndustryBevel Gear for Industrial Machinery
Aerospace IndustryIndustrial Machinery
