Hộp số máy đóng kiện tròn EPT9.35 cho máy đóng kiện lớn
This Round Baler Gearbox EPT9.35 is a large round baler transmission gearbox, tractor power input. Through the input of the gearbox, the output on both sides drives the machine to operate and transmit power, meanwhile, the gearbox realizes the traction between the tractor and the machine. The design is derived from the original design intention of imported models such as American VERMEER and AGCO and is based on domestic and foreign usage conditions. We have carried out a comprehensive upgrade using a cast iron bridge linking method and integrated design.
Product Specifications
Transmission ratio | Applicable models | Input speed | Output speed | Rated power | Input torque | Tooth shape | |
Round balers, harvesters, etc. | r/min | r/min | hp | N.m | Gleason bevel tooth | ||
Slow down | 1.92:1 | 540 | 282 | 120 | 3000 | ||
Note: Other requirements can be customized. |

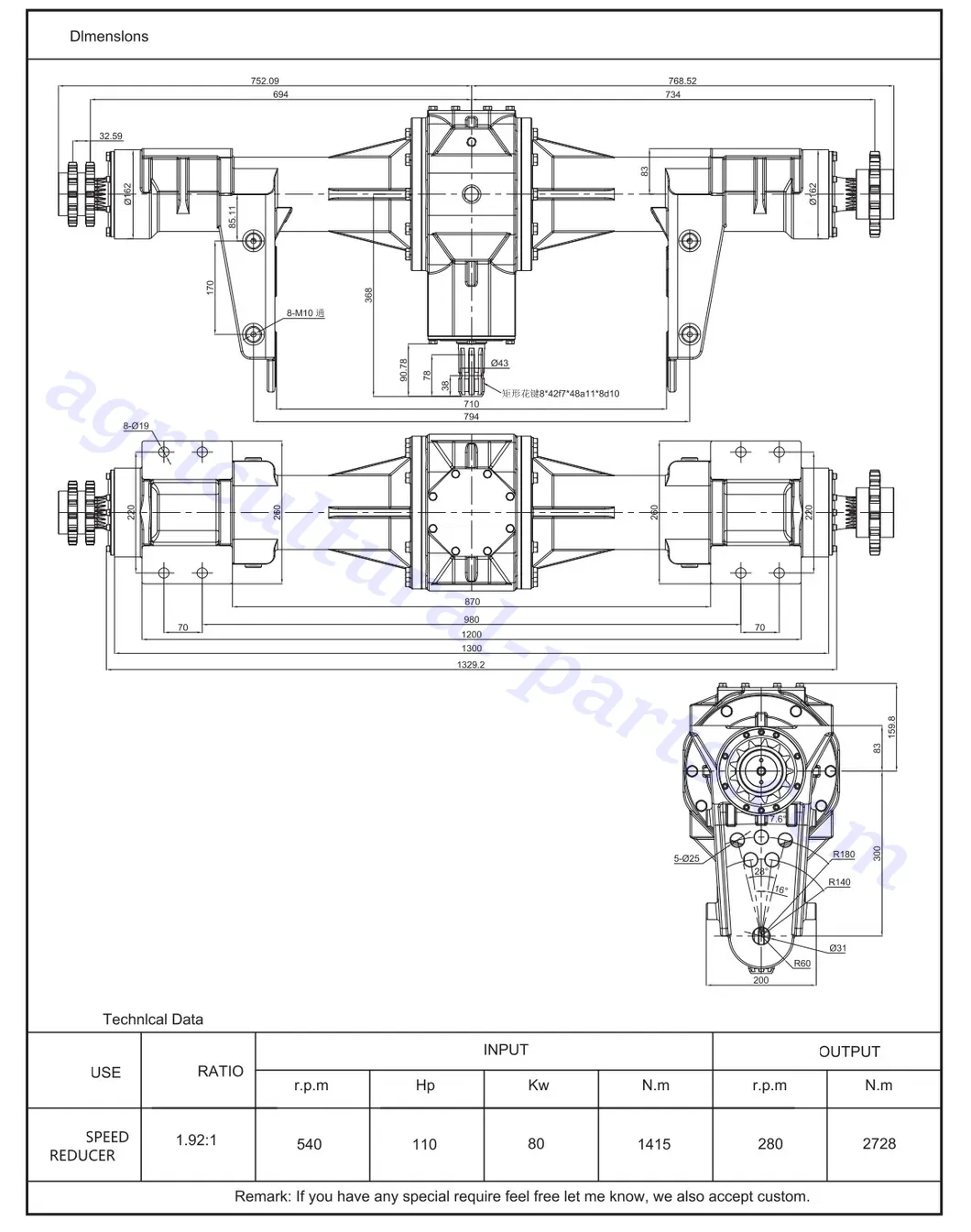

Product Dimensions
Overview of Round Baler Gearbox EPT9.35 for Large Baling Machine
This Round Baler Gearbox EPT9.35 is a large round baler transmission gearbox, tractor power input. Through the input of the gearbox, the output on both sides drives the machine to operate and transmit power, meanwhile, the gearbox realizes the traction between the tractor and the machine. The design is derived from the original design intention of imported models such as American VERMEER and AGCO and is based on domestic and foreign usage conditions. We have carried out a comprehensive upgrade using a cast iron bridge linking method and integrated design.
Applications of Round Baler Gearbox EPT9.35 for Large Baling Machine
The Round Baler Gearbox EPT9.35 is a critical component used in large baling machines, specifically designed to facilitate the efficient bundling of agricultural materials into cylindrical bales. Its applications extend across a wide range of farming and agricultural tasks, ensuring optimal performance and reliability in demanding environments. Here are some key applications:
- Hay and Straw Baling: The EPT9.35 gearbox is widely used in large-scale hay and straw balers. In these operations, the gearbox transmits power from the tractor’s PTO to the baler’s internal mechanisms, enabling efficient compression of hay or straw into compact, uniform cylindrical bales. This is crucial for storing and transporting fodder for livestock or other agricultural uses. The gearbox ensures consistent rotation of the rollers and belts, allowing for smooth operation in high-output baling tasks.
- Silage Baling: Silage baling, which involves compressing and wrapping moist forage crops for fermentation and long-term storage, is another major application of the EPT9.35 gearbox. Handling higher moisture content and heavier material places significant strain on baling machinery, but the robust design of the EPT9.35 ensures reliable power transmission and optimal torque management. This makes it suitable for silage balers used in dairy and livestock farming operations.
- Stubble and Residue Collection: After harvesting crops like corn, wheat, or rice, the leftover stubble and crop residue can be gathered into bales for disposal, mulching, or bioenergy production. The EPT9.35 gearbox enables large baling machines to handle such tasks efficiently, even when working in challenging field conditions with uneven terrain or dense material. Its high torque capacity ensures uninterrupted operation, even with heavy residue loads.
Advantages of Round Baler Gearbox EPT9.35 for Large Baling Machine
The Round Baler Gearbox EPT9.35 offers several advantages for large baling machines, making it a crucial component in the agricultural industry. Some of the key advantages include:
- High Torque Capacity: The EPT9.35 gearbox is designed to handle high torque loads, making it ideal for heavy-duty baling operations. This ensures that the baler can compress dense materials such as hay, straw, or silage efficiently without mechanical failures, even under demanding conditions. Its ability to manage high torque improves reliability and productivity during large-scale agricultural tasks.
- Durable Construction: Built with high-strength steel gears and a reinforced housing, the EPT9.35 gearbox is highly durable and resistant to wear and tear. It is designed to withstand harsh field conditions, such as exposure to dust, debris, and extreme temperatures, providing a long service life with minimal maintenance requirements, even during prolonged usage.
- Efficient Power Transmission: The gearbox ensures minimal energy loss during power transfer from the tractor’s PTO to the baler’s moving parts. Its precision-engineered components optimize power delivery for smooth and consistent operation, enabling the baling machine to work efficiently while reducing fuel consumption, which is essential for cost-effective farming operations.
- Versatility Across Applications: The EPT9.35 gearbox is compatible with a wide range of large baling machines, making it a versatile choice for farmers and contractors. Whether used for hay, straw, silage, or crop residue, the gearbox adapts seamlessly to different materials and operational requirements, ensuring consistent performance regardless of the application.
- Smooth and Quiet Operation: The gearbox is engineered for smooth operation, reducing vibrations and noise during baling. This not only enhances the operator’s comfort but also reduces mechanical stress on the baling machine, prolonging its lifespan and ensuring consistent performance over time.
How to Replace a Damaged Round Baler Gearbox EPT9.35
Replacing a damaged Round Baler Gearbox EPT9.35 in a large round baler is a task that requires careful attention to detail and precision. Here is a general guide on how to replace the gearbox:
- Drain the Gearbox Oil: Place a drain pan beneath the gearbox to collect the oil. Remove the drain plug and allow the oil to drain completely. This step prevents spills and ensures that the damaged gearbox can be safely removed without contamination or mess. Dispose of the old oil according to local environmental regulations.
- Disconnect the Gearbox from the Baler: Detach the gearbox from the baler by removing the bolts and mounting brackets that secure it in place. Carefully disconnect any connected shafts, PTO linkages, or hydraulic lines. Label or mark these components to ensure proper reassembly later. Use a hydraulic jack or lifting equipment to support the gearbox during removal.
- Inspect and Clean the Mounting Area: Once the damaged gearbox is removed, inspect the mounting area on the baler for wear, debris, or damage. Clean the area thoroughly, removing dirt, grease, or old gasket material. This ensures a proper fit and alignment when installing the new gearbox, preventing future operational issues.
- Install the New Gearbox: Position the replacement gearbox (EPT9.35) in place and align it with the mounting points. Secure it using the appropriate bolts and brackets, tightening them to the manufacturer’s specified torque settings. Reconnect the PTO shaft, hydraulic lines, and other linkages, ensuring all connections are secure and properly aligned.
- Refill the Gearbox with Oil: Refill the new gearbox with the recommended type and amount of oil as specified in the manufacturer’s manual. Use a funnel to prevent spills, and make sure the oil level is correct. Proper lubrication is essential for the longevity and smooth operation of the new gearbox.
- Test the Baler for Proper Operation: Reconnect the baler to the tractor’s PTO and test the operation of the gearbox. Run the baler at low speed to check for unusual noises, vibrations, or leaks. Verify that all moving parts are functioning smoothly. Once satisfied with the performance, the baler is ready for use in the field.
Agricultural PTO Shaft for Round Baler Gearbox
The Agricultural PTO Shaft and the Round Baler Gearbox are critical components in agricultural machinery, working together to ensure efficient power transmission and operation of a round baler. Their connection plays a vital role in transforming the tractor’s engine power into mechanical motion for the baler.
The PTO shaft serves as the link between the tractor and the baler. It transfers rotational power from the tractor’s PTO output to the baler’s gearbox. This enables the baler to perform its primary functions, such as picking up crop material, compressing it into cylindrical bales, and ejecting the finished bales. The PTO shaft’s telescopic and flexible design allows it to accommodate varying distances and angles between the tractor and baler, ensuring smooth power transmission even on uneven terrain.
The Round Baler Gearbox, on the other hand, is responsible for distributing the power received from the PTO shaft to the baler’s internal components. It reduces or increases rotational speed, depending on the baler’s requirements, and manages torque to drive the rollers, belts, and pick-up mechanisms. This ensures the machine operates efficiently, compressing crops into well-formed bales.
Together, the PTO shaft and gearbox form a synchronized system. The PTO shaft delivers the raw mechanical power, and the gearbox optimizes and distributes this power to various parts of the baler. Without this connection, the baler would not be able to perform its functions effectively. These components are essential for modern farming practices, as they enable large-scale baling operations, improve productivity, and reduce manual labor. Proper maintenance of both the PTO shaft and gearbox is crucial to ensure smooth operation and a long service life for the baler.
Why Choose AGKNX's Round Baler Gearbox?
AGKNX is a prominent manufacturer of high-performance round baler gearboxes for a variety of applications. Our gearboxes are designed to meet the needs of different agricultural settings, providing reliable and efficient performance. Our round baler gearboxes are a powerful replacement option for Bush Hog, Comer, Omni Gear, Land Pride, John Deere, Kodiak, Hico/Howse, and other brands of gearboxes. Our technical staff can reconfigure an existing design or assist you in designing a custom round baler gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, input speed, output speed, input torque, output torque, mounting position, and the application's environment are all considerations when choosing an agricultural gearbox. If you want to buy a round baler gearbox, please get in touch with us.
1. Quality Products: Our products are crafted with precision and high-quality materials to ensure durability and performance. We adhere to stringent quality standards, ensuring each part meets the demands of rigorous agricultural operations.
2. Wide Range of Products: We offer an extensive selection of aftermarket spare parts for leading agricultural machinery brands. Our diverse product range meets the varied needs of farmers and businesses worldwide.
3. Competitive Prices: We provide top-quality products at competitive prices, offering exceptional value without compromising on quality. Our efficient manufacturing and strategic partnerships help keep costs low.
4. Excellent Customer Service: Customer satisfaction is our priority. Our dedicated team is ready to assist with inquiries, orders, and technical support. We focus on building long-term relationships through personalized service and expert advice.
5. Fast Delivery: We understand the importance of timely delivery in agriculture. Our efficient logistics network ensures that orders are delivered promptly, minimizing downtime during critical operations.
6. Customization Products: We offer tailored solutions by welcoming customer specifications and designs. Provide drawings or samples, and our expert team will create customized parts to meet your unique needs, ensuring optimal performance.
