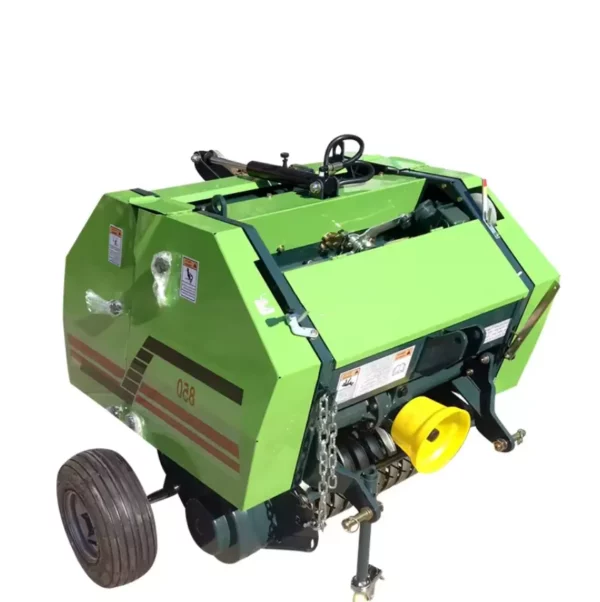

Full-automatic Mini Hay Baler for Agricultural Hay Baling

Introducing the full-automatic mini hay baler - a compact and efficient solution for hay and straw baling operations. This device is categorized as a mini round hay baler/roll baler/round baler, designed with an operating speed of 2-5km/h. The brand-new model, RXYK-0850/RXYK0870, is ideal for various applications including baling hay, wheat, rice straw, and Alfalfa. With dimensions of 115x130x120cm and a weight of 415 kg, it's compact yet sturdy. The baler comes with a warranty of 24 months and is certified by CE.

Advantages of the Full-Automatic Mini Hay Baler

The full-automatic mini hay baler offers numerous benefits to users, making it a valued investment for farming operations. Here are six key advantages of this product:

1. Full Automation: The baler offers a full-automatic operation system, including an auto twine feeding system and auto gate opening system. This significantly reduces manual labor and increases efficiency.
2. Compact and Lightweight: With dimensions of 115x130x120cm and a weight of 415 kg, the baler is compact and lightweight, making it easy to transport and store.
3. High Capacity: The baler has a high capacity, capable of producing 80-120 bales per hour. This allows for quick and efficient baling operations.
4. Variety of Applications: The baler can handle a variety of materials, making it suitable for baling hay, wheat, rice straw, and Alfalfa.
5. Flexible Power Match: The baler can be powered by a tractor ranging from 18 to 50 HP, providing flexibility to users based on their available resources.
6. Durable and Reliable: The baler comes with a 24-month warranty and is certified by CE, ensuring its durability and reliability.

Applications of the Full-Automatic Mini Hay Baler

The full-automatic mini hay baler is versatile and can be utilized in a variety of applications. Here are six key applications of this product:

1. Hay Baling: The baler is ideal for hay baling operations, creating compact and well-formed bales.
2. Wheat Straw Baling: The baler can also be used to bale wheat straw, helping to efficiently manage crop residues.
3. Rice Straw Baling: The baler is suitable for baling rice straw, aiding in proper disposal or usage of rice straw after harvest.
4. Alfalfa Baling: The baler is perfect for Alfalfa baling, creating dense and uniform bales for easy storage and transportation.
5. Small Farm Operations: The mini size of the baler makes it suitable for small farm operations where space and resources may be limited.
6. Custom Baling Services: The baler can also be used to offer custom baling services, providing a potential source of income for farmers.

Tractor Mounted Mini Hay Round Baler Working Principle

The working principle of a tractor-mounted mini hay round baler involves several key steps to efficiently collect, compress, and bind hay or straw into compact cylindrical bales. Here is a general overview of the process:

1. Attachment to Tractor: The mini hay round baler is attached to the tractor's three-point hitch or mounted on the rear of the tractor using appropriate brackets. It is typically powered by the tractor's power take-off (PTO) system, which provides the necessary rotational power.
2. Pick-Up Mechanism: The baler is equipped with a pick-up mechanism at the front, which consists of a series of tines or belts. As the tractor moves forward, the pick-up mechanism collects the loose hay or straw from the ground and transfers it to the baling chamber.
3. Feeding and Compression: The hay or straw is fed into the baling chamber through the pick-up mechanism. Inside the baling chamber, there is a rotating drum or rotor with spiral-shaped vanes or belts. The material is fed into the space between the rotor and the chamber wall, where it is rolled and compressed.
4. Formation of Bale: As the material is continuously fed into the baling chamber, the rotating drum or rotor compresses it, gradually forming a cylindrical shape. The chamber is designed with adjustable side plates or rollers to control the size and density of the bale.
5. Binding Process: Once the desired size of the bale is reached, the mini hay round baler initiates the binding process. It typically uses twine or netting to secure the bale. The twine or netting is automatically fed into the baler, and it wraps around the bale in a crisscross pattern to hold it together.
6. Bale Ejection: Once the baling and binding process is complete, the mini hay round baler ejects the finished bale. It can be released onto the ground or onto a bale wagon or trailer attached to the rear of the baler. Some balers also have a hydraulic ejection system that pushes the bale out of the chamber.
7. Repeat Process: After the bale is ejected, the mini hay round baler is ready to repeat the process for the next bale. The pick-up mechanism continues to collect the hay or straw, and the cycle of feeding, compression, binding, and ejection is repeated until the desired number of bales is produced.

How to Install the Mini Hay Round Baler to Tractor?

Installing a mini hay round baler to a tractor involves a few key steps to ensure proper attachment and secure operation. Here is a general guide on how to install a mini hay round baler to a tractor:

1. Check Compatibility: Before installing the baler, ensure that it is compatible with your tractor. Check the specifications and requirements provided by the baler manufacturer to ensure it can be safely attached to your tractor's three-point hitch or mounting brackets.



2. Position the Tractor: Park the tractor on a level surface and engage the parking brake. Ensure that the tractor is turned off and the PTO is disengaged.
3. Align the Baler: Position the mini hay round baler behind the tractor, aligning it with the three-point hitch or mounting brackets. Ensure that the baler's hitch or brackets are at the correct height for attachment.
4. Attach the Lower Linkage: Lower the three-point hitch of the tractor to align the lower linkage arms with the baler's hitch or brackets. Insert the lower linkage pins through the appropriate holes on both sides and secure them with the locking devices provided.
5. Attach the Top Link: Connect the top link of the tractor to the baler's top link bracket. Adjust the length of the top link to ensure proper alignment and maintain the desired working position of the baler.
6. Connect the PTO Shaft: Locate the PTO shaft on the baler and align it with the PTO output shaft on the tractor. Slide the PTO shaft onto the tractor's PTO shaft, ensuring that the splines engage properly. Secure the PTO shaft with the provided safety chain or locking mechanism.
7. Test Operation: Start the tractor and engage the PTO. Observe the rotation of the baler's components to ensure smooth operation. Check for any unusual noises or vibrations that may indicate improper installation or alignment.

Common Troubleshooting of the Mini Hay Round Baler

Troubleshooting common issues with a tractor-mounted mini hay round baler involves identifying and addressing problems that can affect its performance and the quality of the bales produced. Here are some frequent issues encountered with these balers and potential solutions:

1. Baler Not Starting or Operating: PTO connection issues, insufficient hydraulic pressure, or electrical faults. Ensure the PTO shaft is correctly connected and that the tractor's PTO output matches the baler's requirements. Check the hydraulic system for leaks or low pressure and repair as necessary. Inspect electrical connections and fuses for faults.
2. Uneven or Loose Bales: Incorrect tension settings, uneven windrow feeding, or worn parts. Adjust the baler's tension settings according to the manufacturer's instructions. Ensure even and consistent feeding of the windrow into the baler. Replace any worn belts, rollers, or other parts affecting bale formation.
3. Baler Jamming or Clogging: Overfeeding, wet or overly dry material, or mechanical obstructions. Feed the material at a consistent rate to avoid overloading the baler. Avoid baling excessively wet or dry material. Clear any obstructions in the baler's intake or mechanism.
4. Bales Not Tying or Wrapping Properly: Twine or net wrap issues, malfunctioning tying or wrapping mechanism, or incorrect settings. Check and refill twine or net wrap supplies. Inspect the tying or wrapping mechanism for damage or malfunctions and repair or adjust as necessary. Ensure settings for tying or wrapping are correctly configured.
5. Excessive Wear or Damage to Baler Components: Lack of maintenance, incorrect settings, or operating beyond capacity. Regularly inspect and maintain the baler, including lubrication and part replacements. Adjust settings to match the operating conditions and material being baled. Avoid operating the baler beyond its designed capacity.
6. Poor Baler Performance or Efficiency: Incorrect tractor-baler setup, improper PTO speed, or baler not leveled. Ensure the baler is correctly attached and leveled on the tractor. Adjust the PTO speed to match the baler's requirements. Check that the baler is properly configured for the tractor's capabilities.

Why Choose AGKNX's Mini Hay Round Baler?

AGKNX Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, 농업용 기어박스, agricultural chains, agricultural pulleys, and agricultural sprockets. With over 100 employees and 20 technical staff, the company boasts five senior R&D personnel and ample financial resources. The company owns two advanced casting, forging, machining, heat treatment, and lacquering production lines and uses CAD computer-aided design system, demonstrating strong production technology and advanced equipment.

AGKNX has more than ten years of experience in production, and primarily produces farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines. These products are set up by the main tractor manufacturers in China. The company's main products include PTO 샤프트, agricultural gearboxes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, hay rakes, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, corn seeder, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, log splitter, front end loader, backhoe, snow blower, road sweeper, and more.

The company's products are complete in specifications, excellent in performance, and reliable in quality. They are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.
