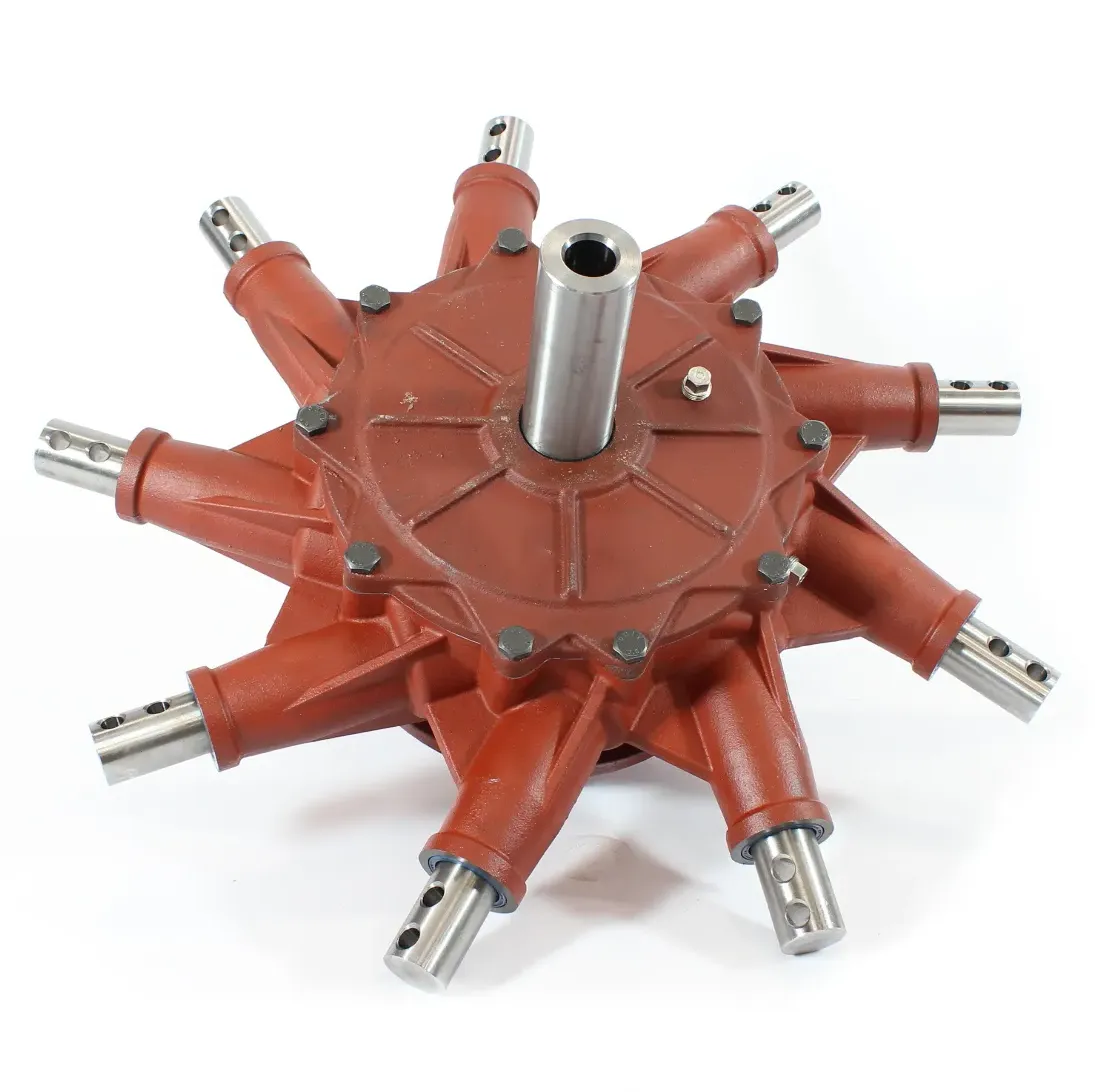

PTO Driven Hay Rake Gearbox for Hay Collection

The PTO (Power Take-Off) driven hay rake gearbox is a crucial component in agricultural machinery, specifically designed for hay collection. This gearbox is attached to a hay rake, a farm implement used to collect cut hay or straw into windrows for easy collection. The gearbox's primary function is to transfer power from the tractor's PTO shaft to the hay rake, enabling it to operate efficiently. It translates the rotational energy from the tractor into the mechanical motion needed to drive the rake's tines or wheels.

Constructed from robust materials to withstand the harsh conditions of agricultural work, the gearbox is engineered for durability and reliability. It typically features a durable casing that protects the internal gears and mechanisms from dust, debris, and moisture, ensuring long-term performance. This component is vital for the smooth operation of hay rakes, facilitating faster, more organized hay collection, which is essential for timely baling and optimal hay quality.

Advantages of PTO Driven Hay Rake Gearbox for Hay Collection

The hay rake gearbox, specifically designed for hay collection, offers several advantages that significantly enhance the efficiency and effectiveness of agricultural operations. Here are some key benefits:

• Increased Efficiency: The hay rake gearbox allows for the smooth and effective transmission of power from the tractor to the rake. This ensures that the hay rake operates at optimal speeds, appropriate for different types of hay and field conditions, maximizing the collection process.
• Durability and Longevity: These gearboxes are built to withstand the harsh conditions of farming. They are typically made from high-quality materials like cast iron or reinforced steel, which are resistant to wear and tear. This durability ensures that the gearbox can handle the high torque and variable speeds required during hay collection without frequent breakdowns, thereby extending the lifespan of the machinery.
• Versatility: Many hay rake gearboxes come with adjustable settings that allow the operator to change the gear ratios. This adaptability is crucial for working under varying field conditions and with different types of hay, enabling farmers to optimize the rake's performance based on specific needs.
• Reduced Maintenance Costs: Due to their robust construction and the ability to handle significant mechanical stresses, these gearboxes require less frequent repairs and maintenance. This reliability translates to lower downtime and reduced costs over the lifespan of the equipment.
• Improved Crop Yield: By ensuring that the hay is collected efficiently and neatly, the hay rake gearbox helps in reducing the amount of hay left in the field. This not only improves the overall yield but also ensures that the collected hay is clean and of high quality, which is especially important for livestock feeding.

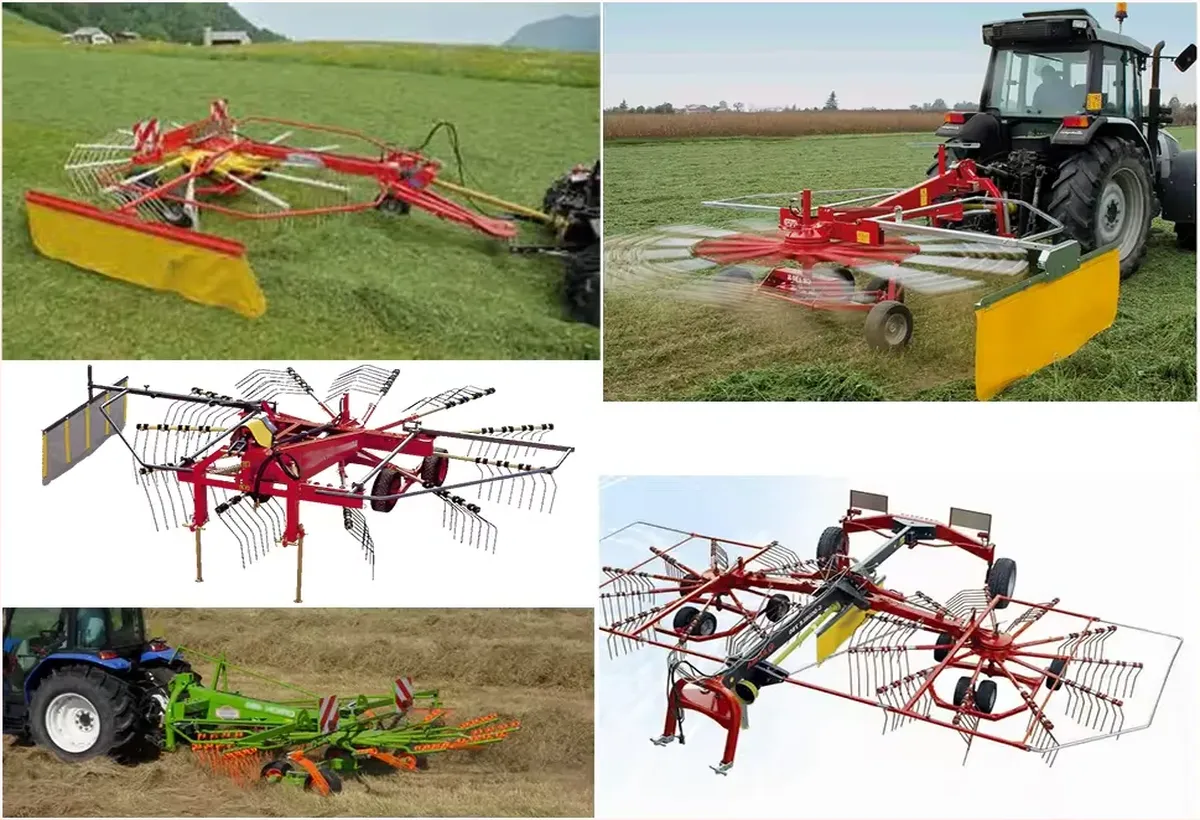

Typical Applications:

The PTO driven hay rake gearbox is a specialized component widely used in agricultural machinery, particularly in hay collection operations. Its applications extend beyond merely collecting hay, playing a crucial role in the overall efficiency and effectiveness of various farming tasks. Here are some primary agricultural applications of this type of gearbox:

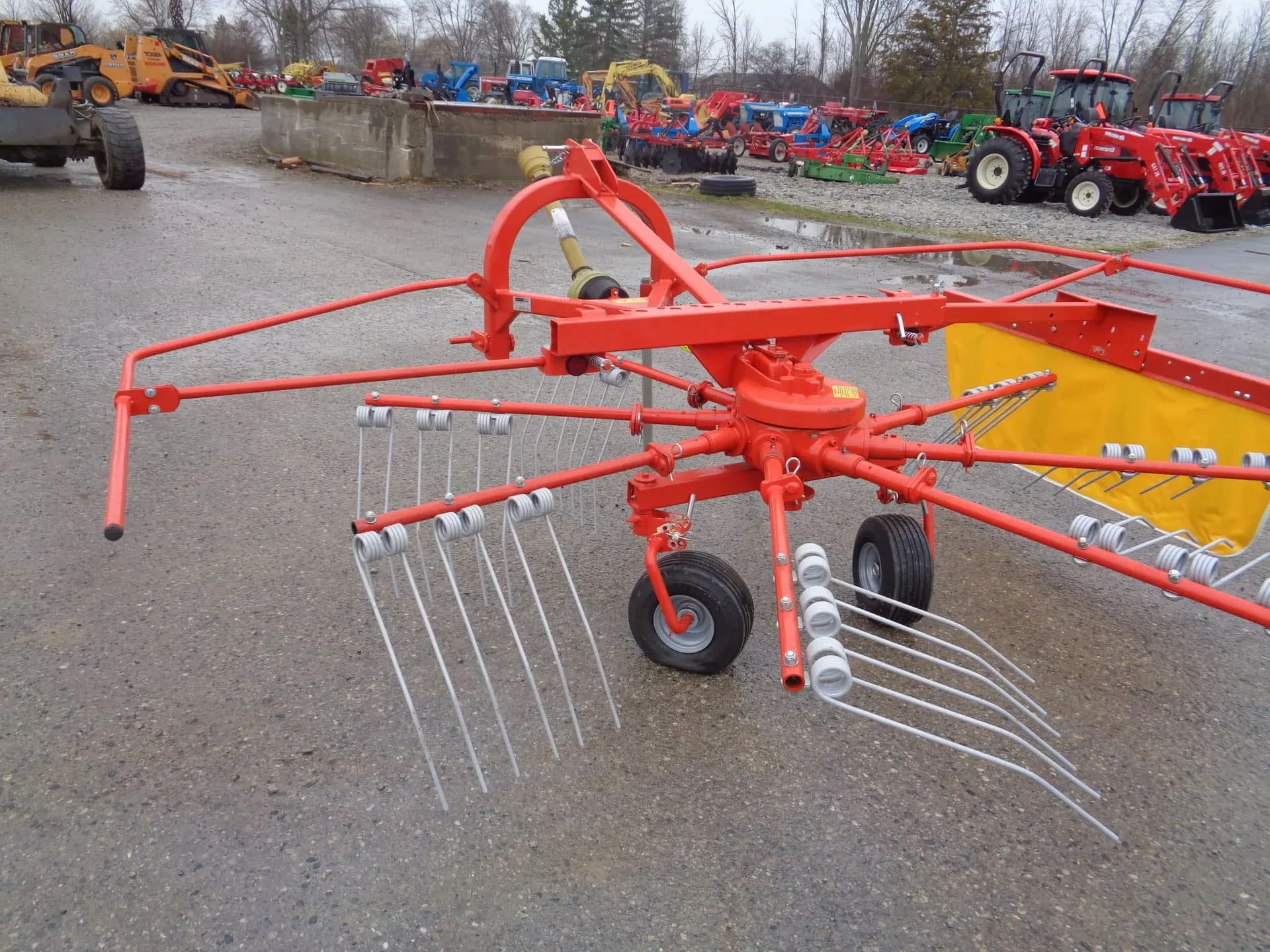

1. Hay Gathering: The primary application of the hay rake gearbox is in hay rake machines, which are used to gather cut hay into rows. This makes it easier for the hay to be baled or collected directly. The gearbox ensures that the rake operates smoothly and efficiently, adjusting to the required speed based on the volume of hay and field conditions.
2. Windrowing: Besides gathering, hay rakes equipped with these gearboxes also perform windrowing, which involves arranging the hay into long, narrow piles called windrows. These are set up to optimize the drying process, which is essential for preserving the hay's nutritional value before baling.
3. Conditioning: Some advanced hay rakes fitted with a rotary rake gearbox can also condition the hay. Conditioning involves crimping or crushing the hay stems to promote faster and more uniform drying. The gearbox allows the rake to operate at speeds that efficiently condition the hay without damaging it.
4. Tedding: While primarily for raking, some multi-functional rakes with a PTO driven gearbox can also perform tedding. Tedding spreads the hay out in the field to dry more quickly. The gearbox adjusts the machine's speed and torque, ensuring effective dispersal of the hay for even drying.
5. Cleanup and Land Clearing: After harvesting crops, hay rakes with these rotary rake gearboxes can also be used to clean up the field, gathering leftover stalks, leaves, and other debris. This not only helps in preparing the field for the next crop but also prevents pests and diseases from harboring in the residue.
6. Aerating Soil: In some farming setups, hay rakes can also be used to lightly aerate the top layer of the soil, improving air and moisture penetration. The gearbox helps maintain the appropriate speed to ensure effective aeration without disturbing the soil structure significantly.

How Does the Tractor PTO Driven Hay Rake Gearbox Work?

The tractor PTO driven hay rake gearbox for hay collection is a crucial component in modern agricultural operations, facilitating the efficient gathering and processing of hay. Here's how it works in a step-by-step manner:

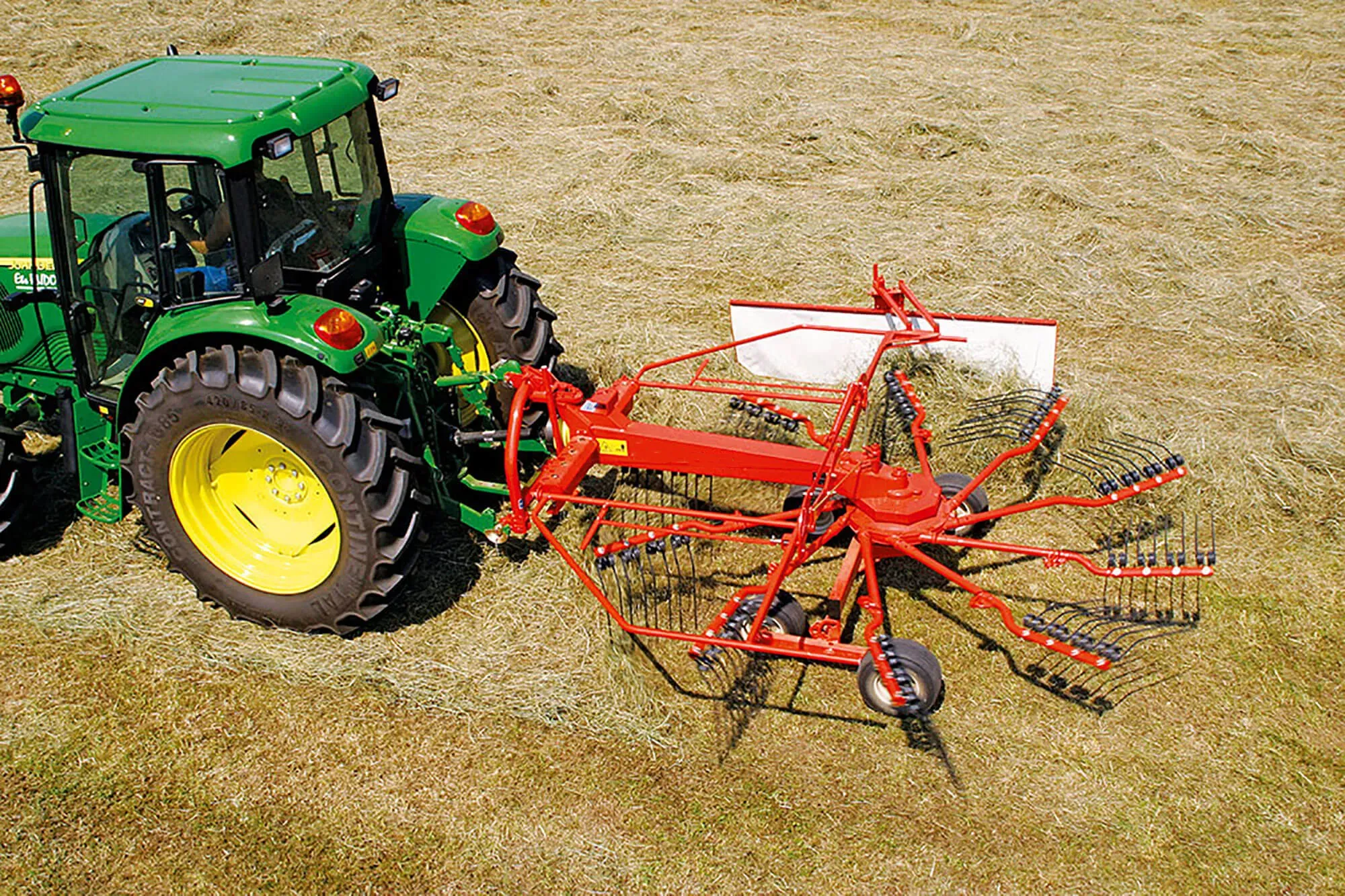

1. Power Source Connection: The gearbox is connected to the tractor's PTO shaft. The PTO is a splined drive shaft, usually located at the rear of the tractor, that provides a mechanical means of transferring power from the tractor's engine to the hay rake or other agricultural implements.
2. Transmission of Power: When activated, the tractor's engine drives the PTO shaft, which in turn rotates the drive shaft of the gearbox. The gearbox is specifically designed to take the high-speed, low-torque power from the tractor's engine and convert it into a lower speed, higher torque output suitable for the operation of the hay rake.
3. Speed and Torque Conversion: Inside the gearbox, a series of gears adjust the input speed and torque from the tractor to the desired levels needed for efficient hay raking. Depending on the gearbox design, it may have multiple gear options allowing for different speed and torque settings, which can be selected based on the specific field conditions and the type of hay being collected.
4. Drive Mechanism Activation: The output from the gearbox drives the mechanical linkage to the hay rake's operational components. In most hay rakes, this includes the tines or teeth that physically touch and move the hay. The rotation and speed of these components are critical for effective raking, ensuring that the hay is neatly collected into rows or windrows.
5. Operational Control: Operators can control the speed of the rake via the gearbox settings, often directly from the tractor's cabin. Adjusting the gearbox settings allows the farmer to match the rake's operation to various conditions, such as crop type, crop density, and moisture levels in the field. This control is vital for preventing damage to the hay and ensuring it is raked in an optimal manner for subsequent baling or collection.

Proper Maintenance of Gearbox for Hay Rake

Proper maintenance of a hay rake gearbox is crucial for ensuring its longevity and optimal performance. Here are several steps and best practices to effectively maintain a hay rake gearbox:

• Regular Lubrication: Regularly check and replenish the lubricant levels in the gearbox. Use only the type of lubricant recommended by the manual, as this ensures the gears operate smoothly and reduces friction. This prevents overheating and wear, which can lead to premature failure of the gearbox components.
• Clean and Inspect Seals and Gaskets: Ensure that the seals and gaskets on the gearbox are intact and clean. These components prevent dirt, debris, and moisture from entering the gearbox, which can cause corrosion and gear damage. Inspect them regularly for any signs of wear or damage and replace them as needed to maintain a tight seal.
• Check and Tighten Fasteners: Vibration from normal operation can loosen bolts and other fasteners over time. Periodically check these components and tighten them to the manual's specifications. This prevents mechanical play or misalignment of the gearbox components, which can lead to uneven wear and operational inefficiency.
• Monitor Gearbox Temperature and Noise: During operation, pay attention to the gearbox's temperature and any unusual noises. Excessive heat or odd sounds like grinding or clicking can indicate problems such as low lubricant levels, worn gears, or internal misalignment. Addressing these issues early can prevent more severe damage and costly repairs.
• Routine Gear and Bearing Inspections: Periodically disassemble the gearbox for a thorough inspection of gears and bearings. Look for signs of wear, pitting, or scoring, which can impair the gearbox's function. Early detection of these issues allows for timely repairs or replacements, maintaining the gearbox's efficiency and durability.
• Maintain Cleanliness Around the Gearbox: Keep the external part of the gearbox and its immediate environment clean. Remove any accumulation of dirt, plant material, or other debris. This prevents external contaminants from entering the system and ensures that cooling fins or vents are unobstructed, which is essential for maintaining an optimal operating temperature.

Common Troubleshooting of Rotary Rake Gearbox

Troubleshooting issues with a rotary rake gearbox is crucial for maintaining its efficiency and prolonging its lifespan. Here are some common problems you might encounter with a rotary rake gearbox and how to address them:

1. Excessive Noise or Vibration: If the gearbox is producing unusual noises or vibrations, check for loose components or misalignment of gears. This may also indicate worn bearings or gears. Ensure all bolts are tightened properly and replace any worn or damaged parts to restore smooth operation.
2. Overheating: Overheating can be caused by inadequate lubrication, overloading, or a malfunctioning cooling system. Check the oil level and quality, and replace if necessary. Ensure that the gearbox is not being overloaded beyond its capacity and that any cooling components are functioning correctly.
3. Leaking Seals: Gearbox oil leaks often stem from damaged or worn seals. Inspect all seals and gaskets for signs of wear or damage and replace them as needed. Ensure that seals are properly fitted and that the correct type of seal is used for optimal performance.
4. Poor Gear Engagement: Difficulty in gear engagement or a gearbox that slips out of gear can be due to worn gears, improper adjustment, or a misalignment of the drive shaft. Inspect gears for wear and ensure that the gearbox is correctly aligned with the PTO shaft. Adjustments may need to be made to the linkage or mounting to correct this issue.
5. Decreased Performance: If the gearbox is not performing as expected, it could be due to internal wear, incorrect gear setup, or issues with the power input from the tractor. Check for worn parts and ensure that the tractor's PTO is delivering the correct speed and power as per the gearbox specifications.
6. Corrosion and Rust: Exposure to moisture can lead to rust and corrosion inside the gearbox. This can impair the gearbox's functionality and lead to premature wear. Inspect the gearbox regularly for any signs of rust or corrosion, particularly if the gearbox is used or stored in damp conditions, and take appropriate measures to clean and protect it.

Why Choose AGKNX's Rotary Rake Gearbox?

AGKNX is a leading manufacturer and distributor of rotary rake gearboxes, recognized for our technological prowess and substantial scale. Our rotary rake gearboxes serve as robust replacement options for notable brands such as John Deere, Case IH, CLAAS, New Holland, Kubota, Lovol, Zoomlion, Krone, Shibaura, Kioti, Challenger, Versatile, and Valtra. These products are engineered for efficiency, durability, and ease of maintenance, making them ideal for various agricultural applications including hay collection, field preparation, and crop processing.

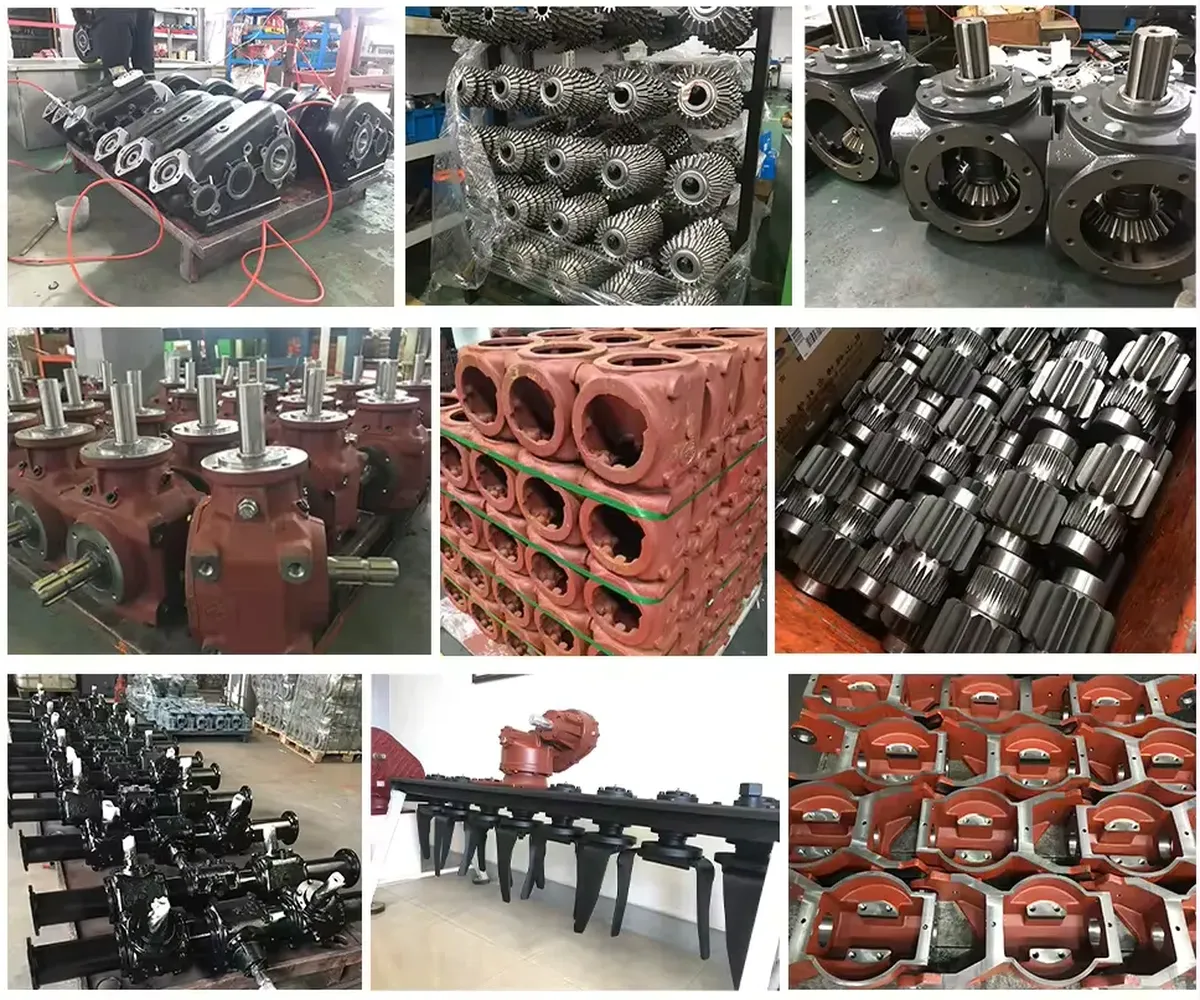

Our expertise in the rotary rake gearbox sector is well-established, underpinned by advanced manufacturing facilities and stringent quality control systems that comply with international standards. AGKNX offers customized solutions tailored to meet specific customer needs, supported by a professional after-sales service team ready to provide technical support and maintenance advice, ensuring long-term reliability and performance.

Additionally, AGKNX manufactures a wide array of agricultural gearboxes and PTO shafts for different farming needs, including rotary cutter gearboxes, rotary tiller gearboxes, feed mixer gearboxes, lawn mower gearboxes, fertilizer spreader gearboxes, flail mower gearboxes, post hole digger gearboxes, corn header gearboxes, fertilizer mixer gearboxes, round baler gearboxes, square baler gearboxes, and irrigation reels gearboxes. Our commitment to professionalism, certification, customized services, and comprehensive after-sales support positions us as a global leader in agricultural machinery.
