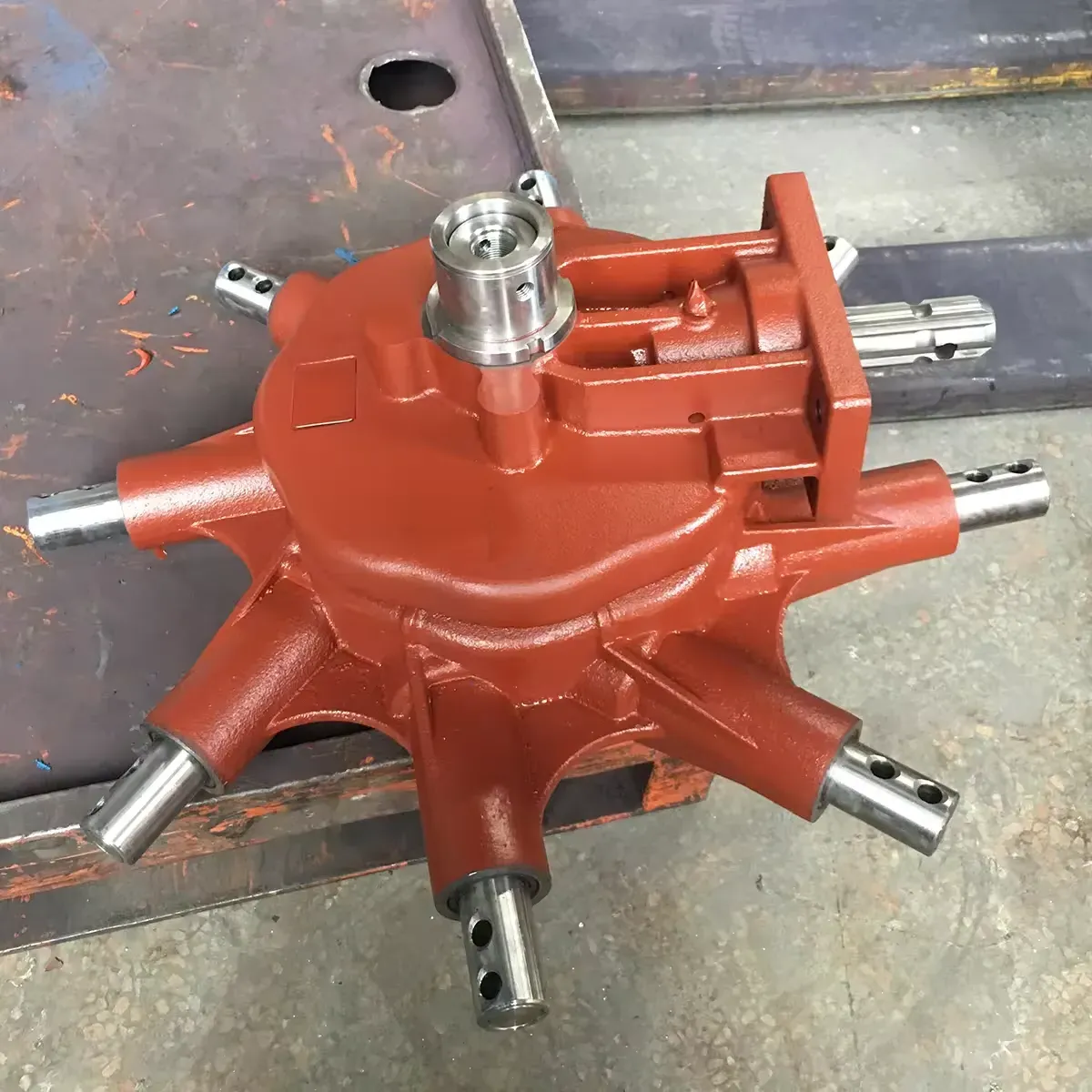

PTO Driven Hay Rake Gearbox for Hay Harvesting
The PTO driven hay rake gearbox is an essential component in the mechanism of a rotary rake, commonly used in agriculture for raking hay, straw, or similar materials. Here's a step-by-step explanation of how it works:
How Does the Tractor PTO Driven Rotary Rake Gearbox Work?

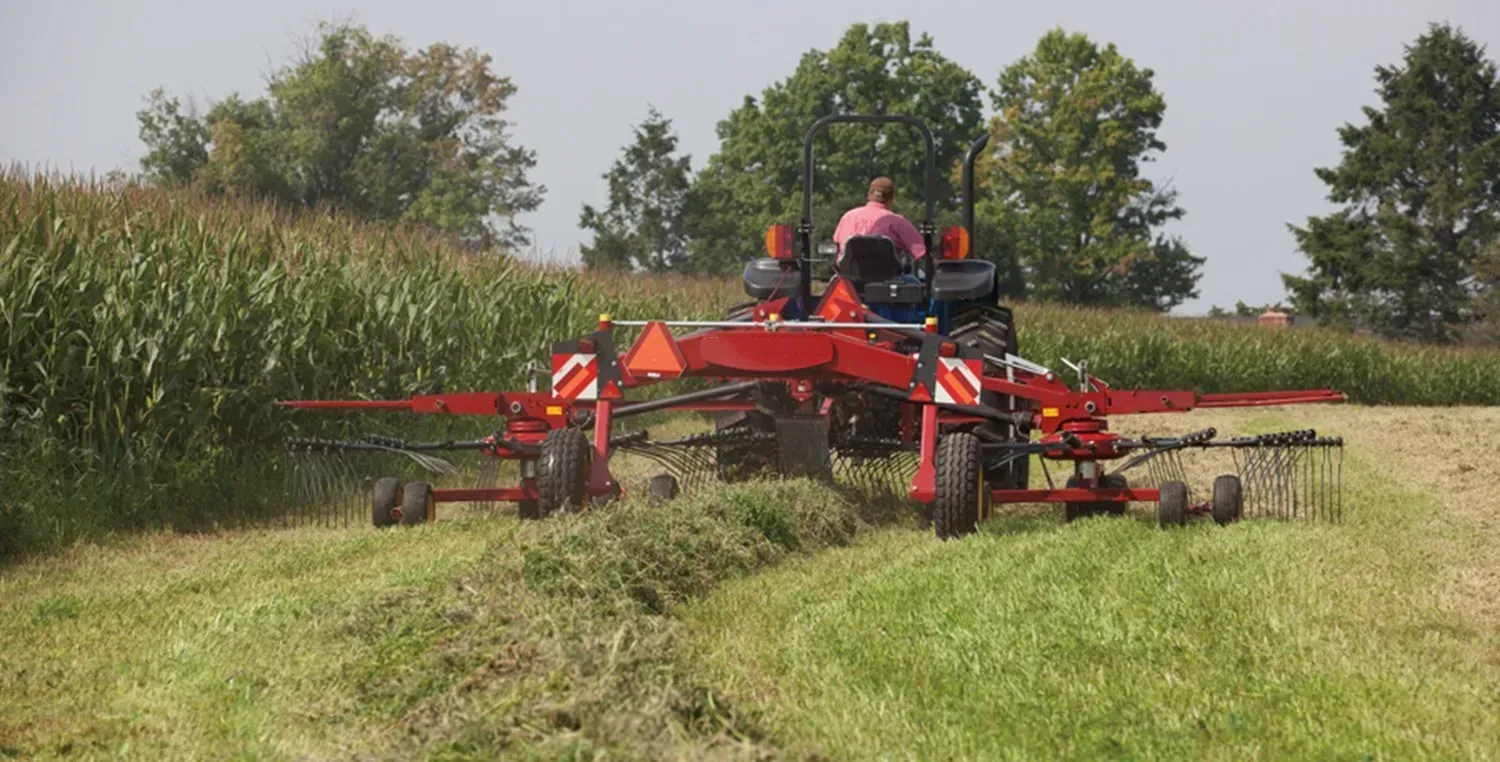

1. Power Source: The process begins with the tractor, which serves as the power source. The PTO shaft on the tractor is a protruding spindle that transfers mechanical power from the tractor engine to the rotary rake.
2. PTO Shaft Engagement: When the tractor's PTO is engaged, it spins the PTO shaft. This shaft is connected directly to the rotary rake's gearbox. The engagement is typically controlled by the operator from the tractor's cabin, using a lever or switch that activates the PTO.
3. Gearbox Function: The rotary rake gearbox's primary function is to convert the high-speed rotation from the tractor's PTO shaft into a lower speed but higher torque output suitable for the operation of the rake tines or arms.
4. Transmission of Power: Inside the gearbox, the mechanical power transferred by the PTO shaft is modulated by the gears. Depending on the gearbox design, it might use spur gears, helical gears, or a combination to adjust the rotational speed and torque.
5. Rake Arm Movement: The output shaft of the gearbox is connected to the rake arms. As the gearbox modulates the power, it drives the rotary motion of the rake arms, which move in a circular or sweeping motion.
6. Continuous Operation: As long as the tractor's engine runs and the PTO remains engaged, the rotary rake will continue to operate.
Proper Maintenance of Tractor PTO Driven Rotary Rake Gearbox
Proper maintenance of a tractor PTO driven rotary rake gearbox is crucial for ensuring the longevity and efficient performance of your equipment. Here are key steps and tips to maintain this important component:
1. Regular Inspection: Regularly inspect the gearbox for any oil leaks or cracks in the housing. Leaks can lead to a loss of lubrication and eventual damage to the internal gears.
2. Lubrication: Ensure that the oil level in the gearbox is maintained at the manufacturer's recommended level. Low oil levels can lead to overheating and increased wear.
3. Cleaning: After each use, clean any plant material or debris from around the gearbox and the PTO shaft.
4. Check and Tighten Connections: Regularly check that the gearbox is securely mounted and that all bolts and mounts are tight.
5. Alignment and Balancing: Check the alignment of the PTO shaft and the gearbox regularly.
6. Storage: When not in use, store the equipment in a covered, dry area to prevent rust and corrosion.
Common Troubleshooting of Tractor PTO Driven Rotary Rake Gearbox
Troubleshooting a tractor PTO driven rotary rake gearbox involves identifying and resolving issues that may impair its operation. Here are common problems and their solutions:
1. Excessive Noise or Vibration: Excessive noise or vibration often stems from worn bearings or gears, improper alignment, or imbalance in the rotating parts.
2. Gearbox Overheating: Overheating can occur due to insufficient lubrication, overloading, or blocked ventilation.
3. Oil Leaks: Oil leaks are commonly caused by damaged seals, gaskets, or cracks in the gearbox housing.
4. Difficulty Engaging or Disengaging: Problems with engaging or disengaging the gearbox may be due to a malfunctioning clutch on the PTO shaft, worn splines, or mechanical linkage issues.
5. Reduced Efficiency or Performance: This issue can be caused by internal wear and tear, incorrect gear adjustments, or a mismatch between the tractor output and gearbox settings.
6. Unusual Wear Patterns: Unusual wear patterns on gears and bearings often indicate misalignment, insufficient lubrication, or incorrect installation.
Why Choose AGKNX's Rotary Rake Gearbox?
AGKNX is a prominent manufacturer of high-performance rotary rake gearboxes for a variety of applications. Our technical staff can reconfigure an existing design or assist you in designing a custom rotary rake gearbox if a standard or existing design does not fit your application.
- Professionalism: Our team of experts is dedicated to delivering high-quality products and services to meet your specific needs.
- International Certifications: Our products are certified to meet international standards, ensuring reliability and performance.
- Customized Services: We can tailor our products to your unique requirements, providing customized solutions for your applications.
- Production Facilities: Our state-of-the-art production facilities utilize advanced technology to manufacture top-of-the-line gearboxes.
- After-Sales Services: We offer comprehensive after-sales support to ensure the continued operation and maintenance of our products.
