PTO Driven Hay Rake Gearbox for Wheat Field Management

PTO Driven Hay Rake Gearbox for Wheat Field Management

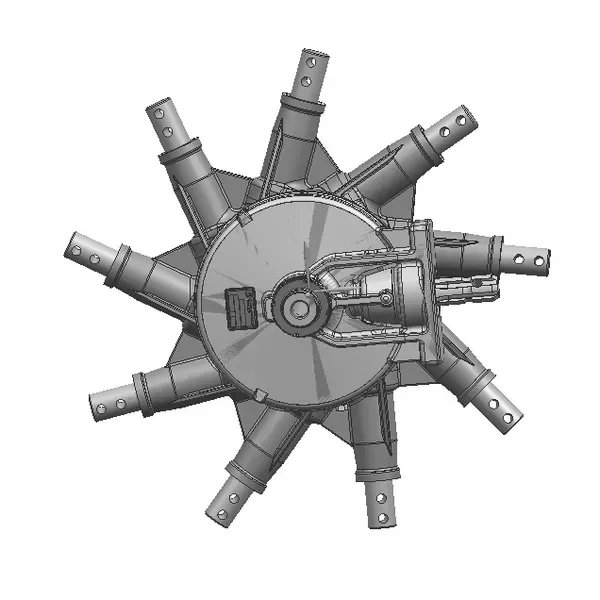

The tractor PTO driven rotary rake gearbox is an essential component in the mechanism of a rotary rake, commonly used in agriculture for raking hay, straw, or similar materials.

Here's a step-by-step explanation of how it works:

1. Power Source: The process begins with the tractor, which serves as the power source.
2. PTO Shaft Engagement: When the tractor's PTO is engaged, it spins the PTO shaft.



3. Gearbox Function: The rotary rake gearbox's primary function is to convert the high-speed rotation from the tractor's PTO shaft into a lower speed but higher torque output suitable for the operation of the rake tines or arms.
4. Transmission of Power: Inside the gearbox, the mechanical power transferred by the PTO shaft is modulated by the gears.
5. Rake Arm Movement: The output shaft of the gearbox is connected to the rake arms.
6. Continuous Operation: As long as the tractor's engine runs and the PTO remains engaged, the rotary rake will continue to operate.

Proper Maintenance of Tractor PTO Driven Rotary Rake Gearbox

Proper maintenance of a tractor PTO driven rotary rake gearbox is crucial for ensuring the longevity and efficient performance of your equipment.

1. Regular Inspection: Regularly inspect the gearbox for any oil leaks or cracks in the housing.
2. Lubrication: Ensure that the oil level in the gearbox is maintained at the manufacturer's recommended level.
3. Cleaning: After each use, clean any plant material or debris from around the gearbox and the PTO shaft.
4. Check and Tighten Connections: Regularly check that the gearbox is securely mounted and that all bolts and mounts are tight.
5. Alignment and Balancing: Check the alignment of the PTO shaft and the gearbox regularly.
6. Storage: When not in use, store the equipment in a covered, dry area to prevent rust and corrosion.

Common Troubleshooting of Tractor PTO Driven Rotary Rake Gearbox

Troubleshooting a tractor PTO driven rotary rake gearbox involves identifying and resolving issues that may impair its operation.

1. Excessive Noise or Vibration: Excessive noise or vibration often stems from worn bearings or gears.
2. Gearbox Overheating: Overheating can occur due to insufficient lubrication, overloading, or blocked ventilation.
3. Oil Leaks: Oil leaks are commonly caused by damaged seals, gaskets, or cracks in the gearbox housing.
4. Difficulty Engaging or Disengaging: Problems with engaging or disengaging the gearbox may be due to a malfunctioning clutch on the PTO shaft.
5. Reduced Efficiency or Performance: This issue can be caused by internal wear and tear, incorrect gear adjustments, or a mismatch between the tractor output and gearbox settings.
6. Unusual Wear Patterns: Unusual wear patterns on gears and bearings often indicate misalignment, insufficient lubrication, or incorrect installation.

Why Choose AGKNX's Rotary Rake Gearbox?

AGKNX is a prominent manufacturer of high-performance rotary rake gearboxes for a variety of applications.

Our technical staff can reconfigure an existing design or assist you in designing a custom rotary rake gearbox if a standard or existing design does not fit your application.

Shaft rotation, speed ratio, design type, load nature, mounting position, and the application's environment are all considerations when choosing a rotary rake gearbox.

Company Expertise

AGKNX is known for its professionalism and high-quality products in the agricultural machinery industry.

• International Certifications: AGKNX holds various international certifications for its products, ensuring quality and reliability.
• Customized Services: The company offers customized gearbox solutions to meet specific customer requirements.
• Production Facilities: AGKNX boasts state-of-the-art production facilities equipped with the latest technology.
• After-Sales Services: The company provides excellent after-sales support and maintenance services to its customers.
