Selecting the Right Agricultural Sprayer Gearbox Size for Your Sprayer

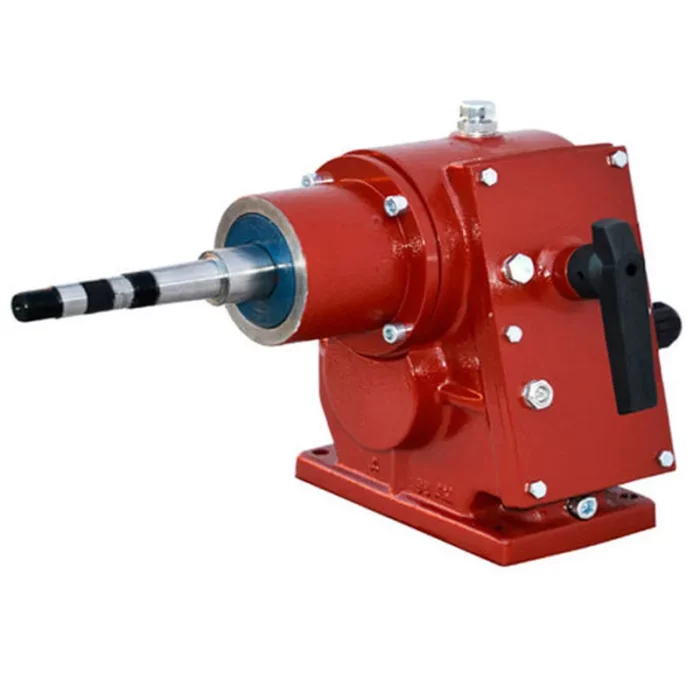

What is an Agricultural Sprayer Gearbox?

As an essential component in the agricultural spraying process, an agricultural sprayer gearbox is a mechanical device that converts power generated by the tractor or self-propelled sprayer's engine into a force that pumps and distributes agricultural liquids. These liquids include pesticides, herbicides, fungicides, and fertilizers, which are vital for crop health and growth.

The Advantages of Using an Agricultural Sprayer Gearbox

An agricultural sprayer gearbox offers many advantages in agricultural operations:

• Efficient Power Conversion: It transforms high-speed, low-torque power into low-speed, high-torque power, optimizing the operation of the sprayer pump.
• Adjustable Speed and Torque: Some gearboxes allow for adjustments to output speed and torque, catering to different spraying needs.

• Durable Construction: A typical gearbox is built from robust materials, offering high resistance to wear and tear.
• Improved Spraying Accuracy: With the help of a gearbox, sprayers can distribute agricultural liquids more evenly and accurately.
• Enhanced Productivity: By optimizing the sprayer pump's performance, an agricultural sprayer gearbox can significantly improve farming productivity.
• Customizable: Depending on the manufacturer, a gearbox can be tailored to suit specific agricultural applications.

As an experienced manufacturer, we can produce customized agricultural sprayer gearboxes that meet your specific needs and requirements.

Applications of the Agricultural Sprayer Gearbox

The agricultural sprayer gearbox is versatile and can be used in a variety of applications:

• Pesticide Spraying: It enables the efficient and uniform application of pesticides to control harmful pests.
• Fertilizer Distribution: The gearbox is used in the even spreading of fertilizers to boost crop growth.
• Herbicide Application: It assists in the application of herbicides to manage weed growth.
• Fungicide Spraying: The gearbox helps in the distribution of fungicides to prevent fungal diseases in crops.
• Crop Dusting: It's used in crop dusting, where agricultural chemicals are sprayed in a fine dust form.
• Aerial Spraying: In large-scale farming operations, the gearbox is used in aerial spraying from aircraft.

Key Components of an Agricultural Sprayer Gearbox

The agricultural sprayer gearbox is a critical component in various types of agricultural sprayers, enabling them to distribute pesticides, herbicides, and fertilizers effectively. It works by transferring and adjusting the power from the tractor or motor to the sprayer pump, optimizing the pump's operation for efficient spray application. Understanding the structural components of an agricultural sprayer gearbox can provide insight into its function and importance in agricultural operations. Here are the key components:

• Housing: The housing encases all the internal components of the gearbox, providing protection and structural integrity. It's typically made from durable materials such as cast iron or aluminum to withstand the harsh agricultural environment and resist chemical corrosion.
• Input Shaft: The input shaft connects the gearbox to the power source, which could be a tractor's PTO (Power Take-Off) or an engine, transmitting rotational energy into the gearbox. It usually has a splined design for a secure connection to the power source, ensuring efficient power transmission.
• Gears: Gears within the gearbox are crucial for converting the power received from the input shaft into the desired output speed and torque necessary for the sprayer pump. The gearbox may contain various types of gear, including spur, helical, or bevel gears, selected based on the required power transmission efficiency and noise levels.
• Bearings: Bearings support the rotational motion of the shafts and gears, reducing friction and wear and thereby extending the lifespan of the gearbox components. Common types include ball bearings and roller bearings, chosen for their load-bearing capabilities and durability.
• Output Shaft: This shaft delivers the adjusted power from the gearbox to the sprayer pump, driving the pump at the correct speed for optimal spraying performance. The output shaft may feature specific attachments or couplings to connect securely with the pump.
• Seals and Gaskets: Seals and gaskets prevent the leakage of lubricants from the gearbox and protect internal components from dirt, moisture, and chemical ingress. Made from rubber or synthetic materials that offer durability and resistance to chemicals and temperature variations.

Working Principle of an Agricultural Sprayer Gearbox

The agricultural sprayer gearbox plays a pivotal role in the functioning of an agricultural sprayer, transforming the power generated by the tractor or self-propelled sprayer's engine into the action needed to pump and distribute liquids such as pesticides, herbicides, fungicides, and fertilizers. Here's how it works in detail:

• Power Input: The process begins with the gearbox receiving mechanical power. This power comes either from a tractor's Power Take-Off (PTO) shaft or from the engine of a self-propelled sprayer. The input shaft of the gearbox is designed to connect seamlessly with the power source, ensuring a stable and efficient transfer of energy.
• Speed and Torque Conversion: Once the gearbox receives this power, its internal gearing system goes to work. The gears within are arranged to either reduce or modify the input speed, depending on the operational requirements of the sprayer pump. This reduction process simultaneously increases the torque. While the engine or PTO provides high-speed, low-torque power, the sprayer pump requires low-speed, high-torque power for optimal performance. The gearbox's gears are specifically designed to meet this need, adjusting the power output to the ideal specifications for spraying operations.
• Power Transmission to the Pump: With the power now converted to the appropriate speed and torque, the gearbox's output shaft transmits it to the sprayer pump. This connection is crucial, as the pump relies on this power to pressurize and distribute the agricultural liquids through the sprayer system.
• Operation of the Sprayer System: The pressurized liquid is then pushed through the sprayer's hoses and nozzles, allowing for the uniform distribution of chemicals across crops. The operator can control the flow rate and spray pattern via adjustments made on the sprayer controls, which may, in turn, require adjustments to the gearbox to alter the pump speed.
• Adjustability for Various Conditions: Some gearboxes offer the flexibility of adjusting the output speed and torque, catering to different spraying requirements. This could include changes in the type of chemical being sprayed, the volume required for specific crops, or the need to adapt to varying field conditions.

Proper Lubrication of the Agricultural Sprayer Gearbox

Proper lubrication of the agricultural sprayer gearbox is crucial for maintaining its efficiency and extending its service life. Here's a guide to ensure you're correctly lubricating your gearbox:

• Understand the Importance of Lubrication: Lubrication reduces friction between moving parts within the gearbox, minimizing wear and preventing overheating. It also helps protect against rust and corrosion, ensuring smooth operation and preventing premature failure.
• Choose the Right Lubricant: Always use the type of lubricant recommended by the gearbox manufacturer. This information can typically be found in the operator's manual. Gearboxes generally require a specific grade of gear oil, which is designed to withstand high pressures and temperatures without breaking down.
• Check Lubricant Levels Regularly: Check the oil level in the gearbox at regular intervals, typically before each use or every 50 to 100 hours of operation, depending on the manufacturer's recommendations and the intensity of use. Most agricultural sprayer gearboxes have a sight glass or dipstick to check the oil level. Ensure the oil reaches the indicated level, but do not overfill.
• Changing the Lubricant: Change the gearbox oil according to the manufacturer's schedule, usually once a year or after a specific number of operating hours. However, if the gearbox is used in harsh conditions or exposed to a lot of dust and debris, more frequent changes may be necessary. Drain the old oil when the gearbox is warm to ensure better flow. Remove any debris or sediment from the bottom of the gearbox if accessible. Refill with fresh oil to the recommended level.
• Maintain Cleanliness Around the Gearbox: Keep the area around the fill and drain plugs clean to prevent dirt and debris from entering the gearbox during oil checks or changes. Regularly inspect seals and gaskets for leaks and replace them if they show signs of wear or damage to prevent lubricant leaks and contamination.

Selecting the Right Agricultural Sprayer Gearbox Size for Your Sprayer

Selecting the right agricultural sprayer gearbox size for your sprayer is crucial for optimizing performance, efficiency, and the longevity of your equipment. An appropriately sized gearbox ensures that the sprayer operates within its intended parameters, delivering the right amount of power to the pump for effective dispersion of agricultural chemicals. Here's a guide to help you choose the correct gearbox size for your agricultural sprayer:

1. Understand the Specifications of Your Sprayer Pump

• Required RPM: Determine the revolutions per minute (RPM) at which your sprayer pump operates most efficiently to achieve the desired flow rate and pressure. This information is critical in selecting a gearbox that can deliver power effectively at this RPM.
• Torque Requirements: Know the torque requirements of your pump. A gearbox must provide sufficient torque to the pump to handle the load, especially under varying operational conditions.

2. Consider the Power Source

• Tractor PTO or Self-Propelled Unit: Identify whether your sprayer will be powered by a tractor's Power Take-Off (PTO) or a self-propelled sprayer's engine. This influences the gearbox's input specifications, as PTO and engine RPMs differ.
• PTO Speed: Tractors typically have PTO speeds of 540 or 1000 RPM. Your gearbox should be compatible with this speed, providing the correct output RPM for the sprayer pump.

3. Calculate the Gear Ratio Needed

• The gear ratio is the ratio of the input speed (tractor PTO or engine RPM) to the desired output speed (pump RPM). Calculate the necessary gear ratio using the formula:

  Gear Ratio=Input Speed (PTO or Engine RPM)Output Speed (Pump RPM)Gear Ratio=Output Speed (Pump RPM)Input Speed (PTO or Engine RPM)​

• Choosing a gearbox with the correct gear ratio ensures that the pump operates at its optimal speed for efficient spraying.

4. Determine the Size Based on Load Capacity

• Load Capacity: The gearbox must be able to handle the load it will drive without overheating or excessive wear. Consider the workload and choose a gearbox size that exceeds the maximum expected load to ensure reliability and durability.

5. Factor in Operational Conditions

• Spraying Conditions: Think about the typical conditions under which you'll be spraying, such as the terrain's roughness, the viscosity of the chemicals, and the length of operation. Harsher conditions may necessitate a more robust gearbox.

Why Choose AGKNX's Agricultural Sprayer Gearbox?

AGKNX is a prominent manufacturer of high-performance agricultural gearboxes for a variety of applications. Our technical staff can reconfigure an existing design or assist you in designing a custom agricultural PTO gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, design type, load nature, mounting position, and the application's environment are all considerations when choosing an agricultural gearbox. We can offer many types of agricultural gearboxes and PTO shafts, such as rotary cutter gearboxes, rotary tiller gearboxes, feed mixer gearboxes, lawn mower gearboxes, fertilizer spreader gearboxes, flail mower gearboxes, post hole digger gearboxes, corn headers gearboxes, fertilizer mixer gearboxes, round baler gearboxes, square baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, fertilizer seeder gearboxes, rotary rake gearboxes, gearbox for hay tedders, etc. If you want to buy agricultural gearboxes, please get in touch with us.

At AGKNX, we pride ourselves on our professionalism and dedication to customer satisfaction. We are certified by international standards and offer customized services to meet your unique agricultural needs. Our production facilities are equipped with advanced machinery and technology, ensuring the high quality of our products. Plus, we offer excellent after-sales services, providing technical support and assistance whenever you need it. With AGKNX, you can trust that you're getting the best in agricultural gearboxes.
