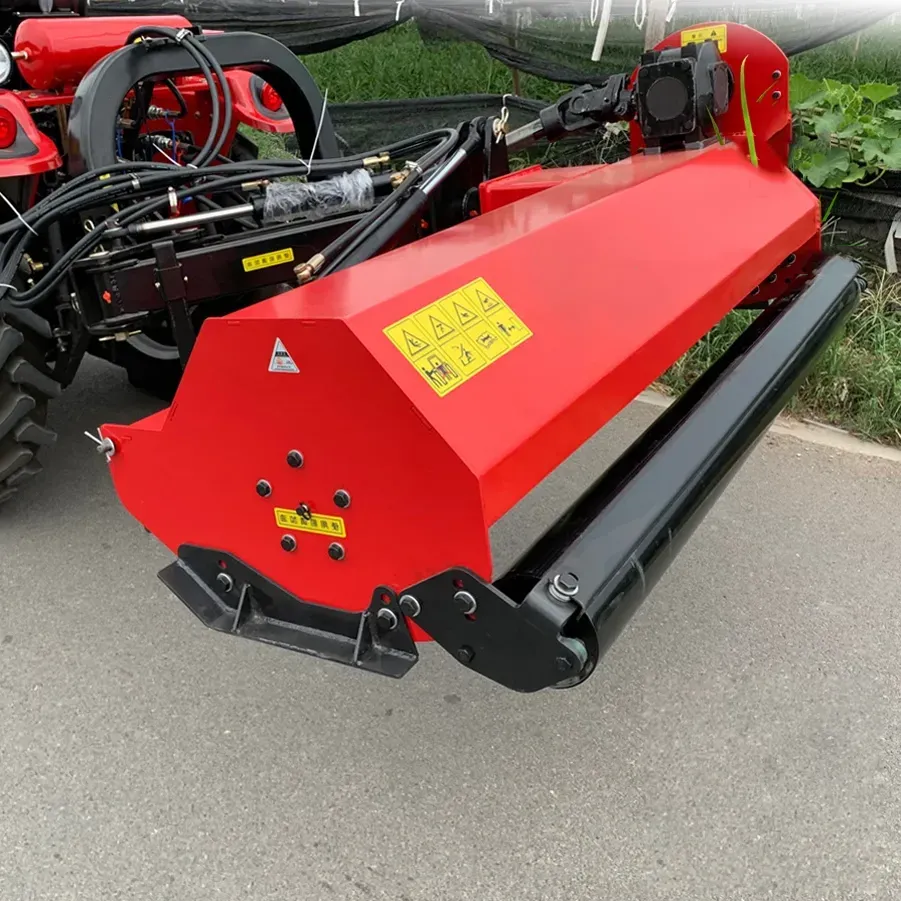

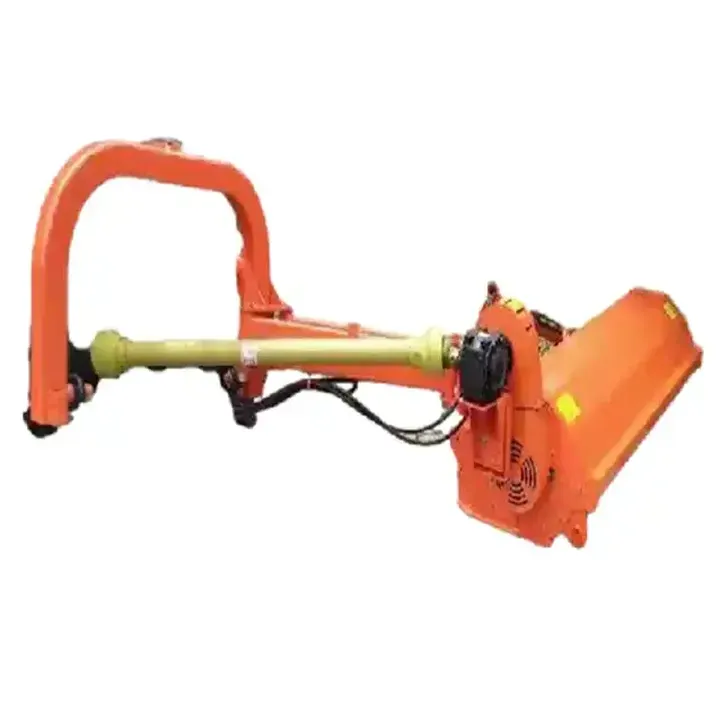

Tractor 3 Point Hitch PTO Driven Flail Mower for Vineyard Maintenance

Introduction to Tractor 3 Point Hitch PTO Driven Flail Mower

The Tractor 3 Point Hitch PTO Driven Flail Mower is an essential piece of agricultural equipment perfect for vineyard maintenance. This versatile and efficient tool attaches to a tractor's 3-point hitch system and is powered by the tractor's Power Take-Off (PTO) system, providing an effective solution for cutting grass, weeds, and small brush.

Advantages of Tractor 3 Point Hitch PTO Driven Flail Mower

This type of flail mower offers numerous benefits for vineyard maintenance:

• Efficient Cutting: The flail mower's design ensures quick and efficient cutting of vegetation, from fine grass to thicker brush.
• Durable: The metal flails are sturdy and long-lasting, capable of handling a variety of vegetation types.
• Safe: The design of the flails reduces the risk of damage to the mower or the object when hitting a hard object, ensuring safe operation.
• Versatile: With adjustable height and angle, it can adapt to different terrains and vegetation densities.
• Mulching: The flail mower not only cuts the vegetation but also mulches it, providing an added benefit for soil health.
• Customizable: We can produce this product according to your specific needs and requirements.

Applications of Tractor 3 Point Hitch PTO Driven Flail Mower

The Tractor 3 Point Hitch PTO Driven Flail Mower finds use in various applications:

• Vineyard Maintenance: It's perfect for maintaining vineyards, ensuring even and efficient cutting of grass and weeds.
• Farm Landscaping: It can be used for general farm landscaping, helping maintain neat and tidy farm grounds.
• Pasture Maintenance: The flail mower is excellent for maintaining pastures, providing an even cut that promotes healthy grass growth.
• Sport Fields: It can be used to maintain sport fields, providing a neat and uniform cut.
• Parks and Large Gardens: The flail mower is suitable for maintaining parks and large gardens, ensuring efficient cutting and mulching of vegetation.
• Roadside Maintenance: It's ideal for maintaining roadsides, keeping them neat and free from overgrown vegetation.

Working Principle of Tractor 3 Point Hitch PTO Driven Flail Mower

The working principle of a tractor 3 point hitch PTO driven flail mower involves several key components and mechanisms that allow it to efficiently cut grass, weeds, and small brush:

1. 3 Point Hitch System: The flail mower is attached to the tractor using a 3 point hitch system. This system typically consists of two lower arms and one upper arm (the third point), which connects the mower to the tractor.
2. Power Take-Off (PTO) Drive: The PTO is a shaft that transfers mechanical power from the tractor's engine to the flail mower. It's the primary power source for the mower's cutting mechanism.
3. Flail Mower Mechanism: Inside the mower, there's a horizontal rotor that spins at high speeds. Attached to this rotor are multiple flails (or blades) that are free to pivot.
4. Safety and Efficiency: The flail mower not only cuts the vegetation but also mulches it. This is due to the design of the flails and the mower's housing, which ensures that the cut material is finely chopped and distributed evenly over the mowed area.
5. Adjustments and Settings: Operators can adjust the cutting height, the angle of the mower, and the PTO speed to suit different types of terrain and vegetation.

Installation Steps of the Tractor 3 Point Hitch PTO Driven Flail Mower

Installing a 3 point hitch PTO-driven flail mower to a tractor involves several steps to ensure a safe and correct setup:

1. Read the Manuals: Before beginning, read the tractor and flail mower manuals thoroughly to understand any specific installation instructions or safety warnings.
2. Positioning the Flail Mower: With the tractor turned off and parked on a level surface, align the flail mower directly behind the tractor.
3. Attaching to the 3 Point Hitch: Lower the tractor's 3 point hitch so that the lower arms are at the same height as the mower's mounting points.
4. Connecting the PTO Shaft: Ensure the PTO shaft's length is suitable for the distance between the tractor and mower.
5. Safety Checks: Double-check all connections to ensure they're secure.
6. Testing and Adjustments: With the installation complete, test the mower in a safe, open area.

Operation Precautions of Tractor PTO Driven Flail Mower

Operating a tractor PTO driven flail mower for cutting grass involves several important precautions to ensure safety and achieve the best results:

1. Pre-Operation Checks: Before each use, inspect the flail mower for loose bolts, worn or damaged flails, and any debris lodged in the mower.
2. Proper Attachment and Adjustments: Ensure the flail mower is correctly attached to the tractor's 3 point hitch and the PTO shaft is securely connected.
3. Operating Speed and PTO Speed: Adjust the tractor's speed according to the grass density and terrain.



4. Avoid Overloading the Mower: Be attentive to the sound of the tractor and mower.
5. Use Caution on Slopes and Uneven Terrain: Avoid mowing on steep slopes to prevent tipping.
6. Engage and Disengage the PTO Properly: Engage the PTO gradually at a low engine speed to reduce wear on the mower's drive components.

Choosing the Right Agricultural PTO Shaft for Tractor Mounted Flail Mower

Choosing the right PTO shaft for a tractor-mounted flail mower is crucial for ensuring efficient operation, safety, and longevity of your equipment:

1. Understand PTO Shaft Specifications: The length of the PTO shaft must match the distance between the tractor's PTO and the mower's input shaft when attached.
2. Measure for Correct Length: Attach your flail mower to the tractor using the 3 point hitch system.
3. Consider Safety Features: The PTO shaft should come with a durable, fully enclosing safety shield to protect operators from entanglement hazards.
4. Adjustable and Collapsible Shafts: Many modern PTO shafts have a telescoping design that can adjust to different lengths as the distance between the tractor and the mower changes during operation.
5. Maintenance and Compatibility: Choose a PTO shaft that is easy to maintain, with clear lubrication points to ensure longevity and smooth operation.

Why Choose AGKNX's Flail Mower?

AGKNX Agricultural Machinery Co., Ltd. is a leading manufacturer of agricultural machinery. With more than ten years of experience, we offer a range of products, including PTO shafts, agricultural gearboxes, flail mowers, and more. Our products are internationally certified, reliable, and customized to meet your specific needs.

We offer professional services, state-of-the-art production facilities, and excellent after-sales service. Our products are exported to many countries and regions, including Europe, America, Africa, the Middle East, and Southeast Asia.
