Bevel Gear
A bevel gear is a type of gear used in mechanical systems to transmit power between intersecting shafts, typically at a 90-degree angle, though other angles are possible. Unlike spur gears with parallel shafts, bevel gears have conically shaped teeth that allow smooth and efficient torque transfer across non-parallel axes. The teeth can be straight, spiral, or hypoid, depending on the design. Straight bevel gears have linear teeth radiating from the center, while spiral bevel gears feature curved teeth for quieter operation and greater load capacity.
Types of Bevel Gears
Metric Bevel Gears

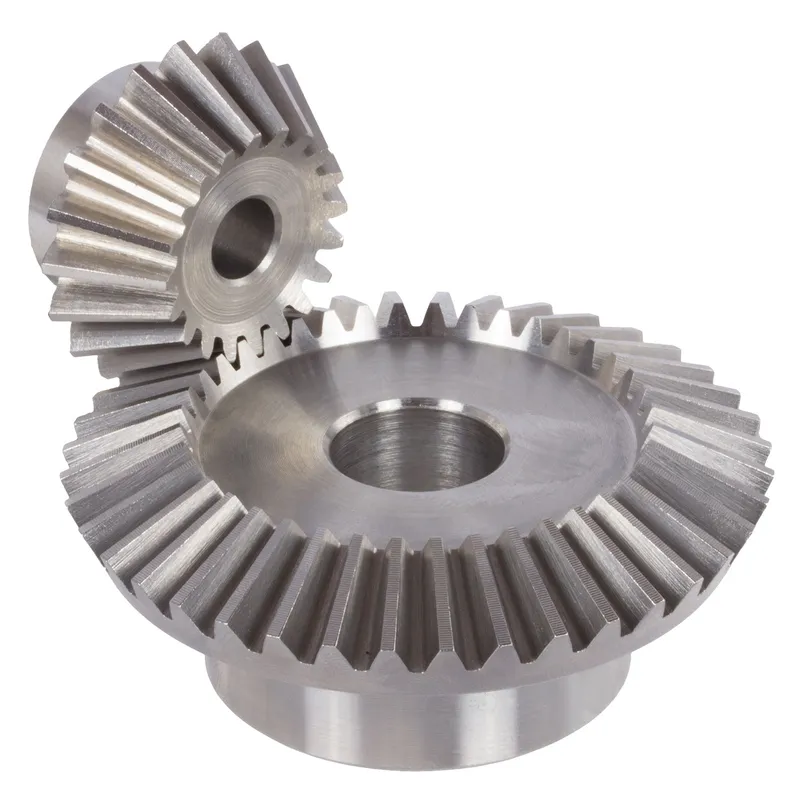

Straight Bevel Gears

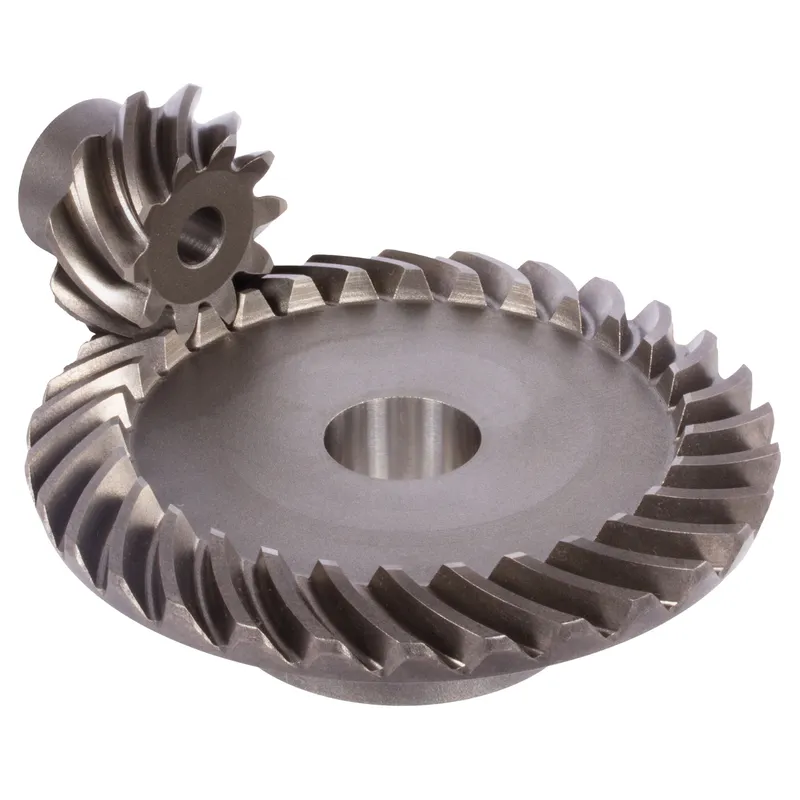

Spiral Bevel Gears

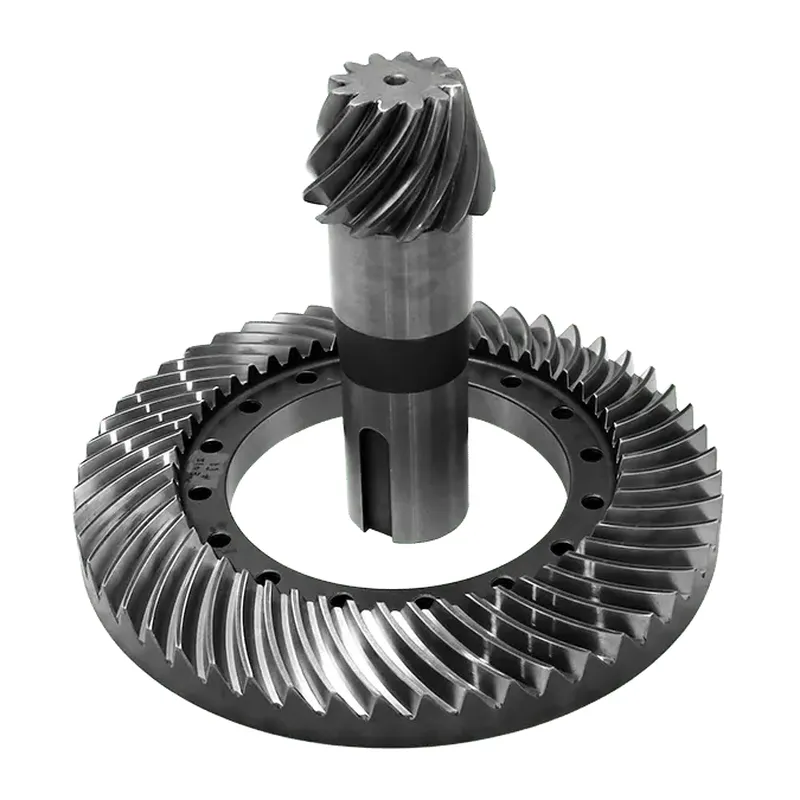

Hypoid Bevel Gears

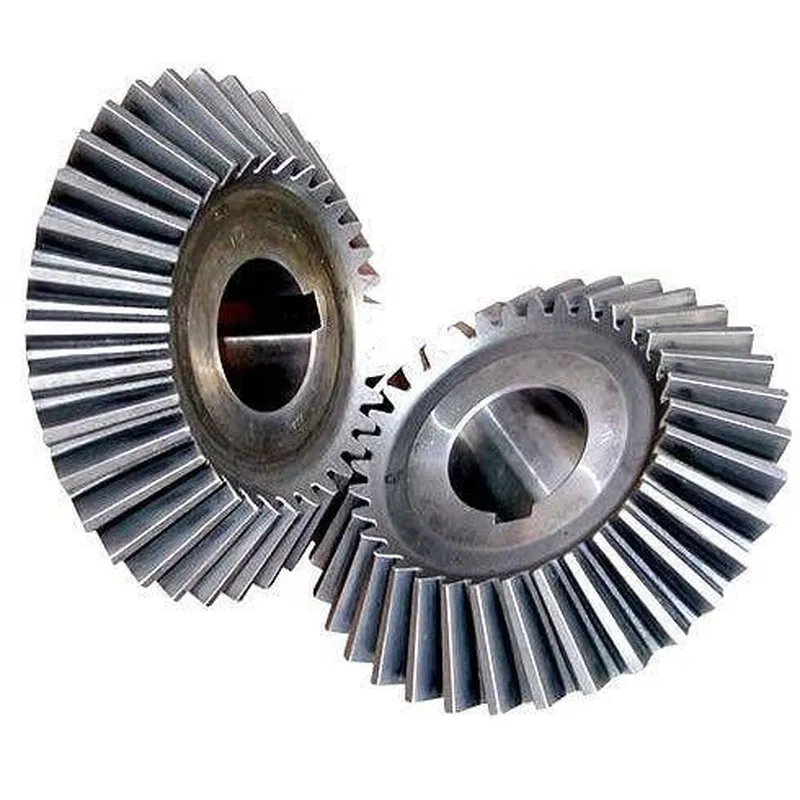

Zerol Bevel Gears
Bevel Gear by Materials

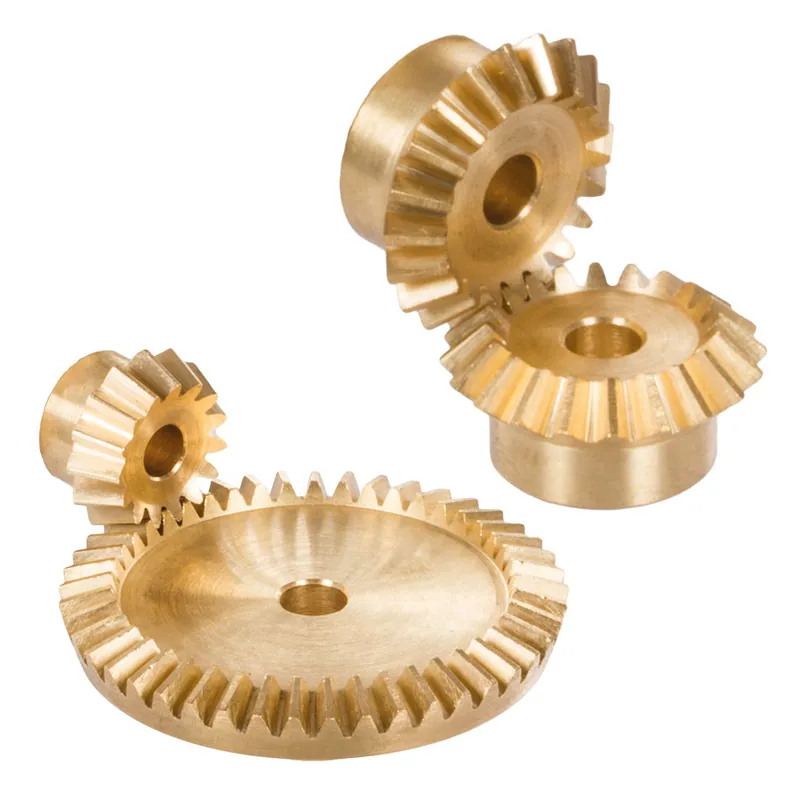

Brass Bevel Gears

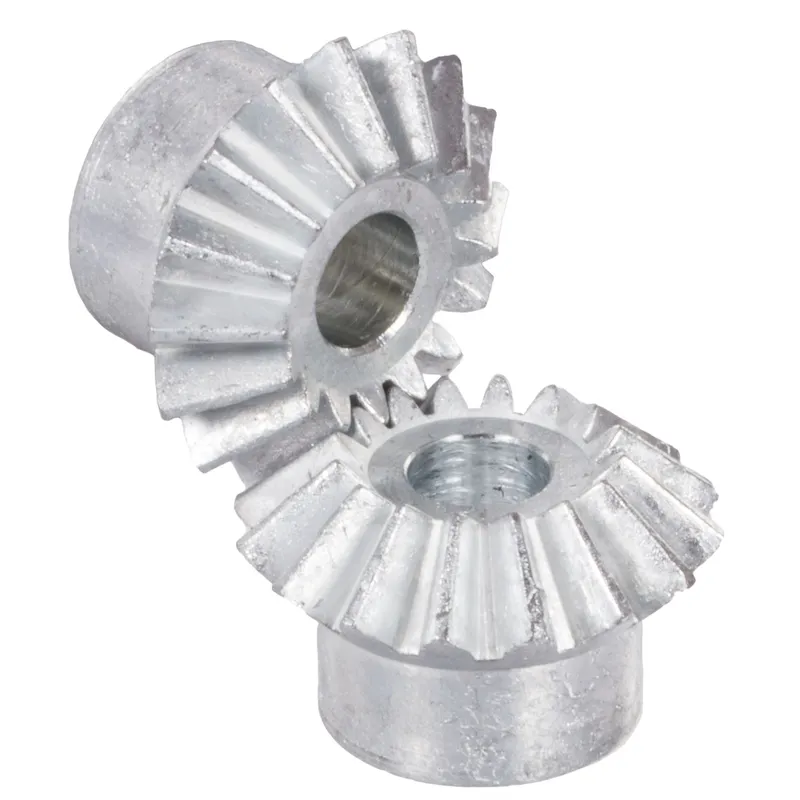

Zinc Die-Cast Bevel Gears

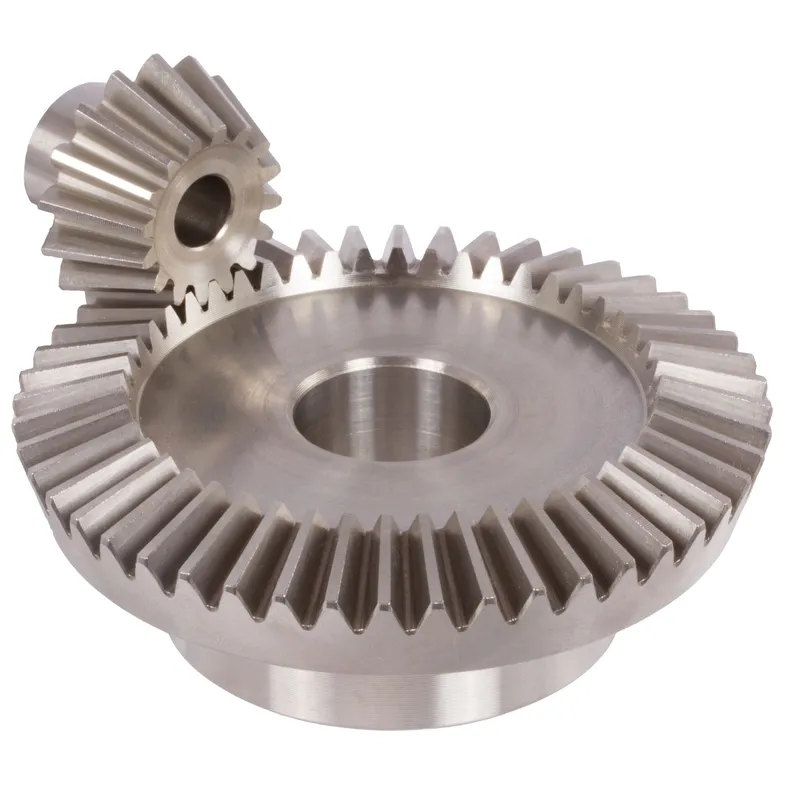

Stainless Steel Bevel Gears

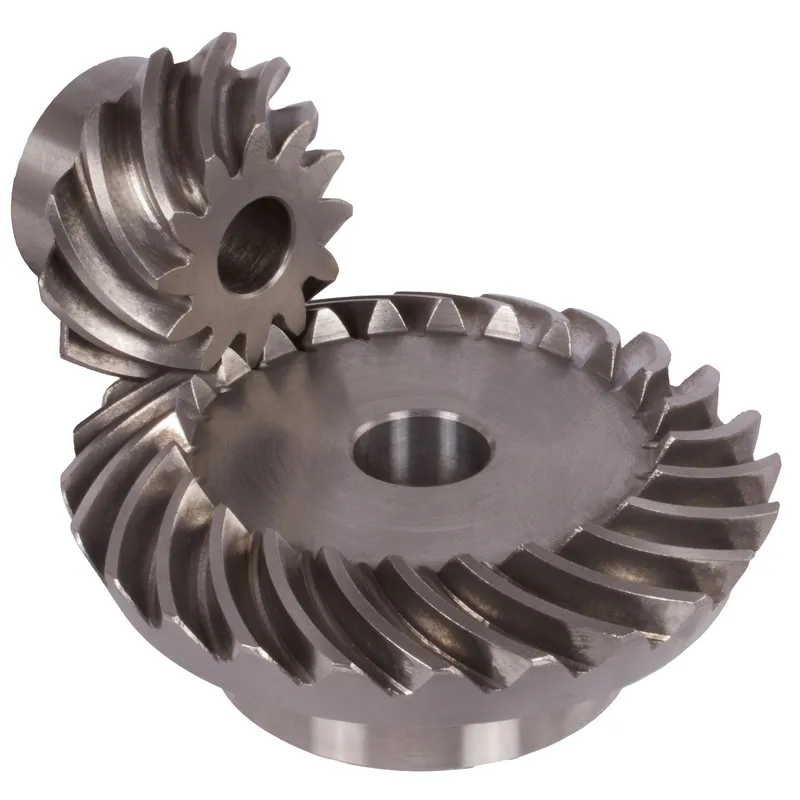

Steel Spiral Bevel Gears

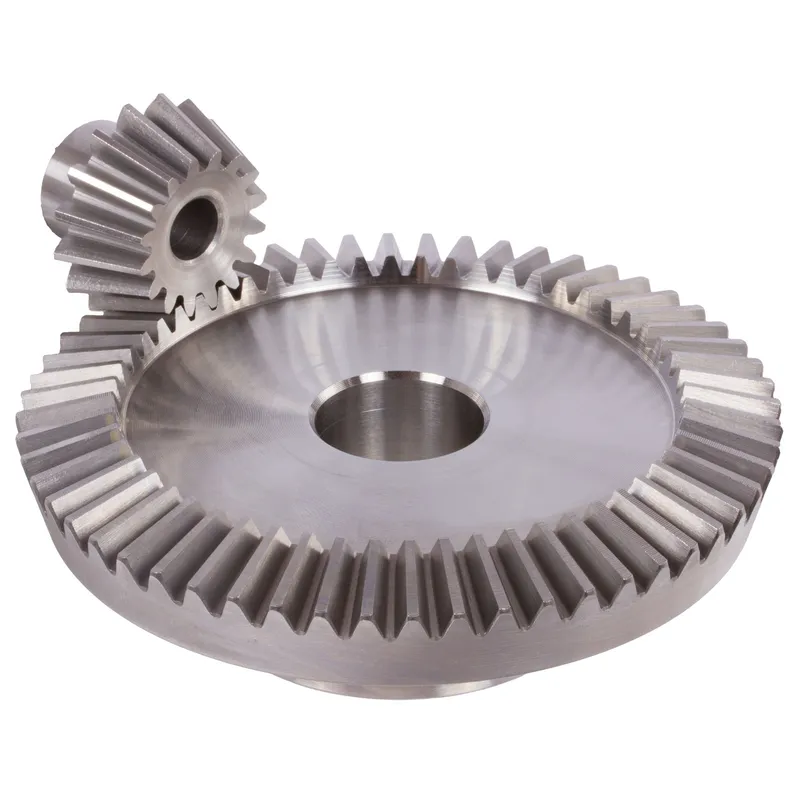

Steel Straight Bevel Gears

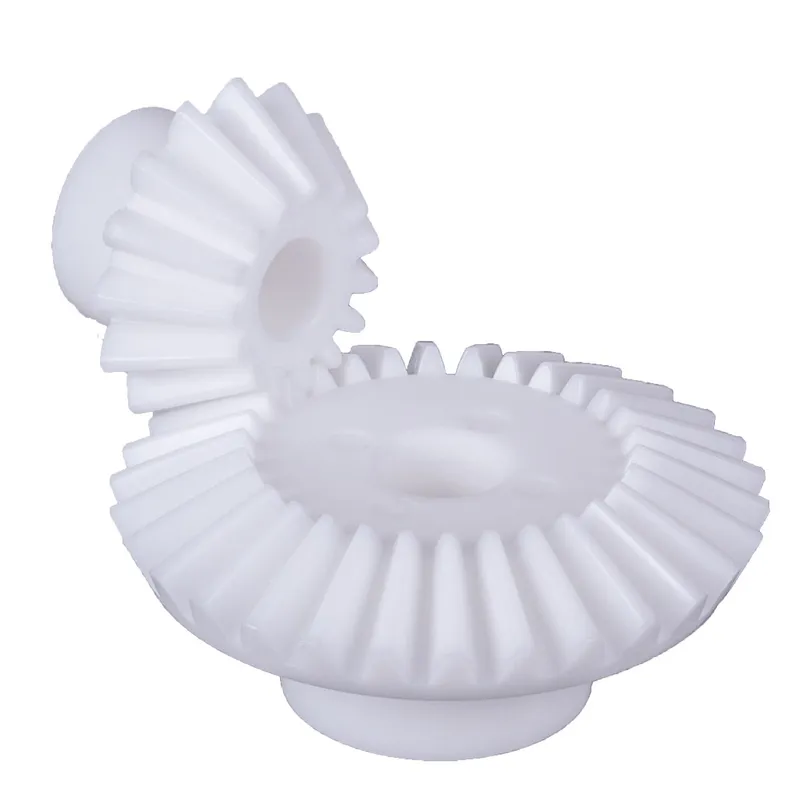

Polyacetal Resin Bevel Gears

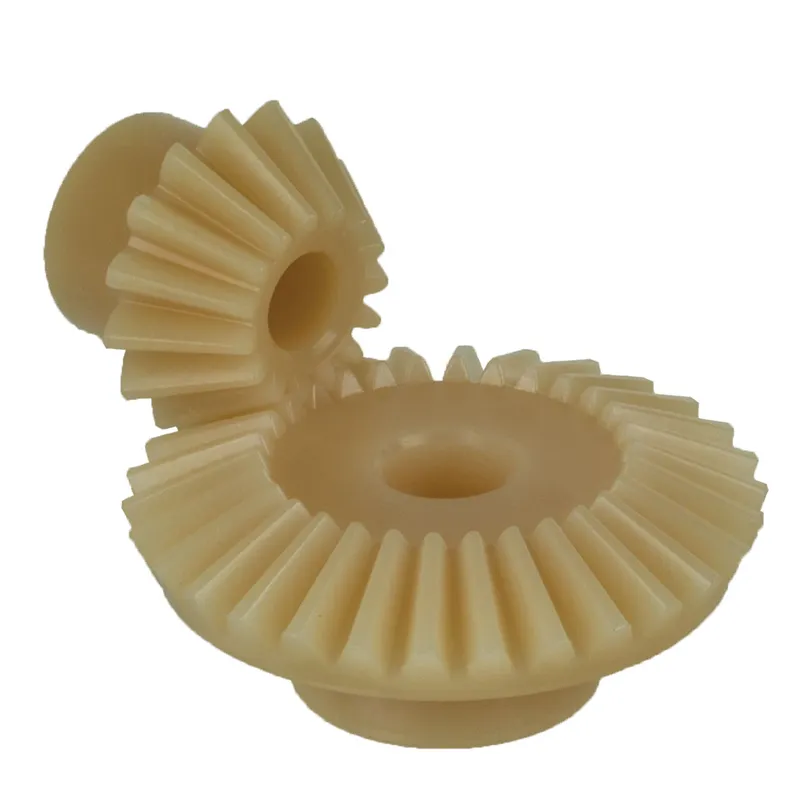

Polyketone Resin Bevel Gears

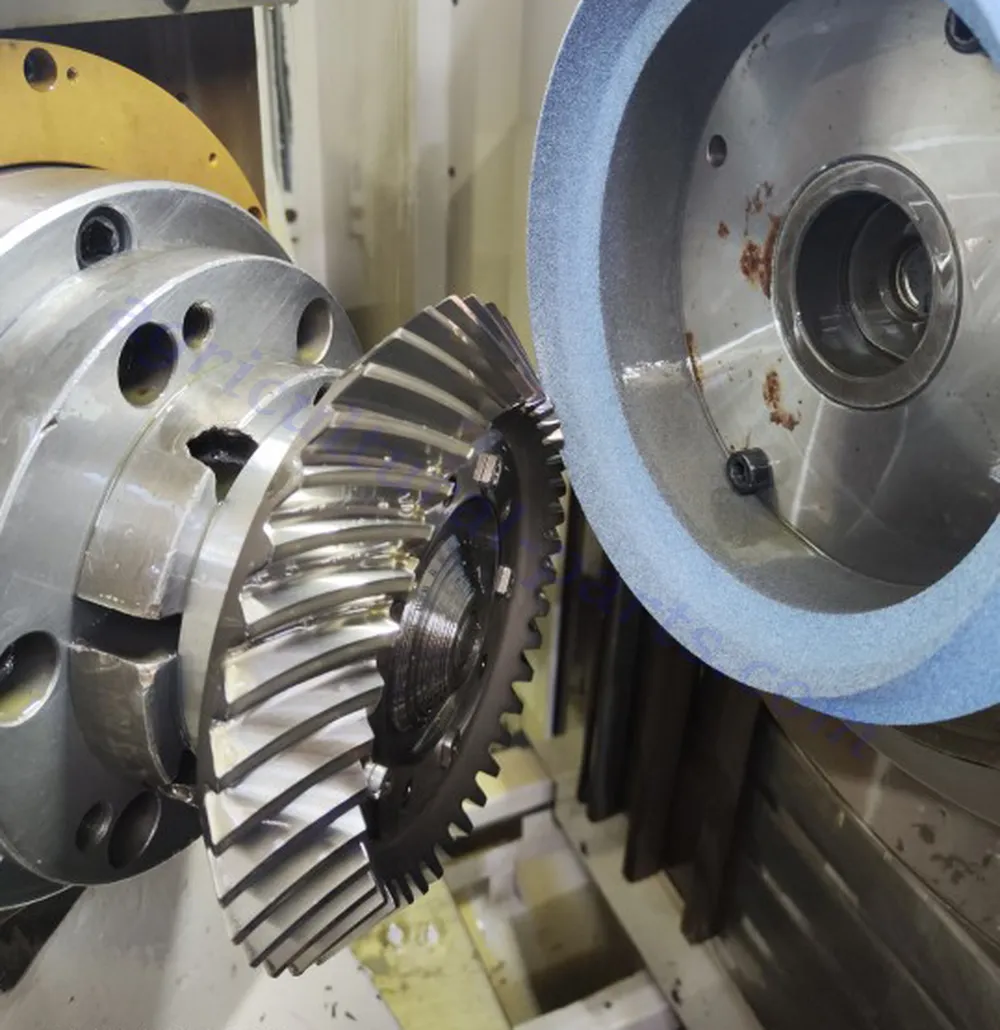

What is a Bevel Gear?
Bevel gears are a crucial component in mechanical power transmission, used in various industries where the direction of rotation needs to be changed. These gears are primarily designed for shafts that intersect at an angle, commonly 90 degrees. Their efficiency, versatility, and ability to handle high torque make them essential in numerous engineering applications.
Bevel gears have a conical shape with teeth cut along the cone’s surface. This unique geometry allows them to transmit power between intersecting shafts, providing smooth and efficient torque conversion. The key components of a bevel gear include:
- Pitch Cone: The imaginary cone that represents the gear’s pitch surface.
- Base Cone: The cone formed by the base circle of the gear.
- Face Cone: The cone at the outer edge of the gear teeth.
- Root Cone: The cone at the bottom of the gear teeth.
- Tooth Profile: Determines the meshing efficiency and noise levels.
Material Selection for Bevel Gears
The performance of bevel gears largely depends on the material used in their construction. Common materials include:
- Steel: Most widely used due to its strength and durability.
- Cast Iron: Provides good wear resistance but is less strong than steel.
- Bronze: Used in applications where low friction is necessary.
- Plastic: Common in lightweight applications such as small machinery and household appliances.

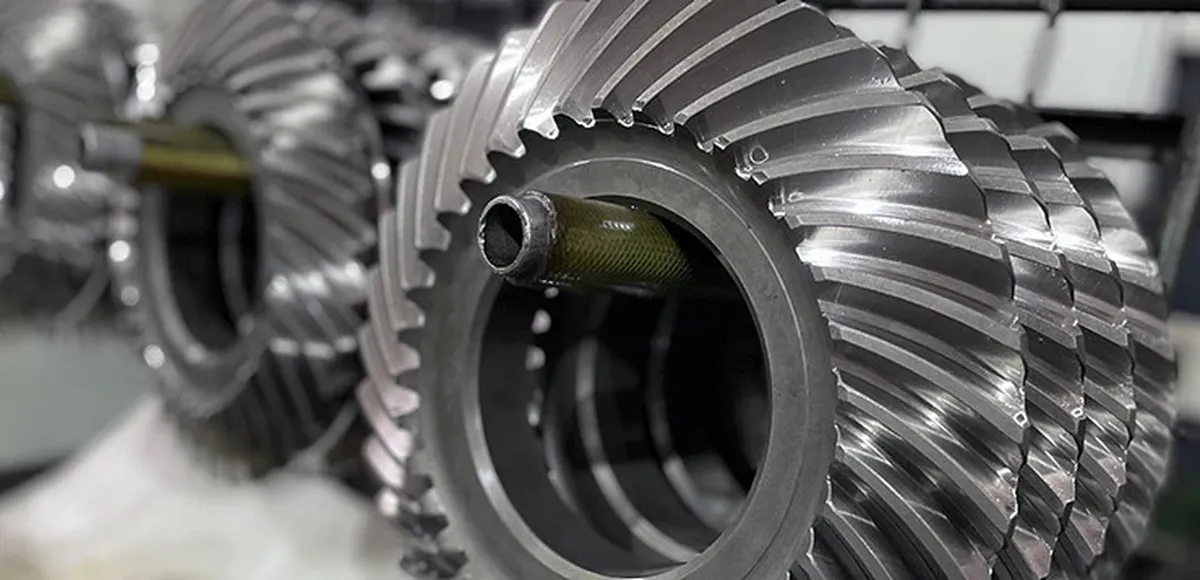

Advantages of Bevel Gears
Bevel gears offer several advantages that make them suitable for a variety of industrial applications:
- High Efficiency: They can efficiently transfer power between intersecting shafts with minimal losses.
- Compact Design: The conical shape allows for space-saving configurations.
- Wide Range of Torque Capabilities: Depending on the type, bevel gears can handle both low and high torque applications.
- Smooth Motion Transmission: Spiral and hypoid bevel gears, in particular, offer smooth operation with reduced noise and vibrations.
- Versatile Applications: They are used in everything from automotive transmissions to industrial machinery and even aerospace components.
Disadvantages of Bevel Gears
Despite their advantages, bevel gears also have limitations:
- Complex Manufacturing: Producing bevel gears, especially spiral and hypoid types, requires precision engineering and specialized machinery.
- High Cost: The manufacturing process and material requirements make bevel gears more expensive than other gear types.
- Limited Interchangeability: Bevel gears are designed specifically for particular shaft angles, making them less flexible for modifications.
- Lubrication Challenges: Hypoid bevel gears, in particular, require special lubricants due to their sliding contact surfaces.
Applications of Bevel Gears
1. Automotive Industry: Bevel gears are extensively used in vehicles, especially in differential systems, which allow wheels to rotate at different speeds while maintaining torque transfer. Hypoid bevel gears are commonly found in rear axles, enhancing load distribution and reducing noise.
2. Aerospace Industry: In aircraft, bevel gears are used in actuators and control systems where angular power transmission is necessary. Their lightweight yet high-strength properties make them ideal for aerospace applications.
3. Industrial Machinery: Manufacturing plants and heavy machinery rely on bevel gears for efficient power transmission. Spiral and straight bevel gears are commonly found in conveyor systems, milling machines, and robotic arms.
4. Marine Industry: Marine propulsion systems utilize bevel gears to transfer power from the engine to the propeller shaft. The ability to handle high torque and maintain efficiency in challenging environments makes bevel gears a preferred choice in shipbuilding.
5. Power Plants: Bevel gears are employed in turbines and generators where angular motion conversion is required. Their role in regulating power distribution ensures optimal performance in energy generation systems.

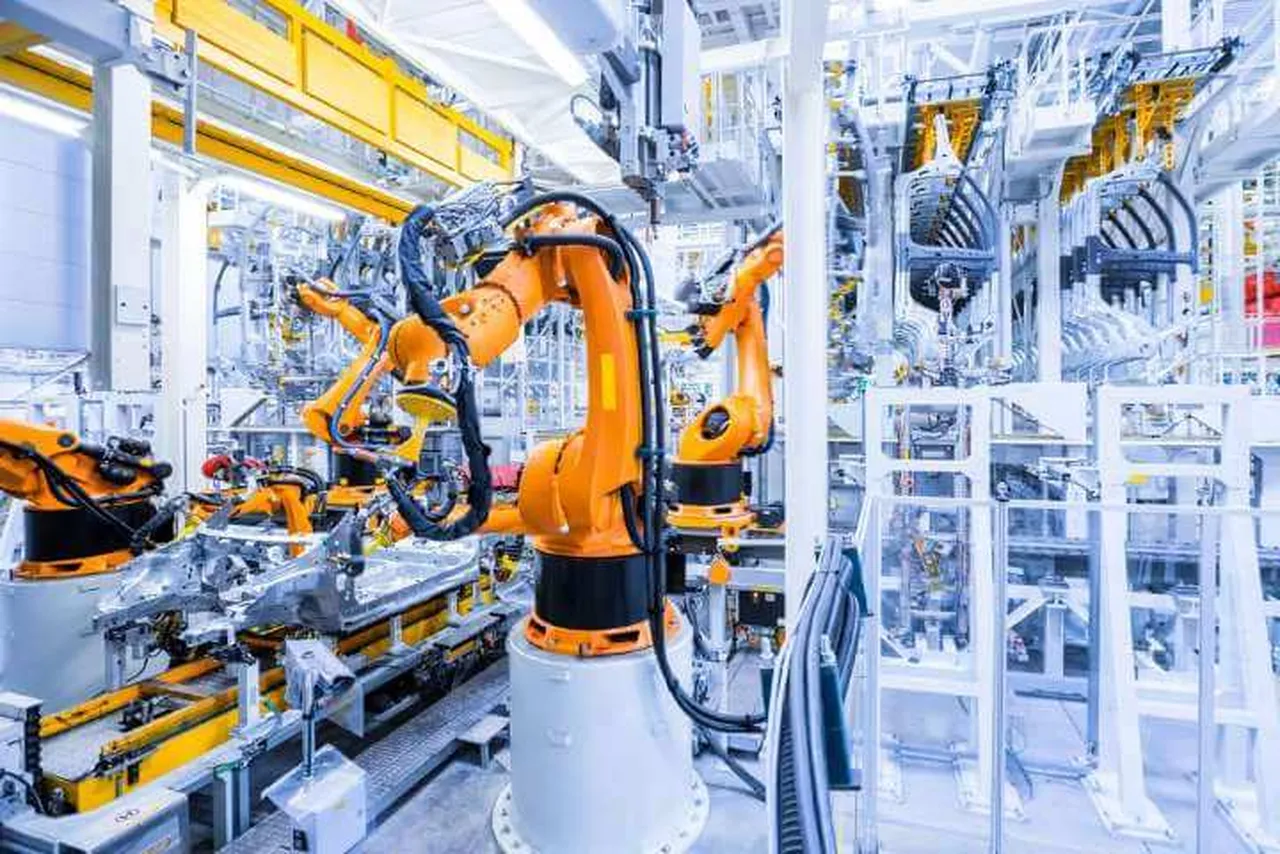

6. Robotics and Automation: With the rise of automation, bevel gears have found applications in robotic joints, where precise movement and torque control are essential. Their compact design and efficiency contribute to the smooth operation of robotic systems.

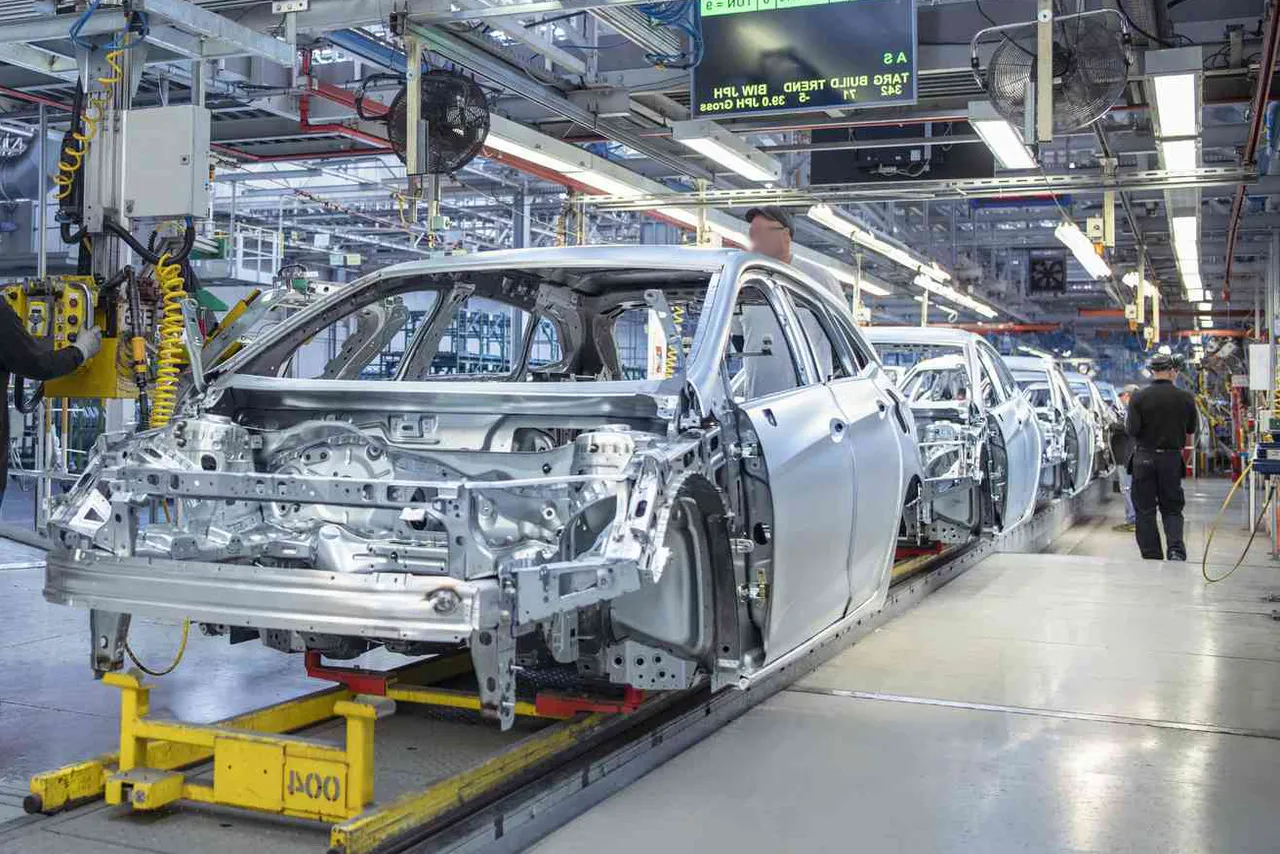

Automotive Industry

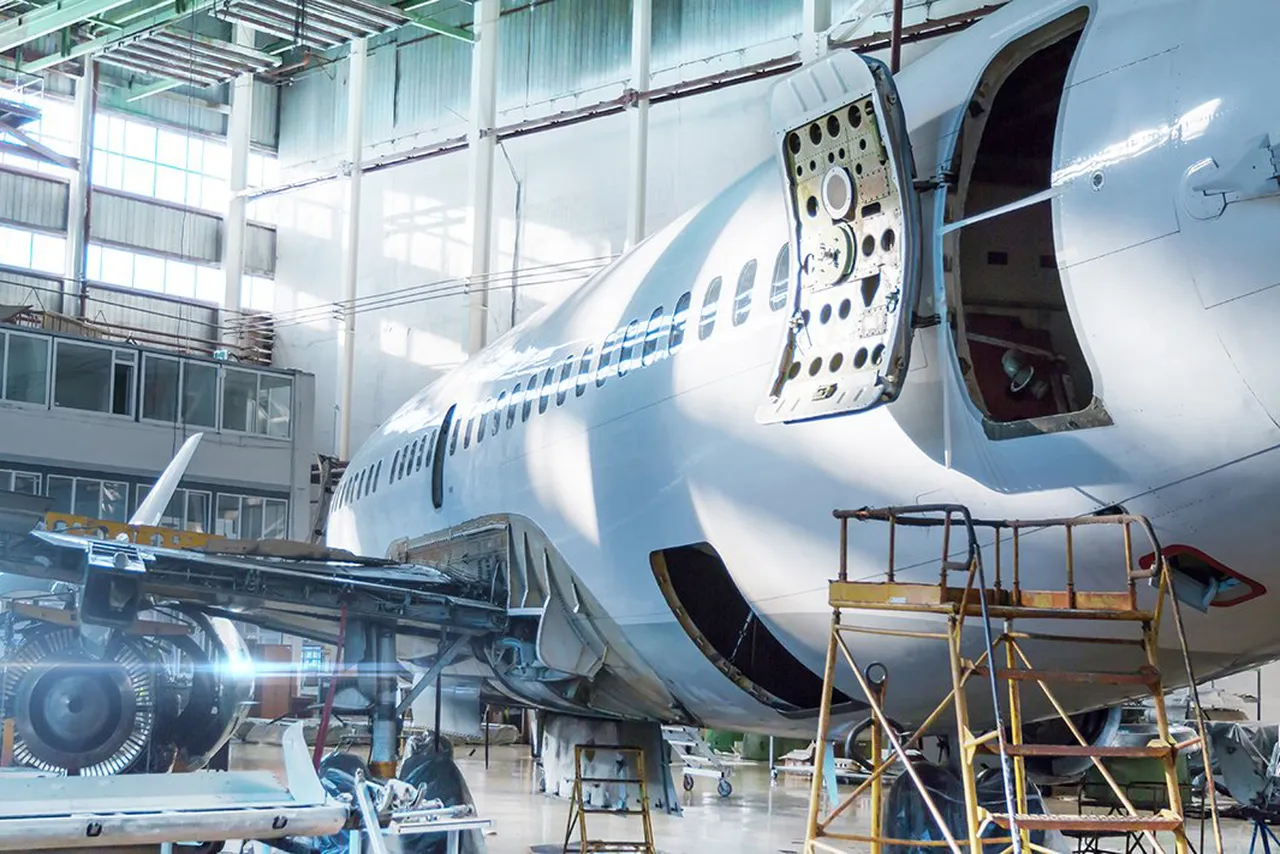

Aerospace Industry

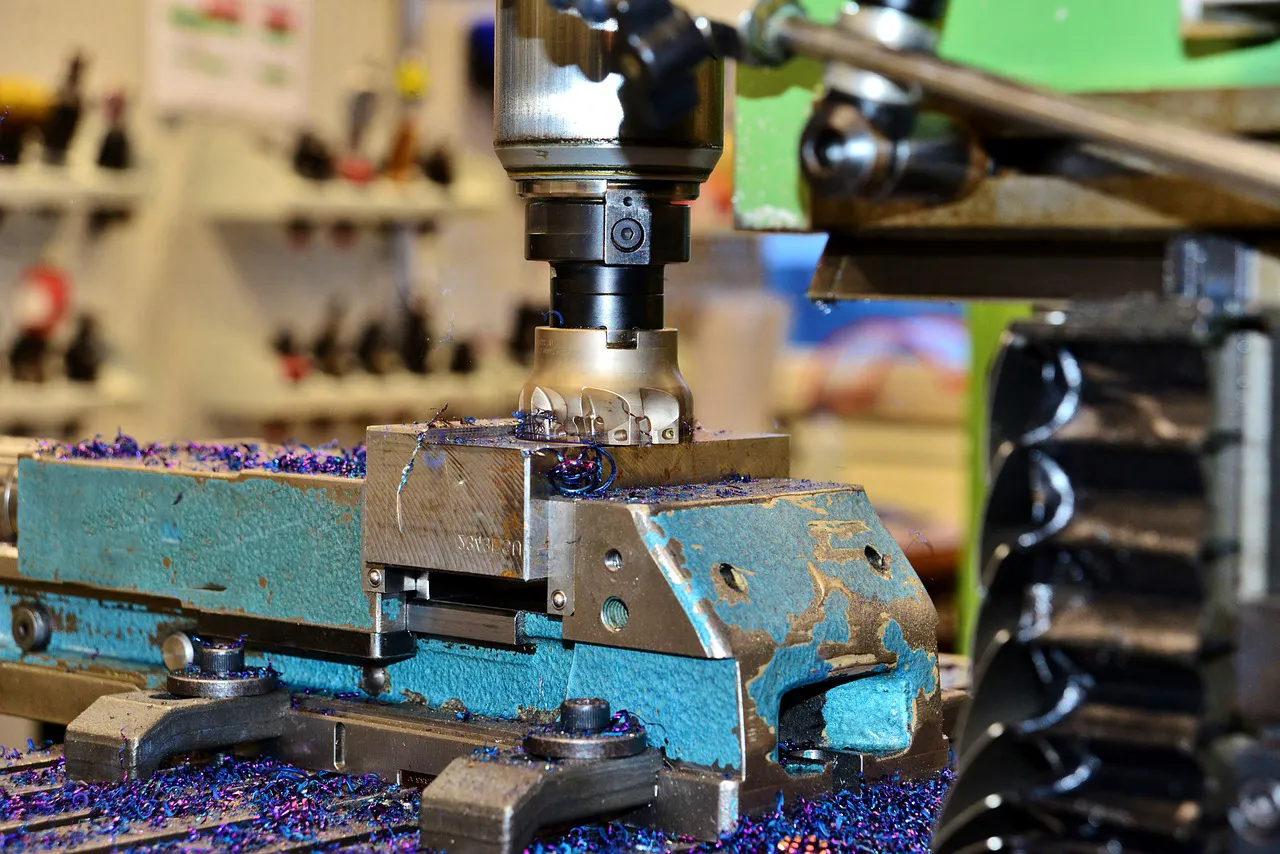

Industrial Machinery
Marine Industry

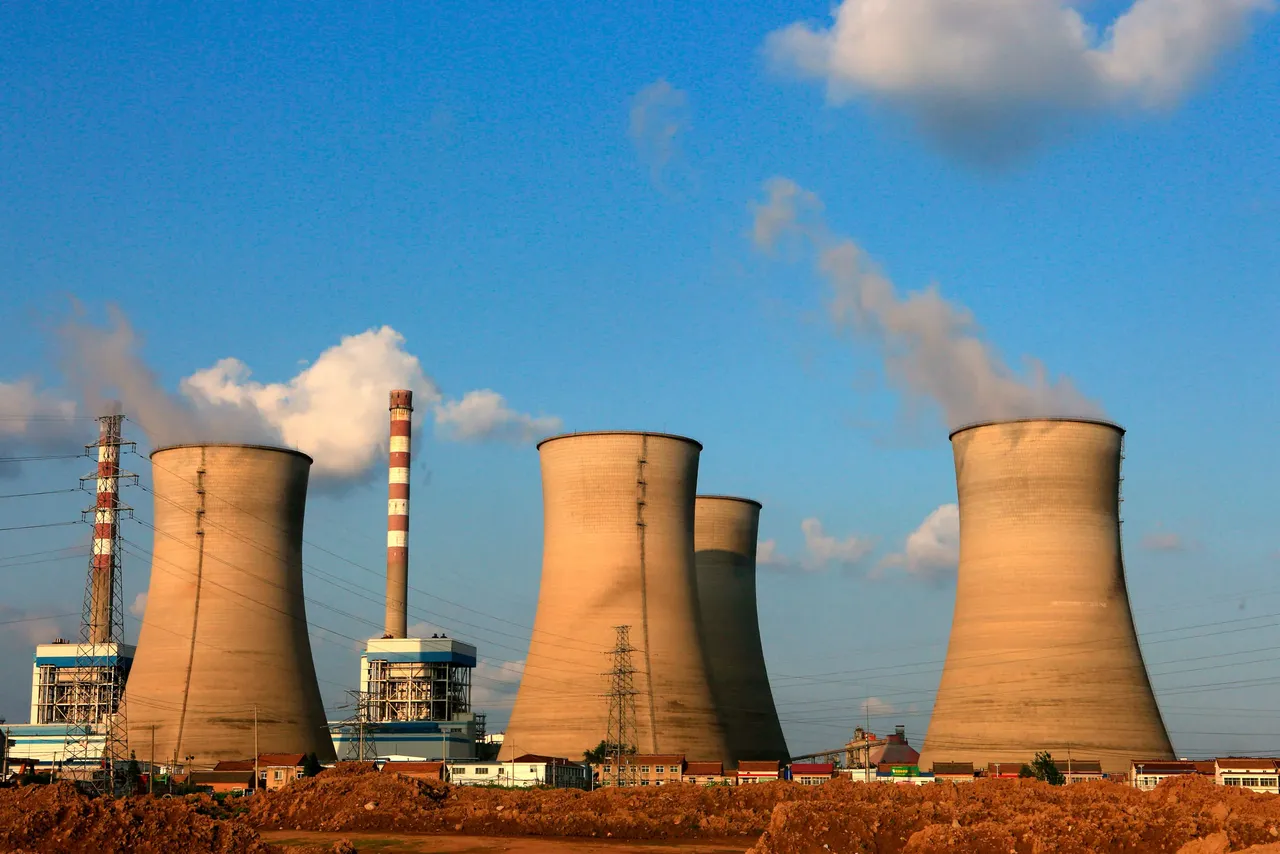

Power Plants
Robotics and Automation

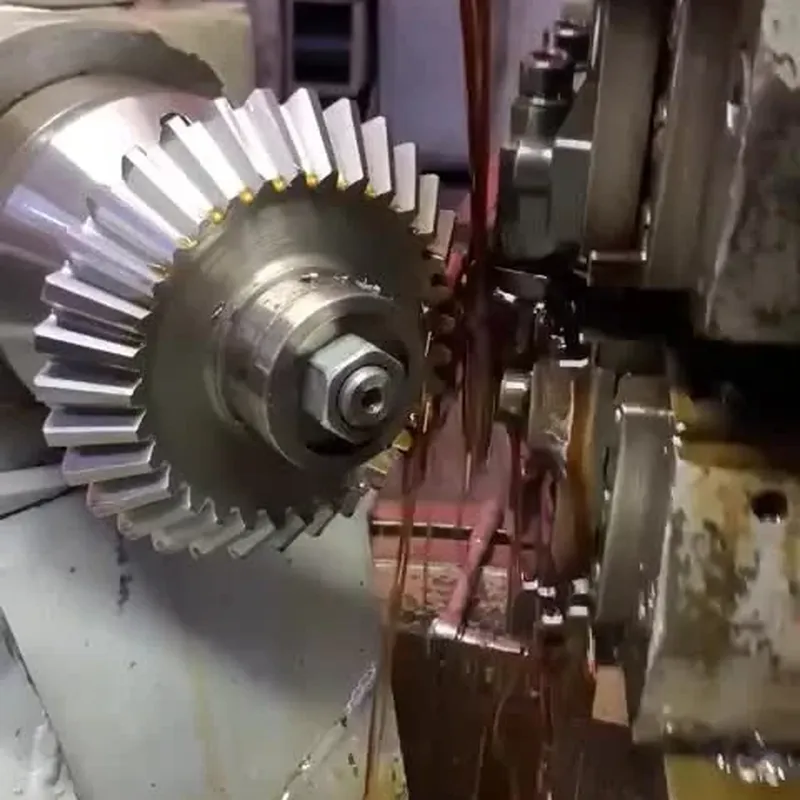

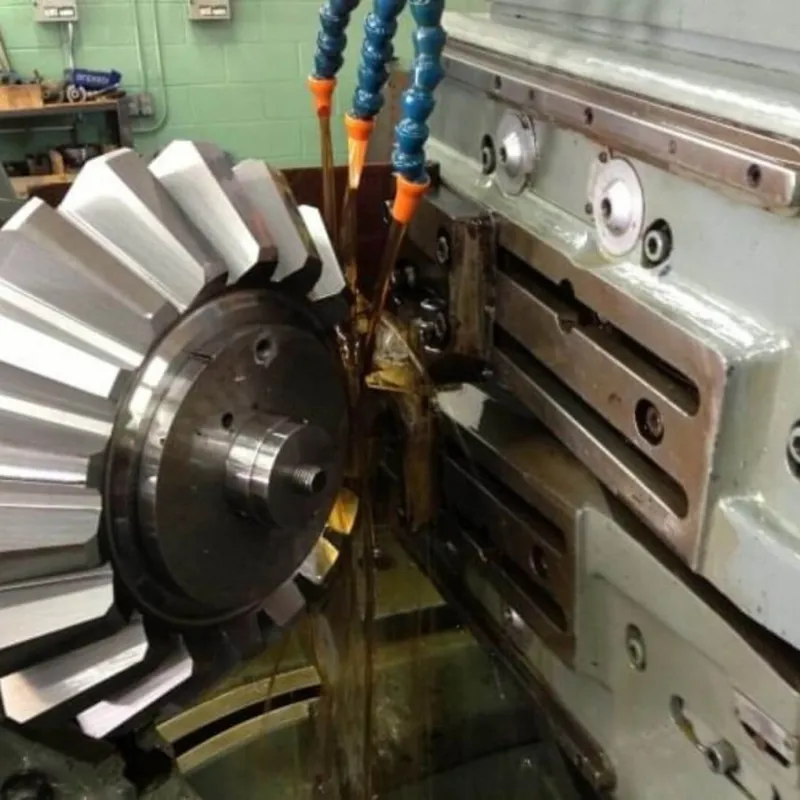

Maintenance and Lubrication of Bevel Gears
Proper maintenance and lubrication are crucial for the longevity and efficiency of bevel gears. Key maintenance practices include:
(1) Regular Inspection: Routine checks are essential for identifying wear, pitting, or misalignment in bevel gears. By examining tooth surfaces and contact patterns, you can detect issues early, preventing premature failure and costly downtime.
(2) Lubrication: Proper lubrication reduces friction, heat, and wear between gear teeth. Selecting the appropriate lubricant—such as high-quality gear oil or grease—ensures smooth operation, extends gear life, and protects against corrosion and damage.
(3) Load Monitoring: Bevel gears must operate within their specified load capacities. Monitoring applied forces prevents excessive stress, tooth breakage, or deformation, ensuring reliable performance and avoiding catastrophic failures under overload conditions.
(4) Alignment Checks: Misalignment causes uneven load distribution, leading to accelerated wear, vibration, and noise. Periodic alignment verification and adjustments maintain optimal gear meshing, improving efficiency and prolonging the lifespan of the system.
FAQ of Bevel Gears
What Are Bevel Gears Used For?
What Are the Different Types of Bevel Gears?
The main types of bevel gears include:
- Straight Bevel Gears (simple, noisy at high speeds)
- Spiral Bevel Gears (smooth and efficient, used in high-load applications)
- Hypoid Bevel Gears (higher torque, used in vehicle differentials)
- Zerol Bevel Gears (low noise, combines straight and spiral features)
- Miter Gears (1:1 ratio, used for direction changes without speed alteration)
How Do Bevel Gears Differ from Other Types of Gears?
What Materials Are Commonly Used for Bevel Gears?
Bevel gears are typically made from:
- Steel (most common, high strength)
- Cast Iron (wear-resistant but lower strength)
- Bronze (low friction, used in special applications)
- Plastic (lightweight, used in small machinery and appliances)
How Do You Select the Right Bevel Gear for an Application?
Selection depends on:
- Load capacity: Higher loads require stronger materials like hardened steel.
- Speed requirements: Spiral and hypoid gears perform better at high speeds.
- Noise and vibration tolerance: Spiral and zerol bevel gears reduce noise.
- Lubrication needs: Hypoid gears require specialized lubricants.
What Lubrication Is Best for Bevel Gears?
The type of lubrication depends on the gear type and application:
- Oil-based lubricants for high-speed and high-load applications
- Grease lubrication for low-speed applications
- Synthetic lubricants for extreme temperature or high-performance needs
What Are Common Failure Modes in Bevel Gears?
- Tooth wear and pitting (due to insufficient lubrication)
- Misalignment damage (causes uneven load distribution)
- Overloading fractures (leads to gear tooth breakage)
- Corrosion (especially in marine applications)
How Can You Maintain Bevel Gears for a Longer Lifespan?
- Regular inspection for wear and misalignment
- Proper lubrication to minimize friction and heat
- Ensuring correct alignment to prevent uneven loading
- Avoiding overloads to prevent premature gear failure
