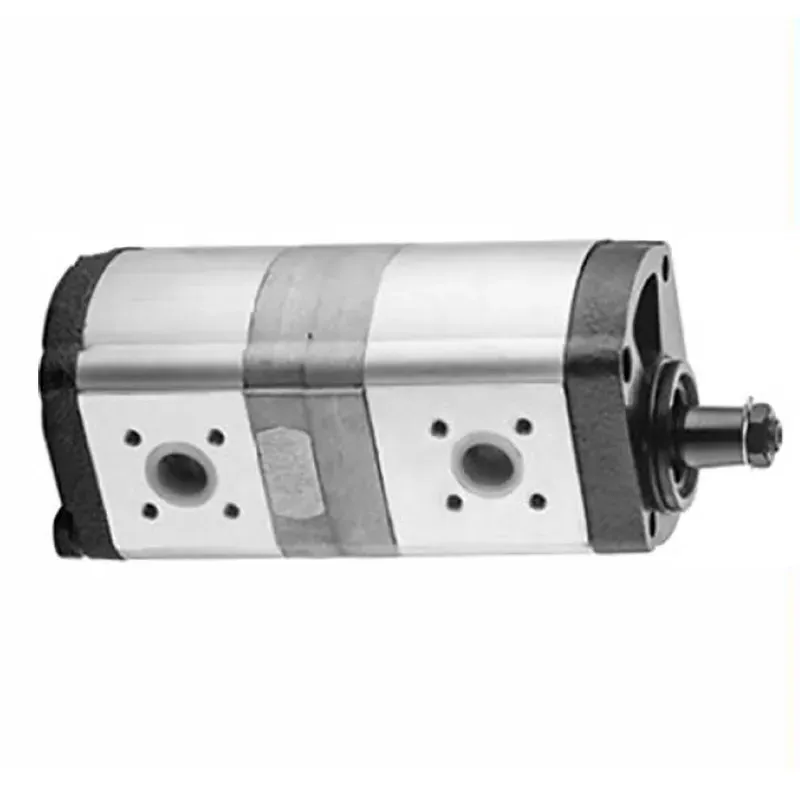

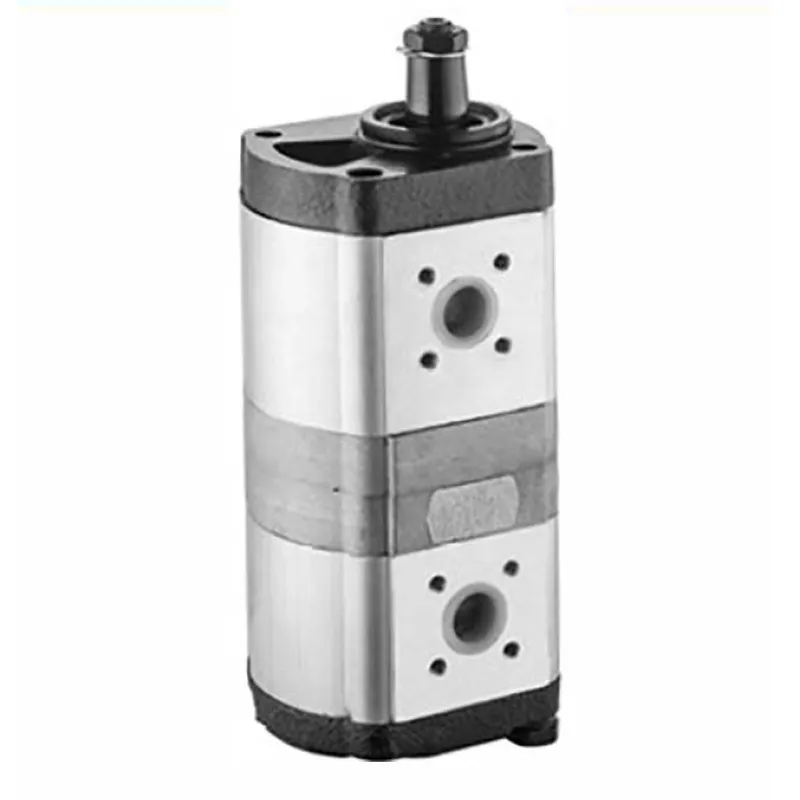

01174210 Hydraulic Gear Pump for Deutz-Fahr Tractor DX4.10, DX4.30, DX4.50, DX4.51, DX4.70, DX6.05, DX86, DX92

The 01174210 hydraulic gear pump is an important component specially designed for Deutz-Farr tractors, including models DX4.10, DX4.30, DX4.50, DX4.51, DX4.70, DX6.05, DX86 and DX92. This tractor hydraulic pump plays a crucial role in the hydraulic systems of these tractors, ensuring the efficient and reliable operation of various hydraulic functions such as steering, lifting and auxiliary equipment control.

This tractor hydraulic gear pump is made of high-quality materials and can withstand harsh agricultural conditions, providing long-lasting durability and stable performance. Its gear-based design ensures smooth oil transmission and the optimal pressure level, which is crucial for the effective operation of the tractor's hydraulic system.

01174210 Hydraulic Gear Pump Specifications

Tractor Hydraulic Gear Pump Parts

• Pump Housing
  The tractor hydraulic pump housing serves as the outer casing, providing structural integrity and protection for the internal components. It is typically made from durable materials like cast iron or aluminum, ensuring resistance to wear, pressure, and harsh environmental conditions.
• Gear Assembly
  The gear assembly is the central working component consisting of interlocking precision-cut gears. These gears create the necessary suction and pressure to move hydraulic fluid through the system, ensuring efficient energy transfer for tractor operations.
• Inlet and Outlet Ports
  Inlet and outlet ports are critical for fluid flow, allowing hydraulic oil to enter and exit the tractor hydraulic gear pump. These ports are designed to maintain a steady and leak-free connection with the hydraulic system, ensuring smooth operation.
• Shaft and Bearings
  The shaft connects the hydraulic pump to the tractor's power source, transmitting rotational energy to the gear assembly. Bearings reduce friction and support the shaft, ensuring smooth, efficient movement even under heavy workloads and continuous operation.
• Seals and Gaskets
  Seals and gaskets prevent hydraulic fluid from leaking out of the hydraulic gear pump. They are made from high-quality, heat-resistant materials to ensure long-lasting performance while maintaining pressure and protecting the internal components from contamination.
• Mounting Flange
  The mounting flange enables secure attachment of the hydraulic pump to the tractor. It ensures proper alignment and stability during operation, reducing vibrations and ensuring the pump's consistent performance under varying loads and conditions.

How to Prime Hydraulic Pump on Tractor

• Ensure the Hydraulic Reservoir is Filled
  Check that the hydraulic reservoir is filled to its recommended level with the correct hydraulic fluid. A low fluid level can lead to air entering the system, while using incorrect fluid can affect the tractor hydraulic pump’s performance and longevity.
• Inspect the Hydraulic System for Air Leaks
  Examine hoses, fittings, and connections for signs of air leaks or damage. Even small leaks can allow air to enter the system, making priming difficult. Tighten all connections and replace worn or damaged components as necessary.
• Manually Pre-Fill the Pump
  Before starting, manually fill the hydraulic pump inlet with hydraulic fluid to help lubricate the internal components. Pre-filling reduces the risk of running the pump dry, which can cause internal damage or overheating during the priming process.
• Bleed the Hydraulic Lines and System
  Locate the bleeder valve on the tractor hydraulic gear pump or hydraulic system. Open it slowly to release trapped air while turning the pump by hand or running it at a low speed. Continue bleeding until steady hydraulic fluid flows out without air bubbles.
• Operate the Pump at Low Speed
  Start the tractor and engage the hydraulic pump in tractor at a low RPM. Running the pump slowly ensures smooth fluid circulation and prevents damage during priming. Monitor for any unusual noises, such as cavitation, which may indicate incomplete priming or trapped air.
• Cycle Hydraulic Components to Remove Air
  Move all hydraulic components, such as lift arms, loaders, or attachments, through their full operating range. Cycling these parts helps displace trapped air within the system, ensuring the hydraulic pump for tractor and lines are completely primed and functioning properly.
