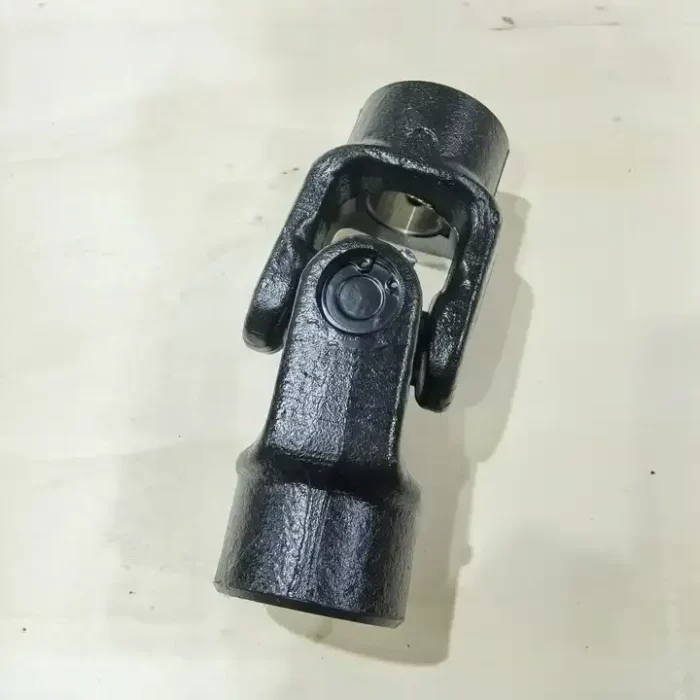

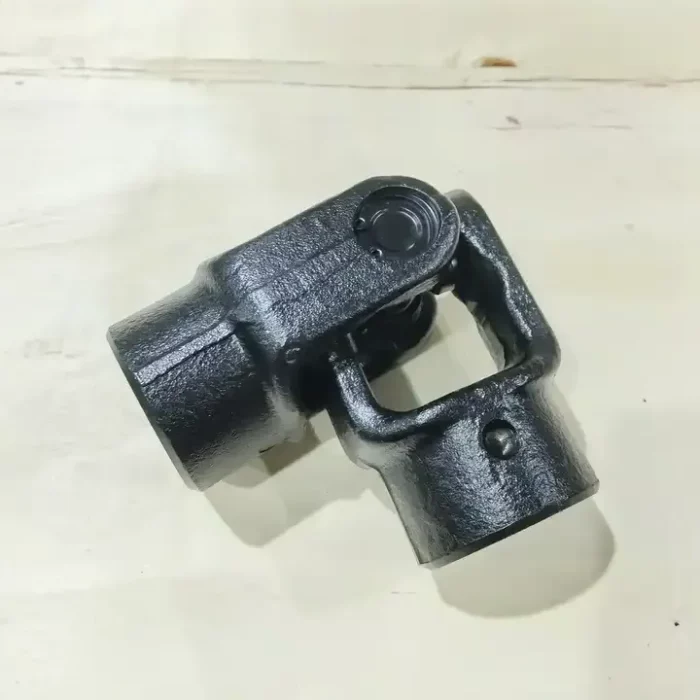

1.05.C25 Cardan Joint Transmission SD Double Joint Agricultural PTO Shaft Parts

Featuring the robust 1.05.C25 Cardan Joint Transmission SD Double Joint, these agricultural PTO shaft parts are designed for high-performance and durability. Crafted from 1045C material and finished in black, these parts have undergone a forging process for enhanced strength. They come with a 1-year warranty and are suitable for a wide range of industries including hotels, garment shops, building material shops, manufacturing plants, machinery repair shops, food & beverage factories, farms, restaurants, home use, retail, food shops, printing shops, construction works, energy & mining, food & beverage shops, and advertising companies.

SD Double Universal Joint Specifications

Key Features of the 1.05.C25 Cardan Joint Transmission SD Double Joint

The 1.05.C25 Cardan Joint Transmission SD DOUBLE JOINT offers several impressive features:

• • High Quality Material: Made from 1045C material, these parts are designed to withstand the rigors of agricultural use.
  • Forging Process: The forging process enhances the strength and durability of these parts, ensuring they can handle heavy-duty applications.
  • Double Joint Yoke Design: The double joint yoke design provides increased flexibility and performance, making these parts ideal for use with tractors and tractor implements.
  • CE, ISO, and TS Certifications: These parts come with CE, ISO, and TS certifications, providing assurance of their quality and reliability.
  • OEM Support: We provide OEM support, enabling us to produce these parts to meet specific requirements.

With our production capabilities, we can create these parts as perfect replacements for damaged SD Double Universal Joints for PTO shafts.

Applications of the SD Double Universal Joint

The SD Double Universal Joint for a tractor PTO shaft has numerous agricultural applications, as it is a vital component in the power transmission system of agricultural machinery:

• • Operation of Implements: The SD Double Universal Joint transfers power from the tractor's PTO shaft to various agricultural implements, facilitating efficient operation.
  • Flexibility on Uneven Terrain: The SD Double Universal Joint accommodates changes in angle and misalignment on uneven terrain, ensuring continuous power transmission.
  • Reduction of Vibrations and Shock: The SD Double Universal Joint plays a crucial role in minimizing vibrations and shock during operation, enhancing operator comfort and reducing wear and tear.
  • Compatibility with Various Implements: The SD Double Universal Joint is compatible with a wide range of agricultural implements, enhancing the versatility and productivity of agricultural machinery.
  • Safety and Equipment Protection: The SD Double Universal Joint contributes to safety by reducing the risk of equipment failure and accidents, while also protecting the PTO shaft from excessive stress.
  • Efficient Attachment and Removal of Implements: The SD Double Universal Joint facilitates quick and easy attachment and removal of implements, saving time and effort.

Types of Tractor PTO Shaft Torque Limiters

Tractor PTO shaft torque limiters are safety devices designed to protect the PTO system from excessive torque:

• Shear Pin Torque Limiter: This type of torque limiter uses a shear pin to transmit torque. When the torque exceeds a predetermined limit, the shear pin shears off, disconnecting the power transmission.
• Friction Clutch Torque Limiter: Friction clutch torque limiters use a disc or plate clutch mechanism to limit torque transmission. When the torque exceeds a certain threshold, the clutch slips, decoupling the power transmission temporarily.
• Ball Detent Torque Limiter: Ball detent torque limiters utilize a ball mechanism to limit torque transmission. When the torque exceeds a specific limit, the balls are forced out of their detents, causing the clutch to slip and interrupting power transmission.
• Ratchet Torque Limiter: Ratchet torque limiters employ a ratchet mechanism to limit torque transmission. They consist of a series of teeth that engage and disengage under torque load. When the torque exceeds the set limit, the teeth disengage, preventing further power transmission.
• Slip Clutch Torque Limiter: Slip clutch torque limiters utilize a clutch mechanism with adjustable friction to limit torque transmission. The clutch slips when the torque exceeds a certain threshold, temporarily interrupting power transmission. The friction can be adjusted to control the torque limit.

How Does the SD Double Universal Joint for PTO Shaft Work?

The SD Double Universal Joint for a tractor PTO (Power Take-Off) shaft is a mechanical device that allows for the transmission of power from the tractor's engine to attached implements:

• Universal Joints: The SD Double Universal Joint incorporates two universal joints, also known as Cardan joints. Each universal joint consists of a cross-shaped yoke with four arms. At the end of each arm, there is a bearing cap with needle bearings. The needle bearings allow for smooth rotation and transfer of torque between the two connected shafts.
• Centering Yoke: The centering yoke connects the two universal joints. It is typically a square or rectangular-shaped yoke with a center hole that fits over the tractor's PTO shaft. The centering yoke provides stability and alignment between the two universal joints, ensuring proper power transmission.
• Attached Implements: One end of the SD Double Universal Joint is connected to the tractor's PTO shaft, which is driven by the engine power. The other end of the universal joint is connected to the implement or machinery that requires power. The implement may have its own input shaft, onto which the universal joint is fitted, allowing power to be transmitted to the implement.
• Power Transmission: As the tractor's engine generates rotational power, it is transferred to the PTO shaft. The PTO shaft, in turn, transmits this power to the universal joint at one end of the SD Double Universal Joint. The universal joint allows the PTO shaft's rotational motion to be transferred smoothly to the second universal joint through the centering yoke.
• Flexibility: The SD Double Universal Joint provides flexibility and compensates for misalignment between the tractor and the implement. As the tractor moves, the PTO shaft and the implement may be at different angles or experience slight misalignment. The universal joints in the SD Double Universal Joint can accommodate these variations by flexing and adjusting their positions, allowing for continuous power transmission despite any misalignment.
• Reducing Vibrations and Shock: The universal joints in the SD Double Universal Joint help absorb and reduce vibrations and shock during operation. They allow for slight movements and misalignment, preventing the transmission of excessive vibrations and shocks to the PTO system and attached implements. This results in smoother operation, reduced wear and tear, and enhanced operator comfort.

Maintenance Methods for the SD Double Universal Joint

Proper maintenance of the SD Double Universal Joint for a tractor PTO shaft is essential to ensure its longevity and optimal performance:

• Regular Inspection: Perform regular visual inspections of the SD Double Universal Joint to check for any signs of wear, damage, or loose connections.
• Lubrication: Apply grease or oil to the universal joint's bearing caps and needle bearings, ensuring they are adequately lubricated.
• Grease Fittings: Check the grease fittings on the SD Double Universal Joint and ensure they are clean and functional.
• Tighten Fasteners: Periodically check and tighten all fasteners, such as bolts and nuts, that secure the universal joint and the centering yoke.
• Avoid Overloading: Ensure that the tractor's PTO system and the attached implements are not subjected to excessive loads beyond their recommended capacity.
• Cleanliness: Keep the SD Double Universal Joint and the surrounding area clean from dirt, debris, and crop residues.
• Replacement of Worn Parts: If any components of the SD Double Universal Joint, such as bearing caps, needle bearings, or the centering yoke, show signs of significant wear or damage, they should be promptly replaced.

Why Choose AGKNX's SD Double Universal Joint for PTO Shaft?

AGKNX Drive Shaft Co., Ltd., located in Hangzhou Zhejiang City, is a leading manufacturer of high-quality PTO shafts and related components. With a team of over 100 dedicated staff and a facility spanning over 12,000 m2, AGKNX is equipped to meet the demands of a diverse range of industries. AGKNX is proud to hold the CE, TS/16949, and ISO9001 certifications, reflecting our commitment to quality in every aspect of our operations. We offer OEM support and a fast delivery service, ensuring our customers get the parts they need, when they need them.

Our annual turnover of 60 million RMB and 9 Million Dollars is a testament to our success in the industry. Our products have earned a great reputation from customers in over 50 countries across Europe, America, Asia, and Australia. As a top professional OEM supplier for many agricultural implement factories in the domestic market, AGKNX continues to grow and develop, with a focus on quality, quick delivery, and competitive pricing.
