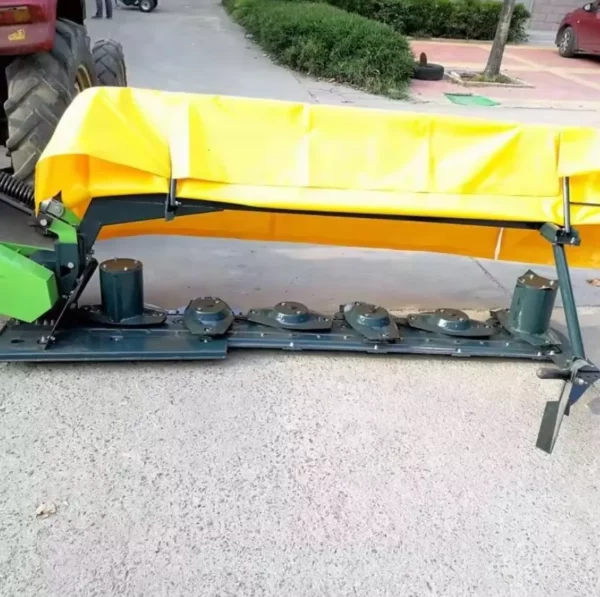

3 Point Hitch Disc Mower for Cutting Grass and Cutting Corn Stalk

A 3-point hitch disc mower is a versatile agricultural implement used for cutting grass and corn stalks. It is designed to be attached to the rear of a tractor using a three-point hitch system, which provides stability and allows for easy maneuverability. The disc mower consists of a series of rotating cutting discs mounted on a horizontal shaft. These cutting discs are equipped with sharp blades or knives that efficiently cut through vegetation as they rotate.

To operate the 3-point hitch disc mower, the tractor's power take-off (PTO) is connected to the mower's drive system. The PTO provides the necessary power to rotate the cutting discs at a high speed, enabling effective cutting.

When cutting grass, the mower is set at a desired cutting height, which can be adjusted using a height control mechanism. As the tractor moves forward, the rotating cutting discs come into contact with the grass, slicing through it cleanly. The cut grass is then discharged to the side or rear of the mower, forming neat windrows.

For cutting corn stalks, the disc mower can be equipped with special blades or attachments designed for this purpose. These blades are typically more robust and able to handle the tougher stalks. The mower is adjusted to the appropriate cutting height, and as the tractor moves through the cornfield, the rotating discs cut through the stalks, facilitating efficient harvesting or stalk management.

Specifications of 3 Point Hitch Disc Mower

Benefits of Using the 3 Point Hitch Disc Mower

Using a 3-point hitch disc mower offers several benefits for farmers and agricultural operations. Here are some of the advantages:

• Efficiency and Productivity: The 3-point hitch disc mower provides a wide cutting width, allowing for faster and more efficient mowing compared to manual or smaller cutting implements. It enables farmers to cover a larger area in less time, increasing productivity and reducing labor requirements.
• Clean and Even Cutting: The rotating cutting discs equipped with sharp blades or knives ensure a clean and even cut. This results in better forage quality for livestock feed or improved crop residue management. The precise cutting action helps maintain the health and vigor of the vegetation being cut.
• Versatility: The 3-point hitch disc mower is a versatile implement that can be used for cutting various types of vegetation, including grass, hay, and corn stalks. It can be equipped with different blade options or attachments to suit specific cutting requirements. This versatility allows farmers to adapt the disc mower to different crops and conditions.
• Easy Attachment and Detachment: The 3-point hitch design of the disc mower allows for easy attachment and detachment from the tractor. This feature enables quick and convenient switching between different implements, saving time and effort. It also allows farmers to use the tractor for other tasks when the disc mower is not in use.
• Adjustable Cutting Height: The disc mower typically offers adjustable cutting height settings. This flexibility allows farmers to customize the cutting height according to their specific needs or the stage of growth of the vegetation being cut. It ensures optimal cutting performance and allows for better control over the cutting process.
• Cost-effective: Using a 3-point hitch disc mower can be cost-effective in the long run. It reduces the need for manual labor and minimizes the time required for mowing. The increased efficiency and productivity can result in significant savings in terms of labor costs and operational expenses.

Applications of the 3 Point Hitch Disc Mower

1. Cutting Grass: The disc mower is capable of efficiently cutting grass on farms.

2. Alfalfa Harvesting: It can be used to cut alfalfa, a common crop on many farms.

3. Crop Harvesting: The disc mower is also suitable for harvesting other types of crops.

4. Farms: It is applicable in different types of farms thanks to its robust design and high productivity.

5. Plant Cutting: The disc mower can be used to cut various types of plants.

6. General Agriculture: Apart from specific applications, the disc mower is also suitable for general agricultural use.

How Does the 3 Point Hitch Disc Drum Mower Work?

A 3-point hitch tractor PTO driven disc drum mower is a type of agricultural machinery used for cutting grass, hay, or other vegetation. It is typically attached to the rear of a tractor using a 3-point hitch system, and it is powered by the tractor's power take-off (PTO). The working principle of a PTO driven disc drum mower can be summarized as follows:

• Attachment to the tractor: The disc drum mower is connected to the tractor using a 3-point hitch system. The hitch allows for easy attachment and detachment of the mower and provides stability during operation.
• Power transmission: The mower is powered by the tractor's PTO, which is a mechanical device located at the rear of the tractor. The PTO transfers power from the tractor's engine to the mower through a rotating driveshaft.
• Cutting mechanism: The cutting mechanism of a disc drum mower consists of a set of rotating discs or drums that are equipped with cutting knives. These discs or drums spin rapidly when the PTO is engaged, creating a cutting action.
• Ground contact and movement: The mower is lowered to the desired cutting height using hydraulic or mechanical controls. The weight of the mower and the downward pressure exerted by the tractor's hydraulic system ensure good ground contact for effective cutting. The tractor's wheels or skids provide stability and control the height of the cut.
• Cutting action: As the tractor moves forward, the rotating discs or drums cut the vegetation in their path. The cutting knives mounted on the discs or drums make clean, precise cuts, and the cut vegetation is discharged to the side or rear of the mower.

Install the 3 Point Hitch Disc Drum Mower to the Tractor

Installing a 3-point hitch disc or drum mower to a tractor involves several steps to ensure a secure connection for safe and efficient operation. Here's a general guide to help you with the installation process:

1. Position the Tractor and Mower: Position the tractor on a flat, stable surface. Align the mower so that its 3-point hitch arms are close to the tractor's hitch points.
2. Attach the Mower to the Tractor: Lower the 3-Point Hitch: Lower the tractor's 3-point hitch to its lowest position to easily align the hitch arms with the mower's mounting points. Attach the mower's lower hitch points to the tractor's lower arms. Insert the hitch pins and secure them with retaining clips. Attach the top link of the tractor to the mower's top hitch point. Adjust the length of the top link to ensure the mower will be level with the ground once lifted. Secure the connection with a hitch pin and retaining clip.
3. Connect the PTO Shaft: Slide the PTO shaft of the mower onto the tractor's PTO stub. Ensure the locking pins engage securely. The shaft may need to be adjusted for length; refer to the manual for instructions on making these adjustments. Ensure there is enough clearance for the PTO shaft to move as the tractor and mower articulate over uneven terrain. A PTO shaft that is too long or too short can cause damage or disengage during operation.
4. Inspect All Connections: Double-check all hitch points and the PTO connection to ensure they are secure. Lift the mower using the tractor's 3-point hitch and verify that it moves freely and that there is adequate clearance between the mower and the tractor. Ensure that all safety shields and guards, particularly on the PTO shaft, are in place and secure.
5. Test the Mower: With the tractor in an open area, start the engine and engage the PTO at a low speed to observe the mower's operation. Listen for any unusual noises or vibrations that could indicate a problem. Make any necessary adjustments to the top link or PTO shaft length based on the mower's performance during the test.

Choose the Right 3 Point Hitch Disc Mower for Cutting Grass

When choosing the right 3-point hitch disc mower for cutting grass, there are several factors to consider. Here are some key considerations to help you make an informed decision:

1. Cutting Width: Determine the cutting width you require based on the size of your field or the area you need to mow. A wider cutting width allows for faster and more efficient mowing, reducing the number of passes required. However, it's essential to ensure that the mower can be easily maneuvered in your specific field conditions.
2. Blade Quality and Quantity: Look for a disc mower that uses high-quality blades or knives. These blades should be durable, sharp, and capable of delivering a clean and precise cut. Consider the number of cutting discs and blades on the mower, as more discs and blades generally result in improved cutting performance.
3. Adjustability: Check if the disc mower offers adjustable cutting height settings. This feature allows you to customize the cutting height according to the type of grass, desired forage quality, or specific cutting requirements. The ability to adjust the cutting height ensures optimal performance and flexibility.
4. Durability and Build Quality: Choose a disc mower that is built to withstand the demands of cutting grass. Look for sturdy construction, quality materials, and well-designed components that can handle the rigors of continuous use. This ensures long-term durability and minimizes the need for frequent repairs or replacements.
5. Ease of Maintenance: Consider the ease of maintenance and servicing of the disc mower. Look for features such as easy access to the cutting discs, blades, and drivetrain components, as well as simple lubrication points. A disc mower that allows for convenient maintenance will save you time and effort in the long run.
6. Compatibility: Ensure that the disc mower is compatible with your tractor's three-point hitch system. Check the hitch category and specifications to ensure a proper fit. It's also important to verify the power requirements and PTO speed compatibility between your tractor and the disc mower.

Why Choose XinLan?

XinLan Agricultural Machinery Co., Ltd. has been a reliable partner in the agricultural industry for more than a decade. We specialize in the research and development of agricultural machinery, such as PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our team of over 100 employees includes 20 technical staff and five senior R&D personnel. We also have financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines. Our strong production technology and advanced equipment, including lathing, milling, planing, stamping, cutting plate, and electric welding, help us maintain our high-quality standards.

Our main products range from farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China. All our products are of excellent performance, reliable in quality, and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.

We are committed to "Customer foremost and service first" and look forward to cooperating with you to develop new products and markets. Where there is sunshine, there is AGKNX.
