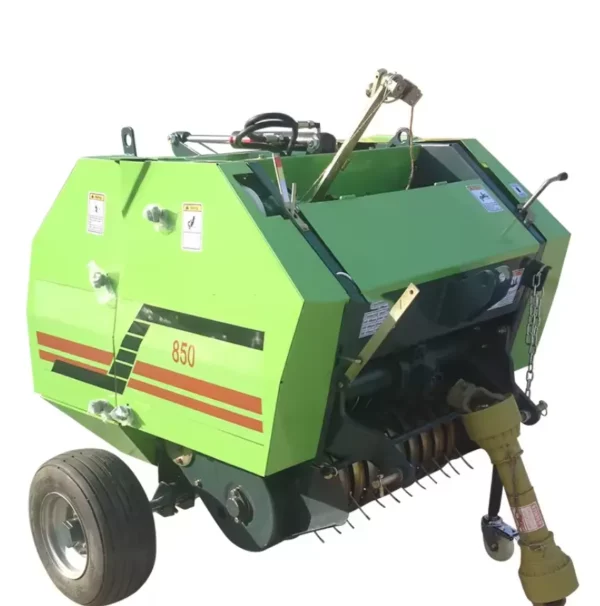

3 Point Hitched Mini Baler Equipment for Pickup and Baling Wheat

Our 3 point hitched mini baler equipment is a versatile, compact, and efficient tool designed for a variety of farming applications. With key components such as Bearing and Gear, this mini round hay baler/roll baler/round baler is suitable for baling hay, wheat, rice straw, and Alfalfa. Its compact dimensions (115x130x120cm), light weight (415 KG), and easy-to-operate design make it an ideal choice for small to medium-sized farms. The baler is powered by a tractor of 18-50HP and can produce 80-120 bales/hour. The baler comes with a 1-year warranty on core components and a 24-month overall warranty.

The Advantages of Our Mini Baler Equipment

Our mini baler equipment boasts a number of advantages that make it a top choice for farmers:

1. Compact and Lightweight: With dimensions of 115x130x120cm and a weight of 415 KG, the baler is compact and lightweight, making it easy to maneuver and operate.
2. High Efficiency: The baler can produce 80-120 bales per hour, increasing your productivity and efficiency on the farm.
3. Easy to Operate: The baler is designed to be user-friendly. It is easy to operate, even for beginners.
4. Versatility: The baler is capable of baling a variety of materials including hay, wheat, rice straw, and Alfalfa.
5. Robust and Durable: Built with core components like Bearing and Gear, the baler is robust and durable, ensuring a long service life.
6. Warranty: We provide a 1-year warranty on core components and a 24-month overall warranty, giving you peace of mind.

Applications of Our Mini Baler Equipment

The mini baler equipment has a wide range of applications in the farming industry:

1. Hay Baling: The baler is perfect for baling hay, helping you to store and transport it efficiently.
2. Wheat Straw Baling: The baler can also be used for baling wheat straw, making it easier to handle and store.
3. Rice Straw Baling: With this baler, you can easily bale rice straw for easy transport and storage.
4. Alfalfa Baling: The baler is suitable for baling Alfalfa, helping to preserve its nutritional value and making it easier to handle.
5. Farm Waste Management: The baler can also be used to bale farm waste, helping to keep your farm clean and organized.
6. Animal Feed Preparation: The bales produced by this baler can be used as animal feed, providing a convenient and efficient way to feed your livestock.

Working Principle of Tractor Mounted Mini Hay Round Baler

The working principle of a tractor-mounted mini hay round baler involves several key steps to efficiently collect, compress, and bind hay or straw into compact cylindrical bales:

1. Attachment to Tractor: The mini hay round baler is attached to the tractor's three-point hitch or mounted on the rear of the tractor using appropriate brackets. It is typically powered by the tractor's power take-off (PTO) system, which provides the necessary rotational power.
2. Pick-Up Mechanism: The baler is equipped with a pick-up mechanism at the front, which consists of a series of tines or belts. As the tractor moves forward, the pick-up mechanism collects the loose hay or straw from the ground and transfers it to the baling chamber.
3. Feeding and Compression: The hay or straw is fed into the baling chamber through the pick-up mechanism. Inside the baling chamber, there is a rotating drum or rotor with spiral-shaped vanes or belts. The material is fed into the space between the rotor and the chamber wall, where it is rolled and compressed.
4. Formation of Bale: As the material is continuously fed into the baling chamber, the rotating drum or rotor compresses it, gradually forming a cylindrical shape. The chamber is designed with adjustable side plates or rollers to control the size and density of the bale.
5. Binding Process: Once the desired size of the bale is reached, the mini hay round baler initiates the binding process. It typically uses twine or netting to secure the bale. The twine or netting is automatically fed into the baler, and it wraps around the bale in a crisscross pattern to hold it together.
6. Bale Ejection: Once the baling and binding process is complete, the mini hay round baler ejects the finished bale. It can be released onto the ground or onto a bale wagon or trailer attached to the rear of the baler. Some balers also have a hydraulic ejection system that pushes the bale out of the chamber.
7. Repeat Process: After the bale is ejected, the mini hay round baler is ready to repeat the process for the next bale. The pick-up mechanism continues to collect the hay or straw, and the cycle of feeding, compression, binding, and ejection is repeated until the desired number of bales is produced.

How to Install the Mini Hay Round Baler to Tractor?

Installing a mini hay round baler to a tractor involves a few key steps to ensure proper attachment and secure operation:

1. Check Compatibility: Before installing the baler, ensure that it is compatible with your tractor. Check the specifications and requirements provided by the baler manufacturer to ensure it can be safely attached to your tractor's three-point hitch or mounting brackets.
2. Position the Tractor: Park the tractor on a level surface and engage the parking brake. Ensure that the tractor is turned off and the PTO is disengaged.
3. Align the Baler: Position the mini hay round baler behind the tractor, aligning it with the three-point hitch or mounting brackets. Ensure that the baler's hitch or brackets are at the correct height for attachment.
4. Attach the Lower Linkage: Lower the three-point hitch of the tractor to align the lower linkage arms with the baler's hitch or brackets. Insert the lower linkage pins through the appropriate holes on both sides and secure them with the locking devices provided.
5. Attach the Top Link: Connect the top link of the tractor to the baler's top link bracket. Adjust the length of the top link to ensure proper alignment and maintain the desired working position of the baler. Double-check that all attachment points are securely fastened and locked. Ensure that there is no excessive play or movement between the tractor and the baler.
6. Connect the PTO Shaft: Locate the PTO shaft on the baler and align it with the PTO output shaft on the tractor. Slide the PTO shaft onto the tractor's PTO shaft, ensuring that the splines engage properly. Secure the PTO shaft with the provided safety chain or locking mechanism.
7. Test Operation: Start the tractor and engage the PTO. Observe the rotation of the baler's components to ensure smooth operation. Check for any unusual noises or vibrations that may indicate improper installation or alignment.

Common Troubleshooting of Mini Baler Equipment

Troubleshooting common issues with a tractor-mounted mini hay round baler involves identifying and addressing problems that can affect its performance and the quality of the bales produced:

1. Baler Not Starting or Operating: PTO connection issues, insufficient hydraulic pressure, or electrical faults. Ensure the PTO shaft is correctly connected and that the tractor's PTO output matches the baler's requirements. Check the hydraulic system for leaks or low pressure and repair as necessary. Inspect electrical connections and fuses for faults.
2. Uneven or Loose Bales: Incorrect tension settings, uneven windrow feeding, or worn parts. Adjust the baler's tension settings according to the manufacturer's instructions. Ensure even and consistent feeding of the windrow into the baler. Replace any worn belts, rollers, or other parts affecting bale formation.
3. Baler Jamming or Clogging: Overfeeding, wet or overly dry material, or mechanical obstructions. Feed the material at a consistent rate to avoid overloading the baler. Avoid baling excessively wet or dry material. Clear any obstructions in the baler's intake or mechanism.
4. Bales Not Tying or Wrapping Properly: Twine or net wrap issues, malfunctioning tying or wrapping mechanism, or incorrect settings. Check and refill twine or net wrap supplies. Inspect the tying or wrapping mechanism for damage or malfunctions and repair or adjust as necessary. Ensure settings for tying or wrapping are correctly configured.
5. Excessive Wear or Damage to Baler Components: Lack of maintenance, incorrect settings, or operating beyond capacity. Regularly inspect and maintain the baler, including lubrication and part replacements. Adjust settings to match the operating conditions and material being baled. Avoid operating the baler beyond its designed capacity.
6. Poor Baler Performance or Efficiency: Incorrect tractor-baler setup, improper PTO speed, or baler not leveled. Ensure the baler is correctly attached and leveled on the tractor. Adjust the PTO speed to match the baler's requirements. Check that the baler is properly configured for the tractor's capabilities.

Why Choose AGKNX's Mini Hay Round Baler?

AGKNX Agricultural Machinery Co., Ltd. has a long-standing reputation for producing high-quality, reliable, and efficient mini hay round balers. With over a decade of experience, we have built a strong reputation for quality, reliability, and customer satisfaction.

Our company is composed of more than 100 dedicated employees, including 20 technical staff and five senior R&D personnel. We have advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system for precise and efficient production.

Our mini hay round balers and other agriculture machinery have passed international certifications, ensuring the quality and safety of our products. We offer customized services to meet the specific needs of our customers. Our professional after-sales service team is ready to assist with any issues or concerns, providing comprehensive customer support.

Our balers have been exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia. We continually strive to improve our products and services, aiming to provide the best agricultural machinery for farmers worldwide.
