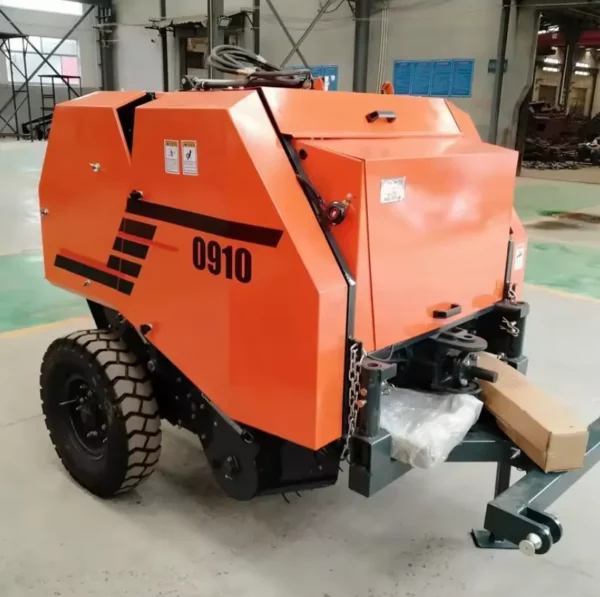

3×3 Round Baler for Sale
Are you looking for an efficient hay and straw baling solution? Look no further, the 3x3 round baler is here. This round baler operates at speeds from 3-10km/h and is designed for pickup and baling of a variety of crops including grass, alfalfa, wheat, and rice straw. It is compact in size, with dimensions of 1300x1300x1350mm, and a weight of 425 kg, making it easy to transport and maneuver. With a power requirement of 20-50HP and a pickup width of 80cm, this baler is versatile and efficient. It comes with a 2-year warranty, ISO and CE certifications, and is available in an attractive green color. The baler uses twine for binding and does not provide overseas after-sales service.
Advantages of the 3x3 Round Baler
Opting for a 3x3 round baler presents several benefits:
- Efficiency: It can operate at speeds between 3-10km/h, ensuring quick and effective baling.
- Versatility: The baler can pick up and bale a range of crops such as grass, alfalfa, wheat, and rice straw.
- Compact: The baler's compact dimension makes it easy to transport and maneuver.
- Power: It requires only 20-50HP for operation, making it power-efficient.
- Reliability: The baler comes with a 2-year warranty for peace of mind.
- Certified: It holds ISO and CE certifications, ensuring its quality and safety standards.
Applications of the 3x3 Round Baler
The 3x3 round baler is designed for multiple applications:
- Pickup and baling of grass and alfalfa, making it ideal for farms and grasslands.
- Pickup and baling of wheat and rice straw, making it suitable for agricultural fields.
- Its compact size and light structure make it suitable for small fields and terrains.
- Due to its small size and weight, the bales produced are easy to carry and store.
- The baler is also suitable for use in vineyards or orchards.
- Its low power demand makes it cost-effective and environmentally friendly.
Tractor Mounted Mini Hay Round Baler Working Principle
The working principle of a tractor-mounted mini hay round baler involves several key steps:
- Attachment to Tractor: The baler is attached to the tractor's three-point hitch and powered by the tractor's PTO system.
- Pick-Up Mechanism: The baler uses a pick-up mechanism at the front to collect the loose hay or straw from the ground and transfer it to the baling chamber.
- Feeding and Compression: The hay or straw is fed into the baling chamber, where it is rolled and compressed to form a bale.
- Formation of Bale: The bale is formed by continuously feeding material into the baling chamber and compressing it using a rotating drum or rotor.
- Binding Process: The baler uses twine or netting to secure the bale once the desired size is reached.
- Bale Ejection: After binding, the finished bale is ejected from the baler and ready for collection.
- Repeat Process: The process is repeated until the desired number of bales is produced.
How to Install the Mini Hay Round Baler to Tractor?
Installing a mini hay round baler to a tractor involves a few key steps:
- Check Compatibility: Ensure the baler is compatible with your tractor.
- Position the Tractor: Park the tractor on a level surface and engage the parking brake.
- Align the Baler: Position the baler behind the tractor, aligning it with the three-point hitch or mounting brackets.
- Attach the Lower Linkage: Lower the three-point hitch of the tractor to align the lower linkage arms with the baler's hitch or brackets.
- Attach the Top Link: Connect the top link of the tractor to the baler's top link bracket.
- Connect the PTO Shaft: Align the PTO shaft on the baler with the PTO output shaft on the tractor and securely attach it.
- Test Operation: Start the tractor and engage the PTO to observe the operation of the baler.
Common Troubleshooting for the 3x3 Round Baler
Here are some common troubleshooting tips for the 3x3 round baler:
- Baler Not Starting or Operating: Check the PTO connection, hydraulic pressure, and electrical connections.
- Uneven or Loose Bales: Adjust the baler's tension settings, ensure even feeding of the windrow, and replace any worn parts.
- Baler Jamming or Clogging: Avoid overloading the baler and baling excessively wet or dry material. Clear any obstructions in the baler's intake or mechanism.
- Bales Not Tying or Wrapping Properly: Check and refill twine or net wrap supplies, inspect the tying or wrapping mechanism, and ensure settings for tying or wrapping are correctly configured.
- Excessive Wear or Damage to Baler Components: Regularly inspect and maintain the baler, adjust settings to match operating conditions, and avoid operating the baler beyond its designed capacity.
- Poor Baler Performance or Efficiency: Ensure the baler is correctly attached and leveled on the tractor, adjust the PTO speed to match the baler's requirements, and check that the baler is properly configured for the tractor's capabilities.
Why Choose AGKNX's Mini Hay Round Baler?
AGKNX Agricultural Machinery Co., Ltd. is a renowned manufacturer in the agricultural machinery industry, with over 100 employees and 20 technical staff members. We have a wealth of experience in the production of farming machinery, planting machinery, and harvesting machinery. Our product range includes a variety of tractor attachments such as PTO shafts, agricultural gearboxes, flail mowers, rotary mowers, rotary tillers, fertilizer spreaders, furrow ploughs, post hole diggers, boom sprayers, and of course, the mini hay round baler.
Our company's strength lies in our advanced technology and equipment, including CAD computer-aided design system, lathing, milling, planing, stamping, cutting plate, and electric welding. Our products are complete in specifications, excellent in performance, reliable in quality, and are sold all over the world. Additionally, we offer customized services to meet diverse needs. With international certifications like ISO and CE, we guarantee the quality of our products. Furthermore, we have a robust after-sales service system to address any issues or concerns.
Finally, you can check out our mini hay round baler in action in the link below:
Author: Yjx
