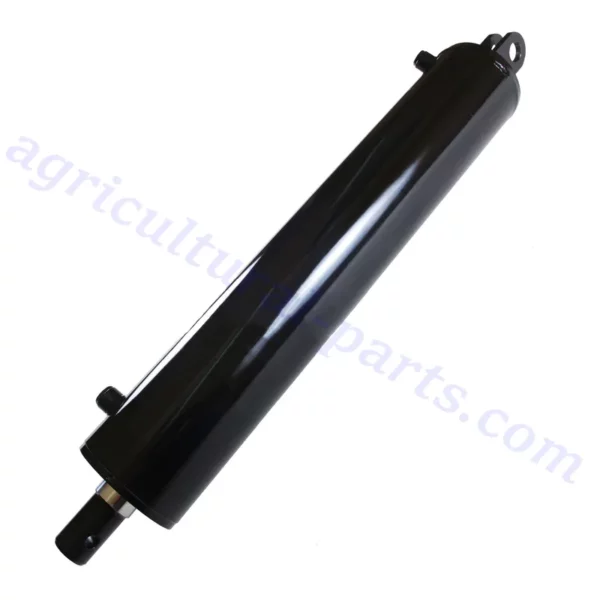

4.5″ Bore x 24″ Stroke Log Splitter Hydraulic Cylinders

A 4.5″ Bore x 24″ Stroke Log Splitter Hydraulic Cylinder is a heavy-duty, double-acting hydraulic cylinder component designed for log splitters, capable of exerting significant force to split wood efficiently. The 4.5-inch bore refers to the cylinder’s inner diameter, while the 24-inch stroke indicates the distance the piston rod travels from fully retracted to fully extended, typically measuring 34.5″ retracted and 58.5″ extended. Rated for up to 3500 PSI, they deliver approximately 26-30 tons of splitting force, making them compatible with various log splitters, such as gas log splitters, electric log splitters, 3-point tractor log splitters, and skid steer log splitters.

A 4.5" Bore x 24" Stroke Log Splitter Hydraulic Cylinder is a heavy-duty, double-acting hydraulic cylinder component designed for log splitters, capable of exerting significant force to split wood efficiently. The 4.5-inch bore refers to the cylinder’s inner diameter, while the 24-inch stroke indicates the distance the piston rod travels from fully retracted to fully extended, typically measuring 34.5" retracted and 58.5" extended. These cylinders feature a welded steel clevis mount, a chrome-plated rod (commonly 1.75" to 3" in diameter), and high-quality polyurethane seals for durability in harsh conditions, including extreme cold. Rated for up to 3500 PSI, they deliver approximately 26-30 tons of splitting force, making them compatible with various log splitters, such as gas log splitters, electric log splitters, 3-point tractor log splitters, and skid steer log splitters.

This hydraulic log splitter cylinder is a direct replacement for many OEM double-acting, clevis-mount cylinders. Common OEM no-modification-needed replacement for: Tractor Supply Co., Huskee, SplitMaster, Oregon, SpeeCo, and many others.

4.5″ Bore x 24″ Stroke Log Splitter Hydraulic Cylinder

Log Splitter Hydraulic Cylinder Dimensions

Log Splitter Hydraulic Cylinder Dimensions

Bore :4.5 in
Outer Dia. (⌀) :5.12 in
Stroke :24 in
Rod Dia. (⌀) :1.75 in
Port Size :1/2" NPT
Base Pin Dia (⌀) :1.125 in
Retracted :34.5 in
Rod Pin Dia (⌀) :0.563 in
Extended :58.5 in
Overall length :36.7 in
Pressure :3500 PSI
Column Load :42,200 LBs
Oil Volume :6.7 QTs
Design :Welded
Rod Type :Chrome Plated
Rod End :Pin Hole
Action :Double Acting
Weight :80 LBs

Log Splitter Hydraulic Cylinder Parts

  1. Cylinder Barrel: The cylinder barrel is the main body of the hydraulic cylinder, typically made of high-strength steel. It houses the hydraulic fluid and provides a sealed chamber for the piston to move, ensuring the system can handle high pressures during log splitting operations.
  2. Piston: The piston is a vital moving component inside the cylinder barrel. It separates the fluid into two chambers and transfers hydraulic force to the rod. Its precision design ensures smooth and efficient motion under heavy loads.
  3. Piston Rod: The piston rod is a hardened steel rod attached to the piston, extending out of the wood splitter cylinder. It transmits the piston’s force to the splitter wedge, enabling the log to be split with precision and power.
  4. Seals and O-Rings: Hydraulic seals and O-rings are crucial for preventing fluid leaks and maintaining pressure within the cylinder. These components protect the system from contamination while ensuring consistent performance under high pressures and extreme conditions.
  5. Cylinder Head (End Cap): The cylinder head, also known as the end cap, encloses the barrel and provides an outlet for the piston rod. It contains seals and bearings to guide the rod, ensuring alignment and reducing wear during operation.
  6. Hydraulic Ports: Hydraulic ports are entry and exit points for the hydraulic fluid. They connect to hoses or valves, enabling controlled fluid flow to extend or retract the piston. Properly positioned ports ensure efficient cylinder operation.

Log Splitter Hydraulic Cylinder Parts

Advantages of the Hydraulic Cylinder for Log Splitter

  1. High Force Output: Hydraulic cylinders with a 4.5-inch bore deliver 26-30 tons of splitting force, enabling efficient splitting of hardwoods and large logs, far surpassing manual or mechanical alternatives in power.
  2. Durability and Longevity: Constructed from welded steel with chrome-plated rods and polyurethane seals, this hydraulic cylinder for a log splitter resists corrosion and wear, ensuring reliable performance in harsh outdoor conditions for years with minimal maintenance.
  3. Smooth and Controlled Operation: Double-acting hydraulic cylinders provide precise control over the splitting cycle, allowing consistent extension and retraction. This ensures smooth, predictable motion, enhancing safety and efficiency during log-splitting tasks.
  4. Versatility Across Applications: Compatible with gas log splitters, electric log splitters, or tractor-mounted log splitters, these log splitter hydraulic cylinders adapt to various setups. Their standardized clevis mounts and port fittings make integration seamless for diverse equipment types.
  5. High Pressure Tolerance: Rated for up to 3500 PSI, the hydraulic log splitter cylinders maintain performance under intense loads. This capability ensures consistent splitting power, even for tough, knotty logs, without risking component failure.
  6. Energy Efficiency: Hydraulic systems convert pump energy into mechanical force efficiently, reducing fuel or power consumption compared to mechanical splitters. This lowers operating costs while maintaining high productivity for large-scale splitting tasks.

Hydraulic Log Splitter Cylinder

Selecting the Right Hydraulic Log Splitter Cylinder

When considering the purchase of a log splitter hydraulic cylinder, it is important to evaluate key specifications such as:

  • Bore Diameter: The bore diameter, or the inner diameter of the cylinder barrel, directly impacts the splitting force. A larger bore (e.g., 5 inches) generates greater force (up to ~58,900 lbs at 3,500 PSI) but operates more slowly due to higher oil volume requirements. A smaller bore offers faster cycles but less force, which is ideal for smaller logs. Choose based on log size and desired tonnage.
  • Rod Diameter: The rod diameter affects retract speed and structural integrity. A larger rod enhances retraction speed and resists bending under heavy loads, crucial for demanding tasks. Smaller rods may suffice for lighter splitting but offer slower retraction. Ensure the rod matches the bore for balanced performance and durability.
  • Pin Hole Diameter: The pin hole diameter determines the mounting strength and compatibility with the log splitter frame. Common sizes range from 0.65 to 1.25 inches, with larger pins providing robust connections for heavy-duty applications. Measure existing equipment to ensure proper fitment and avoid stress on mounting points during operation.
  • Single or Double Acting: Double-acting hydraulic cylinders use hydraulic pressure to extend and retract, offering faster cycles and efficiency, ideal for frequent or commercial use. Single-acting hydraulic cylinders extend hydraulically but rely on external forces for retraction, suitable for simpler, budget-conscious setups. Choose double-acting for high-performance splitters.
  • Materials and Coatings: High-quality log splitter hydraulic cylinders use honed cold-drawn steel tubes for durability and chrome-plated rods to resist wear and corrosion. Polyurethane seals and POM-C wear rings enhance longevity, especially in harsh conditions. Opt for welded construction for strength and ensure coatings withstand extreme weather for reliable performance.
  • Application: Consider the log splitter type (gas, electric, 3-point tractor, or skid steer) and log size. Match stroke length to log length, and select bore/rod sizes for desired force and speed. Ensure compatibility with pump pressure and mounting style (clevis, trunnion) for seamless integration.

Hydraulic Cylinder for a Log Splitter
