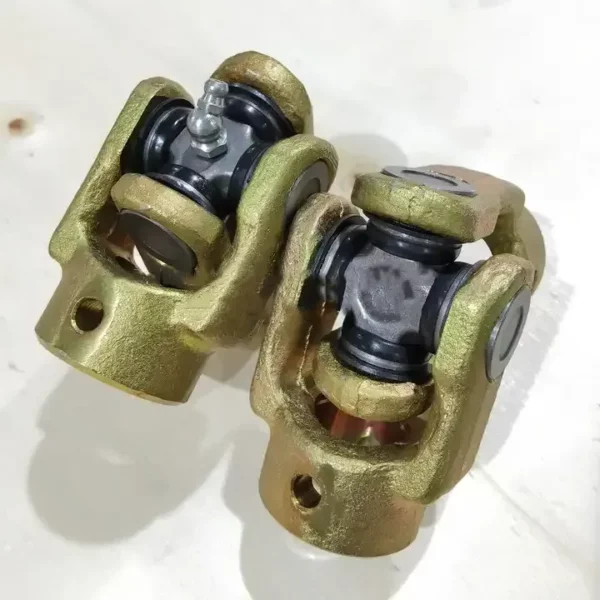

5-170X Universal Kardan Joint Tractor PTO Shaft Parts Zinc Plated: A Robust Power Transmission Solution

Introducing the 5-170X universal kardan joint for tractor PTO (Power Take-Off) shaft parts, zinc plated and built for durability. This new and advanced product is designed with precision and manufactured to the highest standard of quality, providing a one-year warranty. This double joint yoke is suitable for various industries, including hotels, garment shops, building material shops, manufacturing plants, machinery repair shops, food & beverage factories, farms, restaurants, homes, retail outlets, food shops, printing shops, construction works, energy & mining, food & beverage shops, and advertising companies. Weighing just 2.5 KG, this product is made from 1045C material and is processed through forging, ensuring resilience and strength.

SD Double Universal Joint Specifications

Features of the 5-170X Universal Kardan Joint Tractor PTO Shaft Parts Zinc Plated

Our 5-170X universal kardan joint presents a perfect replacement for damaged parts on an SD Double Universal Joint for PTO Shaft. It boasts superior features making it a top choice for many industries. Here are the key features:

1. 1. Durability: Made from 1045C material and processed via forging, the 5-170X universal kardan joint is exceptionally durable and can withstand harsh conditions.
   2. Color Zinc Plating: The zinc plating provides an extra layer of protection against rust and corrosion, ensuring a longer lifespan for the part.
   3. Flexible Usage: It's ideal for various tractor and tractor implements, making it a versatile component in a wide range of machinery.
   4. OEM Support: We provide OEM support, ensuring the part is compatible with your specific machinery model.

1. Certified: The part is CE, ISO, and TS certified, guaranteeing its high-quality and safety standards.

Applications of the 5-170X Universal Kardan Joint Tractor PTO Shaft Parts

The SD Double Universal Joint for a tractor PTO shaft has numerous agricultural applications, as it is a vital component in the power transmission system of agricultural machinery. Here are some key agricultural applications of the SD Double Universal Joint:

1. 1. Operation of Implements: The primary function of the SD Double Universal Joint is to transfer power from the tractor's PTO shaft to various agricultural implements. It allows the power generated by the tractor's engine to be efficiently transmitted to implements such as mowers, balers, seeders, sprayers, and harvesters.
   2. Flexibility on Uneven Terrain: Agricultural fields are often characterized by uneven terrain, slopes, and obstacles. The SD Double Universal Joint accommodates the changes in angle and misalignment that occur when the tractor traverses uneven ground.
   3. Reduction of Vibrations and Shock: The SD Double Universal Joint plays a crucial role in minimizing vibrations and shock during the operation of agricultural machinery. It absorbs and compensates for angular misalignment, reducing the transmission of vibrations and shocks to the PTO system and attached implements.
   4. Compatibility with Various Implements: The SD Double Universal Joint is designed to be compatible with a wide range of agricultural implements. It can be adapted to different sizes, types, and models of implements, allowing farmers to use a variety of tools and attachments with their tractors.
   5. Safety and Equipment Protection: The SD Double Universal Joint contributes to the safety of agricultural operations by reducing the risk of equipment failure and accidents. It helps maintain stable power transmission, preventing sudden disruptions or component failures that could pose safety hazards.
   6. Efficient Attachment and Removal of Implements: The SD Double Universal Joint facilitates the quick and easy attachment and removal of implements to the tractor's PTO shaft. Its design allows for convenient connection and disconnection, enabling farmers to switch between different implements efficiently.

Types of Tractor PTO shaft torque limiters

Tractor PTO shaft torque limiters are safety devices designed to protect the PTO system and connected equipment from excessive torque and prevent damage or accidents. Here are some common types of PTO shaft torque limiters used in tractors:

1. Shear Pin Torque Limiter: This type of torque limiter uses a shear pin to transmit torque. When the torque exceeds a predetermined limit, the shear pin shears off, disconnecting the power transmission.
2. Friction Clutch Torque Limiter: Friction clutch torque limiters use a disc or plate clutch mechanism to limit torque transmission. When the torque exceeds a certain threshold, the clutch slips, decoupling the power transmission temporarily.
3. Ball Detent Torque Limiter: Ball detent torque limiters utilize a ball mechanism to limit torque transmission. When the torque exceeds a specific limit, the balls are forced out of their detents, causing the clutch to slip and interrupting power transmission.
4. Ratchet Torque Limiter: Ratchet torque limiters employ a ratchet mechanism to limit torque transmission. They consist of a series of teeth that engage and disengage under torque load.
5. Slip Clutch Torque Limiter: Slip clutch torque limiters utilize a clutch mechanism with adjustable friction to limit torque transmission. The clutch slips when the torque exceeds a certain threshold, temporarily interrupting power transmission.

How Does the SD Double Universal Joints for PTO Shaft Work?

The SD Double Universal Joint for a tractor PTO (Power Take-Off) shaft is a mechanical device that allows for the transmission of power from the tractor's engine to attached implements. Here's how it works:

1. Universal Joints: The SD Double Universal Joint incorporates two universal joints, also known as Cardan joints. Each universal joint consists of a cross-shaped yoke with four arms.
2. Centering Yoke: The centering yoke connects the two universal joints. It is typically a square or rectangular-shaped yoke with a center hole that fits over the tractor's PTO shaft.
3. Attached Implements: One end of the SD Double Universal Joint is connected to the tractor's PTO shaft, which is driven by the engine power. The other end of the universal joint is connected to the implement or machinery that requires power.
4. Power Transmission: As the tractor's engine generates rotational power, it is transferred to the PTO shaft. The PTO shaft, in turn, transmits this power to the universal joint at one end of the SD Double Universal Joint.
5. Flexibility: The SD Double Universal Joint provides flexibility and compensates for misalignment between the tractor and the implement. As the tractor moves, the PTO shaft and the implement may be at different angles or experience slight misalignment.
6. Reducing Vibrations and Shock: The universal joints in the SD Double Universal Joint help absorb and reduce vibrations and shock during operation. They allow for slight movements and misalignment, preventing the transmission of excessive vibrations and shocks to the PTO system and attached implements.

Maintenance of the 5-170X Universal Kardan Joint Tractor PTO Shaft Parts

Proper maintenance of the SD Double Universal Joint for a tractor PTO shaft is essential to ensure its longevity and optimal performance. Here are some maintenance methods to consider:

1. Regular Inspection: Perform regular visual inspections of the SD Double Universal Joint to check for any signs of wear, damage, or loose connections.
2. Lubrication: Proper lubrication is crucial for the smooth operation of the universal joint. Apply grease or oil to the universal joint's bearing caps and needle bearings, ensuring they are adequately lubricated.
3. Grease Fittings: Check the grease fittings on the SD Double Universal Joint and ensure they are clean and functional. If any fittings are clogged or damaged, replace them promptly.
4. Tighten Fasteners: Periodically check and tighten all fasteners, such as bolts and nuts, that secure the universal joint and the centering yoke. Loose fasteners can lead to misalignment and increased stress on the universal joint, which can cause premature wear and failure.
5. Avoid Overloading: Ensure that the tractor's PTO system and the attached implements are not subjected to excessive loads beyond their recommended capacity. Overloading can place excessive stress on the SD Double Universal Joint, leading to accelerated wear and potential failure.
6. Cleanliness: Keep the SD Double Universal Joint and the surrounding area clean from dirt, debris, and crop residues. Accumulated debris can interfere with the joint's movement and compromise its performance.
7. Replacement of Worn Parts: If any components of the SD Double Universal Joint, such as bearing caps, needle bearings, or the centering yoke, show signs of significant wear or damage, they should be promptly replaced.

Why Choose AGKNX's SD Double Universal Joint for PTO Shaft?

AGKNX Drive Shaft Co., Ltd., located in Hangzhou Zhejiang City, specializes in developing, manufacturing, and marketing PTO shafts, agricultural gearboxes, industrial cardan shafts, and more. With CE, TS/16949, and ISO9001 certifications, we guarantee high-quality, quickly delivered, and competitively priced products. With an annual turnover of 60 million RMB, 9 Million Dollars, our products have gained a great reputation from customers worldwide. We are a top professional OEM supplier for many agricultural implement factories domestically, and we warmly welcome every friend to visit us and establish a mutually beneficial long-term relationship cooperation.
