86643380 Pickup Guard Fits For New Holland&Case IH Baler

Product Specifications

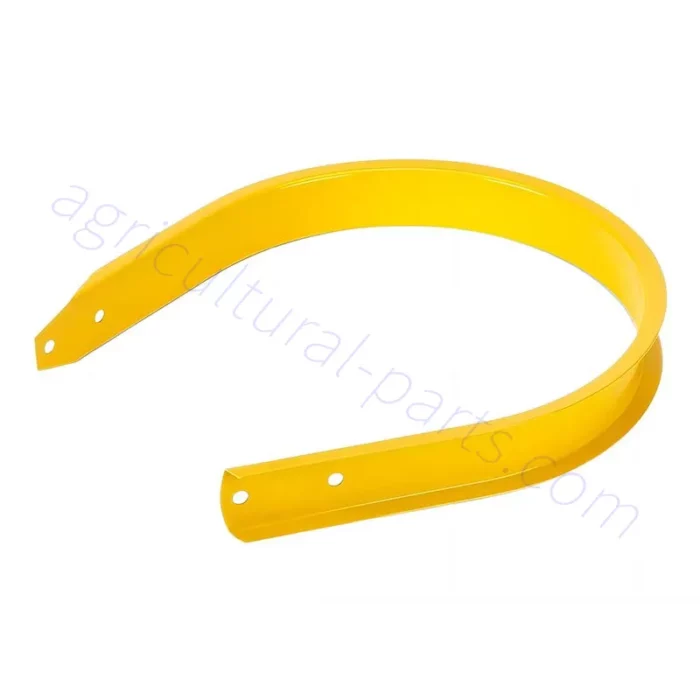

Overview of 86643380 Pickup Guard Fits For New Holland&Case IH Baler

The 86643380 Pickup Guard is a high-quality replacement part designed specifically for use with New Holland and Case IH balers. It is designed to fit New Holland and Case IH baler models, including BR780, BR740, BR7060, BR780A, BR740A, BR7070, BR750, BR750A, BR7090, RB454, RB464, RB564, RBX452, RBX453, RBX462, RBX463, RBX562, RBX563.

This pickup guard is essential in protecting and guiding hay or crop material into the baler’s pickup mechanism, ensuring smooth and efficient operation during the baling process. Constructed from durable materials to withstand wear and tear, it is built to endure the rigors of demanding agricultural tasks and harsh field conditions.

The 86643380 pickup guard helps prevent crop loss and minimizes blockages, contributing to consistent baling efficiency. By replacing worn or damaged guards with this part, users can extend the lifespan of their equipment and ensure optimal productivity during harvest seasons.

Function and Use of 86643380 Pickup Guard Fits For New Holland&Case IH Baler

The 86643380 Pickup Guard is a critical component designed to enhance the functionality and durability of New Holland and Case IH balers. Its primary function is to protect and guide crop material, such as hay, straw, or silage, into the baler’s pickup mechanism. The pickup guard is strategically positioned over the pickup assembly, where it ensures that the crop is funneled smoothly and efficiently into the baling chamber. This is key to maintaining consistent baling performance, reducing crop loss, and preventing unnecessary wear and tear on the baler’s moving parts.

Constructed from high-strength, durable materials, the 86643380 pickup guard is engineered to withstand the demanding conditions of agricultural work, including rough terrains, heavy loads, and prolonged exposure to outdoor elements. Its sturdy construction helps it resist bending, breaking, or other damage caused by debris, uneven ground, or the high-intensity operation of the baler. By safeguarding the pickup mechanism, the guard minimizes the risk of blockages that could disrupt the baling process or cause costly downtime.

In addition to its protective role, the pickup guard plays a key part in maintaining the efficiency of the baler. It ensures that material is fed evenly into the baler, preventing uneven feeding or bunching, which could lead to irregular bale formation. This consistency is particularly important for achieving high-quality, uniform bales that are easier to handle, transport, and store.

Advantages of 86643380 Pickup Guard Fits For New Holland&Case IH Baler

When it comes to the 86643380 Pickup Guard for New Holland&Case IH Baler, there are several key advantages that make this component highly beneficial in agricultural baling machines. Here are some advantages of Pickup Guard:

1. Enhanced Crop Feeding Efficiency: The 86643380 pickup guard ensures smooth and uniform feeding of crop material, such as hay or straw, into the baler’s pickup mechanism. By guiding the material effectively, it eliminates bunching and uneven feeding, resulting in consistent bale formation. This efficiency reduces waste and ensures high-quality bales that simplify transportation and storage.
2. Protection for Pickup Mechanism: Designed to shield the baler’s pickup assembly, the guard prevents debris, stones, and other foreign objects from damaging sensitive components. This not only safeguards the baler but also reduces the likelihood of mechanical failures, saving operators from costly repairs and minimizing downtime during critical farming seasons.
3. Durability in Harsh Conditions: Constructed from high-strength materials, the pickup guard is built to withstand heavy usage and challenging agricultural environments. It resists wear and tear caused by rugged terrain, impacts, and prolonged exposure to outdoor elements, ensuring a longer lifespan and consistent performance even under demanding conditions.
4. Reduced Crop Loss: By keeping the crop securely within the pickup area, the 86643380 guard minimizes crop spillage and loss during operations. This is especially important for maximizing yield and profitability, as every bit of harvested material is effectively collected and processed into quality bales without wastage.
5. Ease of Replacement and Compatibility: The 86643380 pickup guard is designed to fit seamlessly with various New Holland and Case IH baler models. Its precise design ensures easy installation, making it a convenient replacement part for farmers and operators. This compatibility reduces installation time and ensures the baler is back in operation quickly.
6. Improved Machine Longevity: By reducing strain on the pickup mechanism and preventing damage from debris or uneven feeding, the pickup guard helps extend the overall lifespan of the baler. Regular use of this guard reduces wear on critical components, allowing the machine to perform efficiently for longer periods.

How to Replace a Damaged 86643380 Pickup Guard Fits For New Holland&Case IH Baler

When it comes to the New Holland&Case IH Baler, the 86643380 Pickup Guard is an essential component that helps to ensure smooth and efficient operation. However, over time, this pickup guard can become damaged due to wear and tear or accidents. In such cases, it is necessary to replace the damaged pickup guard to maintain the optimal performance of the baler. Here are eight steps to guide you through the process:

1. Disconnect the Baler from the Tractor: For added safety, disconnect the baler from the tractor and ensure all power sources are turned off. This prevents accidental activation of the baler’s mechanisms while you are working on the pickup guard. Also, wait for any moving parts to come to a complete stop before proceeding.
2. Inspect the Pickup Assembly: Examine the baler’s pickup assembly to assess the extent of the damage to the existing guard. Check for signs of wear, bending, or breakage in the damaged guard and surrounding components. Take note of how the guard is installed to ensure proper reinstallation of the replacement part.
3. Remove the Damaged Pickup Guard: Use the appropriate tools to loosen and remove the bolts or fasteners securing the damaged pickup guard. Carefully detach the guard from the pickup mechanism, ensuring that nearby components, such as tines and springs, are not accidentally damaged or dislodged during the removal process.
4. Clean and Inspect the Mounting Area: After removing the damaged guard, clean the mounting area to remove dirt, debris, or rust. Inspect the surrounding components for wear or damage that might need attention. A clean and well-maintained mounting area ensures a secure and proper fit for the new pickup guard.
5. Install the Replacement Pickup Guard: Position the new 86643380 pickup guard correctly over the pickup mechanism, aligning it with the mounting holes. Secure it in place using the original bolts or replacement fasteners, tightening them evenly with a wrench to prevent misalignment. Double-check that the guard is firmly attached and does not interfere with other components.
6. Test the Pickup Mechanism: Once the new guard is installed, manually rotate the pickup mechanism to ensure smooth operation and check for any obstructions or misalignments. This step is crucial to confirm that the replacement guard is functioning properly and does not hinder the baler’s performance.

Other Replacement Baler Parts for Case-IH and New Holland

For Case-IH and New Holland balers, there are various replacement parts available to ensure the smooth operation and maintenance of these essential agricultural machines. Some common replacement parts include:

1. Pickup Guard: The pickup guard is an essential part of the baler’s pickup assembly, designed to protect the tines and guide crop material into the baler chamber. It prevents debris from damaging the pickup mechanism and ensures smooth and efficient feeding of hay or straw. Regular inspection and replacement of worn pickup guards are crucial for maintaining consistent baling performance.

2. Square Support: The square support provides structural stability to various components in the baler, such as the plunger or knotter system. This part ensures alignment and proper operation of moving mechanisms. A damaged or misaligned support can lead to uneven bale formation or mechanical failures, making timely replacement essential for reliable baler function.

3. Gears: Gears in balers are responsible for transferring power from the tractor’s PTO to different baler mechanisms, such as the pickup and plunger systems. These gears endure high levels of stress and wear over time. Replacing worn or damaged gears prevents breakdowns and ensures the smooth operation of the baler’s moving parts.

4. Clutch: The clutch is a critical safety component in balers, designed to protect the machine’s driveline from overloads or jamming. It disengages the power transmission when excessive force is detected. A faulty clutch can lead to severe damage to the baler, so regular inspection and replacement are necessary to maintain proper functionality.

5. Jaw Clutch: The jaw clutch is a specialized clutch mechanism used to engage or disengage specific components within the baler. It provides precise control over systems like the knotter or twine arm. Replacing a worn jaw clutch ensures that these mechanisms operate reliably, reducing the risk of missed knots or bale failures.

6. Ball Bearing: Ball bearings are used throughout the baler to reduce friction and support rotating parts, such as shafts and rollers. Over time, bearings can wear out or seize due to debris, lack of lubrication, or heavy loads. Replacing damaged bearings is vital to prevent mechanical wear and ensure smooth, efficient operation.

7. Sprockets: Sprockets are essential for driving the baler’s chain systems, such as the feeder or knotter drive. A worn or damaged sprocket can cause chain slippage, misalignment, or failure, which can disrupt the entire baling process. Regular replacement of sprockets ensures reliable power transmission and reduces the risk of costly downtime.
