AGKNX Drive Shaft Supply Kinds of Steel Tubes Triangular Lemon Star Gear Rectangular Hexagonal Spline Tube

The AGKNX Drive Shaft Supply Kinds of Steel Tubes offers a range of tube types, including triangular, lemon, star gear, rectangular, hexagonal, and spline tube. These tubes are made from high-quality 16Mn steel and are available in a natural color. Each product comes with a one-year warranty and is suitable for use in a wide range of industries, including hotels, garment shops, building material shops, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, homes, retail, food shops, printing shops, and many more. The tubes weigh 5 KG and are provided with an outgoing-inspection video and machinery test report.

PTO Drive Shaft Tubes Specifications:

Features of the AGKNX Drive Shaft Steel Tubes

These steel tubes offer several key features that make them an excellent choice for various applications:

1. 1. Durable Material: Made from 16Mn Steel, these tubes are strong, durable, and resistant to wear and tear.
   2. Versatile: The tubes come in various shapes such as triangular, lemon, and star gear, making them suitable for a wide range of applications.
   3. High Quality: The tubes are of high quality and come with a one-year warranty, providing assurance of their longevity.
   4. Customizable Length: The length of the tubes can be customized according to customer requirements.
   5. Wide Applications: These tubes are used in various industries and are perfect replacements for damaged parts on PTO shaft parts.

Applications of AGKNX Drive Shaft Steel Tubes

The AGKNX Drive Shaft Steel Tubes are suitable for a wide range of applications:

1. Drive shafts in agricultural machinery equipment.
2. Power transmission in industrial machinery.
3. Building material manufacturing.
4. Garment production machinery.
5. Food and beverage production equipment.

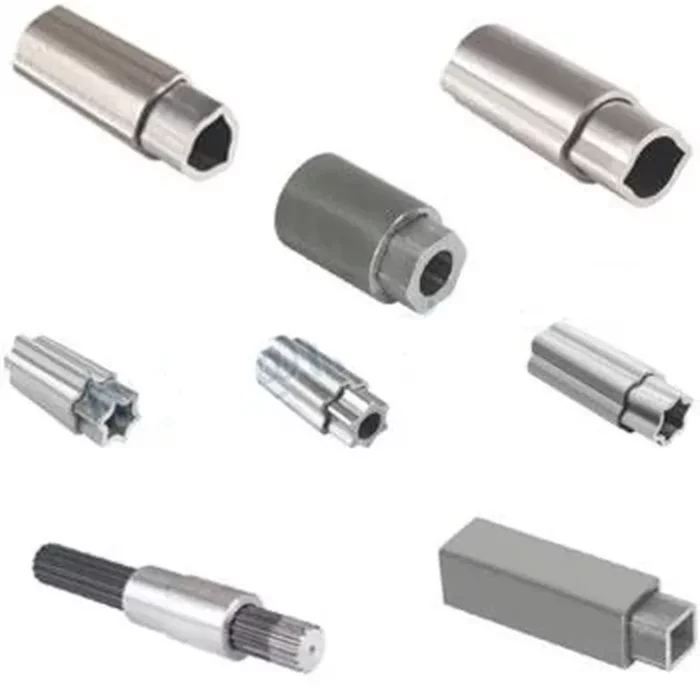

PTO Drive Shaft Tube Types

PTO (Power Take-Off) shaft tubes are critical components in many agricultural and industrial machines. They are used to transmit power from a tractor or another power source to an implement or attachment. These tubes come in various types, each designed for specific applications and load requirements. The common types of PTO shaft tubes include:

1. Standard Duty Tubes: These are the most common type, used for general agricultural and industrial applications. They are typically made of steel and designed to handle moderate torque and stress.
2. Heavy-Duty Tubes: Designed for high-torque applications, these tubes are thicker and stronger than standard tubes. They are often used in large agricultural machinery and industrial applications where higher power transmission is required.
3. Telescopic Tubes: These tubes can extend or retract to accommodate different distances between the power source and the implement. They are commonly used in applications where the distance between the tractor and the attachment varies, such as with adjustable machinery.
4. Splined Tubes: These feature a splined interior for better torque transmission. They are often used in high-power applications and provide a secure connection between the shaft and the implement.

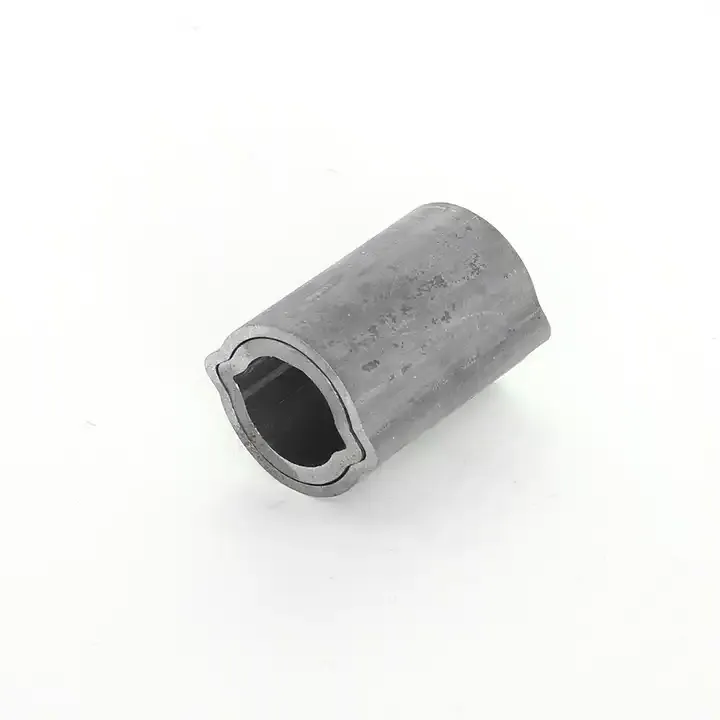

5. Lemon Tubes: Named for their lemon-like shape, these tubes offer a good balance of strength and flexibility. They are particularly effective in conditions where the shaft needs to bend or flex during operation.

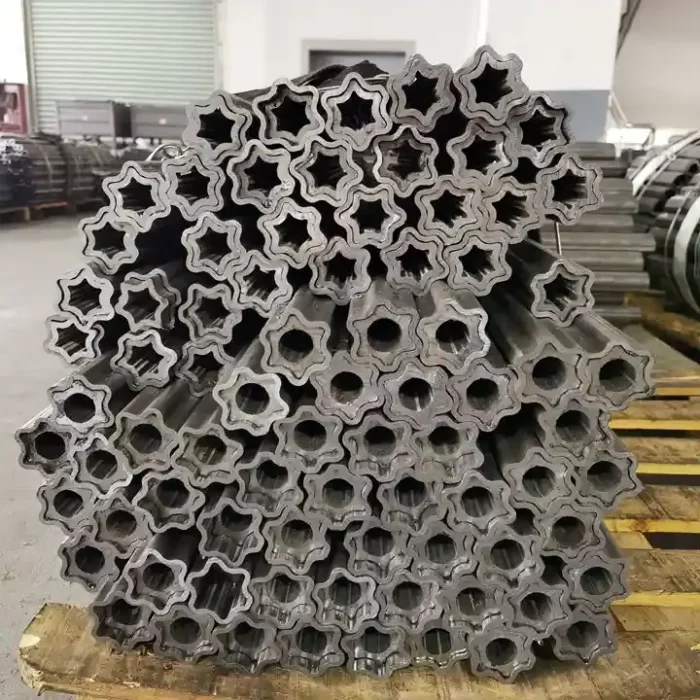

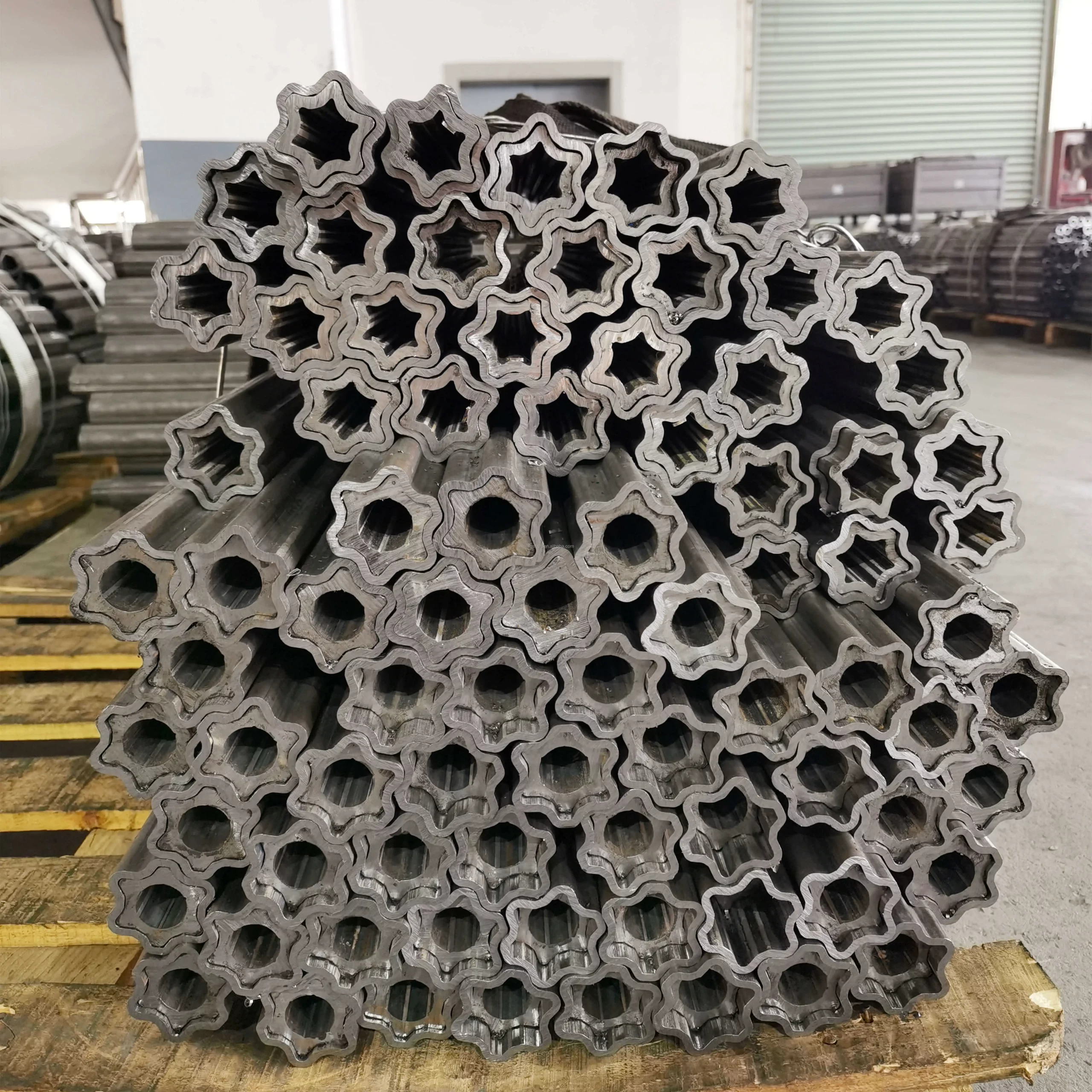

6. Star Tubes: Similar to lemon profile tubes but with a star-shaped profile, these tubes provide excellent torque transmission capabilities and are used in various heavy-duty applications.
7. Triangular Tubes: These have a triangular shape and are used for specific applications where this shape offers advantages in strength or compatibility with certain machinery types.

How to Replace PTO Shaft Tubing?

Replacing a PTO (Power Take-Off) shaft tube is a task that requires some mechanical skills, proper tools, and safety precautions. Here's a general guide on how to replace PTO shaft tubing:

1. Safety Precautions, Wear Proper Safety Gear: Use gloves, safety glasses, and appropriate clothing. Secure the Equipment: Ensure the tractor and implement are turned off, keys removed, and equipment is stabilized.
2. Disconnect the PTO shaft: From the tractor and the implement. Secure the shaft in a vise if available. Remove any retaining bolts or pins that hold the two halves of the shaft together. Slide the two halves apart.
3. Remove the Tubing: Identify how the tubing is secured to the yokes (often with a roll pin or a bolt). Use a punch and hammer to drive out roll pins, or a wrench for bolts. Slide the old tubing off the yokes.
4. Prepare the New Tubing: Measure and cut the new tubing to the correct length if it's not pre-sized. Ensure it matches the length of the old tube when the shaft is at its operational length. Deburr and clean the cut ends of the tube.
5. Install the New Tubing: Slide the new tubing onto the yokes. Align the holes on the yokes with the holes on the tubing. Secure the tubing to the yokes using new roll pins or bolts. Grease the internal parts if necessary.
6. Reassemble the PTO Shaft: Reconnect the two halves of the PTO shaft. Ensure any telescoping parts move freely. Replace retaining bolts or pins.
7. Test the PTO Shaft: Reattach the PTO shaft to the tractor and implement. Start the tractor and engage the PTO at a low RPM to ensure smooth operation. Check for any unusual vibrations or noises.

Maintenance and Care for PTO Shaft Tubing

Proper maintenance and care of PTO shaft tubing are essential to ensure its longevity, safe operation, and optimal performance. Here are some important tips for maintaining and caring for PTO shaft tubing:

1. Regular Inspection: Periodically inspect the PTO shaft tubing for any signs of damage, wear, or misalignment. Look for cracks, dents, bends, or corrosion.
2. Lubrication: Apply a suitable lubricant to the PTO shaft and tubing as recommended by the manufacturer. This helps reduce friction and wear, ensuring smooth rotation.
3. Cleanliness: Keep the PTO shaft tubing clean and free from dirt, debris, and excessive grease.
4. Guard Maintenance: If your PTO shaft tubing is equipped with safety guards, inspect them regularly for any damage or signs of wear. Ensure that the guards are securely attached and in good condition.
5. Proper Storage: When the PTO shaft tubing is not in use, store it in a clean and dry area to prevent corrosion. Avoid exposing the tubing to harsh weather conditions or extreme temperatures.
6. Avoid Overloading: Do not exceed the recommended maximum torque or rotational speed for the PTO shaft tubing. Overloading can lead to premature wear, damage, or failure.

Why Choose AGKNX's PTO Shaft Tubes?

AGKNX Drive Shaft Co., Ltd., located in Hangzhou Zhejiang City, specializes in developing, manufacturing, and marketing PTO shafts, agricultural gearboxes, industrial cardan shafts, car driveshafts, u-joint coupling shafts, PTO shaft torque limiters, PTO shaft tubes, PTO shaft yokes, and PTO shaft universal joints, etc. Our products gained a great reputation from European, American, Asia, Australian, and North American customers. We are the top professional OEM supplier for many agricultural implement factories in the domestic market. AGKNX Driveshaft insisted on our principles: Quality first, Deliver quickly, and Price Competitive. We already have the CE, TS/16949, and ISO9001 certificates with systematic manufacturing types of equipment and a QC team to guarantee our quality and delivery.

Our company exports its products to its valued customers in more than 50 countries in 5 continents of the world. Having the best-in-class brands in its product range, AGKNX continues its activities with the aim of becoming a global company in the fields it works. We warmly welcome every friend to visit us and establish a mutually beneficial long-term relationship cooperation.

Professionals in Drive Shaft Manufacturing

We are committed to providing the best quality products to our customers. Our production facilities are equipped with advanced machinery and technologies that enable us to produce high-quality drive shafts and related products. Our team of professionals is highly skilled and experienced in the field of drive shaft manufacturing, ensuring that each product we produce meets the highest standards of quality and performance.

International Certifications

We are proud to hold several international certifications, including CE, TS/16949, and ISO9001. These certifications validate our commitment to maintaining high-quality standards in our production processes. They also assure our customers that our products are safe, reliable, and meet international standards.

Customized Services

We offer customized services to meet the specific needs of our customers. Whether you need a specific type of drive shaft, a unique size, or a particular material, we can provide the perfect solution. Our team will work closely with you to understand your requirements and deliver a product that meets your expectations.

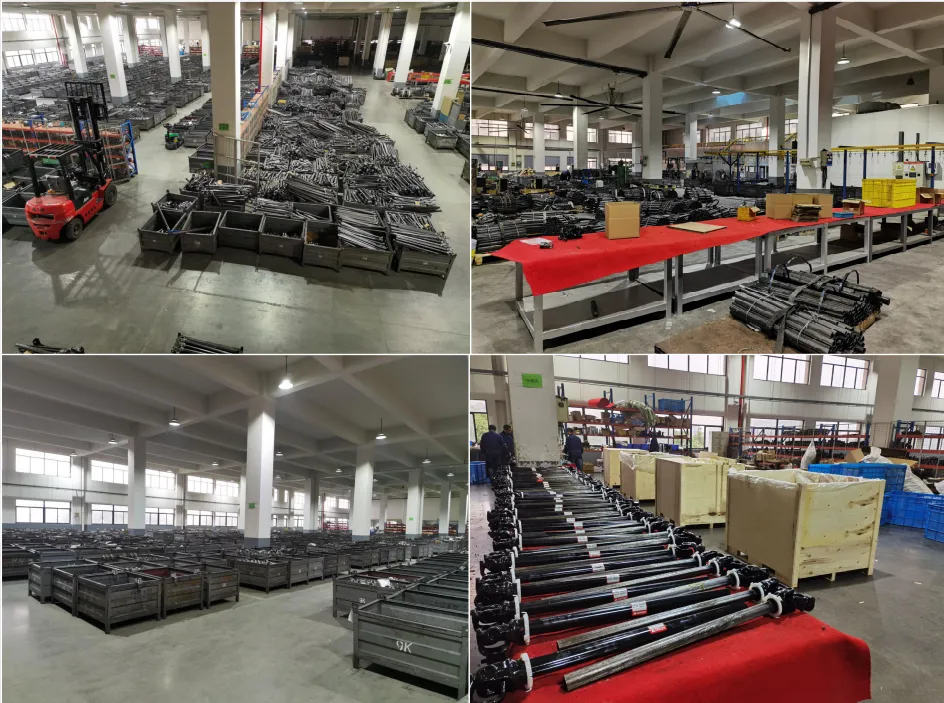

Production Facilities

Our production facilities are equipped with state-of-the-art machinery and technologies. This enables us to produce high-quality drive shafts and related products with precision and efficiency. We continuously invest in our facilities to ensure that we stay at the forefront of technology and can offer our customers the best possible products.

After-Sales Services

We believe in building long-term relationships with our customers. Therefore, we offer comprehensive after-sales services to ensure that our customers are satisfied with our products. Our after-sales services include product support, maintenance services, and technical assistance.
