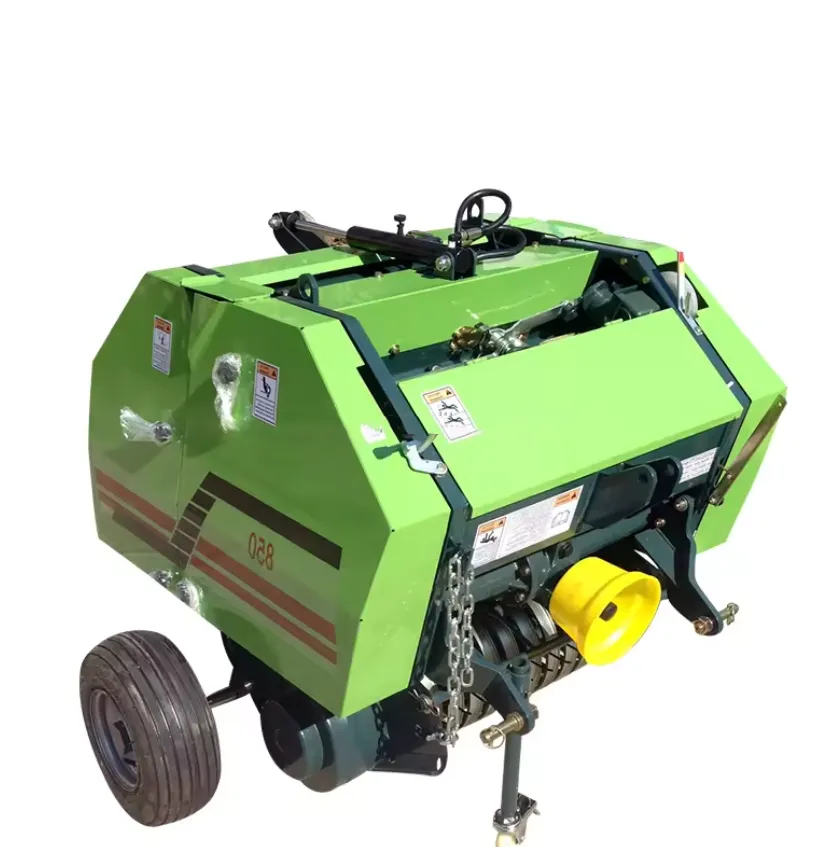

AGKNX Mini Hay Baler 850 walking tractor

The AGKNX Mini Hay Baler is an innovative piece of agricultural machinery. It's a round baler, operating at a speed of 2-5km/h. The model numbers available are RXYK0850 and RXYK0870. This baler is designed for a range of applications including hay, cornstalk, wheat, and rice straw. It has a compact dimension of 1300x1300x1350mm and weighs 390 kg. The baler has a pickup width of 800mm and a working efficiency of 80-120 bales/hour. The tractor power required is between 18-50HP and the PTO is set at 540rpm. The bale size produced can be either 500x700mm or 610x700mm. The tire size of the baler is 16x6.5-8-4pr.

Advantages of AGKNX Mini Hay Baler

There are several reasons why the AGKNX Mini Hay Baler stands out in the market:

1. Compact and Efficient: The baler's compact design and high operating speed allow for efficient and easy use, even in smaller fields.
2. Versatility: It can be used for a variety of crops including hay, cornstalk, wheat, and rice straw.
3. High Working Efficiency: With a working efficiency of 80-120 bales per hour, it can save a lot of time and labor.
4. Durability: The baler is made with robust materials ensuring it can withstand heavy use and harsh weather conditions.
5. Easy Maintenance: It has a simple structure that makes it easy to maintain and repair.
6. Warranty and After-sales Service: A one-year warranty is provided. Plus, engineers are available to service machinery overseas.

Applications of AGKNX Mini Hay Baler


The AGKNX Mini Hay Baler can be applied in various scenarios:

1. Farming: It's perfect for small to medium-sized farms to bale hay for feeding livestock or selling.
2. Agricultural Schools: It can be used in agricultural schools for teaching students about modern farming technology.
3. Ranching: Ranch owners can use this baler to manage their hay more efficiently.
4. Landscaping: For landscaping businesses, this baler can be used to bale straw for mulching and erosion control.
5. Organic Farming: Organic farmers can use this baler to make organic hay bales without the use of synthetic chemicals.
6. Field Clean-up: After the harvest, the baler can be used to clean up the field by baling the remaining straw.

Tractor Mounted Mini Hay Round Baler Working Principle


The working principle of a tractor-mounted mini hay round baler involves several key steps:

1. Attachment to Tractor: The mini hay round baler is attached to the tractor's three-point hitch or mounted on the rear of the tractor using appropriate brackets.
2. Pick-Up Mechanism: The baler is equipped with a pick-up mechanism at the front, which collects loose hay or straw from the ground and transfers it to the baling chamber.
3. Feeding and Compression: The hay or straw is fed into the baling chamber where it is rolled and compressed.
4. Formation of Bale: As the material is continuously fed into the baling chamber, it is compressed, forming a cylindrical shape.
5. Binding Process: Once the desired size of the bale is reached, the baler initiates the binding process. It uses twine or netting to secure the bale.
6. Bale Ejection: Once the baling and binding process is complete, the baler ejects the finished bale.
7. Repeat Process: After the bale is ejected, the baler repeats the process for the next bale.

How to Install the Mini Hay Round Baler to Tractor?

Installing a mini hay round baler to a tractor involves a few key steps:

1. Check Compatibility: Ensure that the baler is compatible with your tractor.



2. Position the Tractor: Park the tractor on a level surface and engage the parking brake.
3. Align the Baler: Position the mini hay round baler behind the tractor, aligning it with the three-point hitch or mounting brackets.
4. Attach the Linkage: Lower the three-point hitch of the tractor to align the linkage arms with the baler's hitch or brackets.



5. Connect the PTO Shaft: Locate the PTO shaft on the baler and align it with the PTO output shaft on the tractor.
6. Test Operation: Start the tractor and engage the PTO. Observe the rotation of the baler's components to ensure smooth operation.

Common Troubleshooting of the AGKNX Mini Hay Baler

Troubleshooting common issues with a AGKNX mini hay baler involves identifying and addressing problems that can affect its performance:

1. Baler Not Starting or Operating: Check the PTO connection, hydraulic pressure, or electrical faults.
2. Uneven or Loose Bales: Adjust the baler's tension settings, ensure even feeding of the windrow, or replace any worn parts.
3. Baler Jamming or Clogging: Avoid overfeeding, baling excessively wet or dry material, or mechanical obstructions.
4. Bales Not Tying or Wrapping Properly: Check and refill twine or net wrap supplies, inspect the tying mechanism, or ensure correct settings.
5. Excessive Wear or Damage to Baler Components: Regularly inspect and maintain the baler, adjust settings, or avoid operating beyond its capacity.
6. Poor Baler Performance or Efficiency: Ensure correct tractor-baler setup, correct PTO speed, or ensure the baler is properly leveled.

Why Choose AGKNX's Mini Hay Round Baler?


AGKNX Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our company has more than 100 employees, among which there are 20 technical staff and five senior R&D personnel. With our advanced production technology and equipment, we produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.

Professionalism

Our team is comprised of qualified professionals with years of experience in the agricultural machinery industry. We utilize the latest technologies and adhere to strict quality control standards to ensure the reliability of our products.

International Certifications

Our products are certified by international standards for quality and safety, including CE and ISO certifications. This guarantees that our products meet the highest standards of quality and are safe for use.

Customized Services

We offer customized services to meet the specific needs of our clients. Whether you need a specific type of baler, a unique size, or have other specific requirements, we are able to meet your needs.

Production Facilities

We have two advanced casting, forging, machining, heat treatment, and lacquering production lines. Our production technology is strong and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding.

After-sales Services

Our after-sales services include training on how to install and use the machine, engineers available to service machinery overseas, quick response for distinguishing and sending spare parts by DHL, and a one-year warranty.
