AGKNX OEM Steel DRIVE SHAFT Universal Joint Shaft Cross Kit Driveshaft

Introducing the AGKNX OEM Steel DRIVE SHAFT Universal Joint Shaft Cross Kit Driveshaft. This high-quality product is perfect for a variety of industries, including manufacturing plants, machinery repair shops, farms, retail, construction works, food & beverage shops, and others. With a one-year warranty and customized support, this universal joint cross kit is a must-have for any industrial operation.

PTO Shaft Universal Joint Specifications

Features of the Universal Joint Cross Kit

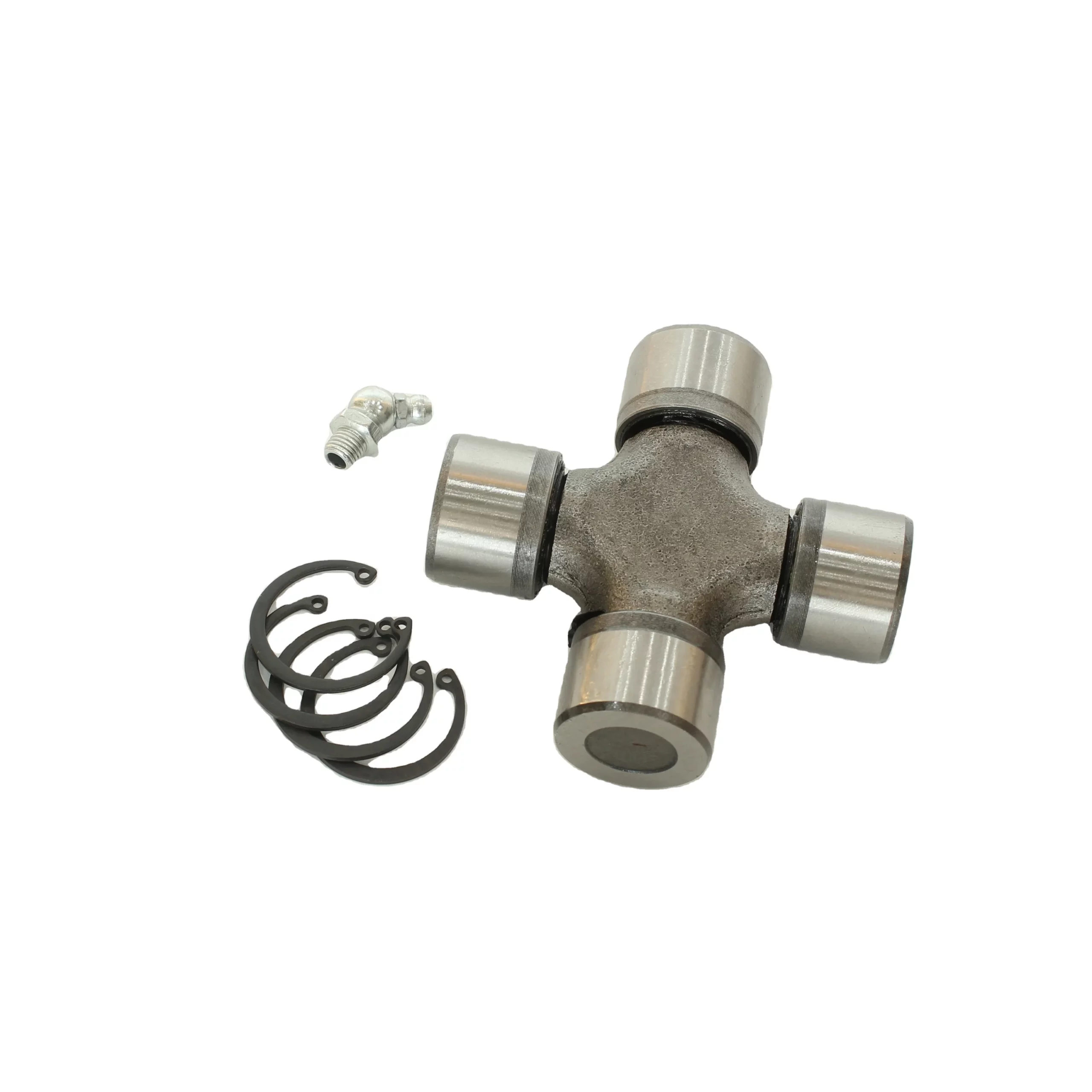

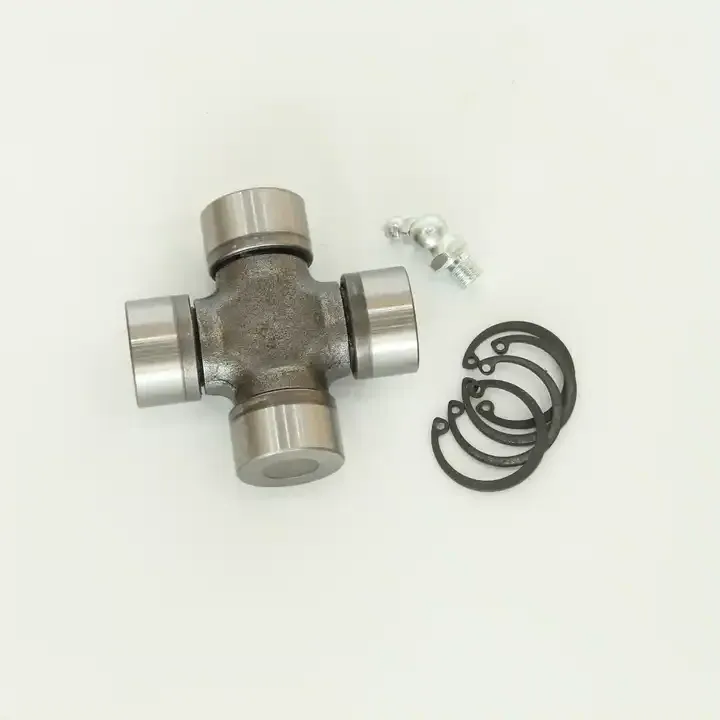

The Universal Joint Cross Kit 30.2X92 is a premium product, complete with a single box package, high-quality materials, and a sleek silver color. Here are some of its standout features:

1. Customized Size: The size of the universal joint shaft can be customized according to the needs of the customer. This ensures a perfect fit and optimal performance.
2. High-Quality Materials: The universal joint shaft is made of GCr15, a high-quality bearing steel known for its strength and durability.
3. OEM Support: We offer OEM support, meaning we can produce this product according to your precise specifications.
4. Lubrication: The Universal Joint Cross Kit comes pre-lubricated with oil grease to ensure smooth operation and long-lasting performance.
5. Brand Assurance: This product is manufactured by the reputable AGKNX brand, guaranteeing high quality and reliable performance.

We are capable of producing this product and our Universal Joint Cross Kit is an ideal replacement for any damaged PTO shaft parts.

Applications of the Universal Joint Cross Kit

The Universal Joint Cross Kit is versatile enough to be used in a wide range of applications. Here are just a few examples:

1. 1. Manufacturing Plants: The Universal Joint Cross Kit can be used in various machinery used in manufacturing plants.
   2. Machinery Repair Shops: This product can be used as a replacement part in machinery repairs.
   3. Farms: The Universal Joint Cross Kit can be utilized in various farm equipment and implements.
   4. Retail: This product can be used in various retail equipment and machinery.
   5. Construction Works: The Universal Joint Cross Kit can be used in various construction equipment and machinery.

PTO Shaft U Joint Replacement Steps

Replacing a universal joint (U-joint) in a PTO shaft involves several steps. Here is a step-by-step guide:

1. Safety First: Ensure that the PTO shaft is completely disconnected from the power source and that the equipment is securely immobilized or supported to prevent accidental movement.
2. Access the U-Joint: Locate the U-joint on the PTO shaft. It is usually situated at the end of the shaft, connected to the driven equipment or implement. Depending on the design, you may need to remove a retaining cap or circlip to access the U-joint.
3. Remove Retaining Hardware: If there are any retaining clips, circlips, or snap rings securing the U-joint to the yoke, carefully remove them using appropriate tools such as pliers or snap ring pliers. Take note of the orientation of any washers or spacers for reassembly later.
4. Separate the Yokes: Gently tap or pry the yokes apart to disconnect the U-joint from the PTO shaft. Be cautious not to damage the yokes or the shaft during this process. If the joint is stubborn, applying penetrating oil or using a suitable press tool may help.
5. Remove the Old U-Joint: Once the yokes are separated, remove the old U-joint from the yokes. This may require pressing out the bearings or using a suitable U-joint removal tool. Take note of the joint's orientation to ensure proper alignment during installation.
6. Prepare the New U-Joint: Ensure you have the correct replacement U-joint that matches the specifications of the original joint. Grease the new U-joint and its bearings according to manufacturer recommendations.
7. Install the New U-joint: Insert the new U-joint into one of the yokes, making sure it aligns correctly with the crosspiece and bearing seats. Carefully align the other yoke with the U-joint and slide the yokes together until they fully engage.
8. Reinstall Retaining Hardware: Securely fasten the U-joint to the yokes using the appropriate retaining clips, circlips, or snap rings. Ensure that the retaining hardware is installed correctly and provides a secure fit.
9. Check for Smooth Operation: Rotate the U-joint by hand to verify smooth movement and proper alignment. Ensure that there is no binding, excessive play, or interference between the yokes and the U-joint.

How to Put U Joint on PTO Shaft?

Installing a U-joint on a PTO shaft requires careful steps. Here is a detailed guide:

1. Prepare the U-Joint: Make sure you have the correct replacement U-joint that matches the specifications of the original joint. Grease the U-joint and its bearings according to the manufacturer's recommendations.
2. Align the Yokes: Position the yokes of the PTO shaft in a way that allows easy access to install the U-joint. Ensure that the yokes are aligned properly and in a straight line.
3. Insert the U-Joint: Take one of the yokes and align it with the U-joint. Insert the U-joint's crosspiece into the yoke's bearing seats. Ensure that the U-joint fits securely and aligns properly with the yoke.
4. Align the Second Yoke: Align the second yoke with the other side of the U-joint. Carefully slide the yoke onto the U-joint's crosspiece, making sure it engages with the bearing seats. Ensure that both yokes are aligned with the U-joint and fit snugly.
5. Check Alignment: Verify that the U-joint is properly aligned and centered between the two yokes. Ensure that the bearings are seated correctly and that there is no binding or interference between the U-joint and the yokes.
6. Install Retaining Hardware: Securely fasten the U-joint to the yokes using the appropriate retaining clips, circlips, or snap rings. Follow the manufacturer's instructions for the specific type of retaining hardware used in your PTO shaft. Make sure the retaining hardware is properly installed and provides a secure fit.
7. Check Movement: Rotate the U-joint by hand to ensure smooth movement and proper alignment. Verify that there is no binding, excessive play, or interference between the U-joint and the yokes. The U-joint should rotate freely without any obstruction.

Maintenance and Care of the Universal Joint Cross Kit

Proper maintenance of universal joints in PTO shafts is crucial to ensure their longevity and reliable operation. Here are some maintenance steps to consider:

1. Regular Inspection: Perform regular visual inspections of the universal joints. Look for signs of wear, damage, or loose components such as worn bearings, rust, or cracks. Pay attention to any vibrations, noise, or unusual movement during operation, as these can indicate potential issues.
2. Lubrication: Adequate lubrication is vital for the smooth operation of universal joints. Follow the manufacturer's recommendations for the type of lubricant and the frequency of lubrication. Apply grease or lubricant to the bearings and crosspiece to reduce friction and prevent premature wear.
3. Cleanliness: Keep the universal joints and the surrounding area clean and free from debris, dirt, and contaminants. Regularly remove any buildup of dirt or grime that may affect the performance of the joints.
4. Retaining Hardware Inspection: Check the retaining clips, circlips, or snap rings that secure the U-joint to the yokes. Ensure that they are in good condition and properly seated. Replace any damaged or worn retaining hardware as necessary.
5. Torque Check: Periodically check the torque of the fasteners that hold the universal joint and yokes together. Loose fasteners can lead to misalignment and premature wear. Follow the manufacturer's recommended torque specifications during reassembly.
6. Alignment: Verify that the universal joint and the yokes are properly aligned. Misalignment can cause excessive stress on the joint and result in premature failure. Adjust and align the PTO shaft and driven equipment as needed.
7. Replace Worn or Damaged Joints: If you notice significant wear, damage, or play in the universal joint during inspection, it is advisable to replace it promptly. Continuing to use a worn or damaged joint can lead to failure and potential damage to other components.

Why Choose AGKNX's PTO Shaft U Joints?

AGKNX Drive Shaft Co., Ltd., located in Hangzhou Zhejiang City, is a leading manufacturer and marketer of PTO shafts, agricultural gearboxes, and other related products. With a strong commitment to quality, quick delivery, and competitive pricing, we have earned a great reputation from customers all over the world. Here's why you should choose us:

1. Professionalism: We have over 100 dedicated staff members who are trained and experienced in producing high-quality products.
2. International Certifications: We have obtained the CE, TS/16949, and ISO9001 certificates, which testifies to our commitment to quality and customer satisfaction.
3. Customized Services: We offer OEM support, which means we can produce products according to your precise specifications.
4. Production Facilities: Our company is equipped with systematic manufacturing equipment, which ensures high efficiency and quality in our production process.
5. After-Sales Services: Our customer service team is always ready to help you with any concerns or questions you may have about our products.

With our extensive experience in the industry, we understand the needs of our customers and strive to provide the best solutions. Our products have been exported to over 50 countries in 5 continents, and we aim to become a global company in the fields we work. Take a look at our products in action in this video:
