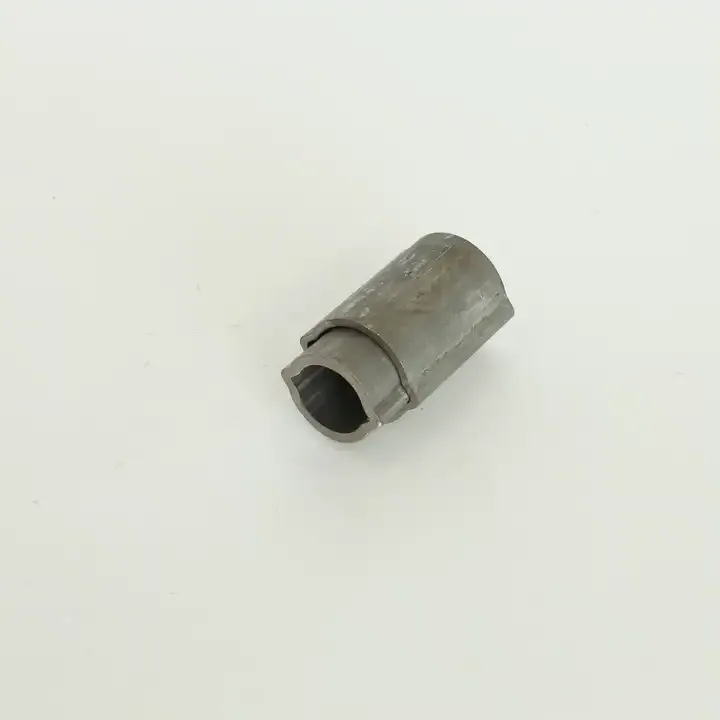

Agricultural Machinery Parts PTO Drive Shaft Tube Rectangular Splined Lemon Triangular Tube

Introducing a high-quality product that is essential for agricultural machinery and equipment - the PTO Drive Shaft Tube Rectangular Splined Lemon Triangular tube. This product is brand new and comes with a one-year warranty. It is applicable to a wide range of industries including hotels, garment shops, building material shops, manufacturing plants, machinery repair shops, food & beverage factories, farms, restaurants, home use, retail, food shops, printing shops, construction works, energy & mining, food & beverage shops, and advertising companies.

PTO Drive Shaft Tubes Specifications:

Features of PTO Drive Shaft Tube

This product is made of 16Mn steel, a material known for its high strength and durability. It weighs 5 KG and comes in a natural colour. The product boasts of several features that make it stand out:

• High Quality: The product is of high quality, ensuring long-lasting performance and durability.
• Versatility: It is used for PTO SHAFT applications, making it a versatile component for a variety of machines.
• Reliability: It comes with an ISO, CE.TS certification, assuring users of its reliability and adherence to international standards.
• Customization: The length of the drive shaft tube can be made to customer specifications, providing a tailored solution for specific needs.
• Applicability: It is used for agricultural machinery equipment, making it an ideal replacement for damaged PTO shaft parts.

Applications of PTO Drive Shaft Tube

The PTO Drive Shaft Tube Rectangular Splined Lemon Triangular tube has a wide range of applications. Here are some of its uses:

• Power Transmission: It is extensively used in power transmission for different types of tractors and farm implements.
• Construction Works: Due to its high strength and durability, it is used in various construction works.
• Manufacturing Plants: It is used in manufacturing plants for various machinery and equipment.
• Machinery Repair Shops: It is utilised in machinery repair shops, serving as a crucial component in the repair and maintenance of different types of machinery.
• Agricultural Equipment: It is used in different types of agricultural equipment, playing a key role in the functioning of these machines.

Types of PTO Drive Shaft Tubes

PTO (Power Take-Off) shaft tubes are critical components in many agricultural and industrial machines, used to transmit power from a tractor or other power source to an implement or attachment. These tubes come in various types, each designed for specific applications and load requirements.

• Standard Duty Tubes: These are the most common type, used for general agricultural and industrial applications. They are typically made of steel and designed to handle moderate torque and stress.
• Heavy-Duty Tubes: Designed for high-torque applications, heavy-duty tubes are thicker and stronger than standard tubes. They are often used in large agricultural machinery and industrial applications where higher power transmission is required.
• Telescopic Tubes: These tubes can extend or retract to accommodate different distances between the power source and the implement. They are commonly used in applications where the distance between the tractor and the attachment varies, such as with adjustable machinery.
• Splined Tubes: These feature a splined interior for better torque transmission. They are often used in high-power applications and provide a secure connection between the shaft and the implement.
• Lemon Tubes: Named for their lemon-like shape, these tubes offer a good balance of strength and flexibility. They are particularly effective in conditions where the shaft needs to bend or flex during operation.
• Star Tubes: Similar to lemon profile tubes but with a star-shaped profile, these tubes provide excellent torque transmission capabilities and are used in various heavy-duty applications.
• Triangular Tubes: These have a triangular shape and are used for specific applications where this shape offers advantages in strength or compatibility with certain machinery types.

How to Replace PTO Shaft Tubing?

Replacing a PTO (Power Take-Off) shaft tube is a task that requires some mechanical skills, proper tools, and safety precautions. Here's a general guide on how to replace PTO shaft tubing:

1. 1. Safety Precautions, Wear Proper Safety Gear: Use gloves, safety glasses, and appropriate clothing. Secure the Equipment: Ensure the tractor and implement are turned off, keys removed, and equipment is stabilized.
   2. Disconnect the PTO shaft: from the tractor and the implement. Secure the shaft in a vise if available. Remove any retaining bolts or pins that hold the two halves of the shaft together. Slide the two halves apart.
   3. Remove the Tubing: Identify how the tubing is secured to the yokes (often with a roll pin or a bolt). Use a punch and hammer to drive out roll pins, or a wrench for bolts. Slide the old tubing off the yokes.
   4. Prepare the New Tubing: Measure and cut the new tubing to the correct length if it's not pre-sized. Ensure it matches the length of the old tube when the shaft is at its operational length. Deburr and clean the cut ends of the tube.
   5. Install the New Tubing: Slide the new tubing onto the yokes. Align the holes on the yokes with the holes on the tubing. Secure the tubing to the yokes using new roll pins or bolts. Grease the internal parts if necessary.
   6. Reassemble the PTO Shaft: Reconnect the two halves of the PTO shaft. Ensure any telescoping parts move freely. Replace retaining bolts or pins.

1. Test the PTO Shaft: Reattach the PTO shaft to the tractor and implement. Start the tractor and engage the PTO at a low RPM to ensure smooth operation. Check for any unusual vibrations or noises.

Maintenance and Care of PTO Shaft Tubing

Proper maintenance and care of PTO shaft tubing are essential to ensure its longevity, safe operation, and optimal performance. Here are some important tips for maintaining and caring for PTO shaft tubing:

• Regular Inspection: Periodically inspect the PTO shaft tubing for any signs of damage, wear, or misalignment. Look for cracks, dents, bends, or corrosion. Pay close attention to the areas where the tubing connects to fittings, couplings, or guards.
• Lubrication: Apply a suitable lubricant to the PTO shaft and tubing as recommended by the manufacturer. This helps reduce friction and wear, ensuring smooth rotation.
• Cleanliness: Keep the PTO shaft tubing clean and free from dirt, debris, and excessive grease. Regularly remove any buildup that may accumulate on the tubing or inside the guards. Use a soft brush or cloth to clean the surface and ensure unobstructed rotation.
• Guard Maintenance: If your PTO shaft tubing is equipped with safety guards, inspect them regularly for any damage or signs of wear. Ensure that the guards are securely attached and in good condition. Replace any damaged or worn-out guards promptly to maintain safety.
• Proper Storage: When the PTO shaft tubing is not in use, store it in a clean and dry area to prevent corrosion. Avoid exposing the tubing to harsh weather conditions or extreme temperatures. If possible, protect the tubing with suitable covers or storage containers.
• Avoid Overloading: Do not exceed the recommended maximum torque or rotational speed for the PTO shaft tubing. Overloading can lead to premature wear, damage, or failure.

Why Choose AGKNX's PTO Shaft Tubes?

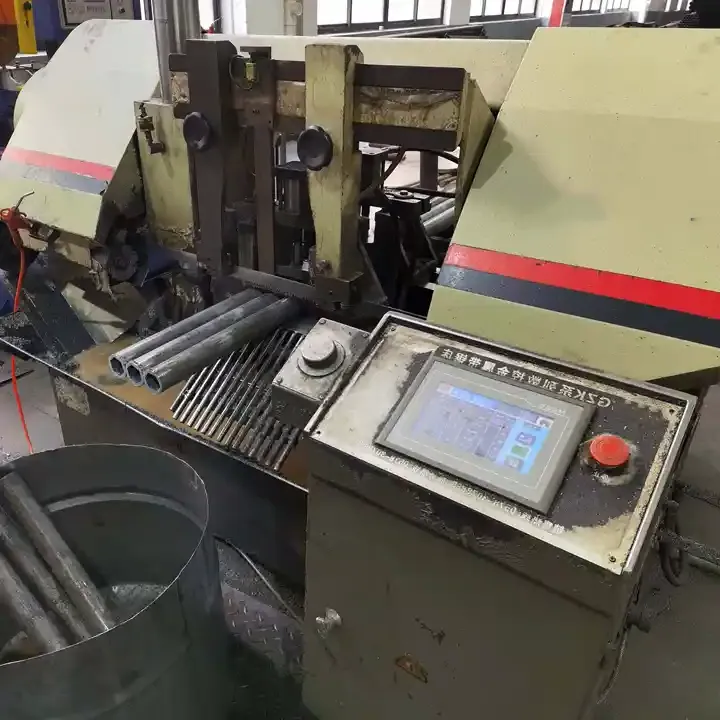

AGKNX Drive Shaft Co., Ltd., located in Hangzhou Zhejiang City, is a leading provider of PTO shaft tubes. With more than 12,000 m2 of operational space and over 100 people on staff, we specialize in developing, manufacturing, and marketing PTO shafts, agricultural gearboxes, industrial cardan shafts, car driveshafts, u-joint coupling shafts, PTO shaft torque limiters, PTO shaft tubes, PTO shaft yokes, and PTO shaft universal joints, etc.

Our annual turnover is 60 million RMB, 9 Million Dollars, and it??s increasing year by year. Our products gained a great reputation from European, American, Asia, Australian, and North American customers. We are the top professional OEM supplier for many agricultural implement factories in the domestic market.

At AGKNX Driveshaft, we insist on our principles: Quality first, Deliver quickly, and Price Competitive. We already have the CE, TS/16949, and ISO9001 certificates with systematic manufacturing types of equipment and a QC team to guarantee our quality and delivery. We warmly welcome every friend to visit us and establish a mutually beneficial long-term relationship cooperation.

Currently, our company exports its products to its valued customers in more than 50 countries in 5 continents of the world. Having the best-in-class brands in its product range, AGKNX continues its activities with the aim of becoming a global company in the fields it works.

With our professional team, international certifications, customized services, production facilities, and exemplary after-sales services, AGKNX Drive Shaft Co., Ltd. is your best choice for PTO shaft tubes.
