Agricultural Machinery Tractor PTO Rotary Disc Mower for Sale

Description

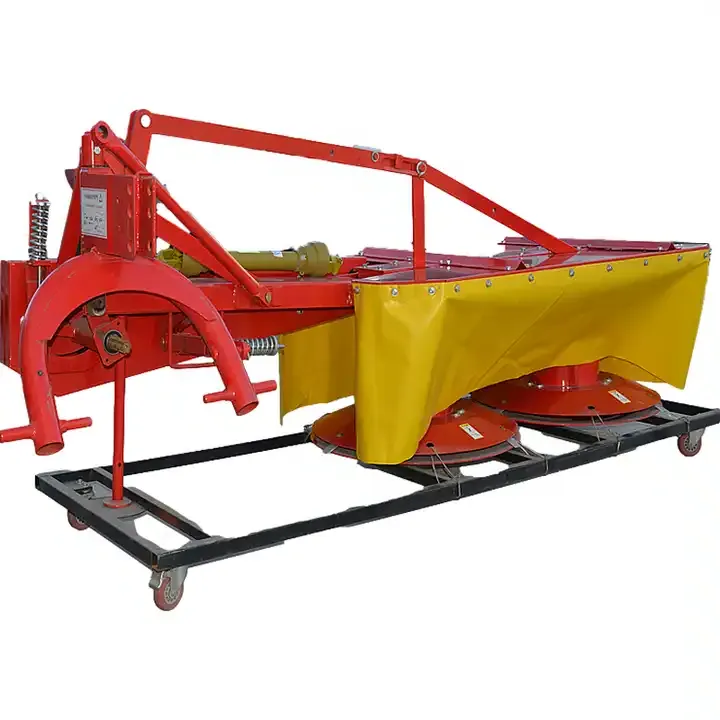

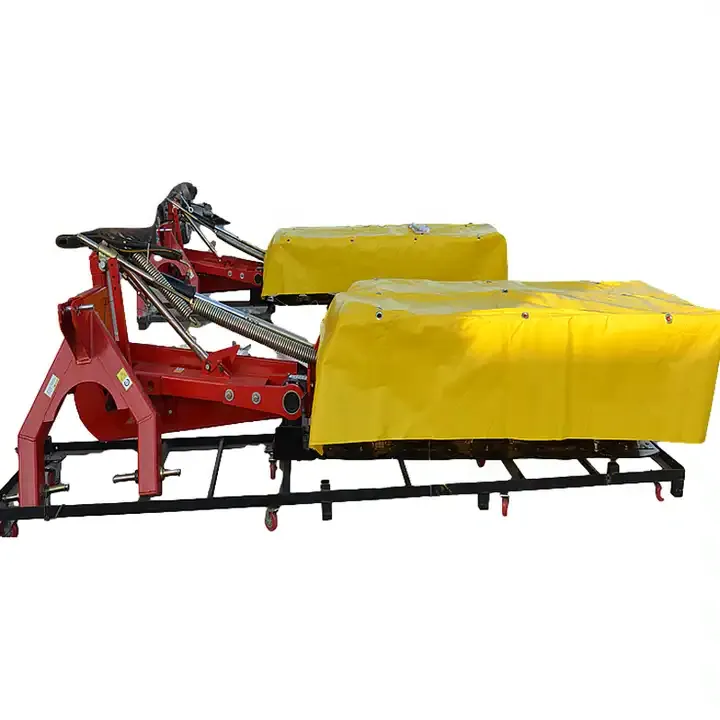

Introducing the DRM 135 model, an agricultural machinery tractor PTO rotary disc mower for sale. This high productivity drum mower, designed for farm cutting grass, is brand new and comes with a 6-month warranty. It is a 2022 product and includes key components like a gearbox, which has a 1-year warranty. Weighing 350kg, it is suitable for tractors with 30-70hp power and features three pointed mounted linkage. The PTO speed is 540rpm/min, while the drum rotates at 1620rpm/min. This mower has a working width of 1350mm, two knife plates, and six knives. Outgoing-inspection videos and machinery test reports are provided for quality assurance.

Advantages of the Tractor 3 Point Drum Mower

Tractor 3 point drum mowers offer several advantages over other types of mowers, making them a popular choice among farmers. These advantages are as follows:

Easy attachment and maneuverability: The 3 point hitch system allows for quick and secure attachment of the drum mower to the tractor. This makes it easy to connect and disconnect the mower as needed. The hitch also provides excellent stability and maneuverability, allowing the operator to navigate tight spaces and uneven terrain with ease.
Efficient cutting performance: Drum mowers are designed to cut large areas of crops quickly and efficiently. The rotating drum with multiple cutting blades provides a high cutting speed, allowing farmers to harvest substantial amounts of forage in a short amount of time.
Versatility in cutting height: Tractor 3 point drum mowers offer adjustable cutting heights, allowing farmers to adapt to different crop conditions and requirements.
Clean and precise cutting: Drum mowers are known for their clean and precise cutting action. The sharp cutting blades on the rotating drum deliver a clean cut, reducing the risk of crop damage and promoting faster regrowth.
Conditioning capabilities: Some tractor 3 point drum mowers come equipped with conditioning rollers or flails. These additional components help crush the cut crop, facilitating better drying and improving the overall quality of the forage.
Low maintenance requirements: Tractor 3 point drum mowers are relatively easy to maintain. Regular cleaning, lubrication, and blade sharpening are typically the main maintenance tasks required. With proper care and maintenance, these mowers can provide long-lasting service.

Applications of the Tractor 3 Point Drum Mower

Tractor 3 point drum mowers have a wide range of applications in the agricultural industry. Here are some of the common applications:

Hay and forage harvesting: Drum mowers are primarily used for cutting and harvesting hay and forage crops. They are efficient in cutting large areas of grass, alfalfa, clover, and other forage crops. Drum mowers can quickly and effectively cut the crops at the desired height, allowing for efficient harvesting and subsequent baling or forage processing.
Pasture maintenance: Tractor 3 point drum mowers are also used for pasture maintenance. They can be utilized to control grass height and promote healthy regrowth.
Silage production: Drum mowers are commonly employed in silage production. Silage refers to fermented forage crops that are stored and used as livestock feed.
Roadside maintenance: Tractor 3 point drum mowers are utilized for roadside maintenance and vegetation control. They can effectively cut and clear vegetation along roadsides, ditches, and other areas that require regular maintenance.
Land clearing: In certain cases, drum mowers can be used for land clearing and vegetation removal. They can efficiently cut and clear dense vegetation, shrubs, and small trees, preparing the land for other agricultural activities or land development projects.

Agricultural Drum Mower Applications

How Does the Agricultural Drum Mower Work?

An agricultural drum mower operates using a straightforward mechanism that allows for efficient cutting and harvesting of crops. Here is an overview of how it works:

Attachment to the tractor: The drum mower is typically attached to the tractor's three-point hitch system. This ensures a secure connection between the mower and the tractor, allowing for stability and proper power transfer.
Power transfer: The drum mower is powered by the tractor's power take-off (PTO) system. The PTO transfers power from the tractor's engine to the mower's cutting mechanism.
Rotating drum: The central component of the drum mower is a large cylindrical drum that rotates horizontally. The drum is mounted on a shaft connected to the PTO, which enables it to spin at a high speed.
Cutting blades: The drum is equipped with multiple cutting blades that are evenly spaced along its circumference. These blades are typically made of high-strength steel and have a sharp cutting edge.
Cutting action: When the drum mower is in operation, the rotating drum and the extended cutting blades move through the standing crop. As the blades make contact with the crop, they cut through it at the desired height.
Crop discharge: After the crop is cut, it is discharged from the rear of the drum mower. Some models have built-in systems that facilitate the discharge and spreading of the cut crop, while others may require an additional implement, such as a conveyor or a windrow attachment, to gather and arrange the cut crop for further processing or baling.
Height adjustment: Most drum mowers offer height adjustment capabilities. This allows the operator to set the desired cutting height to match the crop conditions and requirements. The height adjustment mechanism may involve changing the position of the three-point hitch or adjusting the drum's position relative to the ground.

How Does the Agricultural Drum Mower Work

How to Install the Agricultural Drum Mower to Tractor?

Installing an agricultural drum mower onto a tractor requires following a few steps. Here's a general guide on how to install a drum mower to a tractor:

Ensure compatibility: Before installing a drum mower, ensure that it is compatible with your tractor. Check the specifications and requirements of both the drum mower and the tractor to ensure they are a proper match in terms of PTO power, three-point hitch category, and mounting compatibility.
Position the tractor: Park the tractor on a level surface and engage the parking brake. Make sure the tractor is turned off and the PTO is disengaged for safety.
Adjust the three-point hitch: Adjust the three-point hitch on the tractor to match the hitch points on the drum mower. The hitch points on the drum mower are typically located on the top link and the two lower lift arms.
Align the PTO shaft: Position the tractor's PTO shaft in line with the PTO input on the drum mower. Ensure that the splined ends of both the tractor and the drum mower shafts are aligned.
Connect the PTO shaft: Slide the tractor's PTO shaft onto the PTO input shaft of the drum mower. Make sure the splines engage properly for a secure connection.

Secure the hitch: Once the PTO shaft is connected, lower the three-point hitch arms of the tractor to engage the hitch points on the drum mower.
Double-check connections: Before starting the tractor, double-check all connections, including the PTO shaft, hitch pins, and safety chains.
Test operation: Start the tractor and engage the PTO according to the manufacturer's instructions. Observe the drum mower's operation to ensure smooth rotation and proper cutting action.

Maintenance of the Tractor 3 Point Drum Mower

Proper maintenance of a tractor 3 point drum mower is essential to ensure its optimal performance and longevity. Here are some key maintenance tasks to consider:

Regular cleaning: After each use, clean the drum mower thoroughly to remove any debris, grass, or crop residue that may have accumulated.
Blade maintenance: Regularly inspect the cutting blades for wear, damage, or dullness. Replace any blades that are bent, cracked, excessively worn, or no longer sharp.
Lubrication: Lubricate the moving parts of the drum mower according to the manufacturer's recommendations. This typically includes greasing the bearings, pivot points, and other rotating components.
Height adjustment and leveling: Check and adjust the cutting height and leveling of the drum mower as needed.
Storage: When not in use, store the drum mower in a dry and protected area to prevent rust and corrosion.
Regular inspections: Conduct regular visual inspections of the drum mower to identify any signs of wear, damage, or mechanical issues.

Why Choose AGKNX's Agricultural Drum Mower?

AGKNX Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, sickle bar mowers, rotary mowers, flail mowers, rotary tillers, boom sprayers, fertilizer spreaders, furrow ploughs, potato planters, disc harrows, disc ploughs, disc blades, plough blades, agricultural cultivators, land levelers, potato harvester, agricultural trailers, corn seeder, wheat seeder, vegetable seeder, harvest machines, post hole digger, wheat seeders, corn seeders, agricultural subsoiler, and soil-loosening shovels.

Our company has more than 100 employees, among which there are 20 technical technical staff and five senior R&D personnel. Besides, we have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system.

Our production technology is strong and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding. We have accumulated more than ten years of experience in production, and mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China.

Agricultural Mower Types

We are committed to providing reliable products, considerate after-sales services, and excellent techniques. We are looking forward to cooperating with you for win-win results with our Hong Ri brand.
