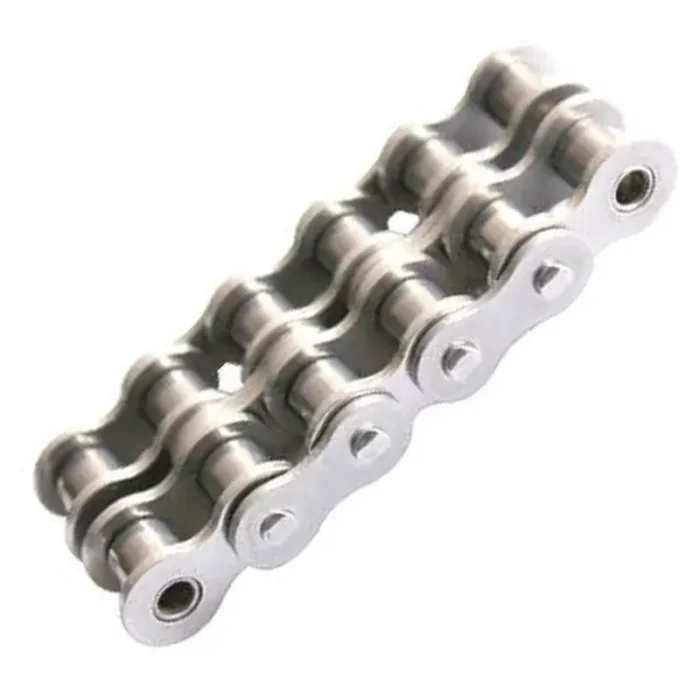

B Series Stainless Steel Short Pitch Precision Roller Chains

B Series Stainless Steel Short Pitch Precision Roller Chains are high-quality, durable chains designed for industrial applications requiring reliable power transmission and corrosion resistance. Made from stainless steel, these chains are ideal for environments exposed to moisture, chemicals, or extreme temperatures, such as food processing, pharmaceuticals, and marine industries. The “short pitch” refers to the compact spacing of chain links, offering smooth, precise operation with reduced noise and vibration. Their robust construction ensures strength, longevity, and resistance to rust, making them essential for demanding and hygienic applications.

Categories: Stainless Steel Chains, Chains Tags: Stainless Steel Roller Chain for Sale, Stainless Steel Roller Chain Manufacturers, Stainless Steel Roller Chain Suppliers, Stainless Steel Roller Chain Wholesale, Stainless Steel Short Pitch Precision Roller Chains

Inquiry

Description
Additional information

B Series Stainless Steel Short Pitch Precision Roller Chain Dimensions

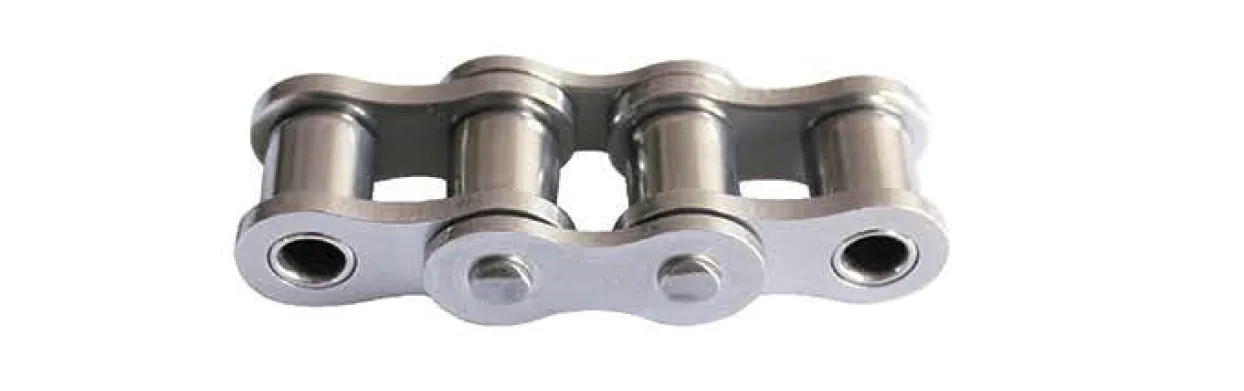

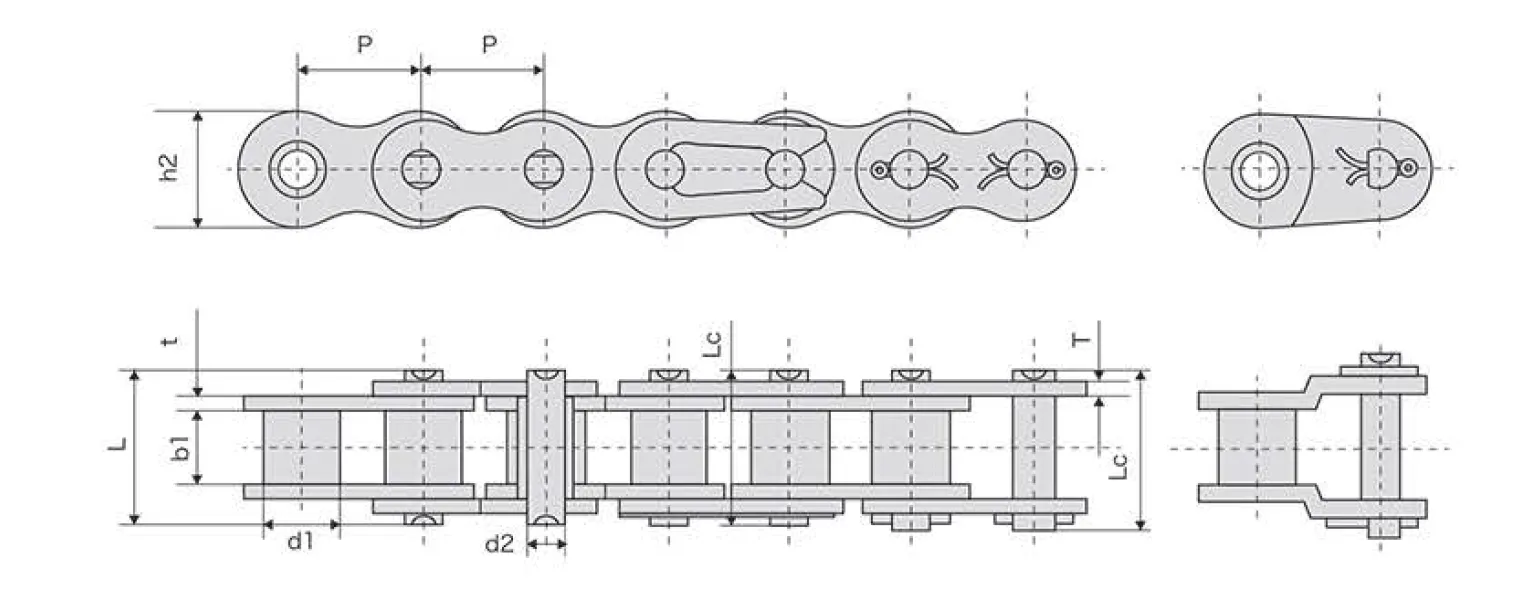

(1) Simplex Stainless Steel Roller Chains

B Series Stainless Steel Roller Chain Dimensions

DIN ISO Chain No.	Pitch	Roller diameter	Width between inner plates	Pin diameter	Pin length		Inner plate depth	Plate thickness	Ultimate tensile strength	Average tensile strength	Weight per meter
	P	d1(max)	b1(min)	d2(max)	L(max)	Lc(max)	h2(max)	t/T(max)	Q(min)	Q0	q
	mm	mm	mm	mm	mm	mm	mm	mm	kN	kN	kg/m
05BSS-1	8	5	3	2.31	8.2	8.9	7.1	0.8	3	3.54	0.2
*06BSS-1	9.525	6.35	5.72	3.28	13.15	14.1	8.2	1.3	5.4	6.24	0.41
08BSS-1	12.7	8.51	7.75	4.45	16.7	18.2	11.8	1.6	10.8	11.64	0.69
10BSS-1	15.875	10.16	9.65	5.08	19.5	20.9	14.7	1.7	13.44	16.5	0.93
12BSS-1	19.05	12.07	11.68	5.72	22.5	24.2	16	1.85	17.4	19.3	1.15
16BSS-1	25.4	15.88	17.02	8.28	36.1	37.4	21	4.15/3.1	3.6	43.68	2.71
20BSS-1	31.75	19.05	19.56	10.19	41.3	45	26.4	1.5/3.5	57	64.02	3.7
24BSS-1	38.1	25.4	25.4	14.63	53.4	57.8	33.2	6.0/4.8	96	106.8	7.1
28BSS-1	44.45	27.94	30.99	15.9	65.1	69.5	36.7	7.5/6.0	120	133.2	8.5
32BSS-1	50.8	29.21	30.99	17.81	66	71	42	7.0/6.0	150	166.5	10.25
40BSS-1	63.5	39.37	38.1	22.89	82.2	89.2	52.96	8.5/8.0	213	236.4	16.35
48BSS-1	76.2	48.26	45.72	29.24	99.1	107	63.8	12.0/10.0	336	372.96	25

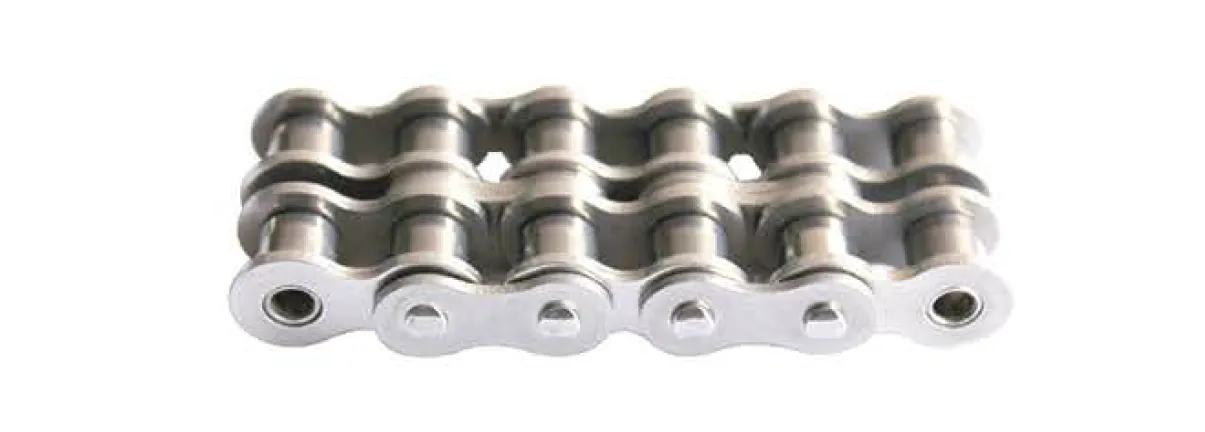

(2) Duplex Stainless Steel Roller Chains

B Series Stainless Steel Roller Chain Dimensions

DIN ISO Chain No.	Pitch	Roller diameter	Width between inner plates	Pin	Pin length		Inner plate depth	Plate thickness	Transverse pitch	Ultimate tensile strength	Average tensile strength	Weight per meter
	P	d1(max)	b1(min)	d2(max)	L(max)	Lc(max)	h2(max)	t/T(max)	Pt	Q(min)	Q0	q
	mm	mm	mm	mm	mm	mm	mm	mm	mm	kN	kN	kg/m
05BSS-2	8	5	3	2.31	13.9	14.5	7.1	0.8	5.64	4.68	6.1	0.33
*06BSS-2	9.525	6.35	5.72	3.28	23.4	24.4	8.2	1.3	10.24	10.14	11.22	0.77
08BSS-2	12.7	8.51	7.75	4.45	31.2	32.2	11.8	1.6	13.92	19.2	23.22	1.34
10BSS-2	15.875	10.16	9.65	5.08	36.1	37.5	14.7	1.7	16.59	26.7	33.72	1.84
12BSS-2	19.05	12.07	11.68	5.72	42	43.6	16	1.85	19.46	34.68	39.66	2.31
16BSS-2	25.4	15.88	17.02	8.28	68	69.3	21	4.15/3.1	31.88	63.6	79.8	5.42
20BSS-2	31.75	19.05	19.56	10.19	77.8	81.5	26.4	4.5/3.5	36.45	102	126.72	7.2
24BSS-2	38.1	25.4	25.4	14.63	101.7	106.2	33.2	6.0/4.8	48.36	168	191.52	13.4
28BSS-2	44.45	27.94	30.99	15.9	124.6	129.1	36.7	7.5/6.0	59.56	216	244.08	16.6
32BSS-2	50.8	29.21	30.99	17.81	124.6	129.6	42	7.0/6.0	58.55	270	305.1	21
40BSS-2	63.5	39.37	38.1	22.89	154.5	161.5	52.96	8.5/8.0	72.29	378	427.14	32
48BSS-2	76.2	48.26	45.72	29.24	190.4	198.2	63.8	12.0/10.0	91.21	600	678	50

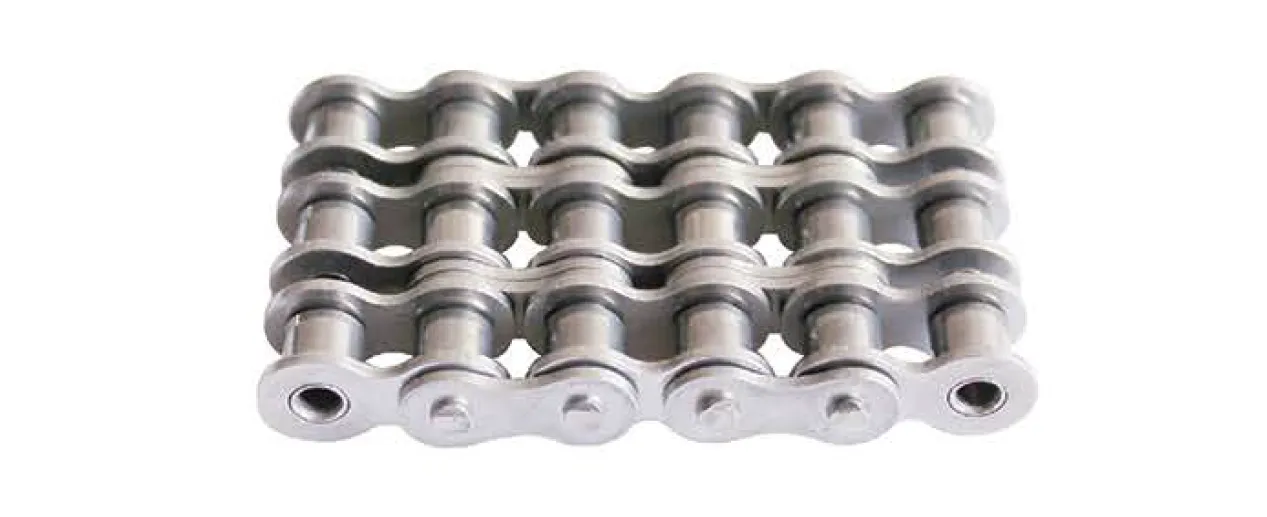

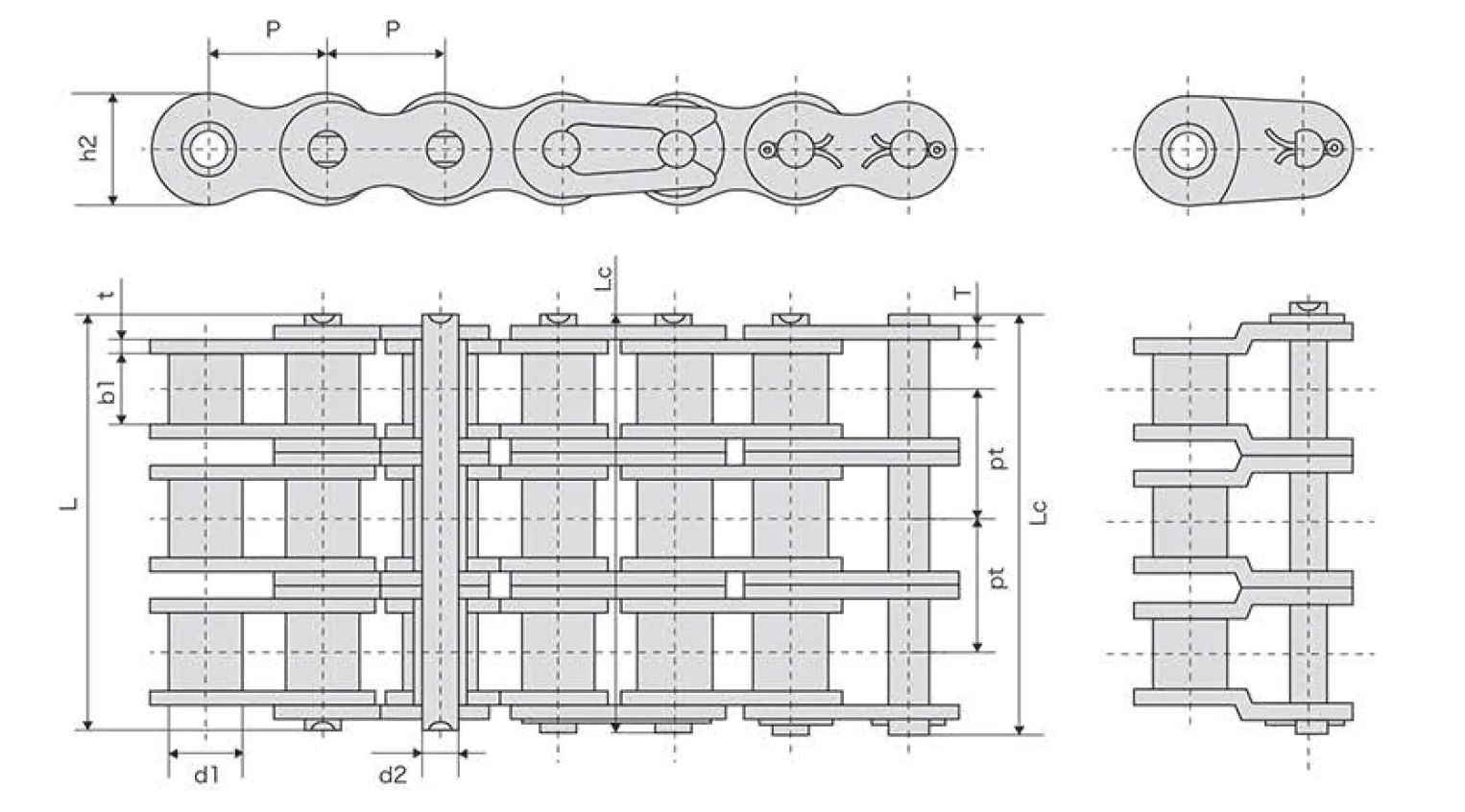

(3) Triplex Stainless Steel Roller Chains

B Series Stainless Steel Roller Chain Dimensions

DIN/ISO Chain No.	Pitch	Roller diameter	Width between inner plates	Pin diameter	Pin length		Inner plate depth	Plate thickness	Transverse pitch	Ultimate tensile strength	Average tensile strength	Weight per meter
	P	d1(max)	b1(min)	d2(max)	L(max)	Lc(max)	h2(max)	t/T(max)	Pt	Q(min)	Q0	Q0
	mm	mm	mm	mm	mm	mm	mm	mm	mm	kN	kN	kg/m
05BSS-3	8	5	3	2.31	19.5	20.2	7.1	0.8	5.64	6.66	8.28	0.48
*06BSS-3	9.525	6.35	5.72	3.28	33.5	34.6	8.2	1.3	10.24	14.94	18.06	1.16
08BSS-3	12.7	8.51	7.75	4.45	45.1	46.1	11.8	1.6	13.92	28.5	34.68	2.03
10BSS-3	15.875	10.16	9.65	5.08	52.7	54.1	14.7	1.7	16.59	40.02	50.7	2.77
12BSS-3	19.05	12.07	11.68	5.72	61.5	63.1	16	1.85	19.46	52.02	61.08	3.46
16BSS-3	25.4	15.88	17.02	8.28	99.8	101.2	21	4.15/3.1	31.88	96	122.22	8.13
20BSS-3	31.75	16.05	19.56	10.19	114.2	117.9	26.4	4.5/3.5	36.45	150	174	10.82
24BSS-3	38.1	25.4	25.4	14.63	150.1	154.6	33.2	6.0/4.8	48.36	255	295.8	20.1
28BSS-3	44.45	17.94	30.99	15.9	184.2	188.7	36.7	7.5/6.0	59.56	318	365.7	24.92
32BSS-3	50.8	29.21	30.99	17.81	183.2	188.2	42	7.0/6.0	58.55	402	462.3	31.56
40BSS-3	63.5	39.37	38.1	22.89	226.8	233.8	52.96	8.5/8.0	72.29	570	655.5	48.1
48BSS-3	76.2	48.26	45.72	29.24	281.6	189.4	63.8	12.0/10.0	91.21	900	979.5	75

B Series Stainless Steel Short Pitch Precision Roller Chain Features

Corrosion Resistance: These chains are made from high-grade stainless steel, which provides exceptional resistance to corrosion. This makes them ideal for applications in moist, chemical-rich, or high-humidity environments, ensuring longevity and consistent performance even under harsh conditions.
Short Pitch Design: The short pitch of these chains allows for compact link spacing, resulting in smoother and more precise operation. This design minimizes chain vibration and noise, which is particularly useful in applications requiring quiet and efficient motion control.
Hygienic and Easy to Clean: Stainless steel construction ensures that the chains are resistant to contamination and easy to clean, making them perfect for industries like food processing, pharmaceuticals, and healthcare where hygiene is critical and regular cleaning is necessary.
High Strength and Durability: The chains are engineered for superior tensile strength and wear resistance, ensuring they can handle demanding loads and extended use. Their robust construction reduces the need for frequent replacement, enhancing cost-effectiveness in industrial operations.
Temperature Resistance: Designed to withstand a wide range of temperatures, these chains perform reliably in both high-heat and freezing environments. This makes them suitable for industrial applications such as ovens, freezers, and extreme outdoor conditions.
Versatility in Applications: B Series Stainless Steel Short Pitch Precision Roller Chains are versatile and can be used in various industries, including marine, food production, packaging, and chemical processing. Their adaptability to different environments and conditions ensures broad utility for diverse industrial needs.

B Series Stainless Steel Roller Chains

B Series Stainless Steel Short Pitch Precision Roller Chain Applications

B Series Stainless Steel Short Pitch Precision Roller Chains are designed for precise, high-performance applications across various industries. Known for their small pitch size, corrosion resistance, and durability, they ensure accurate motion transmission and reliable operation in demanding environments. Here are the key applications:

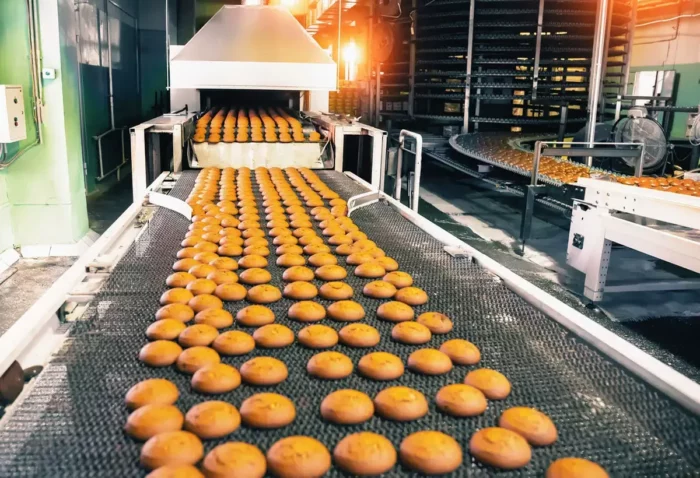

Food Processing Equipment: These chains are ideal for food processing machinery, such as conveyors and packaging systems, due to their stainless steel construction, which resists corrosion from moisture, chemicals, and frequent washdowns. They ensure hygienic, precise motion control for safe food handling.

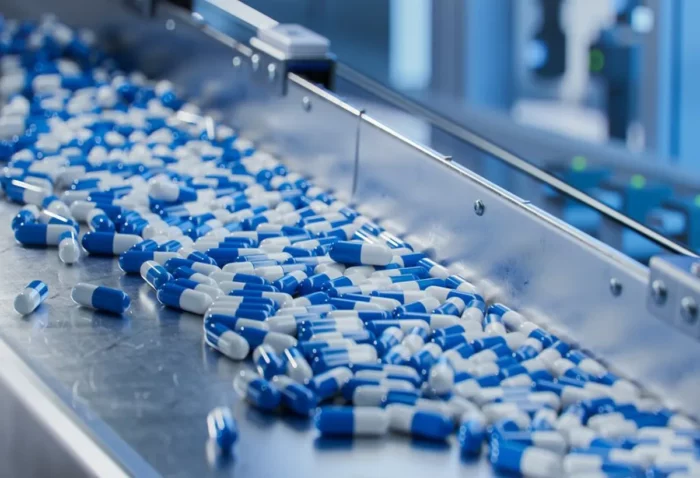

Pharmaceutical Manufacturing: In pharmaceutical production, these chains are used in automated systems for precise movement in tablet presses, filling machines, and packaging lines. Their corrosion resistance and high precision ensure reliability and compliance with strict hygiene standards in cleanroom environments.
Automotive Assembly Lines: B Series chains are employed in automotive manufacturing for robotic systems and conveyor belts, providing accurate positioning and smooth operation. Their durability and resistance to wear make them suitable for high-speed, repetitive tasks in assembly processes.
Textile Machinery: These chains are used in textile equipment for weaving, knitting, and yarn processing, where precise motion control is critical. Their smooth operation and resistance to corrosion ensure consistent performance in dusty, humid textile production environments.
Agricultural Machinery: In agricultural equipment like threshers and harvesters, these chains provide reliable power transmission. Their stainless steel build withstands exposure to moisture and debris, ensuring durability and precision in harsh outdoor conditions.
Conveyor Systems: Widely used in industrial conveyor systems, these chains handle material transport in warehouses and manufacturing plants. Their high tensile strength and corrosion resistance ensure smooth, precise operation under continuous loads and varying environmental conditions.
