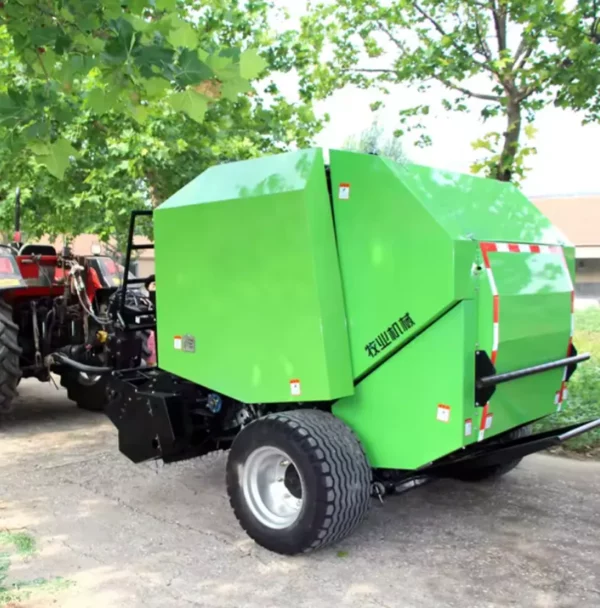

Best Price Manual Hay Round Pine Grass Alfalfa Straw Silage Round Straw Baler Price

Get the best price for a Manual Hay Round Pine Grass Alfalfa Straw Silage Round Straw Baler. This heavy-duty machinery is applicable for use on farms and is designed for baling hay, alfalfa, wheat, and rice. The round baler has dimensions of 4200x2880x2300mm and weighs 3020 kg. It comes with a one-year warranty and offers high accuracy. After the warranty period, services such as video technical support, spare parts, field maintenance and repair services are provided. The operating speed of the baler is between 5-15km/h with a capacity of producing 12-30 bales per hour. Each bale weighs between 200-400kgs. The product is certified by CE and ISO.

Advantages of the Round Straw Baler

The Round Straw Baler stands out for its numerous benefits:

1. High accuracy: This ensures that the bales produced are uniform in weight and size.
2. Wide application: It can be used to bale a variety of crops including hay, alfalfa, wheat and rice.
3. Efficient operation: With an operating speed of 5-15km/h, it can produce 12-30 bales per hour.
4. Compact and heavy-duty: Despite its compact size of 4200x2880x2300mm, it can produce bales weighing 200-400kgs.
5. One-year warranty: It comes with a one-year warranty, which guarantees quality and reliability.
6. After-sales support: After the warranty period, services such as video technical support, spare parts, field maintenance and repair services are available.

Applications of the Round Straw Baler

The Round Straw Baler can be used in various ways:

1. Farming: It can be used to bale a variety of crops including hay, alfalfa, wheat and rice.
2. Livestock feeding: The bales produced can be used to feed livestock.
3. Bedding: The bales can also be used as bedding for livestock.
4. Biofuel: The bales can be used as a source of biofuel.
5. Landscaping: The bales can be used in landscaping for erosion control and mulching.
6. Construction: Straw bales can be used in construction as a sustainable and insulating building material.

Tractor Mounted Large Round Baler Working Principle

The Tractor Mounted Large Round Baler operates in the following manner:

1. Collection of the crop: The crop is harvested using a tractor with a cutting mechanism like a mower or a forage harvester. The harvested crop is left in windrows for further processing.
2. Pickup mechanism: The baler has a pickup mechanism at the front, which consists of rotating tines or belts. This mechanism collects the crop from the windrow and transfers it into the baler.
3. Feeding and compression: The crop is fed into the baler chamber where a series of belts or rollers compress it to form a cylindrical shape.
4. Net or twine application: The baler applies either netting or twine around the cylindrical shape to hold the bale together and prevent it from unraveling.
5. Bale formation and wrapping: As the bale grows in size, it rotates within the baler chamber. Once the desired size is reached, a sensor or operator-controlled mechanism triggers the wrapping process.
6. Bale ejection: After wrapping, the baler opens its chamber, and the finished bale is ejected onto the ground.

How to Install the Large Round Baler to Tractor

Installing a large round baler to a tractor involves several key steps:

1. Position the baler: Park the tractor on a level surface and position the baler behind it. Align the baler's hitch with the tractor's hitch point.



2. Hitching the Baler to the Tractor: Lower the tractor??s hitch to connect with the baler??s drawbar or hitch. Insert the hitch pin and secure it.
3. Connect the hydraulic hoses: The large round baler requires hydraulic power from the tractor. Match the corresponding couplers on the tractor and baler and connect them securely.
4. Secure the PTO shaft: Locate the PTO shaft on the tractor and align it with the baler's PTO input shaft. Connect the two shafts and secure them.



5. Check connections and safety features: Before operating the baler, double-check all the connections. Ensure everything is secure and properly aligned.
6. Test the baler: Start the tractor's engine and engage the PTO. Operate the baler's various functions to ensure they are functioning correctly.

Common Troubleshooting of the Round Straw Baler

It's crucial to troubleshoot common issues with tractor-mounted large round balers:

1. Baler Not Starting or Operating: Ensure the PTO shaft is correctly connected and the tractor's PTO is engaged. Verify that all safety switches are activated. Inspect electrical connections, fuses, and switches for damage or disconnection.
2. Uneven Bales: Ensure the baler is being fed an even flow of material. Adjust your driving speed or the amount of material being fed into the baler. Check the baler settings.
3. Bales Too Loose or Too Tight: Adjust the baler's density settings according to the manufacturer's recommendations.
4. Baler Jamming or Material Build-up: Stop the baler and tractor, and carefully inspect the pickup and bale chamber for obstructions or accumulated material.
5. Bale Ejection Problems: Ensure the baler's tailgate is opening and closing properly. Hydraulic issues, damaged hinges, or incorrect settings can impede tailgate operation.
6. Excessive Noise or Vibration: Inspect bearings in the baler for wear or damage. Check for alignment issues in the driveline or other moving parts.

Why Choose XinLan's Large Round Baler for Hay Baling?

XinLan Agricultural Machinery Co., Ltd. is a reputable and experienced manufacturer of farming machinery including the Large Round Baler. The company has over 100 employees, among them 20 technical staff and five senior R&D personnel. XinLan boasts of two advanced production lines and a strong production technology. The company's product range is wide and caters to a variety of farming needs. XinLan products are sold all over the country and exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.

About XinLan Agricultural Machinery Co., Ltd.

XinLan Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery for over a decade. The company uses CAD computer-aided design systems and advanced equipment for lathing, milling, planing, stamping, cutting plate, and electric welding. The company also offers customized services to meet the specific needs of their clients. Their after-sales services, including video technical support, spare parts, and field maintenance and repair services, are reliable and efficient.
