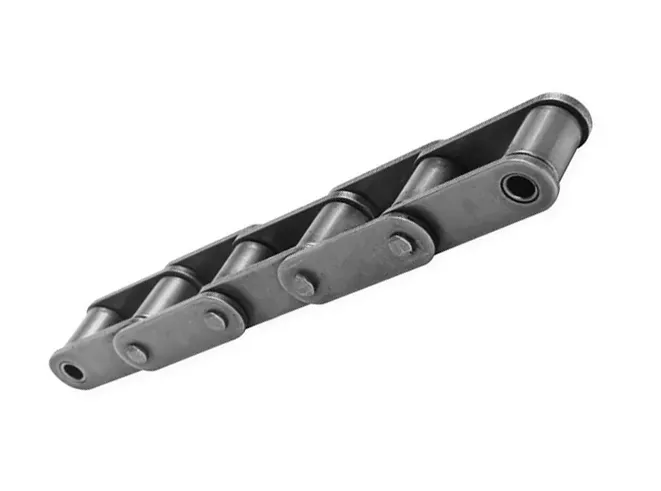

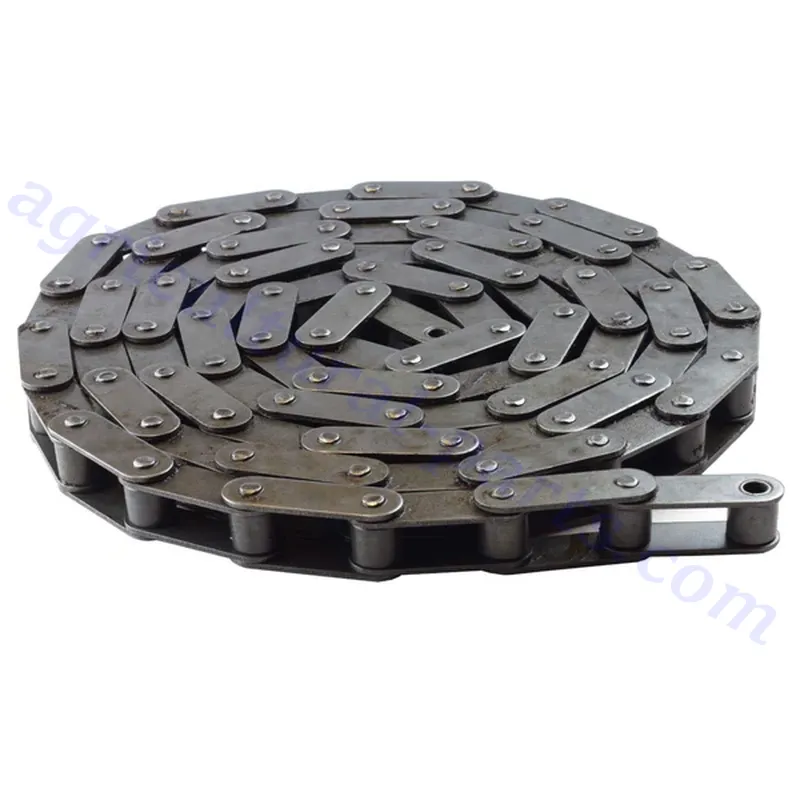

CA960 Roller Chain for Combine Harvesters and Hay Balers
The CA960 Roller Chain is a specialized type of roller chain designed specifically for use in agricultural machinery, such as combine harvesters, hay balers, and other farm equipment. It’s built to be robust and reliable, capable of withstanding the tough conditions often encountered in farming environments. The chain is typically made from high-strength steel with hardened components, which gives it excellent durability and resistance to wear over time.
The CA960 Roller Chain is a specialized type of roller chain designed specifically for use in agricultural machinery, such as combine harvesters, hay balers, and other farm equipment. It’s built to be robust and reliable, capable of withstanding the tough conditions often encountered in farming environments. The chain is typically made from high-strength steel with hardened components, which gives it excellent durability and resistance to wear over time.
A key feature of the CA960 agricultural chain is its straight sidebar design, which enhances its compatibility with a variety of attachments and sprockets commonly used in agricultural applications. This makes it a versatile and dependable choice for keeping machinery running smoothly during demanding tasks like harvesting or baling.
CA960 Roller Chain Dimensions
| Chain No: | CA960 Chain (CA960 Roller Chain) |
| Chain pitch(p): | 41.40 mm |
| Roller diameter(d1 max): | 17.78 mm |
| Width between inner plates(b1 min): | 22.61 mm |
| Pin diameter(d2 max): | 8.90 mm |
| Pin length(L max): | 40.1 mm |
| Pin length(Lc max): | 43.0 mm |
| Plate dimension(h2 max): | 23.10 mm |
| Plate dimension(T max): | 3.00 mm |
| Tensile strength: | 66.00/15160 kN/lbf |
| Weight per meter: | 6.94 kg/m |
Key Features of CA960 Agricultural Chains
The CA960 agricultural chain is a specialized roller chain designed for use in demanding farming applications. Here are its key features based on available information and typical characteristics of CA-series agricultural chains:
- Pitch Size: The CA960 chain has a pitch of 41.4 mm (approximately 1.63 inches), which refers to the distance between the centers of adjacent pins. This size makes it suitable for machinery requiring a robust chain with moderate spacing.
- Durability: Constructed from high-quality carbon steel, the CA960 is engineered to withstand the harsh conditions of agricultural environments, including exposure to dirt, dust, moisture, and heavy loads.
- Strength: It offers a high tensile strength, often rated around 66 kN (approximately 15,160 lbs), providing the capacity to handle significant stress and shock loads common in equipment like combines, balers, and harvesters.
- Roller Design: The chain features solid rollers that enhance rotation on the bushing, reducing wear and impact on sprocket teeth during operation. This contributes to smoother performance and extended service life.
- Heat Treatment: Components are heat-treated to maximize strength and wear resistance, ensuring reliability under continuous use in tough farming tasks.
- Attachments: The CA960 is part of the CA-series, which typically supports a variety of attachments (e.g., slats, pushers), allowing it to be customized for specific agricultural machinery functions such as conveying or harvesting.
- Open-Barrel Design: Common in CA-type chains, this design provides clearance in tight spaces and helps prevent material buildup, making it ideal for applications where debris is a concern.
- Versatility: It is compatible with a range of agricultural equipment, particularly suited for power transmission over long shaft distances or direct material transport, such as in crop harvesting or bale handling.
CA960 Agricultural Roller Chain Applications
The CA960 agricultural roller chain is a specialized type of roller chain designed for use in heavy-duty agricultural machinery. It belongs to the CA series of chains, which are known for their durability, strength, and ability to withstand the demanding conditions of farming environments. Below are some common applications of the CA960 roller chain:

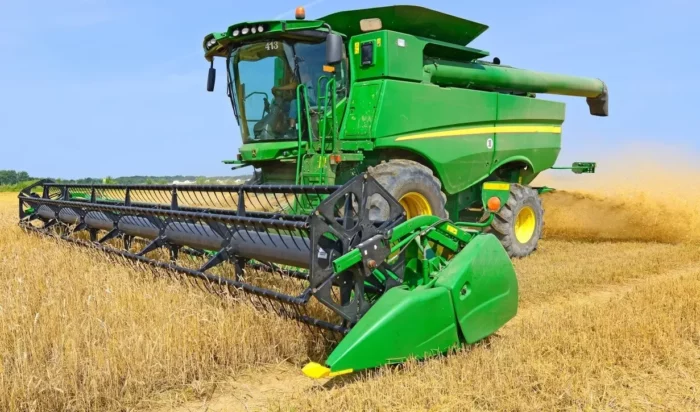

- Combines: The CA960 agricultural chain is often used in combine harvesters, particularly in components like the feeder house, elevator systems, and gathering mechanisms. Its robust construction helps handle the high loads and continuous operation required during crop harvesting, such as corn, wheat, or soybeans.
- Forage Harvesters: In forage harvesters, the CA960 chain can be found in the feed rollers or conveyor systems that process silage crops like corn or grass. Its ability to operate reliably under high stress makes it ideal for these applications.
- Conveyors: The CA960 agricultural chain is commonly used in agricultural conveyor systems, such as those for grain handling, manure spreading, or feed distribution. Its design, often featuring attachments, allows it to transport materials efficiently across various stages of processing.

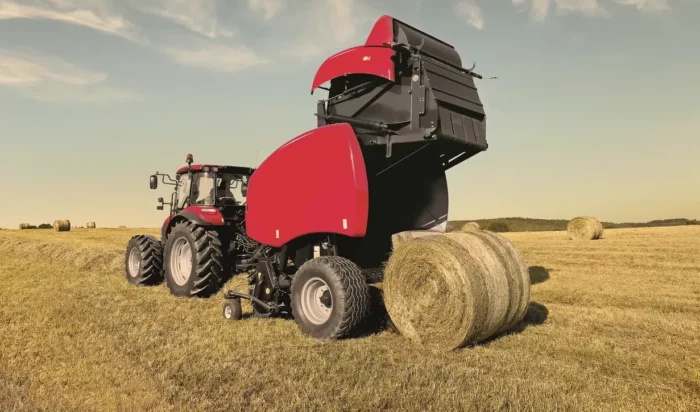

- Balers: In balers, which compress crops like hay or straw into compact bales, the CA960 chain may be utilized in the conveying or compression mechanisms. Its high tensile strength ensures it can manage the forces involved in bale formation.
- Grain Elevators: The agricultural chain is also applied in elevator systems that lift grain or other materials vertically into storage silos or processing units. Its durability ensures consistent performance in these high-capacity applications.
- Manure Spreaders: For equipment like manure spreaders, the CA960 chain can be part of the drag or conveyor system that distributes material across fields. Its resistance to corrosion and wear is beneficial in these harsh, abrasive environments.
 |  |
Why Choose AGKNX's Agricultural Chains?
AGKNX is a leading manufacturer and supplier in the agricultural chain industry, renowned for its robust production capabilities and advanced technological expertise. Our company operates on a large scale, with state-of-the-art manufacturing facilities and a dedicated team of skilled engineers and professionals. We pride ourselves on our cutting-edge technology and innovation, which enable us to deliver high-quality products that meet global standards. Our commitment to excellence is reflected in our international certifications, ensuring that our products consistently exceed customer expectations.
Our agricultural chains are designed to offer superior performance and durability in various applications. Key features of our products include high tensile strength, resistance to wear and corrosion, and smooth operation under demanding conditions. We offer a diverse selection of chains, including rice harvester chains, C-type agricultural chains, CA-type agricultural chains, S-type agricultural chains, cane harvester chains, palm oil chains, ZGS38 combine harvester chains, corn head gathering chains, manure spreader chains, hay elevator chains, o-ring agricultural chains, steel pintle chains, rotary cultivator chains, etc. Each product is meticulously crafted to ensure optimal functionality and efficiency in the field.
