Cat 1 Hydraulic Top Link 520-740mm 20.5″-29.1″ Toplink 19mm Ball ends

Product Specifications

Note: Our products are replacement parts and not original equipment. We provide perfect replacement products for original equipment. If you need to purchase the original equipment, please contact the original supplier.

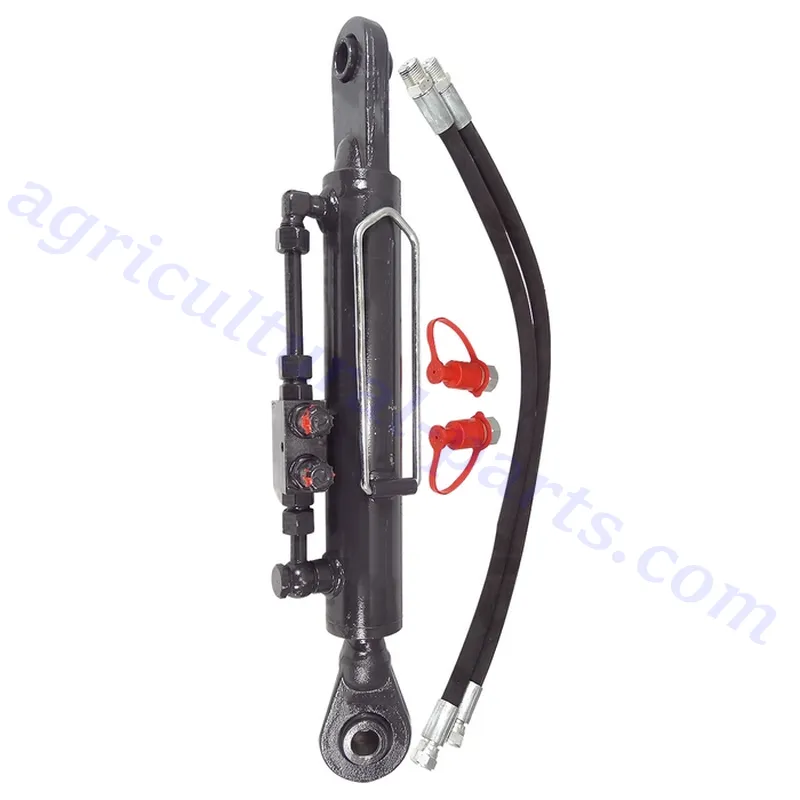

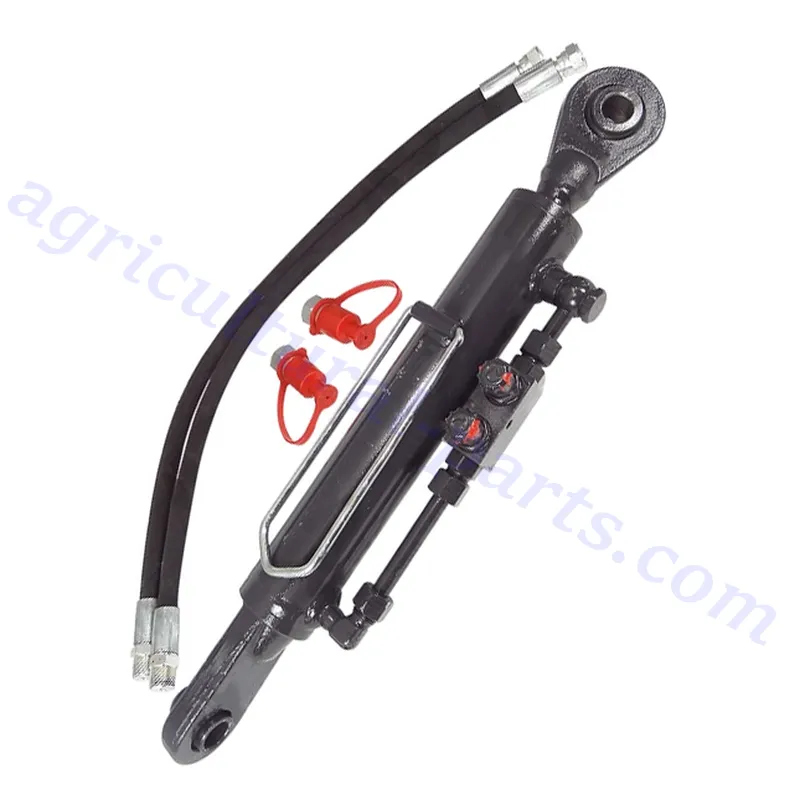

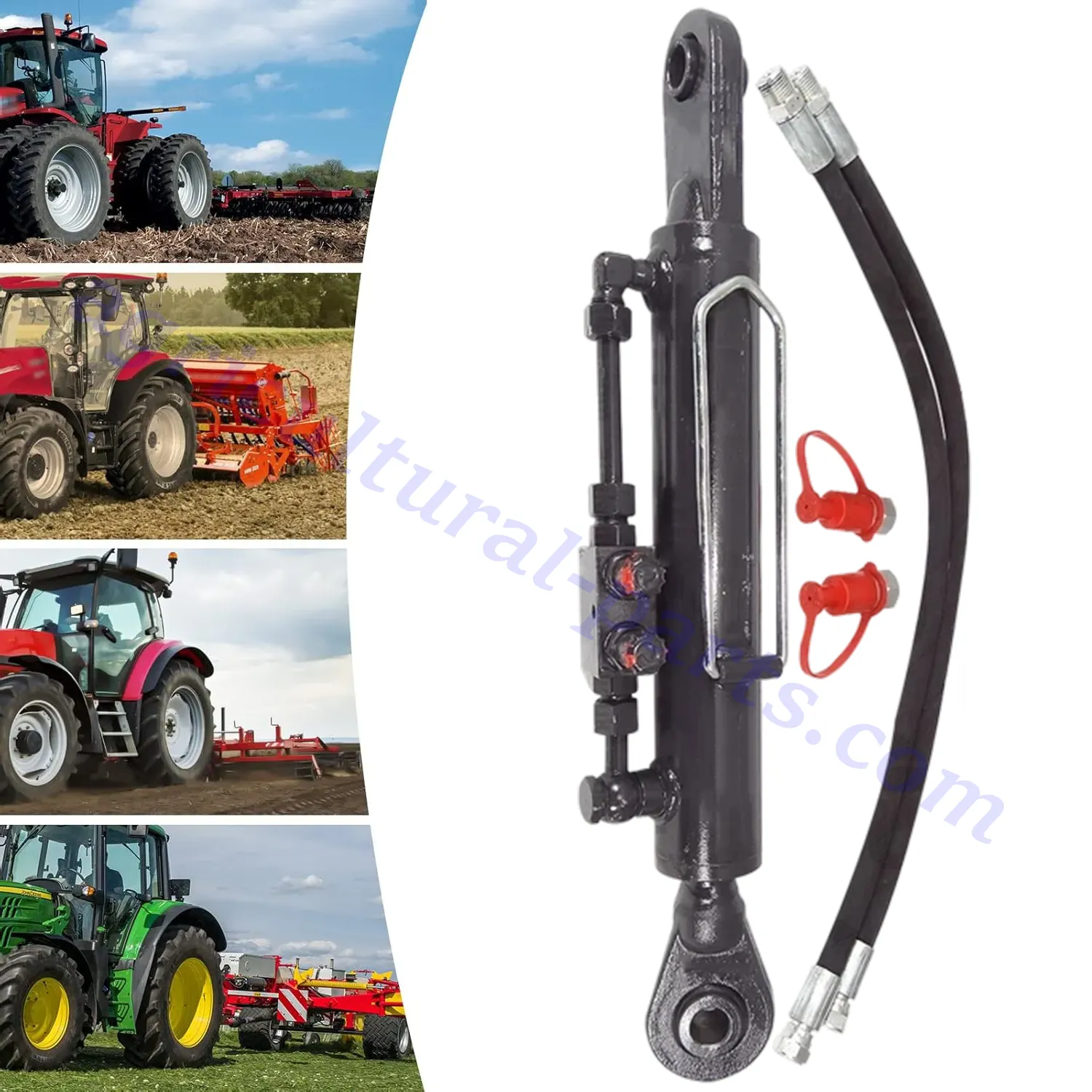

Overview of Cat 1 Hydraulic Top Link 520-740mm 20.5"-29.1" Toplink 19mm Ball ends

The Cat 1 Hydraulic Top Link 520-740mm (20.5"-29.1") with 19mm Ball Ends is a versatile and durable hydraulic component designed for agricultural machinery, particularly tractors equipped with Category 1 (Cat 1) three-point hitch systems. This hydraulic top link serves as an adjustable link between the tractor and rear-mounted implements such as mowers, blades, cultivators, or box scrapers. Its adjustable length, ranging from 520mm (20.5 inches) to 740mm (29.1 inches), allows users to fine-tune the angle and position of the attached implement, ensuring optimal performance and efficiency during operation.

The hydraulic mechanism enables quick and effortless adjustments directly from the tractor’s cab, eliminating the need for manual intervention. It is equipped with 19mm ball ends, which are standard for Cat 1 systems, ensuring compatibility with a wide range of implements. The durable construction, typically made from high-strength steel, provides excellent resistance to wear, pressure, and heavy loads, making it ideal for demanding agricultural tasks. This hydraulic top link enhances the tractor’s versatility, improves implement performance, and significantly reduces operator effort.

Common Applications of Cat 1 Hydraulic Top Link with Ball ends

The Cat 1 Hydraulic Top Link with Ball Ends is a versatile and indispensable component for tractors equipped with Category 1 three-point hitch systems. Its primary function is to provide adjustable linkage between the tractor and rear-mounted implements, enabling operators to fine-tune the angle, height, and positioning of various attachments. This hydraulic top link is widely used in agricultural, landscaping, and construction applications, offering a wide range of benefits.

One of the most common applications is with box blades and scrapers. The hydraulic adjustability allows the operator to easily change the tilt of the blade or scraper from the tractor cab, making it ideal for grading, leveling, or spreading materials like gravel, soil, or sand. By adjusting the angle, operators can achieve precise results, whether they are cutting into hard-packed material or smoothing out uneven terrain.

Another popular use is with rotary cutters and mowers. The hydraulic top link makes it easy to set the correct cutting height and level the attachment to ensure even cuts, regardless of ground conditions. This is especially useful when mowing uneven fields or ditches, as the operator can make real-time adjustments to maintain consistent performance.

The hydraulic top link is also highly valuable when using rear blades. Whether clearing snow, moving dirt, or grading driveways, the top link helps adjust the blade's angle and depth of cut. This can save significant time and effort, as manual adjustments are no longer necessary.

For tillage implements like cultivators and harrows, the hydraulic top link ensures proper implement positioning, enhancing soil penetration and efficiency. This adjustability is crucial for achieving consistent tillage results, especially in varying soil conditions.

Additionally, the hydraulic top link is widely used with post hole diggers and fertilizer spreaders. It provides the flexibility to adjust the implement's tilt and working angle, ensuring optimal alignment and performance during operation.

Advantages of Using the Cat 1 Hydraulic Top Link for Tractor

The Cat 1 Hydraulic Top Link for tractors offers several advantages that enhance the functionality and efficiency of agricultural operations:

1. Ease of Adjustability: The hydraulic mechanism allows operators to adjust the top link length directly from the tractor cab. Unlike traditional manual top links, this saves time and effort, especially during tasks that require frequent adjustments, such as leveling implements or changing their angle while working on uneven terrain or slopes.
2. Increased Implement Versatility: The hydraulic top link enables fine-tuning of the angle and tilt of various tractor-mounted implements, such as box blades, mowers, and rear blades. This adjustability improves the performance and versatility of attachments, allowing operators to tackle a wide range of tasks with greater precision and efficiency.
3. Improved Efficiency and Productivity: Quick and easy adjustments of the implement angle or height enable faster transitions between tasks. This means less downtime for manual changes and more time spent working, resulting in improved overall productivity, especially in demanding agricultural, landscaping, or construction operations.
4. Better Performance on Uneven Ground: The hydraulic top link allows real-time adjustments to accommodate uneven or sloping terrain. Implement alignment can be corrected instantly, ensuring consistent performance, whether grading a surface, cutting grass, or plowing fields. This flexibility is essential for maintaining high-quality results in challenging environments.
5. Durability and Load-Bearing Capacity: Made from high-strength materials like steel, the Cat 1 Hydraulic Top Link is designed to withstand heavy loads and continuous use in demanding conditions. Its robust construction ensures long-lasting performance, making it a reliable investment for tractors used in agriculture and other industries.

How to Choose the Right Hydraulic Top Link for Your Tractor

Choosing the right hydraulic top link for your tractor is essential to ensure optimal performance and compatibility with your agricultural implements. Here are some key factors to consider when selecting a hydraulic top link:

1. Determine the Category of Your Tractor's Hitch System: The first step is to confirm the hitch category of your tractor, as hydraulic top links are designed to fit specific hitch types (e.g., Category 1, 2, or 3). For light to medium-duty tractors, a Cat 1 hydraulic top link is typically required, ensuring compatibility with your three-point hitch system.
2. Check the Required Length Range: Hydraulic top links have adjustable lengths, so it’s crucial to measure the distance between the top link attachment points on your tractor and implement. Choose a top link with a length range that fits your equipment, such as the 520-740mm (20.5"-29.1") range for smaller tractors and implements.
3. Ensure Proper Ball End Size: Verify the diameter of the ball ends required by your tractor and implement. For Cat 1 systems, a 19mm ball end is standard. Using the correct size ensures a secure connection, prevents malfunction, and guarantees smooth operation during heavy-duty tasks.
4. Consider Hydraulic System Compatibility: Ensure that your tractor’s hydraulic system is compatible with the hydraulic top link. Check the hydraulic fittings and pressure requirements to match your tractor’s setup. Most hydraulic top links are designed for standard tractor hydraulics, but it’s important to confirm compatibility before purchase.
5. Evaluate the Load-Bearing Capacity: Choose a hydraulic top link that can handle the weight and pressure of your intended applications. Heavier implements and more demanding tasks require a robust top link made from high-strength materials like steel to ensure durability and safety during operation.
6. Match the Top Link to Your Implements: Consider the types of implements you'll be using with the top link, such as mowers, blades, or tillage equipment. Ensure the top link’s adjustability and strength meet the demands of your specific tasks, offering adequate flexibility and control for enhanced performance.

Why Choose AGKNX's Hydraulic Top Links?

AGKNX is a leading manufacturer and supplier specializing in the production and sales of hydraulic top links. With a robust infrastructure and advanced technology, we operate on a large scale, ensuring high-quality manufacturing processes and innovative solutions. Our team of skilled engineers and technicians is dedicated to continuous improvement and excellence, positioning us as a formidable force in the agricultural machinery industry.

Our hydraulic top links are designed with precision and durability, offering features such as adjustable lengths and robust construction to handle various agricultural tasks. These products provide unmatched advantages in flexibility, ease of use, and efficiency, making them ideal for applications with rotary mowers, land levelers, disc ploughs, forage harvesters, snow blowers, and post hole diggers. Our products not only enhance the performance of your implements but also ensure operational safety and productivity across different terrains and conditions.

At AGKNX, our expertise and influence in the hydraulic top link sector are unparalleled. We pride ourselves on our professionalism, international certifications, and ability to deliver customized solutions tailored to our clients' needs. Our state-of-the-art production facilities and comprehensive after-sales service reinforce our commitment to customer satisfaction.

We offer a wide range of products, including Cat 2 hook hydraulic top links, Cat 3 hook hydraulic top links, Cat 3 hydraulic top links, Cat 2 hydraulic top links, and Cat 1 hydraulic top links, catering to diverse requirements and ensuring optimum performance for every task.

What sets us apart from our competitors is our ability to provide customized solutions. Our team of experts is always available to listen to your unique needs and provide tailored solutions that meet your requirements. We understand that every customer has different needs, and we strive to ensure that we exceed their expectations.
