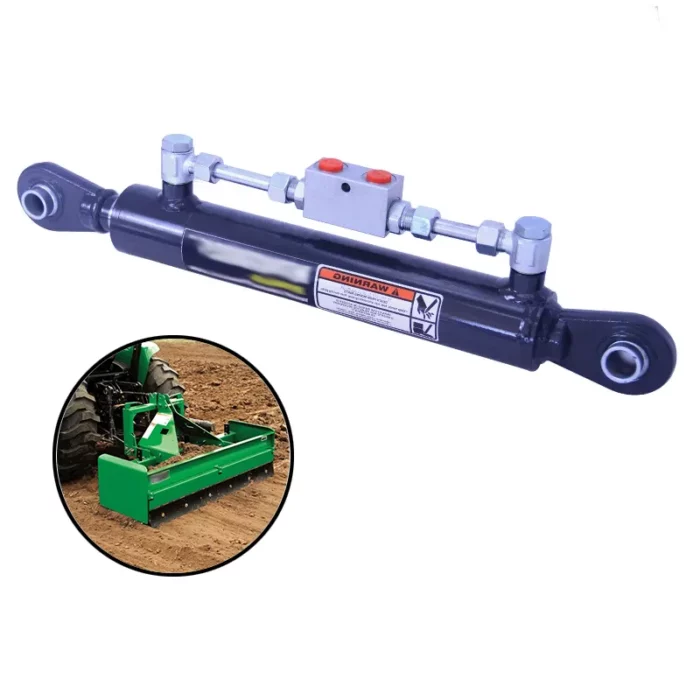

Cat 1 Tractor Top Link Hydraulic Cylinder for Box Scrapers

A Cat 1 tractor top link hydraulic cylinder for box scrapers is a double-acting hydraulic component designed to replace the standard mechanical top link on a tractor’s 3-point hitch system. It allows operators to adjust the angle and position of the box scraper from the driver’s seat, enhancing efficiency and precision during grading or leveling tasks. Compatible with tractors in the 20-55 horsepower range, they often come with hoses and fittings for easy installation. This setup is ideal for box scrapers, ensuring stable, precise adjustments for tasks like landscaping or road maintenance.

A Cat 1 tractor top link hydraulic cylinder for box scrapers is a double-acting hydraulic component designed to replace the standard mechanical top link on a tractor’s 3-point hitch system. It allows operators to adjust the angle and position of the box scraper from the driver’s seat, enhancing efficiency and precision during grading or leveling tasks. They operate at pressures up to 3,000 PSI, with features like chrome-plated rods for durability and double-piloted check valves to prevent drift. Compatible with tractors in the 20-55 horsepower range, they often come with hoses and fittings for easy installation. This setup is ideal for box scrapers, ensuring stable, precise adjustments for tasks like landscaping or road maintenance.

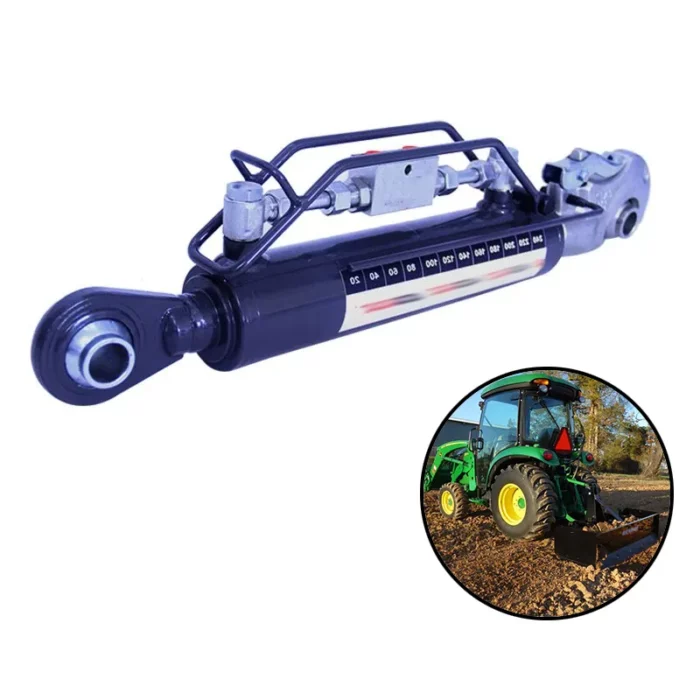

Top Link Hydraulic Cylinder for Box Scrapers

Top Link Hydraulic Cylinder Cat 1 Dimensions

Cat 1 Top Link Hydraulic Cylinder Dimensions

Product Name:
Top Link Cylinder Cat 1
Bore Size:
2-6 inch
Rod Size:
1.125-4 inch
Stroke Size:
4-100 inch
Pin Size:
0.5-2 inch
Ports:
G/SAE/NPT/M
Action:
Double Acting
Max Pull:
20 ton
Max Thrust:
3000
Color:
Black
Body Material:
Steel
Weight (kg):
10

Features of Cat 1 Top Link Hydraulic Cylinder for Box Scrapers

  1. Hydraulic Adjustment Capabilities: The hydraulic top link cylinder allows operators to adjust the pitch or angle of the box scraper from the tractor’s cab. This eliminates the need for manual adjustments, saving time and providing precise control during operation.
  2. Double-Acting Hydraulic Functionality: Equipped with a double-acting hydraulic design, this hydraulic cylinder top link can extend and retract with equal power, ensuring smooth and consistent adjustments in both directions for optimal implement positioning and performance under varying conditions.
  3. Durable Construction for Heavy-Duty Use: Built with high-quality, heavy-duty steel, the top link cylinder is designed to withstand the rigors of demanding tasks such as grading, leveling, and land shaping, ensuring long-lasting reliability and minimal maintenance.
  4. Swivel Ball End Connections: The top link cylinder cat 1 features swivel ball ends for flexible and secure attachment to the tractor and box scraper. This design accommodates slight misalignments, reducing stress on the cylinder and hitch components during operation.
  5. Compatibility with Cat 1 Three-Point Hitch Systems: Specifically designed for Category 1 tractors, the hydraulic cylinder fits seamlessly into standard Cat 1 three-point hitch systems. This ensures easy installation and compatibility with a wide range of smaller tractors and implements.
  6. Enhanced Operator Efficiency and Comfort: By allowing adjustments directly from the tractor seat, the top link hydraulic cylinder reduces operator fatigue and increases efficiency. It streamlines tasks such as creating precise slopes, leveling uneven terrain, and handling complex landscaping projects.

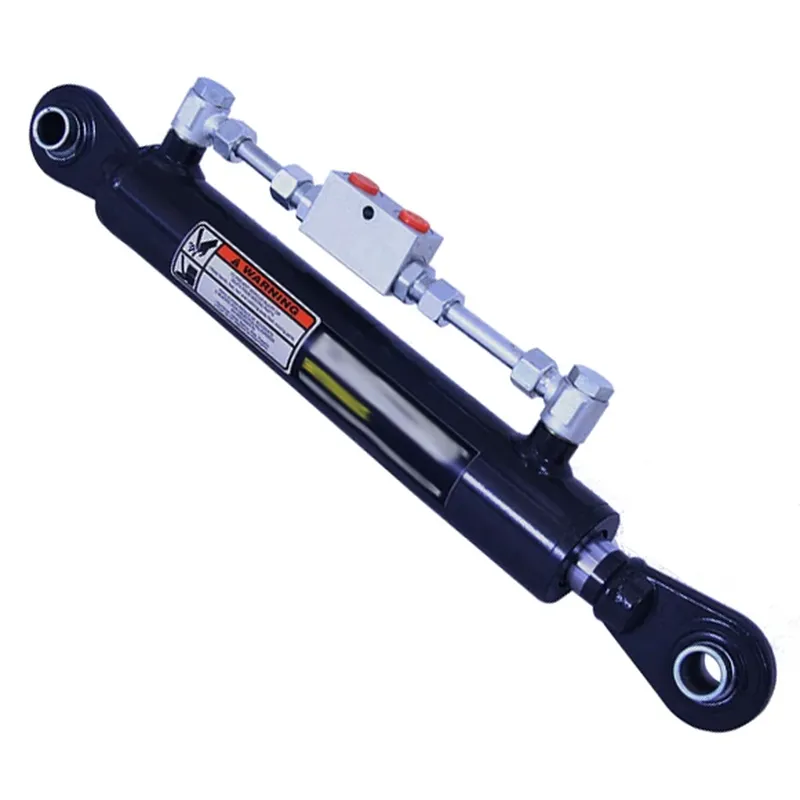

Hydraulic Top Link Cylinder Cat 1

How Does the Hydraulic Cylinder Top Link for Tractors Work?

The hydraulic cylinder top link for a box scraper is an advanced implement that enhances the functionality and versatility of a tractor's three-point hitch system. It works by replacing the traditional manual top link with a hydraulic cylinder, which allows operators to adjust the pitch or angle of the box scraper directly from the tractor’s cab. This provides greater precision, efficiency, and ease of use, particularly in tasks like leveling, grading, or creating slopes.

The tractor top link hydraulic cylinder is integrated into the tractor’s hydraulic system, which uses pressurized hydraulic fluid to generate movement. Typically, the tractor is equipped with hydraulic control levers located within the driver’s reach. These levers control the extension and retraction of the hydraulic cylinder. When the operator pulls or pushes a lever, hydraulic fluid flows into one side of the cylinder, causing it to extend or retract. This movement adjusts the angle of the box scraper relative to the ground.

For example, extending the top link cylinder tilts the box scraper forward, allowing it to cut deeper into the ground. Retracting the cylinder tilts the scraper backward, which is ideal for smoothing or leveling the surface. The double-acting hydraulic system ensures that the adjustments are smooth and precise in both directions.

Additionally, swivel ball ends on the hydraulic top link cylinder Cat 1 provide flexibility, allowing the implement to maintain proper alignment even on uneven terrain. This dynamic control system minimizes manual effort, increases accuracy, and makes land management tasks significantly more efficient and user-friendly.

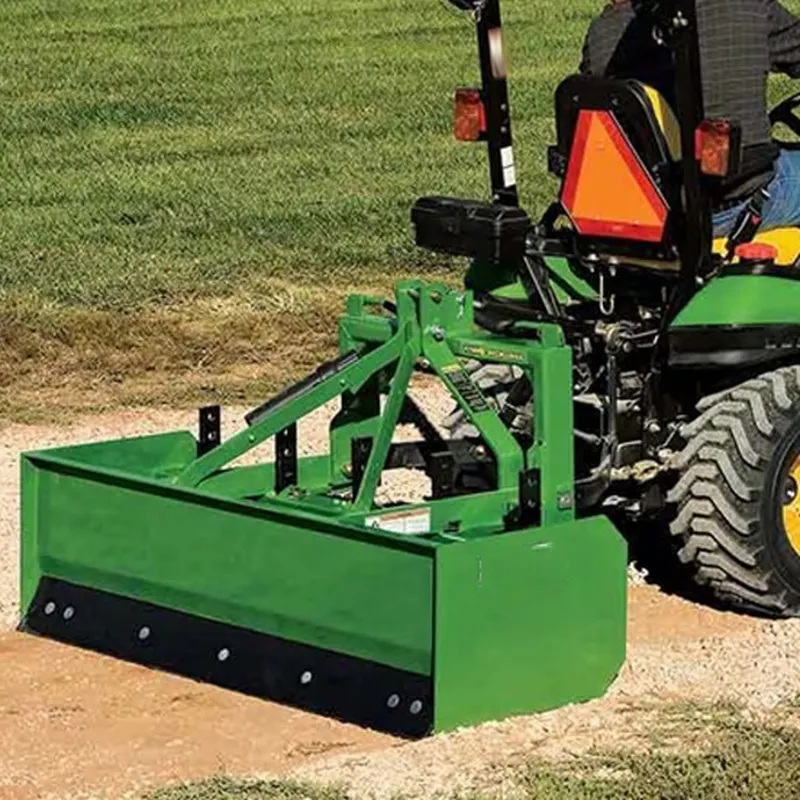

Top Link Hydraulic Cylinder for Box Scrapers

Top Link Cylinder Cat 1 Vs Top Link Cylinder Cat 2

FeatureTop Link Cylinder Cat 1Top Link Cylinder Cat 2
Tractor HorsepowerDesigned for smaller tractors with horsepower ranging from 20-45 HP.Built for larger tractors with horsepower ranging from 40-100 HP.
Hitch Pin DiameterCompatible with Category 1 hitch systems with 7/8-inch link pin diameters.Fits Category 2 hitch systems with larger 1-1/8-inch link pin diameters.
Load CapacityHandles lighter loads, suitable for small-scale agricultural and landscaping tasks.Can manage significantly heavier loads for industrial and large-scale farming operations.
Construction StrengthMade with lighter materials, sufficient for small to medium-duty tasks.Constructed with heavy-duty steel for durability in high-stress environments.
Implement CompatibilityBest suited for smaller implements like box scrapers, rear blades, and light plows.Designed for larger implements such as heavy-duty plows, large scrapers, and cultivators.
Flexibility on TerrainAdequate for flat or mildly uneven terrain with minimal strain.Performs well on rugged and uneven terrain due to greater strength and flexibility.
Hydraulic Pressure RatingOperates with lower hydraulic pressure, usually under 2500 PSI.Handles higher hydraulic pressure, often exceeding 3000 PSI.
Weight of CylinderLighter in weight, making it easier to handle and install manually.Heavier due to its robust construction, requiring additional effort for installation.
CostMore affordable and accessible, ideal for hobbyists and small-scale farmers.Higher cost, targeted at professional users and heavy-duty machinery owners.
DurabilityAdequate durability for small-scale, occasional use.High durability, designed for frequent and intensive usage.
Field of ApplicationCommonly used in gardening, landscaping, and light-duty farming.Widely used in construction, large-scale farming, and industrial applications.
Top Link Hydraulic Cylinder for Box ScrapersCat 2 Tractor Top Link Hydraulic Cylinder for Box Scrapers
Top Link Cylinder Cat 1 Top Link Cylinder Cat 2
