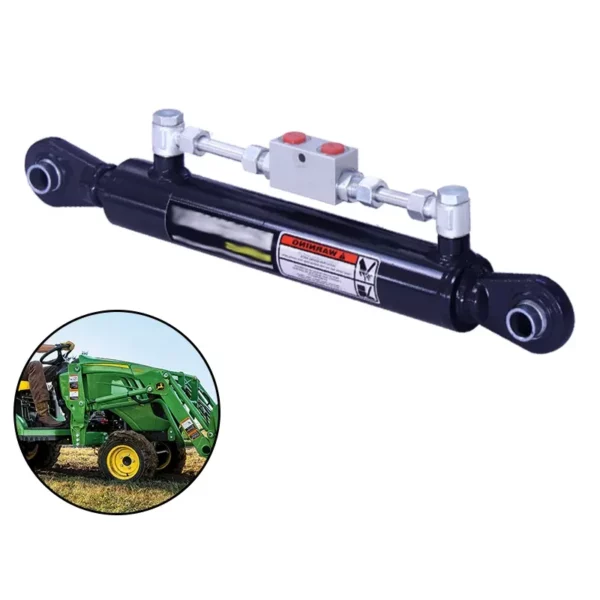

Cat 1 Tractor Top Link Hydraulic Cylinder for Front End Loaders
A Cat 1 tractor top link hydraulic cylinder is a specialized and versatile component designed for use with front-end loaders and three-point hitch systems on compact and utility tractors. This hydraulic cylinder replaces the traditional mechanical top link, allowing for precise control and adjustment of the angle and orientation of implements attached to the rear of the tractor. The cylinder connects the upper mounting point of the tractor’s three-point hitch to the implement, enabling dynamic movement and adjustment through hydraulic power.
A Cat 1 tractor top link hydraulic cylinder is a specialized and versatile component designed for use with front-end loaders and three-point hitch systems on compact and utility tractors. This hydraulic cylinder replaces the traditional mechanical top link, allowing for precise control and adjustment of the angle and orientation of implements attached to the rear of the tractor. The cylinder connects the upper mounting point of the tractor’s three-point hitch to the implement, enabling dynamic movement and adjustment through hydraulic power.
These hydraulic top link cylinders typically feature a robust, high-strength steel body to endure heavy-duty operations and are compatible with Cat 1 implements, which are designed for tractors with a 20-45 horsepower range. They are commonly used with implements like box blades, rear blades, tillers, and mowers. The hydraulic adjustment capability improves efficiency and ease of use, as operators can modify the angle of an attachment without leaving the tractor seat. This is particularly useful for grading, leveling, or optimizing the performance of an implement during operation.
Top Link Hydraulic Cylinder Cat 1 Dimensions
Product Name: | Top Link Cylinder Cat 1 |
Bore Size: | 2-6 inch |
Rod Size: | 1.125-4 inch |
Stroke Size: | 4-100 inch |
Pin Size: | 0.5-2 inch |
Ports: | G/SAE/NPT/M |
Action: | Double Acting |
| Max Pull: | 20 ton |
| Max Thrust: | 3000 |
| Color: | Black |
| Body Material: | Steel |
| Weight (kg): | 10 |
Features of Cat 1 Top Link Hydraulic Cylinder for Front End Loaders
- Hydraulic Adjustable Length: The top link hydraulic cylinder allows precise adjustment of the top link's length using hydraulic pressure. This feature makes it easy to modify the angle and positioning of rear-mounted implements, improving efficiency and adaptability during operations like grading, leveling, or digging.
- Durable Construction: Made from high-strength steel, these top link cylinders are built to withstand heavy loads, impacts, and demanding working conditions. The durable design ensures long-lasting performance, even in tough environments, such as agriculture, landscaping, or construction tasks.
- Compatibility with Cat 1 Tractors: Designed specifically for Category 1 tractors, the cylinder fits systems rated for 20 to 45 horsepower. This compatibility ensures seamless integration with a wide range of implements, including rear blades, box blades, and other three-point hitch attachments.
- Standard Hydraulic Ports: Equipped with standard hydraulic connections, the hydraulic cylinder top link integrates easily into the tractor's hydraulic system. This feature ensures smooth operation and simplifies installation, making it accessible for use by both professionals and hobbyist operators.
- Enhanced Operator Convenience: By eliminating the need for manual adjustments, the hydraulic cylinder allows operators to make real-time changes to implement positioning from the tractor seat. This greatly reduces physical effort and improves productivity during long or repetitive tasks.
- Improved Implement Control: The hydraulic top link cylinder enhances the precision and range of motion for attached implements. This translates to more accurate performance, such as achieving consistent grading slopes, optimizing tilling depth, or adjusting angles for maximum efficiency in various applications.
Custom Hydraulic Cylinder Top Link for Front End Loaders
- Bore Size: The bore size refers to the internal diameter of the cylinder where hydraulic pressure is applied. A larger bore size increases the lifting and pushing force of the top link hydraulic cylinder, making it suitable for heavy-duty applications like front-end loaders. Selecting the right bore size ensures the cylinder delivers adequate power without overloading the hydraulic system.
- Rod Size: The rod size determines the strength and stability of the hydraulic top link cylinder under load. A thicker rod can handle higher stress and resist bending or buckling during operation. For front-end loaders, the rod size should be robust enough to withstand repeated heavy use and maintain smooth performance in demanding conditions.
- Stroke Size: The stroke size is the distance the rod travels when the cylinder extends or retracts. It directly affects the range of motion the cylinder can provide. Choosing the correct stroke size ensures the front-end loader achieves the desired lifting height or tilt angle, improving operational efficiency and versatility.
- Pin Size: The pin size refers to the diameter of the mounting pins that connect the hydraulic cylinder top link to the loader and implement. Proper pin size is essential for ensuring a secure fit and smooth articulation. Incorrect pin sizes can cause misalignment or excessive wear, compromising the cylinder's performance and lifespan.
- Port Size: The port size determines the hydraulic fluid flow rate into and out of the top link cylinder. Proper port size selection ensures efficient fluid transfer to maintain consistent cylinder speed and responsiveness. For front-end loaders, the port size should match the hydraulic system’s flow capacity to prevent bottlenecks or pressure drops during operation.
