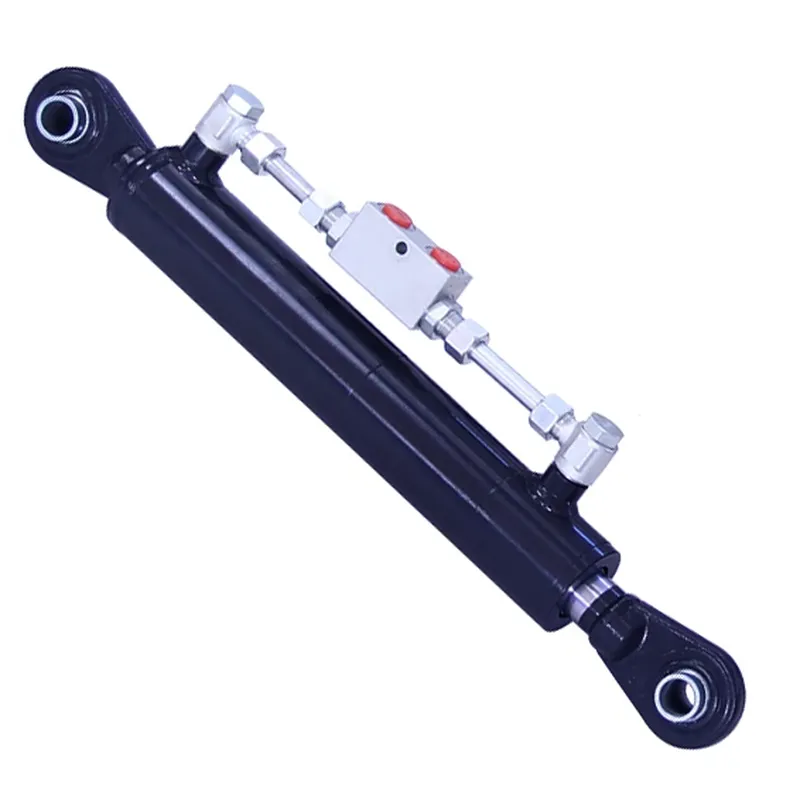

Cat 1 Tractor Top Link Hydraulic Cylinder for Furrow Ploughs

A Category 1 (Cat 1) tractor top link hydraulic cylinder for furrow plows is a double-acting hydraulic component designed to replace the standard top link in a tractor’s three-point hitch system, specifically tailored for implements like furrow plows. Compatible with tractors in the 20-55 horsepower range, it allows operators to adjust the plow’s angle and depth from the cab, enhancing precision and efficiency during tillage.

A Category 1 (Cat 1) tractor top link hydraulic cylinder for furrow plows is a double-acting hydraulic component designed to replace the standard top link in a tractor’s three-point hitch system, specifically tailored for implements like furrow plows. Compatible with tractors in the 20-55 horsepower range, it allows operators to adjust the plow’s angle and depth from the cab, enhancing precision and efficiency during tillage. Constructed with chrome-plated rods and high-quality seals, they operate at pressures up to 3,000 PSI, offering 6,700 lbs of pushing and 4,300 lbs of lifting capacity. Features like double-piloted check valves prevent drift, ensuring stable positioning.

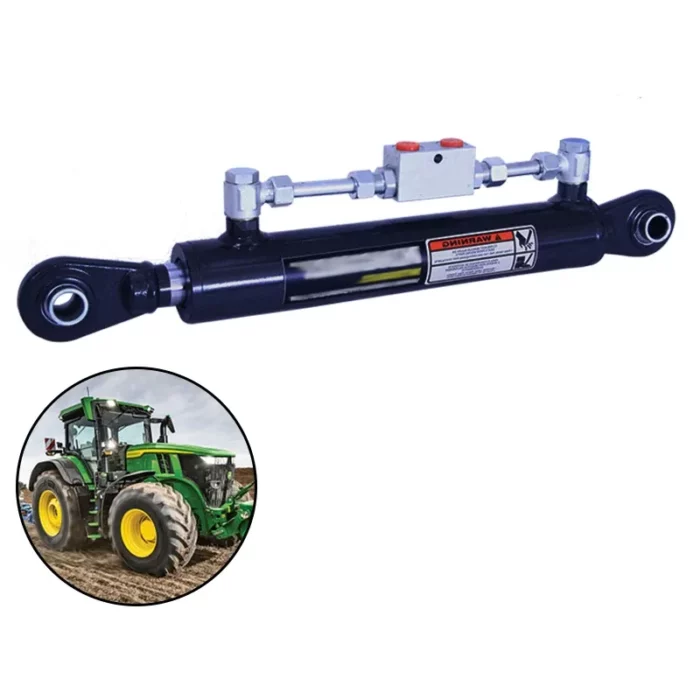

Top Link Hydraulic Cylinder for Furrow Ploughs

Top Link Hydraulic Cylinder Cat 1 Dimensions

Cat 1 Top Link Hydraulic Cylinder Dimensions

Product Name:
Top Link Cylinder Cat 1
Bore Size:
2-6 inch
Rod Size:
1.125-4 inch
Stroke Size:
4-100 inch
Pin Size:
0.5-2 inch
Ports:
G/SAE/NPT/M
Action:
Double Acting
Max Pull:
20 ton
Max Thrust:
3000
Color:
Black
Body Material:
Steel
Weight (kg):
10

Benefits of Top Link Hydraulic Cylinder Cat 1 for Tractor

  • Enhanced Precision in Implement Control: The Cat 1 hydraulic cylinder allows precise adjustments of the furrow plow’s angle and depth from the tractor cab, ensuring optimal soil penetration and consistent furrow patterns, improving crop yield and field uniformity.
  • Increased Operational Efficiency: By enabling on-the-go adjustments without stopping the tractor, the hydraulic top link reduces downtime, allowing operators to cover larger areas faster, streamlining tillage tasks and boosting overall productivity in demanding farming conditions.
  • Improved Operator Comfort and Safety: Remote control of the top link eliminates the need to manually adjust the hitch, reducing physical strain and exposure to hazardous conditions, enhancing operator comfort and safety during extended fieldwork sessions.
  • Robust and Durable Construction: Featuring chrome-plated rods and high-quality seals, the cylinder withstands harsh agricultural environments, resisting corrosion and wear. Rated for up to 3,000 PSI, it ensures reliable performance and longevity under heavy loads.
  • Stable Implement Positioning: Equipped with double-piloted check valves, the hydraulic cylinder prevents drift, maintaining the plow’s position even under varying loads. This stability enhances plowing consistency, reducing the need for frequent readjustments during operation.
  • Versatile Compatibility with Cat 1 Tractors: Designed for 20-55 horsepower tractors, the cylinder integrates seamlessly with standard three-point hitches, offering flexibility for various furrow plows and other implements, making it a versatile addition to small to medium-sized farms.

Cat 1 Top Link Hydraulic Cylinder

How Does a Tractor Top Link Hydraulic Cylinder Work?

A tractor top link hydraulic cylinder for furrow plows is a critical component in a tractor’s three-point hitch system, replacing the standard rigid top link to provide dynamic adjustability for implements like furrow plows. This double-acting hydraulic cylinder enables precise control over the plow’s angle and depth directly from the tractor cab, enhancing efficiency and accuracy during tillage.

The system operates via a hydraulic circuit connected to the tractor’s hydraulic system. The cylinder is equipped with two ports – an inlet and an outlet – that allow hydraulic fluid to flow in and out. When the operator activates the hydraulic lever in the tractor cab, the pressurized hydraulic fluid moves the piston inside the cylinder. This movement extends or retracts the cylinder’s shaft, thereby adjusting the length of the top link. By altering the top link length, the furrow plough’s tilt and depth can be precisely controlled.

This functionality is especially useful for uneven terrain or varying soil conditions, where constant adjustments are required to maintain consistent plough depth and alignment. For example, extending the cylinder shaft increases the plough’s tilt for deeper furrows, whereas retracting the shaft reduces the tilt for shallower furrows.

The hydraulic cylinder also absorbs some of the shock and vibrations caused by rough terrain, protecting both the tractor and the attached implement. Its design is robust, ensuring durability under heavy loads and consistent performance over extended periods.

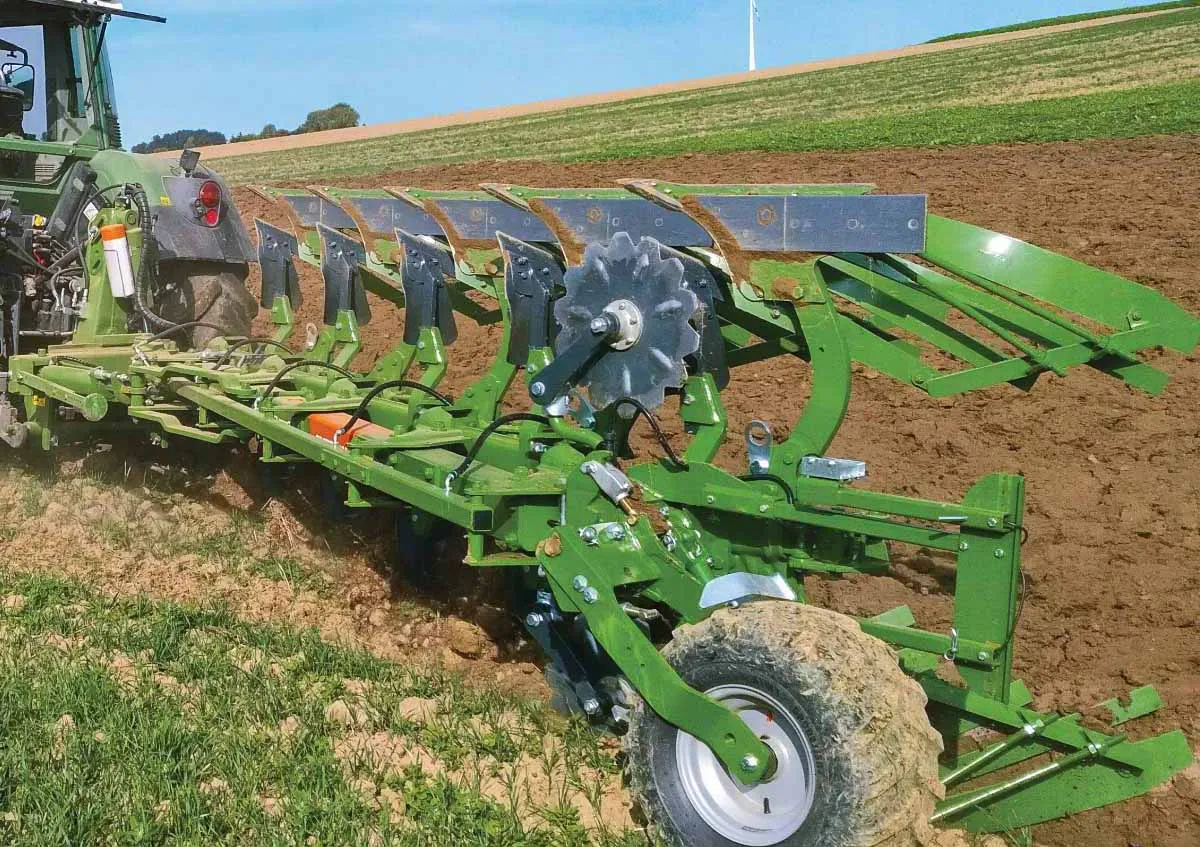

Tractor Top Link Hydraulic Cylinder
