Cat 1 Tractor Top Link Hydraulic Cylinder for Rotary Cutters
A Cat 1 tractor top link hydraulic cylinder is a specialized component used in agricultural machinery, particularly for rotary cutters, to provide adjustable and efficient hitching solutions. These top link cylinders are designed to replace the standard top link on a three-point hitch system, offering hydraulic adjustability instead of manual adjustments. This allows operators to fine-tune the angle, tilt, and height of attachments like rotary cutters while in use, ensuring optimal cutting performance and terrain adaptability.
A Cat 1 tractor top link hydraulic cylinder is a specialized component used in agricultural machinery, particularly for rotary cutters, to provide adjustable and efficient hitching solutions. These top link cylinders are designed to replace the standard top link on a three-point hitch system, offering hydraulic adjustability instead of manual adjustments. This allows operators to fine-tune the angle, tilt, and height of attachments like rotary cutters while in use, ensuring optimal cutting performance and terrain adaptability.
Typically constructed from durable, high-grade steel, the hydraulic cylinder top link is engineered to withstand heavy loads and harsh conditions. It features connections compatible with Cat 1 specifications, making it suitable for smaller to mid-sized tractors. The hydraulic adjustment enables quicker setup and improved control over implements, enhancing productivity and precision in mowing, leveling, or cutting tasks.
Top Link Hydraulic Cylinder Cat 1 Dimensions
Product Name: | Top Link Cylinder Cat 1 |
Bore Size: | 2-6 inch |
Rod Size: | 1.125-4 inch |
Stroke Size: | 4-100 inch |
Pin Size: | 0.5-2 inch |
Ports: | G/SAE/NPT/M |
Action: | Double Acting |
Max Pull: | 20 ton |
Max Thrust: | 3000 |
Color: | Black |
Body Material: | Steel |
Weight (kg): | 10 |
Advantages of Cat 1 Top Link Hydraulic Cylinder for Rotary Cutters
- Enhanced Precision Control: The Cat 1 top link hydraulic cylinder allows operators to make precise adjustments to the rotary cutter’s angle and height directly from the tractor cab, ensuring optimal cutting performance across varied terrains, improving efficiency and reducing manual effort.
- Increased Operational Efficiency: By enabling quick and seamless adjustments, the hydraulic top link cylinder reduces downtime associated with manual top link changes, allowing continuous operation, which boosts productivity during large-scale mowing or land-clearing tasks.
- Improved Durability and Reliability: Constructed with a chrome-plated rod and honed steel tube, these top link cylinders resist corrosion and wear, ensuring long-term reliability under harsh agricultural conditions, reducing maintenance costs and extending equipment lifespan.
- Stable Positioning with Anti-Drift: Equipped with double-piloted check valves, the top link hydraulic cylinder prevents drift, maintaining consistent cutter positioning during operation, which enhances safety and ensures uniform cutting results, even on uneven or sloped surfaces.
- Versatile Compatibility: Designed for Category 1 tractors (20-55 HP), the cylinder’s standard 3/4-inch pin holes and swivel ball ends ensure compatibility with various rotary cutters, making it a versatile addition to diverse tractor setups.
- Enhanced Operator Comfort: The in-cab hydraulic control eliminates the need to dismount and manually adjust the hydraulic cylinder top link, reducing physical strain and improving operator comfort, especially during extended periods of rotary cutter use.
How Does a Hydraulic Cylinder Top Link for Rotary Cutter Work?
A hydraulic cylinder top link for a rotary cutter works as a crucial component of the three-point hitch system on tractors, replacing the traditional manual top link with a hydraulically adjustable one. Its purpose is to control the angle and position of the rotary cutter or other implements attached to the tractor, providing improved functionality and precision.

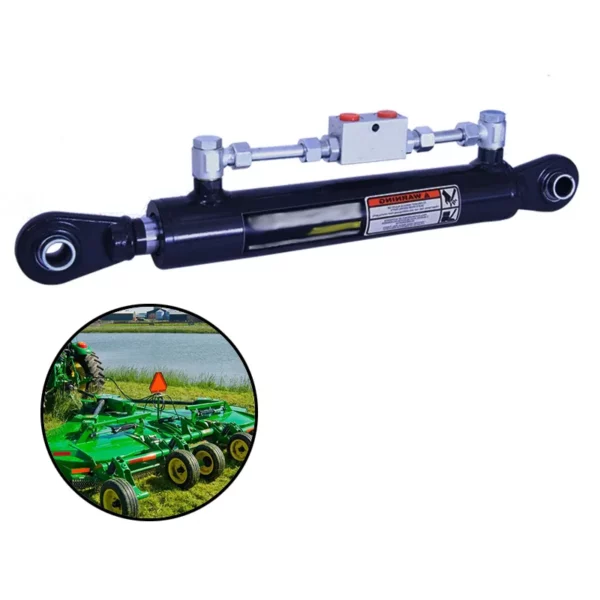

The hydraulic top link cylinder consists of a steel tube (cylinder body), a piston, and a rod. It connects to the tractor’s hydraulic system via hoses, which transfer pressurized hydraulic fluid into the cylinder. The operator uses the tractor’s hydraulic controls to move the piston within the cylinder. When hydraulic fluid is pumped into one side of the cylinder, it creates pressure that extends or retracts the rod. This motion adjusts the implement’s angle or tilt relative to the tractor.

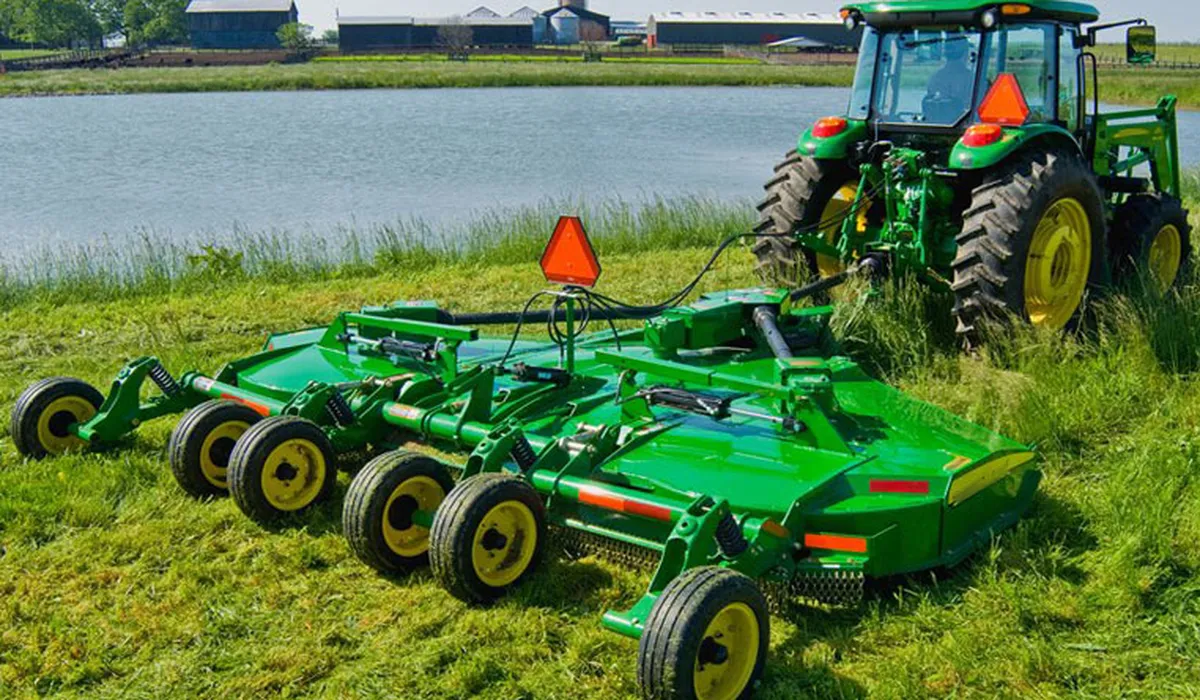

In the case of a rotary cutter, this adjustment allows the operator to raise or lower the front or rear of the cutter while in operation. For example, extending the cylinder can tilt the cutter down for a more aggressive cut, while retracting it can lift the cutter for a gentler or higher cut. This real-time adjustment is particularly useful on uneven terrain, where precise control ensures consistent cutting height and prevents scalping.
By eliminating manual adjustments, the top link cylinder enhances efficiency, adaptability, and operator convenience, making it a vital tool for modern agricultural and landscaping tasks.
