Cat 1 Tractor Top Link Hydraulic Cylinder for Rotary Tillers

A Cat 1 tractor top link hydraulic cylinder is a specialized component used in agricultural machinery, particularly with rotary tillers and other three-point hitch implements. It replaces the traditional manual top link with a hydraulic system, allowing the operator to adjust the angle and position of the implement from the tractor seat. This hydraulic cylinder connects to the top link point of the tractor’s three-point hitch and uses pressurized hydraulic fluid to extend or retract its length. This adjustment capability is crucial for ensuring proper tilling depth, leveling, and maintaining consistent soil contact.

A Cat 1 tractor top link hydraulic cylinder is a specialized component used in agricultural machinery, particularly with rotary tillers and other three-point hitch implements. It replaces the traditional manual top link with a hydraulic system, allowing the operator to adjust the angle and position of the implement from the tractor seat. This hydraulic cylinder connects to the top link point of the tractor's three-point hitch and uses pressurized hydraulic fluid to extend or retract its length. This adjustment capability is crucial for ensuring proper tilling depth, leveling, and maintaining consistent soil contact.

Ideal for small to medium-sized tractors (those with Cat 1 hitches), these hydraulic top link cylinders improve efficiency by enabling quick adjustments on uneven terrain or when working with varying soil conditions. They are built for durability, typically featuring high-strength steel construction and robust seals to withstand dirt, debris, and high-pressure environments.

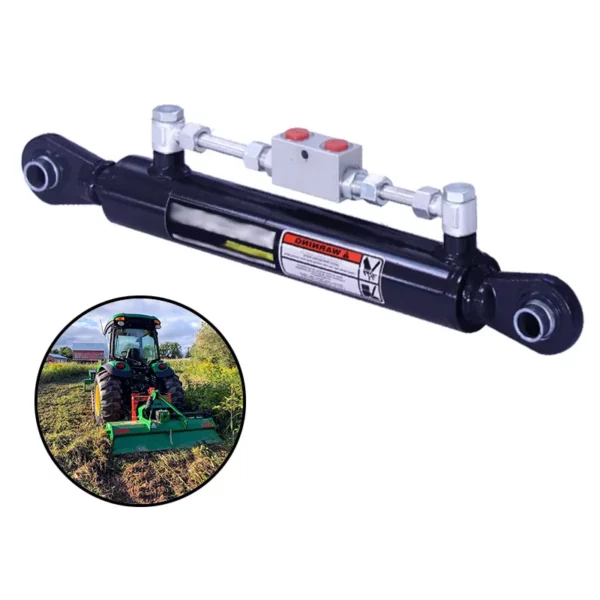

Top Link Hydraulic Cylinder for Rotary Tillers

Top Link Hydraulic Cylinder Cat 1 Dimensions

Cat 1 Top Link Hydraulic Cylinder Dimensions

Product Name:
Top Link Cylinder Cat 1
Bore Size:
2-6 inch
Rod Size:
1.125-4 inch
Stroke Size:
4-100 inch
Pin Size:
0.5-2 inch
Ports:
G/SAE/NPT/M
Action:
Double Acting
Max Pull:
20 ton
Max Thrust:
3000
Color:
Black
Body Material:
Steel
Weight (kg):
10

Advantages of Cat 1 Top Link Hydraulic Cylinder for Rotary Tiller

  1. Enhanced Adjustability and Control: The top link hydraulic cylinder allows precise, on-the-go adjustment of the rotary tiller's angle and depth. This ensures optimal soil penetration and leveling, even on uneven terrain, without requiring manual intervention or interruptions.
  2. Improved Efficiency and Productivity: By enabling easy adjustments from the tractor seat, operators can work faster and more efficiently. This minimizes downtime and reduces the overall time required for tilling, enhancing productivity in large and small fields alike.
  3. Reduced Operator Fatigue: Unlike manual top links, the hydraulic cylinder top link eliminates the need for physically adjusting the tiller. This significantly reduces strain on the operator, especially during long hours of operation or in challenging field conditions.
  4. Versatility in Soil and Terrain: The hydraulic top link cylinder’s adjustability makes it suitable for varying soil types and terrains. Whether tilling hard, compacted soil or softer, uneven ground, the hydraulic system ensures consistent performance and ideal implement positioning.
  5. Durability and Longevity: Built with high-strength materials like heavy-duty steel and equipped with robust seals, the top link cylinder withstands high pressure, dirt, and debris. This ensures a long operational lifespan, reducing the need for frequent replacements.
  6. Better Tillage Results: Proper angle and depth adjustments ensure consistent tilling, which improves soil aeration, weed management, and seedbed preparation. The top link cylinder Cat 1 enhances the overall quality of work, leading to better crop yields and healthier soil.

Cat 1 Top Link Hydraulic Cylinder

Selecting the Right Hydraulic Cylinder Top Link Cat 1

  1. Compatibility with Tractor and Implement: It is crucial to ensure the hydraulic cylinder top link is explicitly designed for Category 1 (Cat 1) hitches, which are standard for small to medium-sized tractors. The cylinder must be compatible with the specific tractor horsepower, three-point hitch dimensions, and the implement being used. Proper compatibility ensures seamless operation, adequate performance, and prevents damage to both the tractor and the hydraulic cylinder.
  2. Adjustable Length Range: The retracted and extended lengths of the tractor top link hydraulic cylinder should match the range of motion required for your rotary tiller or other implements. A properly sized cylinder ensures the ability to adjust the implement’s position effectively, allowing for precise control of depth and angle. This flexibility is essential for achieving optimal tilling and other agricultural tasks.
  3. Hydraulic Pressure Rating: The hydraulic top link cylinder Cat 1 must match the tractor’s hydraulic system pressure specifications. Incorrect pressure compatibility can lead to underperformance or even physical damage to the cylinder, hoses, or tractor. Selecting a cylinder rated for the appropriate PSI ensures efficient operation and prevents costly repairs or replacements.
  4. Build Quality and Durability: High-quality top link cylinders are constructed using heavy-duty materials, such as industrial-grade steel, and feature robust seals to prevent hydraulic fluid leaks. These durable components are essential for withstanding the challenging conditions of fieldwork, such as exposure to dirt, moisture, and high pressure. A well-built cylinder ensures long-term reliability and reduced maintenance costs.
  5. Ease of Installation and Maintenance: A good hydraulic top link cylinder should be easy to install with straightforward mounting points. Look for features such as grease fittings and replaceable seals, which simplify routine maintenance. These design elements reduce downtime and keep the cylinder operating efficiently, even under demanding agricultural conditions.

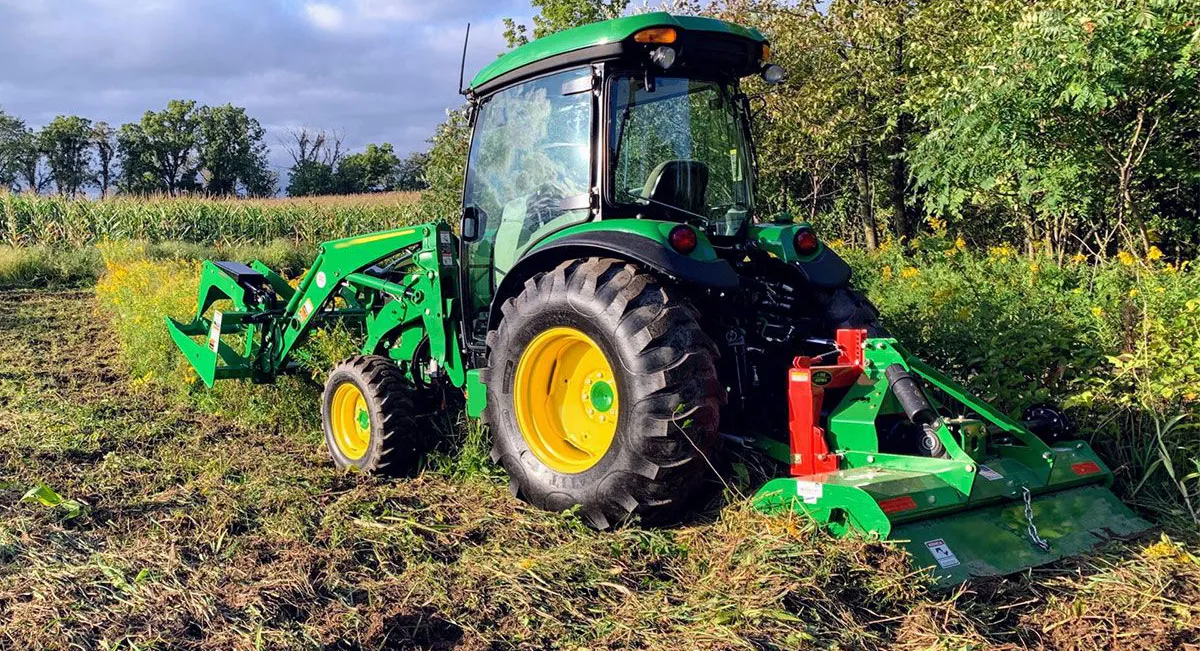

Top Link Hydraulic Cylinder for Rotary Tiller
