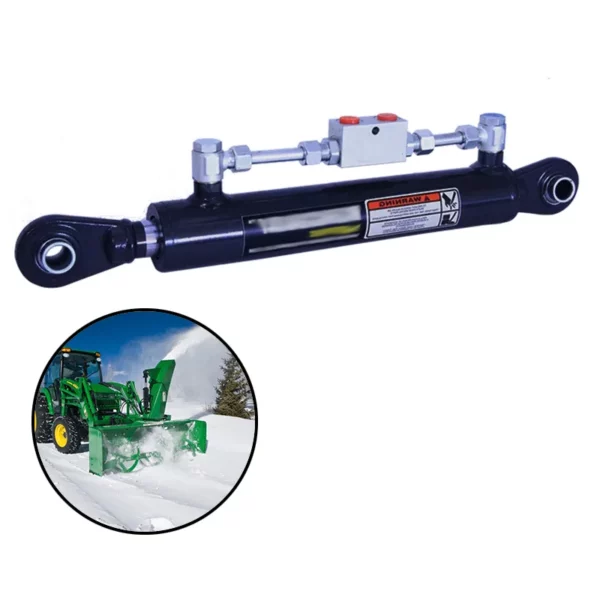

Cat 1 Tractor Top Link Hydraulic Cylinder for Snow Blowers
A Cat 1 tractor top link hydraulic cylinder is a specialized hydraulic component designed for use with snow blowers and other tractor-mounted implements. The hydraulic cylinder top link connects to the top link of the tractor’s 3-point hitch and is powered by the tractor’s hydraulic system. By adjusting the cylinder’s stroke, operators can tilt the snow blower forward or backward, optimizing the cutting edge’s contact with the ground. This ensures better efficiency in clearing snow, especially on uneven surfaces.
A Cat 1 tractor top link hydraulic cylinder is a specialized hydraulic component designed for use with snow blowers and other tractor-mounted implements. This top link cylinder replaces the traditional manual top link on a 3-point hitch system, allowing for precise and effortless adjustment of the snow blower's angle and height. It is particularly advantageous for operators who need to adapt quickly to varying terrain or snow conditions.
The hydraulic cylinder top link connects to the top link of the tractor’s 3-point hitch and is powered by the tractor’s hydraulic system. By adjusting the cylinder’s stroke, operators can tilt the snow blower forward or backward, optimizing the cutting edge's contact with the ground. This ensures better efficiency in clearing snow, especially on uneven surfaces.
Top Link Hydraulic Cylinder Cat 1 Dimensions
Product Name: | Top Link Cylinder Cat 1 |
Bore Size: | 2-6 inch |
Rod Size: | 1.125-4 inch |
Stroke Size: | 4-100 inch |
Pin Size: | 0.5-2 inch |
Ports: | G/SAE/NPT/M |
Action: | Double Acting |
Max Pull: | 20 ton |
Max Thrust: | 3000 |
Color: | Black |
Body Material: | Steel |
Weight (kg): | 10 |
Features of Cat 1 Top Link Hydraulic Cylinder for Snow Blower
- Double-Acting Hydraulic Operation: This top link hydraulic cylinder allows bidirectional movement, enabling precise control over the snow blower’s angle. Powered by the tractor’s hydraulic system, it provides smooth extension and retraction, with a typical operating pressure of up to 3,000 PSI for reliable performance in demanding snow removal tasks.
- Robust Construction: Built with a durable steel body and chrome-plated rod, the hydraulic cylinder top link resists corrosion and wear from harsh winter conditions. High-quality seals ensure leak-free operation, maintaining consistent performance even in sub-zero temperatures during heavy snow clearing.
- Category 1 Compatibility: Designed for tractors with a Cat 1 three-point hitch (20-55 HP), it features 3/4-inch pin holes for secure attachment. The hydraulic top link cylinder’s compact design ensures proper fitment, allowing seamless integration with standard snow blower attachments.
- Adjustable Stroke Length: With a typical 2-inch bore and 8-11 inch stroke, the cylinder extends from 18-21 inches retracted to 26-32 inches extended. This range enables precise tilt adjustments, optimizing snow blower positioning for efficient snow discharge.
- High Load Capacity: Offering up to 6,700 lbs of pushing force and 4,300 lbs of lifting capacity, the tractor top link hydraulic cylinder ensures robust performance. This strength supports heavy-duty snow blowers, maintaining stability during operation on uneven or icy terrain.
- Drift Prevention Mechanism: Equipped with double-piloted check valves, the top link cylinder locks securely in place, preventing unintended movement. This feature ensures the snow blower maintains its set angle, enhancing safety and control during continuous snow removal operations.
How Does the Hydraulic Cylinder Top Link for Snow Blower Work?

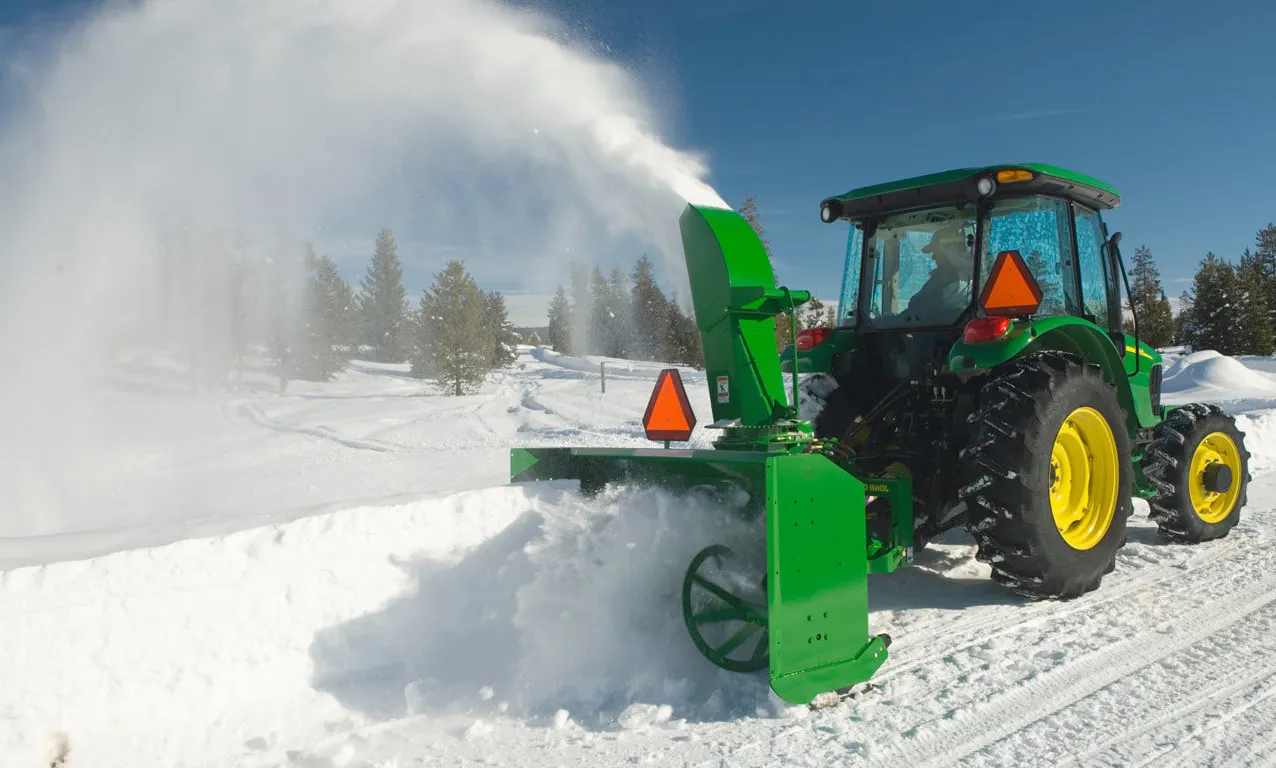

The hydraulic cylinder top link for snow blowers is an advanced attachment designed to replace manual top links on a tractor’s 3-point hitch system. It serves as a dynamic and adjustable connection between the tractor and the snow blower, allowing operators to precisely control the snow blower's position and angle without manual adjustments.
The top link cylinder operates by utilizing the tractor’s hydraulic system. Hydraulic hoses connect the cylinder to the tractor’s hydraulic ports. When the operator activates the hydraulic controls, pressurized fluid flows into the cylinder, either extending or retracting the piston rod. This movement adjusts the angle or tilt of the snow blower. For instance, extending the cylinder tilts the snow blower downward, allowing the cutting edge to dig deeper into the snow, while retracting it tilts the snow blower upward for lighter contact with the ground.
This functionality is especially useful when working on uneven or sloped terrain. Operators can make on-the-fly adjustments to maintain consistent performance, ensuring the snow blower clears snow efficiently and minimizes damage to surfaces like gravel or pavement. The tractor top link hydraulic cylinder also improves the operator's ability to adjust the implement for different snow depths or conditions, such as wet, heavy snow or light, fluffy snow.
Additionally, the hydraulic top link cylinder eliminates the need for manual adjustments, saving time and reducing physical strain. Its robust design ensures reliable operation in cold and harsh winter environments, making it a crucial tool for effective snow removal.
