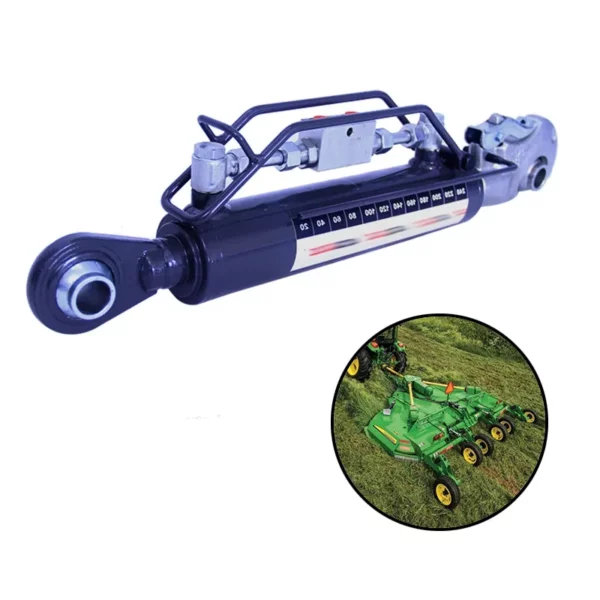

Cat 2 Tractor Top Link Hydraulic Cylinder for Rotary Cutters
The Cat 2 tractor top link hydraulic cylinder for rotary cutters is a specialized hydraulic component designed to enhance the functionality and adjustability of tractor-mounted implements, particularly rotary cutters. It replaces the traditional fixed-length mechanical top link that connects the tractor’s three-point hitch system to the implement. This hydraulic cylinder allows for precise, on-the-go adjustments of rotary cutter implement pitch and angle by extending or retracting its piston via hydraulic pressure.
The Cat 2 tractor top link hydraulic cylinder for rotary cutters is a specialized hydraulic component designed to enhance the functionality and adjustability of tractor-mounted implements, particularly rotary cutters. It replaces the traditional fixed-length mechanical top link that connects the tractor's three-point hitch system to the implement. This hydraulic cylinder allows for precise, on-the-go adjustments of rotary cutter implement pitch and angle by extending or retracting its piston via hydraulic pressure.
Constructed from heavy-duty steel, the hydraulic top link cylinder is engineered to handle the rigorous demands of agricultural work. Its robust design ensures durability and resistance to wear, even in challenging conditions like uneven terrains or heavy vegetation. This hydraulic cylinder top link enhances efficiency by allowing operators to easily adjust cutting angles for optimal performance, improve ground contact, and maintain uniform cutting heights.
Hydraulic Top Link Cylinder Cat 2 Dimensions
Product Name: | Top Link Cylinder Cat 2 |
Bore Size: | 2-6 inch |
Rod Size: | 1.125-4 inch |
Stroke Size: | 4-100 inch |
Pin Size: | 0.5-2 inch |
Ports: | G/SAE/NPT/M |
Action: | Double Acting |
Max Pull: | 20 ton |
Max Thrust: | 3000 |
Color: | Black |
Body Material: | Steel |
Weight (kg): | 25 |
Benefits of Cat 2 Top Link Hydraulic Cylinder for Rotary Cutters
- Enhanced Precision Control: The Cat 2 top link hydraulic cylinder allows operators to adjust the rotary cutter’s angle and height from the tractor's seat, providing precise control over cutting depth and tilt, improving efficiency and accuracy during mowing or terrain management tasks.
- Improved Operational Efficiency: By enabling on-the-fly adjustments without stopping, the hydraulic cylinder top link reduces downtime. Operators can quickly adapt the cutter’s position to varying terrain, streamlining tasks like clearing brush or maintaining fields, saving time and effort.
- Increased Implement Versatility: The top link cylinder's dynamic adjustability enhances the rotary cutter’s adaptability to diverse tasks, such as grading or cutting uneven surfaces. It accommodates different implements, making the tractor more versatile for agricultural or landscaping applications.
- Reduced Operator Fatigue: Remote hydraulic control eliminates the need for manual adjustments, reducing physical strain. Operators can make seamless changes via the tractor’s hydraulic system, enhancing comfort during long hours of operation and improving overall productivity.
- Enhanced Stability and Durability: Equipped with features like swivel ball connectors and chrome-plated rods, the cylinder ensures stable connections and resists wear. A locking block prevents drift, maintaining consistent performance under heavy loads and extending the equipment’s lifespan.
- Better Terrain Adaptability: The top link hydraulic cylinder allows real-time adjustments to match ground contours, ensuring even cutting on sloped or uneven terrain. This improves cut quality, reduces scalping, and protects the rotary cutter from excessive stress or damage.

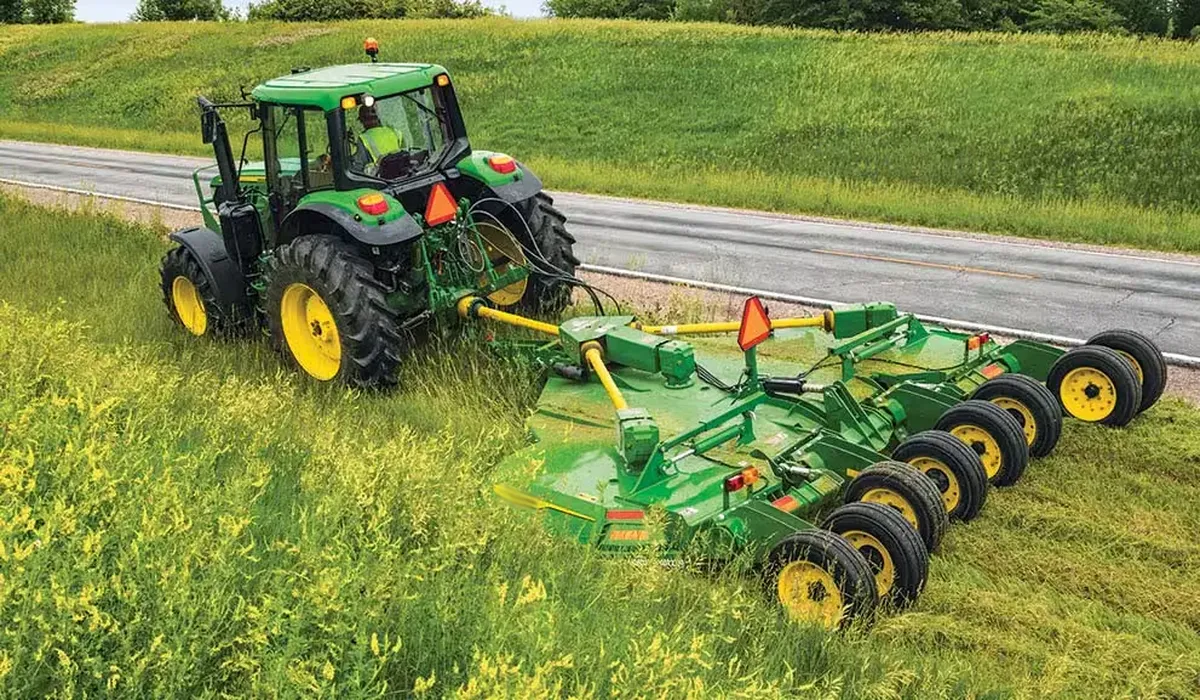

How Does the Hydraulic Cylinder Top Link for Rotary Cutter Work
The hydraulic cylinder top link for a rotary cutter works as an adjustable connection between the tractor's three-point hitch system and the rotary cutter, replacing the traditional fixed-length mechanical top link. This hydraulic component enables precise control over the implement's pitch and angle by utilizing hydraulic pressure to extend or retract its piston rod.
The system operates by connecting the top link hydraulic cylinder to the tractor's hydraulic system via hydraulic hoses. The tractor operator controls the cylinder using the tractor's onboard hydraulic controls, typically located within the cab. When hydraulic fluid is directed into one side of the cylinder, the piston rod extends, pushing the rotary cutter outward and tilting it forward. Conversely, when fluid is directed into the opposite side, the piston rod retracts, pulling the rotary cutter inward and tilting it backward.
This adjustability is critical for optimizing cutting performance. For instance, tilting the cutter forward can improve performance in dense or tall vegetation, while tilting it backward may be necessary for leveling uneven ground or avoiding obstacles. The hydraulic top link cylinder also allows operators to maintain consistent cutting heights across varied terrain, ensuring a uniform finish.
