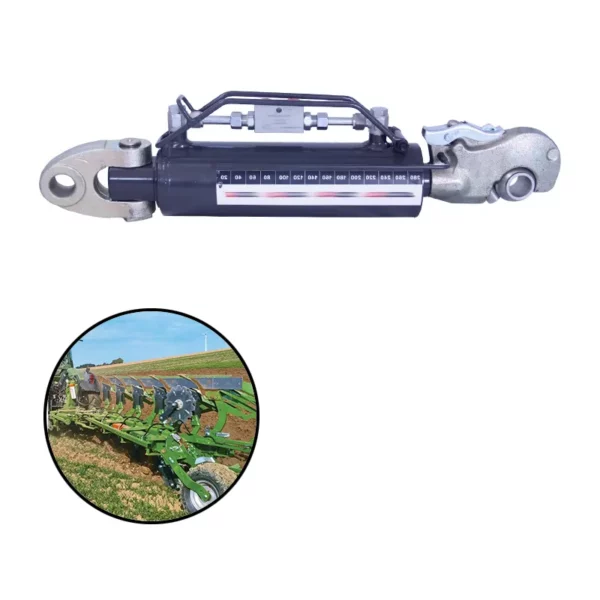

Cat 3 Tractor Top Link Hydraulic Cylinder for Furrow Ploughs

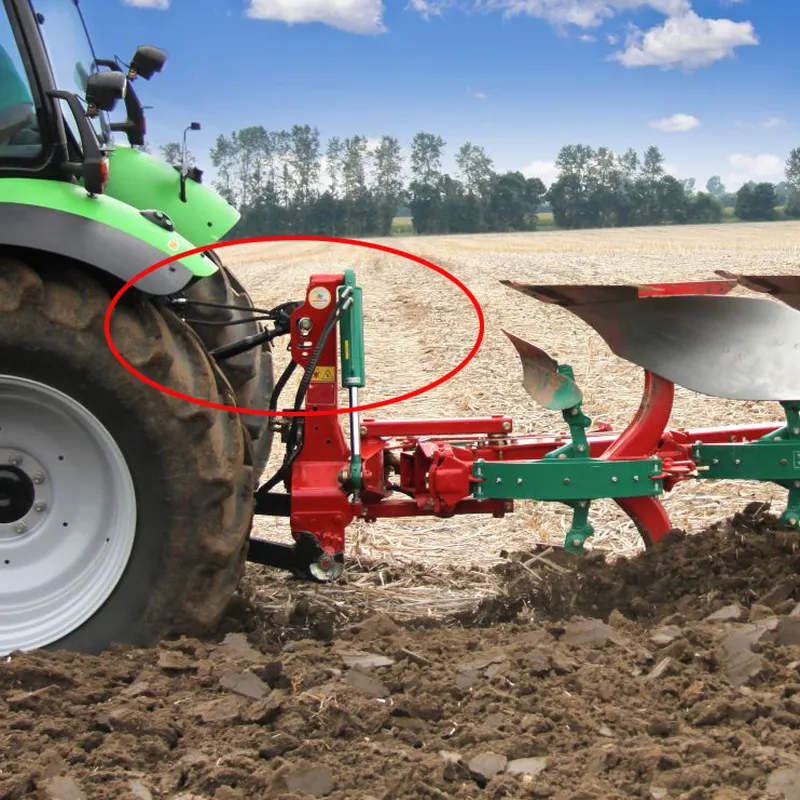

A Cat 3 tractor top link hydraulic cylinder is a versatile and essential hydraulic component used in furrow ploughs. It serves as the adjustable top link in a three-point hitch system, commonly found on Category 3 (Cat 3) tractors, which are designed for medium to heavy-duty tasks. This hydraulic cylinder top link replaces the standard fixed-length top link, allowing operators to adjust the angle and pitch of the attached implement, such as a furrow plough, in real-time from the tractor’s cab.
A Cat 3 tractor top link hydraulic cylinder is a versatile and essential hydraulic component used in furrow ploughs. It serves as the adjustable top link in a three-point hitch system, commonly found on Category 3 (Cat 3) tractors, which are designed for medium to heavy-duty tasks. This hydraulic cylinder top link replaces the standard fixed-length top link, allowing operators to adjust the angle and pitch of the attached implement, such as a furrow plough, in real-time from the tractor's cab.
With its hydraulic functionality, the hydraulic top link cylinder ensures precise control over plough depth, angle, and alignment, improving field efficiency and reducing the need for manual adjustments. It is especially useful on uneven terrains, where it helps maintain consistent soil penetration and furrow depth. Constructed from durable materials to handle high-pressure scenarios, the Cat 3 hydraulic top link enhances productivity, ensures operator convenience, and minimizes wear on both the tractor and the implement.
Hydraulic Top Link Cylinder Cat 3 Dimensions
Product Name: | Top Link Cylinder Cat 3 |
Bore Size: | 2-6 inch |
Rod Size: | 1.125-4 inch |
Stroke Size: | 4-100 inch |
Pin Size: | 0.5-2 inch |
Ports: | G/SAE/NPT/M |
Action: | Double Acting |
Max Pull: | 20 ton |
Max Thrust: | 3000 |
Color: | Black |
Body Material: | Steel |
Weight (kg): | 30 |
Advantages of Cat 3 Top Link Hydraulic Cylinder for Furrow Ploughs
- Enhanced Precision in Implement Control: The Cat 3 top link hydraulic cylinder allows precise adjustments of the furrow plough’s angle and depth from the tractor cab, ensuring optimal soil penetration and consistent furrow formation, improving crop yield and reducing operator fatigue.
- Increased Operational Efficiency: By enabling on-the-go adjustments without stopping the tractor, the hydraulic cylinder top link saves time during field operations. This seamless control enhances productivity, allowing farmers to cover larger areas faster while maintaining uniform plowing results.
- Improved Durability and Reliability: Constructed from high-grade steel with chrome-plated rods, Cat 3 hydraulic top link cylinders resist corrosion and wear. Their robust design ensures long-term performance under heavy loads, reducing maintenance costs and downtime in demanding agricultural environments.
- Versatility Across Tractor Models: Designed for Category 3 hitches, these top link cylinders are compatible with tractors in the 45–95 horsepower range. This adaptability makes them suitable for various furrow plough sizes and soil conditions, enhancing equipment flexibility.
- Enhanced Safety and Stability: Equipped with anti-creep valves, the top link hydraulic cylinder maintains stable implement positioning, preventing unintended movements during operation. This feature ensures safer handling, especially on uneven terrain, reducing the risk of equipment damage or accidents.
- Reduced Physical Strain for Operators: The ability to adjust the plough hydraulically eliminates the need for manual adjustments, reducing physical effort and strain. This ergonomic benefit allows operators to focus on driving, improving comfort during long hours of fieldwork.
Choose the Right Hydraulic Top Link Cylinder for Furrow Ploughs
- Match the Cylinder to Your Tractor Category: Ensure the hydraulic cylinder top link matches your tractor’s category (e.g., Cat 3 for medium to heavy-duty tractors). Using a mismatched cylinder may result in improper fitment, reduced efficiency, or even damage to the tractor or implement.
- Determine the Required Stroke Length: The stroke length determines the range of adjustment for the plough’s angle and depth. Select a top link hydraulic cylinder with an appropriate stroke length to handle the specific requirements of your furrow plough and ensure precise operational control.
- Consider the Hydraulic Pressure Rating: Check that the top link cylinder’s hydraulic pressure rating is compatible with your tractor’s hydraulic system. A cylinder with a lower pressure rating may fail under heavy loads, while an excessively high rating could be unnecessary for your setup.
- Select the Right End Fittings: The end fittings of the hydraulic cylinder top link should match the attachment points on both the tractor and the furrow plough. Properly sized and compatible fittings ensure secure installation and smooth operation, reducing the risk of equipment failure.
- Choose Durable Materials and Construction: Opt for a hydraulic top link cylinder made from high-quality, durable materials such as heavy-duty steel. This ensures the cylinder can withstand heavy loads, harsh weather conditions, and extended use, making it a reliable choice for farming operations.
