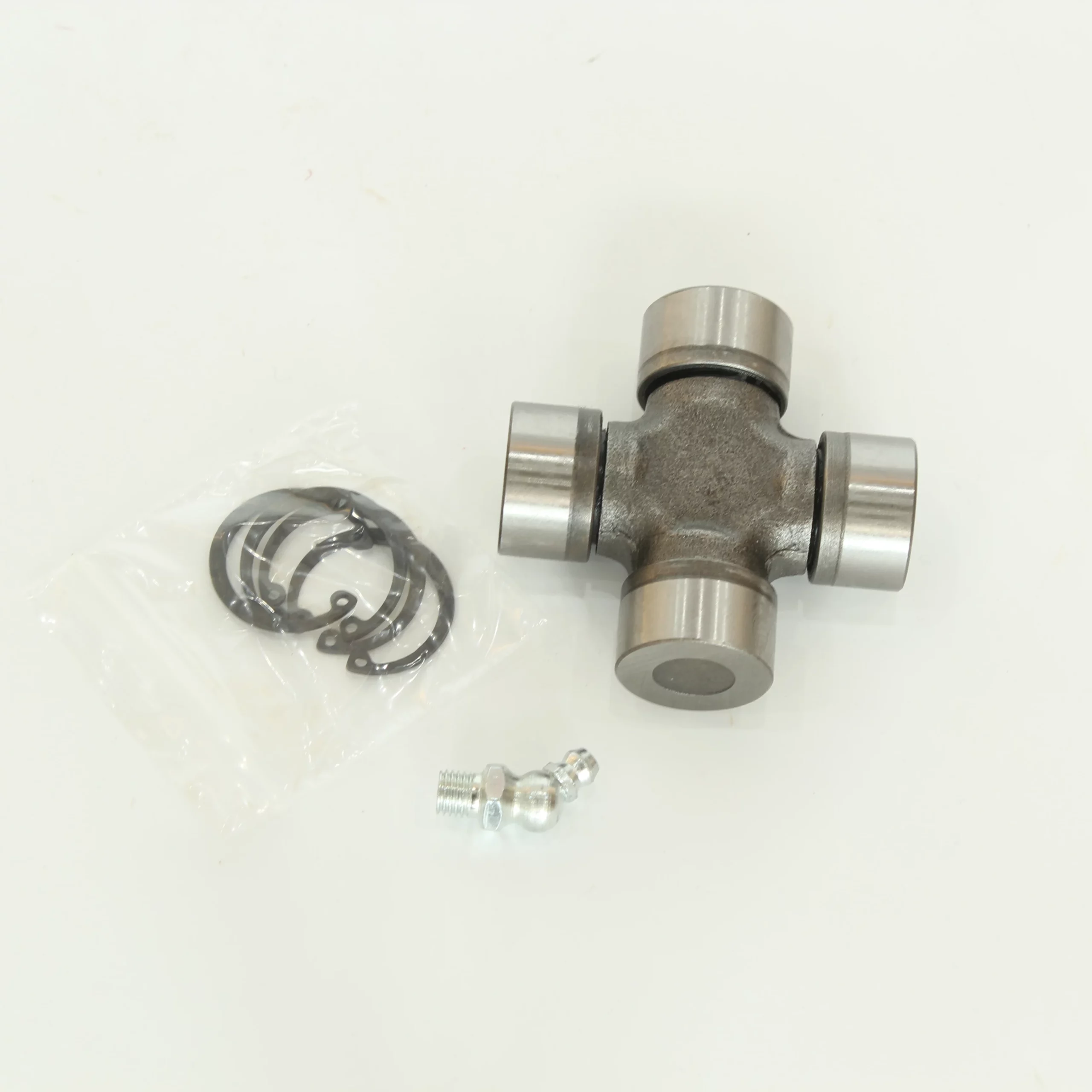

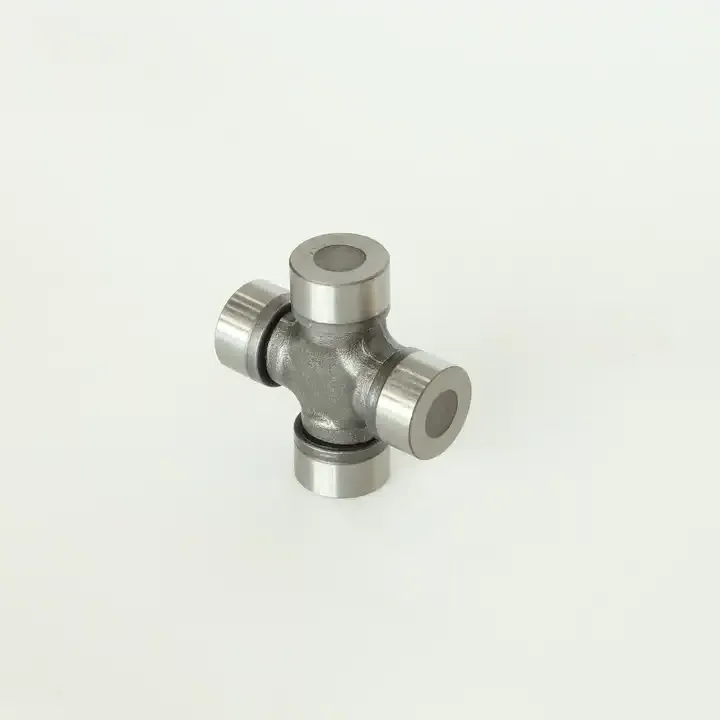

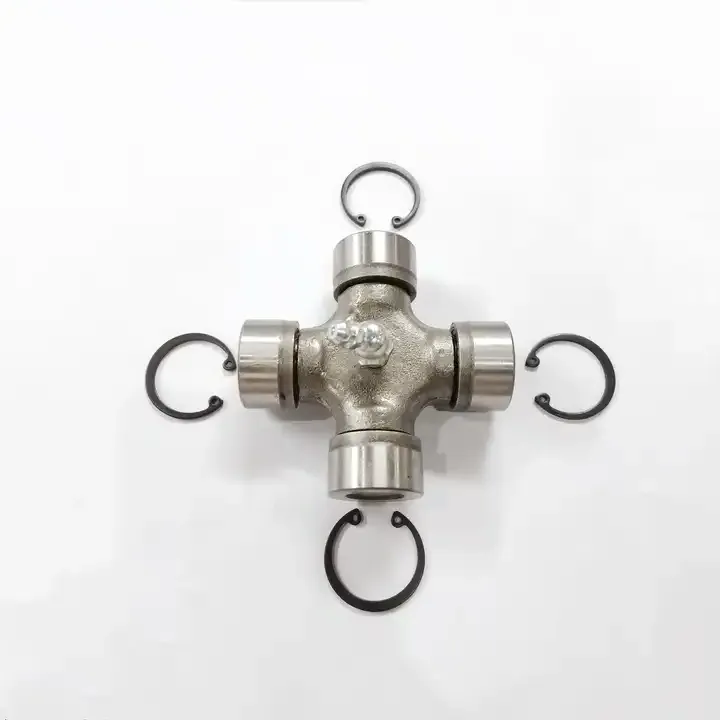

Customized Size Silver Universal Joint Cross Kit for Power Transmission Parts

Introducing the custom-sized Silver Universal Joint Cross Kit for Power Transmission Parts, a high-quality product manufactured by AGKNX. This kit is designed for various industries including manufacturing plants, machinery repair shops, farms, retail, construction works, food & beverage shops, among others. Made from durable GCr15 material, the Universal Joint Cross Kit 27*70 is a single structure, warrantied for one year, and comes packaged in a single box for protection during shipping.

Features of the Universal Joint Cross Kit

Here are five key features of this product:

• High Quality: Made from GCr15 material, this Universal Joint Cross Kit offers excellent durability and performance.
• Customizable Size: This product is available in custom sizes to perfectly fit your power transmission parts.
• Silver Color: The Universal Joint Cross Kit is silver in color, adding an aesthetic appeal to its functionality.
• Lubrication: The product is lubricated with oil grease for smooth operation and extended lifespan.
• Applicable in Various Industries: This product is widely used in manufacturing plants, machinery repair shops, farms, retail, construction works, food & beverage shops, among others.

We have the capability to produce this Universal Joint Cross Kit. Our product is a perfect replacement for corresponding parts that are damaged on PTO shaft parts.

Applications of the Universal Joint Cross Kit

The Universal Joint Cross Kit has a wide range of applications. Here are five key areas where it is used:

• Power Transmission: The Universal Joint Cross Kit is primarily used in power transmission parts.
• Machinery Repair Shops: It's commonly used in machinery repair shops where there's a need for replacement parts.
• Farms: This product is used in various farm equipment for efficient power transmission.
• Retail: The kit is also sold in retail stores that deal with power transmission parts.
• Food & Beverage Shops: Food processing equipment in food & beverage shops often use this Universal Joint Cross Kit for power transmission.

PTO Shaft U Joint Replacement Steps

Replacing a universal joint (U-joint) in a PTO shaft involves several steps. Here's a step-by-step guide:

1. Safety First: Ensure that the PTO shaft is completely disconnected from the power source and that the equipment is securely immobilized or supported to prevent accidental movement.
2. Access the U-Joint: Locate the U-joint on the PTO shaft. It is usually situated at the end of the shaft, connected to the driven equipment or implement. Depending on the design, you may need to remove a retaining cap or circlip to access the U-joint.
3. Remove Retaining Hardware: If there are any retaining clips, circlips, or snap rings securing the U-joint to the yoke, carefully remove them using appropriate tools such as pliers or snap ring pliers. Take note of the orientation of any washers or spacers for reassembly later.
4. Separate the Yokes: Gently tap or pry the yokes apart to disconnect the U-joint from the PTO shaft. Be cautious not to damage the yokes or the shaft during this process. If the joint is stubborn, applying penetrating oil or using a suitable press tool may help.
5. Remove the Old U-Joint: Once the yokes are separated, remove the old U-joint from the yokes. This may require pressing out the bearings or using a suitable U-joint removal tool. Take note of the joint's orientation to ensure proper alignment during installation.
6. Prepare the New U-Joint: Ensure you have the correct replacement U-joint that matches the specifications of the original joint. Grease the new U-joint and its bearings according to manufacturer recommendations.



7. Install the New U-joint: Insert the new U-joint into one of the yokes, making sure it aligns correctly with the crosspiece and bearing seats. Carefully align the other yoke with the U-joint and slide the yokes together until they fully engage.
8. Reinstall Retaining Hardware: Securely fasten the U-joint to the yokes using the appropriate retaining clips, circlips, or snap rings. Ensure that the retaining hardware is installed correctly and provides a secure fit.
9. Check for Smooth Operation: Rotate the U-joint by hand to verify smooth movement and proper alignment. Ensure that there is no binding, excessive play, or interference between the yokes and the U-joint.

How to Put U Joint on PTO Shaft?

To install a universal joint (U-joint) on a power take-off (PTO) shaft, follow these steps:

1. Prepare the U-Joint: Make sure you have the correct replacement U-joint that matches the specifications of the original joint. Grease the U-joint and its bearings according to the manufacturer's recommendations.
2. Align the Yokes: Position the yokes of the PTO shaft in a way that allows easy access to install the U-joint. Ensure that the yokes are aligned properly and in a straight line.
3. Insert the U-Joint: Take one of the yokes and align it with the U-joint. Insert the U-joint's crosspiece into the yoke's bearing seats. Ensure that the U-joint fits securely and aligns properly with the yoke.
4. Align the Second Yoke: Align the second yoke with the other side of the U-joint. Carefully slide the yoke onto the U-joint's crosspiece, making sure it engages with the bearing seats. Ensure that both yokes are aligned with the U-joint and fit snugly.
5. Check Alignment: Verify that the U-joint is properly aligned and centered between the two yokes. Ensure that the bearings are seated correctly and that there is no binding or interference between the U-joint and the yokes.
6. Install Retaining Hardware: Securely fasten the U-joint to the yokes using the appropriate retaining clips, circlips, or snap rings. Follow the manufacturer's instructions for the specific type of retaining hardware used in your PTO shaft. Make sure the retaining hardware is properly installed and provides a secure fit.
7. Check Movement: Rotate the U-joint by hand to ensure smooth movement and proper alignment. Verify that there is no binding, excessive play, or interference between the U-joint and the yokes. The U-joint should rotate freely without any obstruction.

Maintenance and Care of the Universal Joint Cross Kit

Proper maintenance of universal joints in PTO shafts is crucial to ensure their longevity and reliable operation. Here are some maintenance steps to consider:

1. Regular Inspection: Perform regular visual inspections of the universal joints. Look for signs of wear, damage, or loose components such as worn bearings, rust, or cracks. Pay attention to any vibrations, noise, or unusual movement during operation, as these can indicate potential issues.
2. Lubrication: Adequate lubrication is vital for the smooth operation of universal joints. Follow the manufacturer's recommendations for the type of lubricant and the frequency of lubrication. Apply grease or lubricant to the bearings and crosspiece to reduce friction and prevent premature wear.
3. Cleanliness: Keep the universal joints and the surrounding area clean and free from debris, dirt, and contaminants. Regularly remove any buildup of dirt or grime that may affect the performance of the joints.
4. Retaining Hardware Inspection: Check the retaining clips, circlips, or snap rings that secure the U-joint to the yokes. Ensure that they are in good condition and properly seated. Replace any damaged or worn retaining hardware as necessary.
5. Torque Check: Periodically check the torque of the fasteners that hold the universal joint and yokes together. Loose fasteners can lead to misalignment and premature wear. Follow the manufacturer's recommended torque specifications during reassembly.
6. Alignment: Verify that the universal joint and the yokes are properly aligned. Misalignment can cause excessive stress on the joint and result in premature failure. Adjust and align the PTO shaft and driven equipment as needed.
7. Replace Worn or Damaged Joints: If you notice significant wear, damage, or play in the universal joint during inspection, it is advisable to replace it promptly. Continuing to use a worn or damaged joint can lead to failure and potential damage to other components.

Why Choose AGKNX's PTO Shaft U Joints?

AGKNX Drive Shaft Co., Ltd., located in Hangzhou Zhejiang City, is a reputable manufacturer of PTO shafts and related components. With over 12,000 m2 of space and a team of over 100 dedicated staff, we specialize in developing, manufacturing, and marketing PTO shafts, agricultural gearboxes, industrial cardan shafts, car driveshafts, u-joint coupling shafts, PTO shaft accessories, PTO shaft tubes, torque limiters, PTO shaft yokes, and PTO shaft universal joints, among other products.

Our products have earned a great reputation from customers all over the world, including regions like Europe, America, Asia, Australia, and North America. As a top professional OEM supplier for many agricultural implement factories in the domestic market, we consistently adhere to our principles of delivering high-quality products quickly and at competitive prices.

We have earned the CE, TS/16949, and ISO9001 certificates, and we utilize systematic manufacturing equipment and a dedicated QC team to ensure the quality and timely delivery of our products. We warmly welcome every friend to visit us and establish a mutually beneficial long-term relationship cooperation. With an annual turnover of 60 million RMB, 9 Million Dollars, we're growing year by year, and our aim is to become a global company in the fields we work.

Professionalism, Certifications, and Services

At AGKNX Drive Shaft Co., Ltd., our professionalism is reflected in the quality of our products, our customer service, and our commitment to continuous improvement. Our international certifications, including CE, TS/16949, and ISO9001, are a testament to our commitment to quality and customer satisfaction.

We offer customized services to meet the specific needs of our customers. Our production facilities are equipped with advanced equipment and technologies to ensure the highest quality of our products. We also offer exceptional after-sales services to support our customers throughout the product lifecycle. Our team of experts is always ready to provide technical support and professional advice to help our customers make the most of our products.
